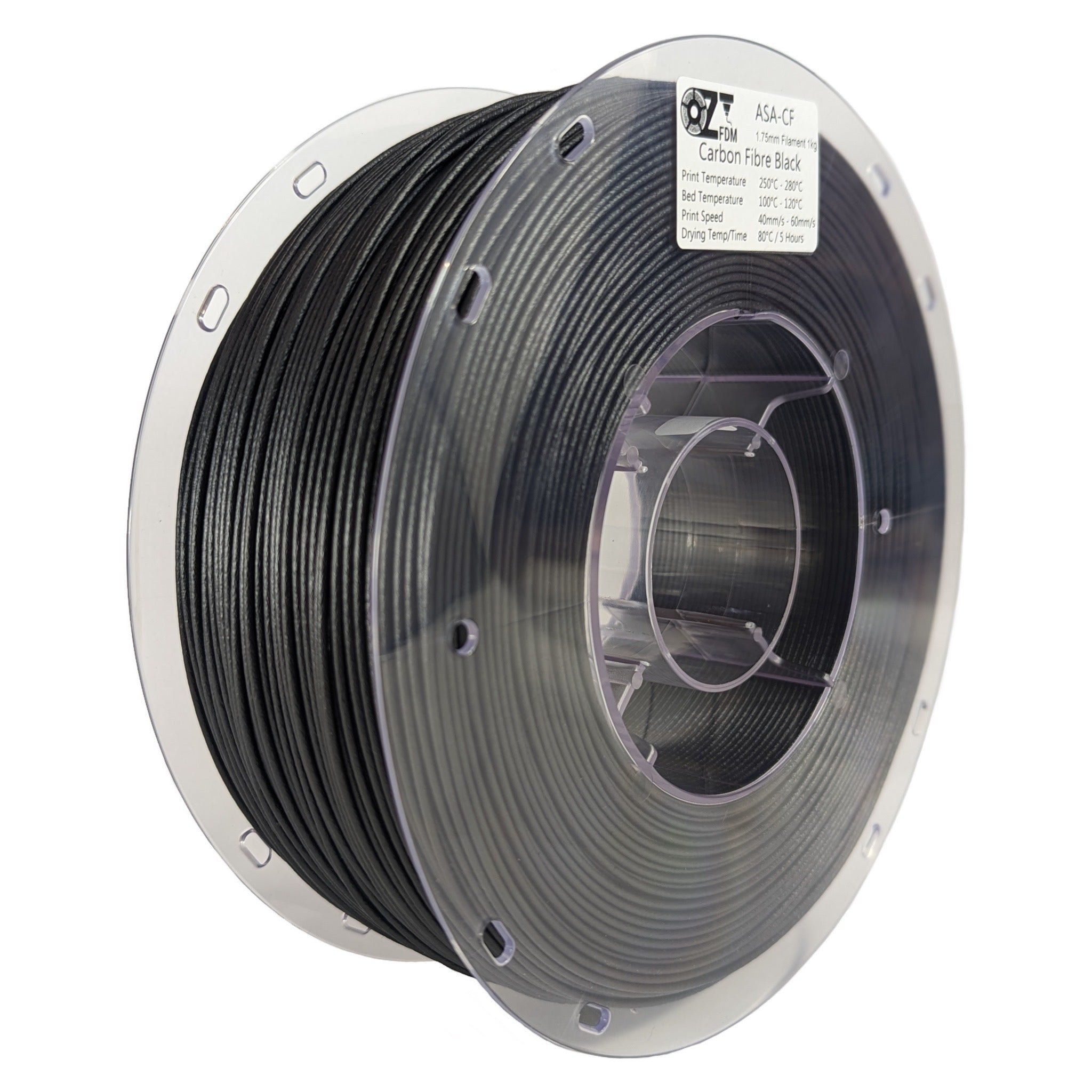

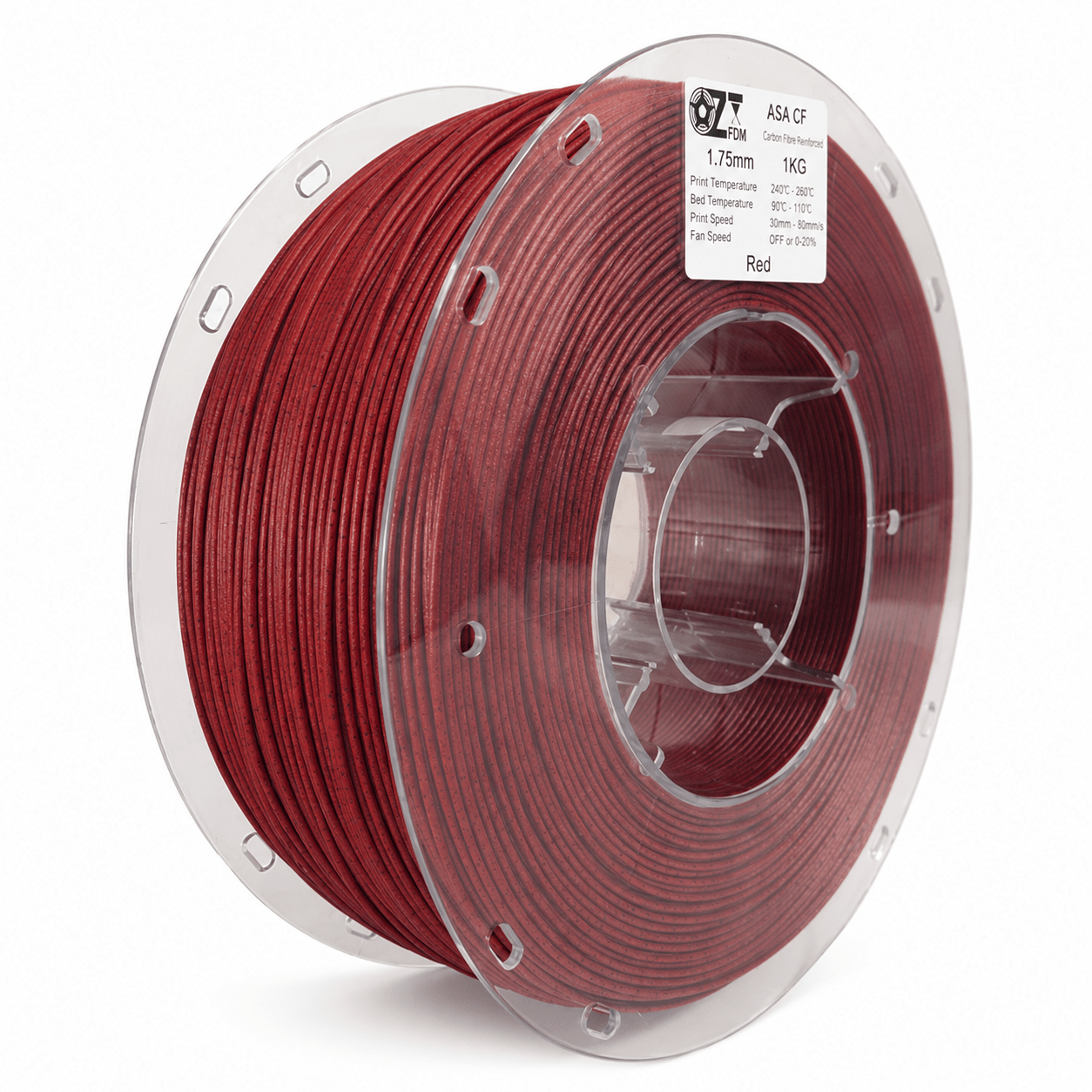

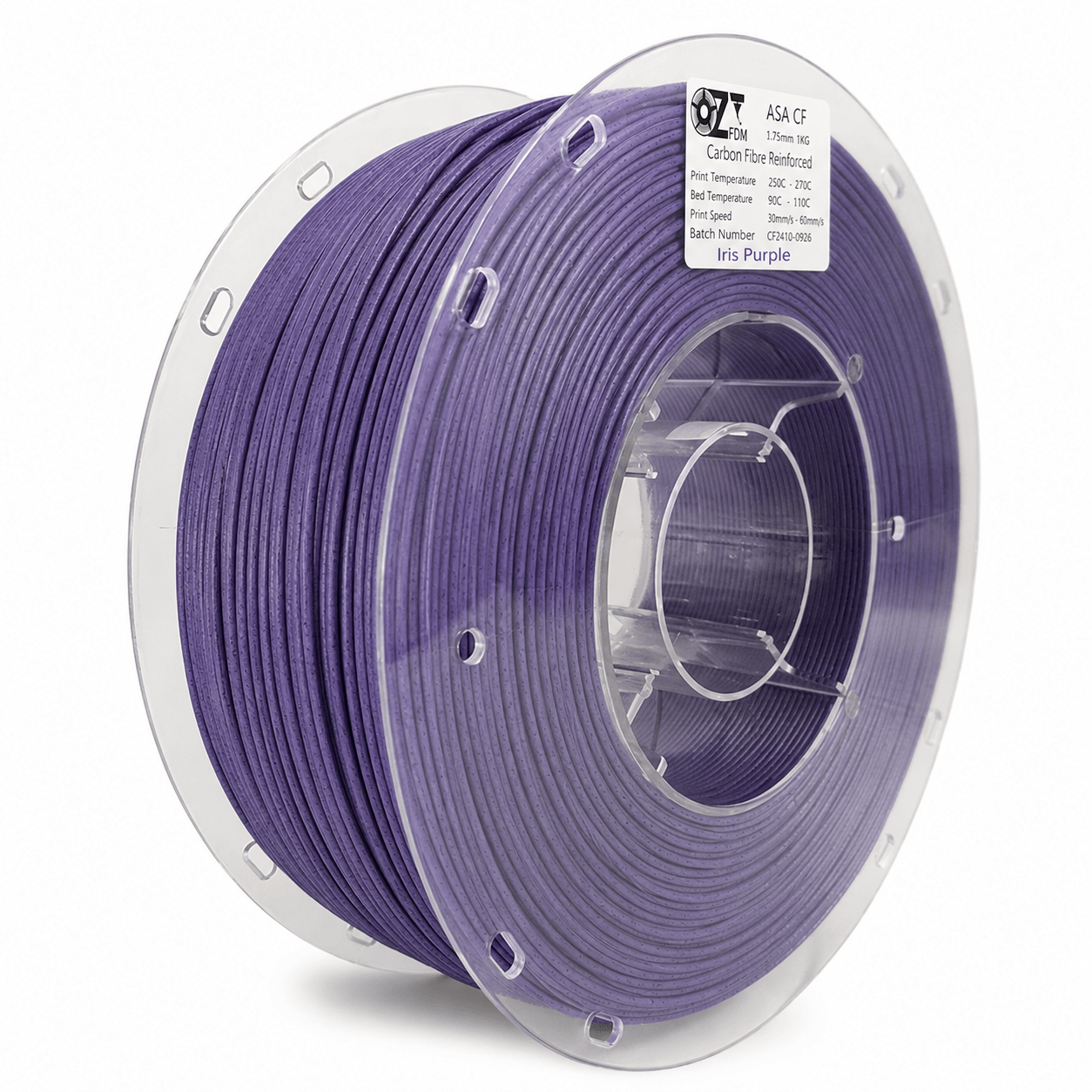

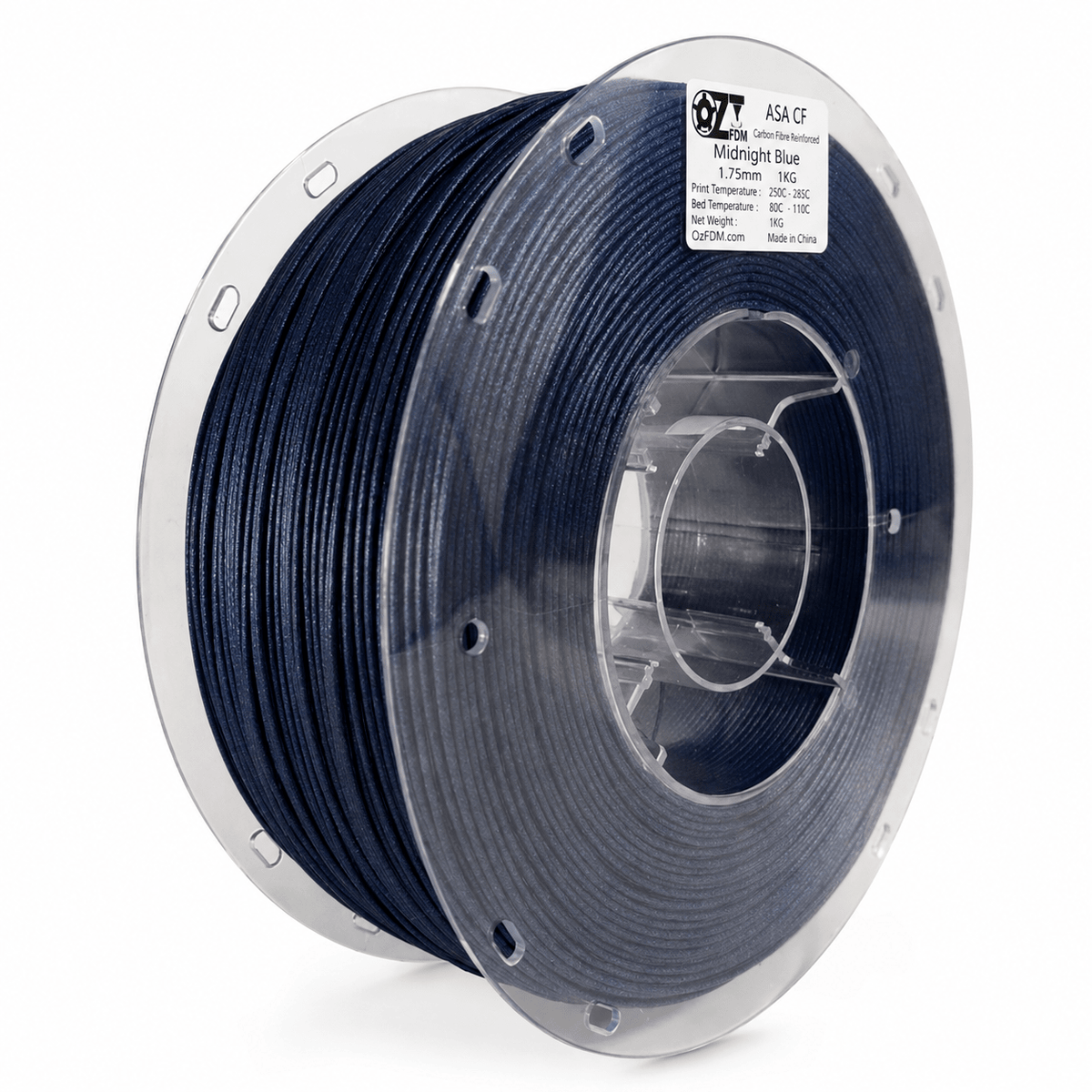

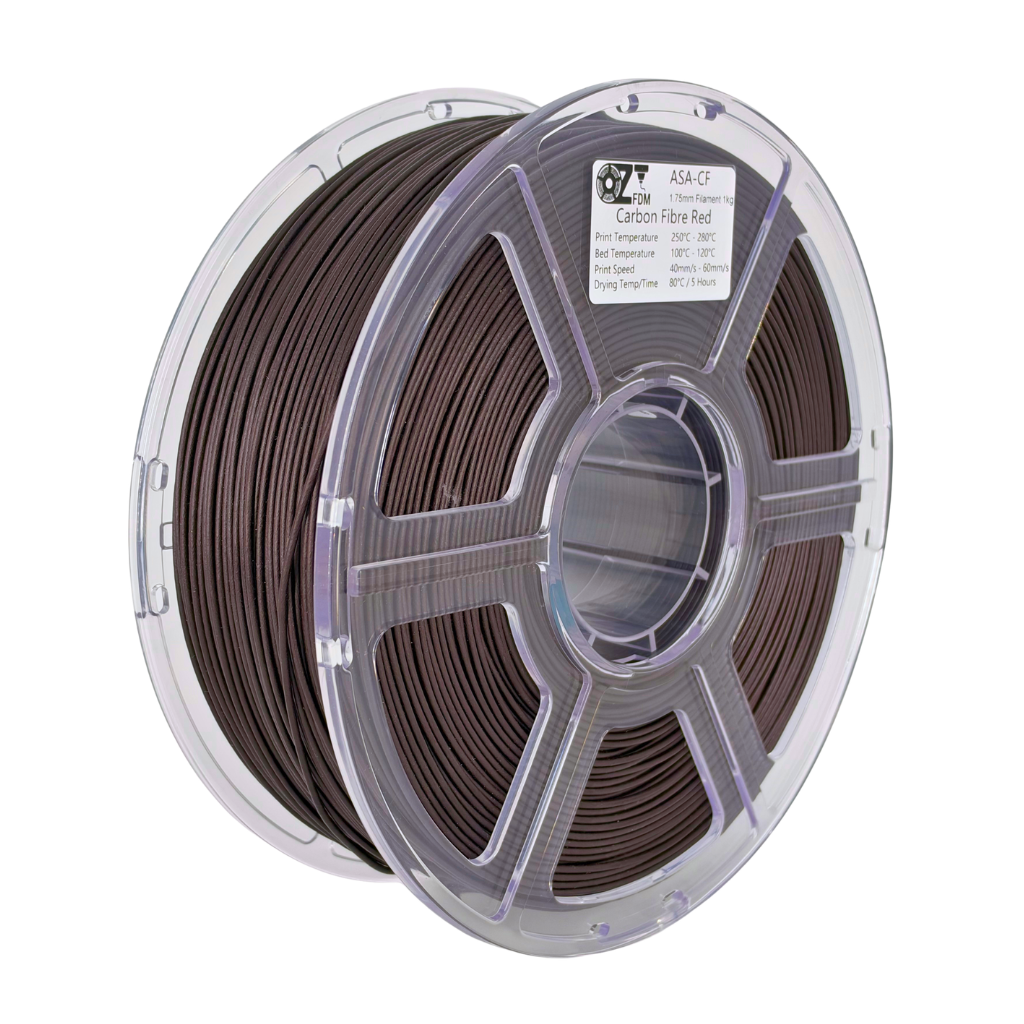

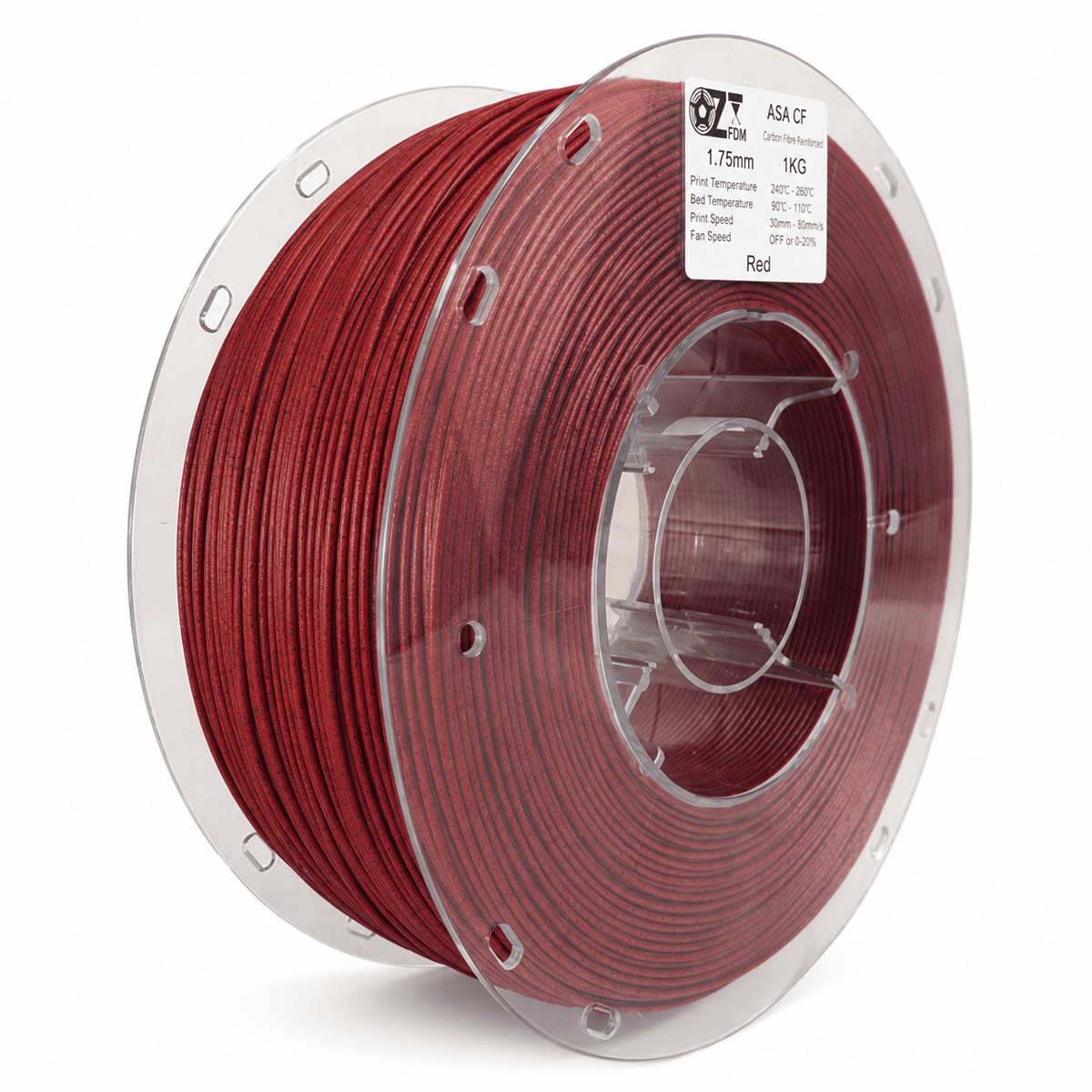

OzFDM ASA-CF 3D Printing Filament 1.75mm 1KG
Tax included. Shipping calculated at checkout
Product Features
- Extraordinary UV Resistance
- Exceptional Temperature Resistance
- High Impact Strength and Durability
- Higher Rigidity than standard ASA
- Outdoor Use for Long-Term Purpose
- Diameter: 1.75mm +/- 0.05mm
Choose options
Oz FDM ASA-CF filament is an advanced 3D printing material, offering superior strength and resistance due to its carbon fibre reinforcement. This 1.75mm filament has a diameter tolerance of ± 0.05mm, and comes in a 1KG spool for long-term use. It's the perfect choice for engineering, automotive, and other industrial applications. In addition to being reinforced with carbon fibre, ASA is also UV resistant, making it the preferred choice for outdoor projects.
Product specifications:
Filament weight | 1KG |
Filament diameter | 1.75mm |
Dimensional tolerance | ±0.05mm |
Spool weight (empty) | 150g |
Spool weight (new) | 1.15KG |
Spool diameter outer | 200mm |
Spool diameter inner (hub) | 52mm |
Spool width | 65mm |
Package weight | 1.3KG |
Package dimensions | 210mm x 210mm x 75mm |
Print parameters:
Nozzle temperature | 250°C - 280°C (270°C recommended) |
Bed temperature | 100°C - 120°C (110°C recommended) |
Printing speed | 40mm/s - 60mm/s (50mm/s recommended) |
Support material | ASA-CF (self support) / HIPS |
Physical Properties:
Density | ISO 1183 | 1.09~1.10 g/cm3 |
MFR(250°C/2.16Kg) | ISO 1133 | 4~7 g/10min |
Moisture Absorbtion(23°C/24h) | ISO 62 | <0.5 % |
Mechanical Properties:
Tensile Strength | ISO 527 | 39~42 Mpa |
Elongation at Break | ISO 527 | 15.5~17.5 % |
Flexural Modulus | ISO 527 | 850~900 Mpa |
Flexural Strength | ISO 178 | 80~82.5 Mpa |
Impact Strength | ISO 180 | 10.5~12 KJ/m² |
Thermodynamic Properties:
HDT @ 0.455 Mpa(66 psi) | ISO 75 | 88 °C |
Continuous Use Temperature | IEC 60216 | 85 °C |
Drying recommendation:
80°C for a minimum of 5 hours using a filament dryer / food dehydrator.
Storage recommendation:
Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
