Maintenance Tools

Everything for nozzle cleaning and routine printer upkeep, from cleaning needles in 0.2 to 1.0mm sizes and a brass wire brush to a PTFE tube cutter and microfibre rope, for makers who want fewer clogs and failed prints.

Nozzle cleaning and printer maintenance basics

When prints start coming out thin, patchy or with gaps between lines, a partly blocked nozzle is one of the first things to check. Filament that stops flowing mid print is often the same problem at a later stage. Burnt residue on the outside of the nozzle causes different symptoms, dragging blobs and dark marks across the surface. A few inexpensive tools deal with both, along with the tube and lead screw upkeep that keeps a printer moving smoothly.

3D printer maintenance tools and the problems they solve

Tool	Fixes	Good to know
Nozzle Cleaning Needles	Partial or full clogs inside the nozzle	Packs of 10 in 0.2, 0.3, 0.4, 0.5, 0.6, 0.8 and 1.0mm
Brass Wire Cleaning Brush	Stubborn residue on the outside of the nozzle	Brass bristles with a plastic handle
Nozzle Care Kit	Both of the above for the three most common nozzle sizes	10 needles each in 0.2, 0.4 and 0.6mm, plus the brush
PTFE Tube cutter	Angled or crushed tube ends	Spring loaded, makes perpendicular cuts
Microfibre Rope - Pack of 5	Dirt, grease and grime in lead screw threads	Five lengths of roughly 45cm

How to use nozzle cleaning needles and a brass brush

Clearing a clog

Heat the nozzle to the printing temperature of the filament you last used.
Pick the needle that matches your nozzle, so 0.4mm for a 0.4mm nozzle.
Insert it from below and move it in and out a few times to break up the blockage. Never force it.
Push some filament through by hand or with the extrude function to flush the loosened material out.
Run a short test print and repeat if the extrusion is still thin.

If a clog keeps coming back, our guide to cleaning a clogged nozzle walks through the deeper fixes.

Brushing off residue

Set the nozzle to just below the last printing temperature so the residue softens, then work the brass brush over the outside of the nozzle. A heated nozzle can cause serious burns: keep your fingers clear of the heater block, wear eye protection because hot residue can flick a surprising distance, and never walk away from a printer while it is heating for cleaning.

Why a square PTFE cut matters

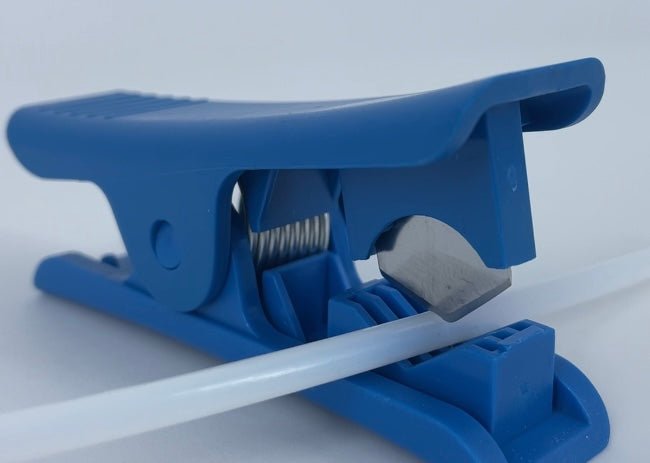

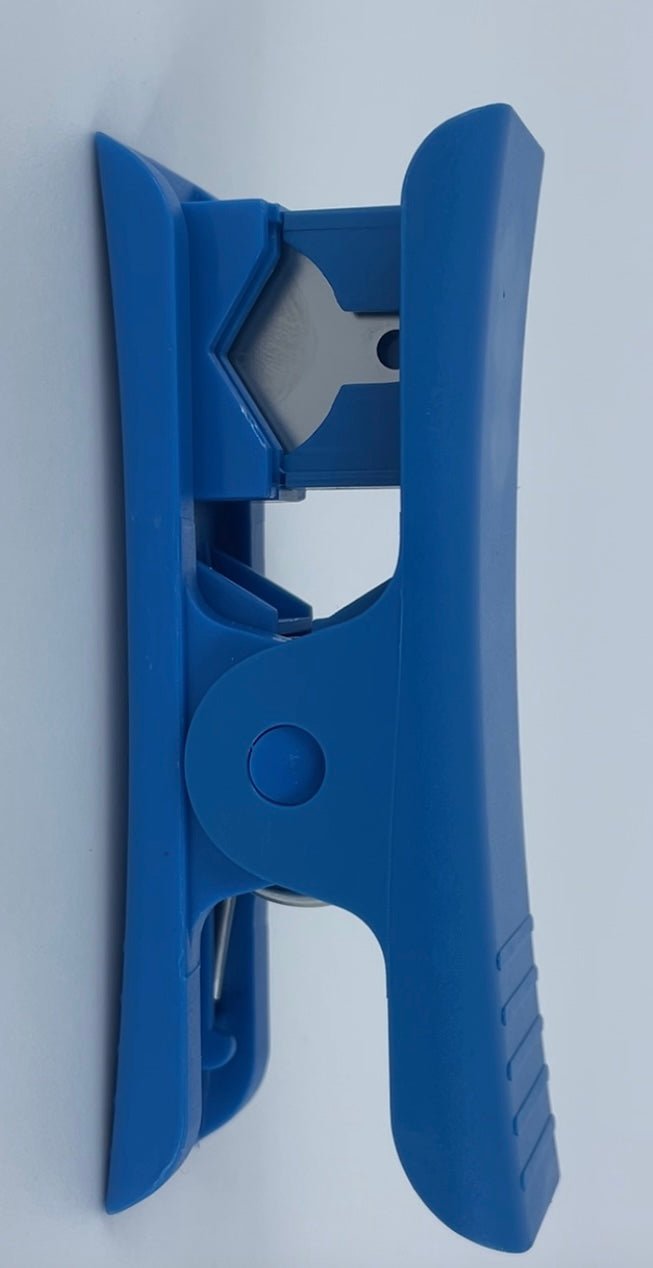

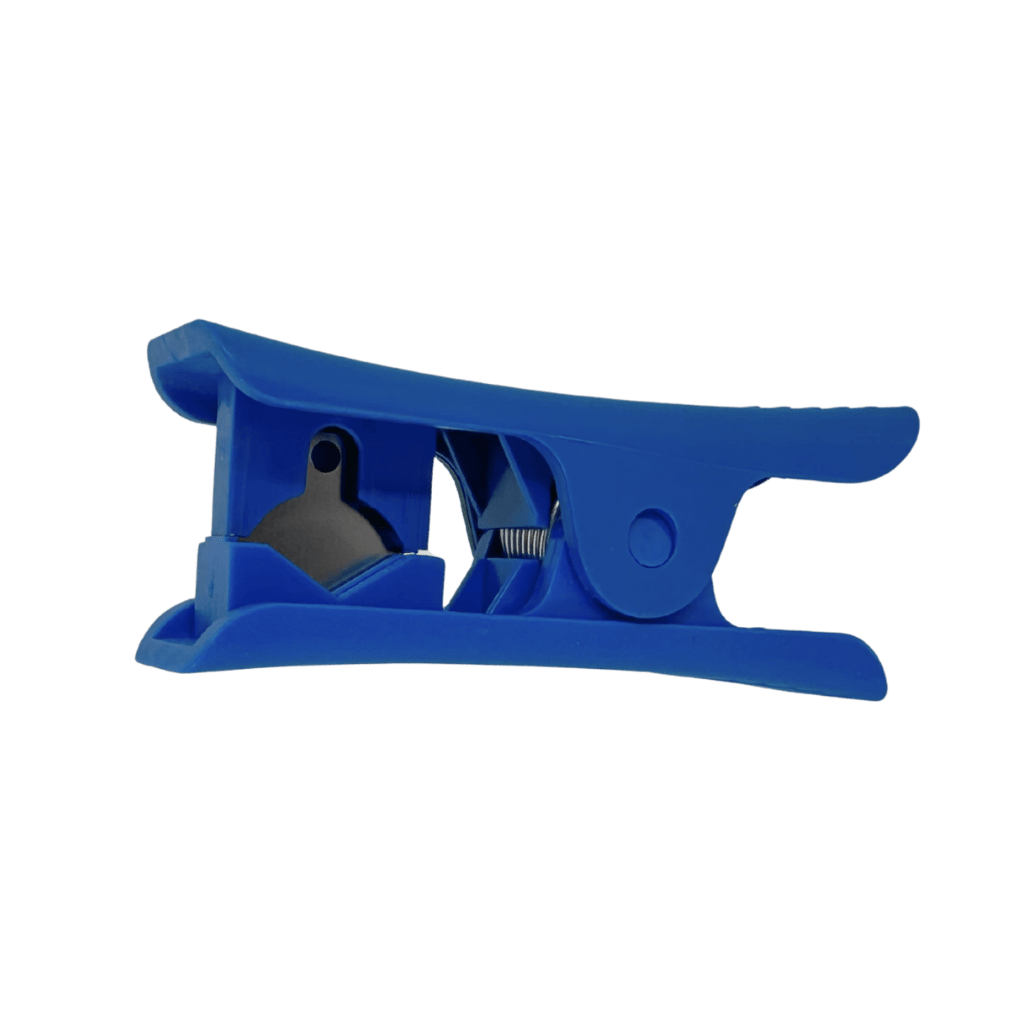

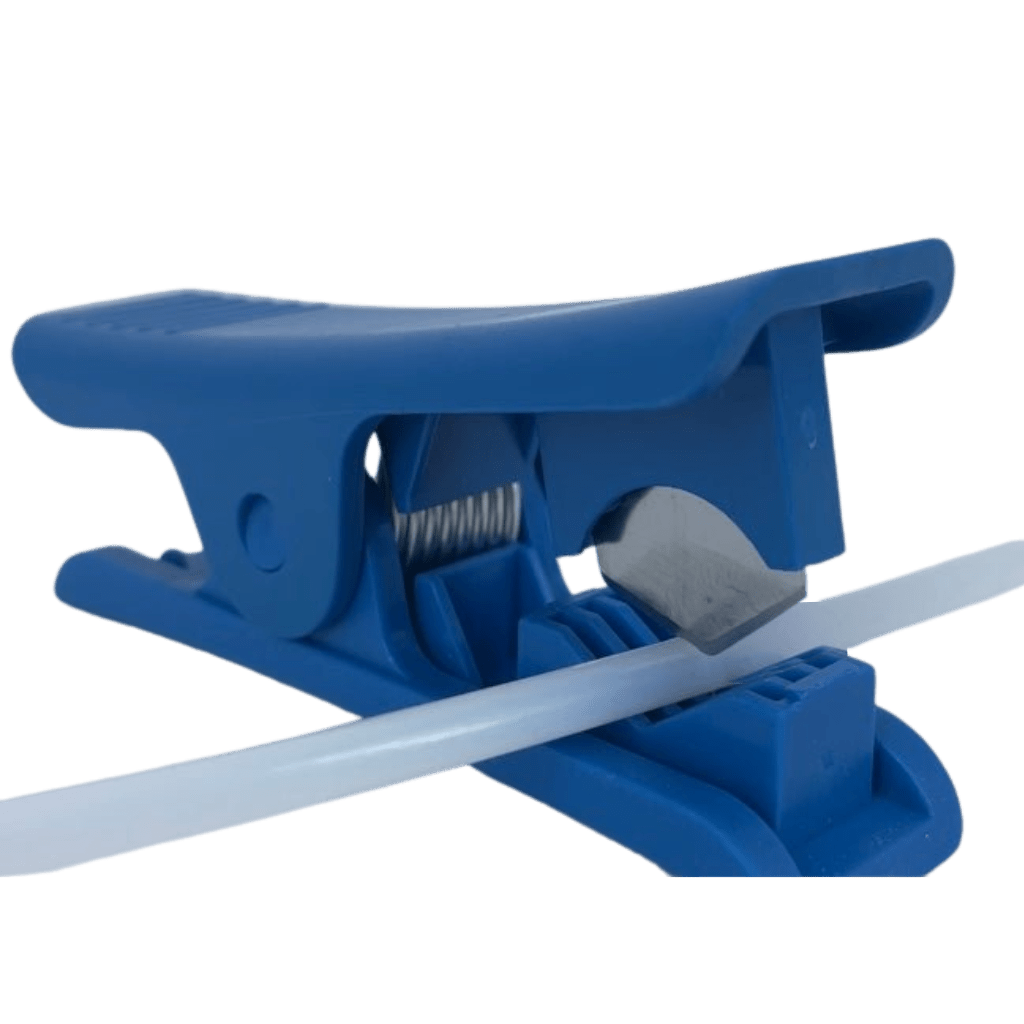

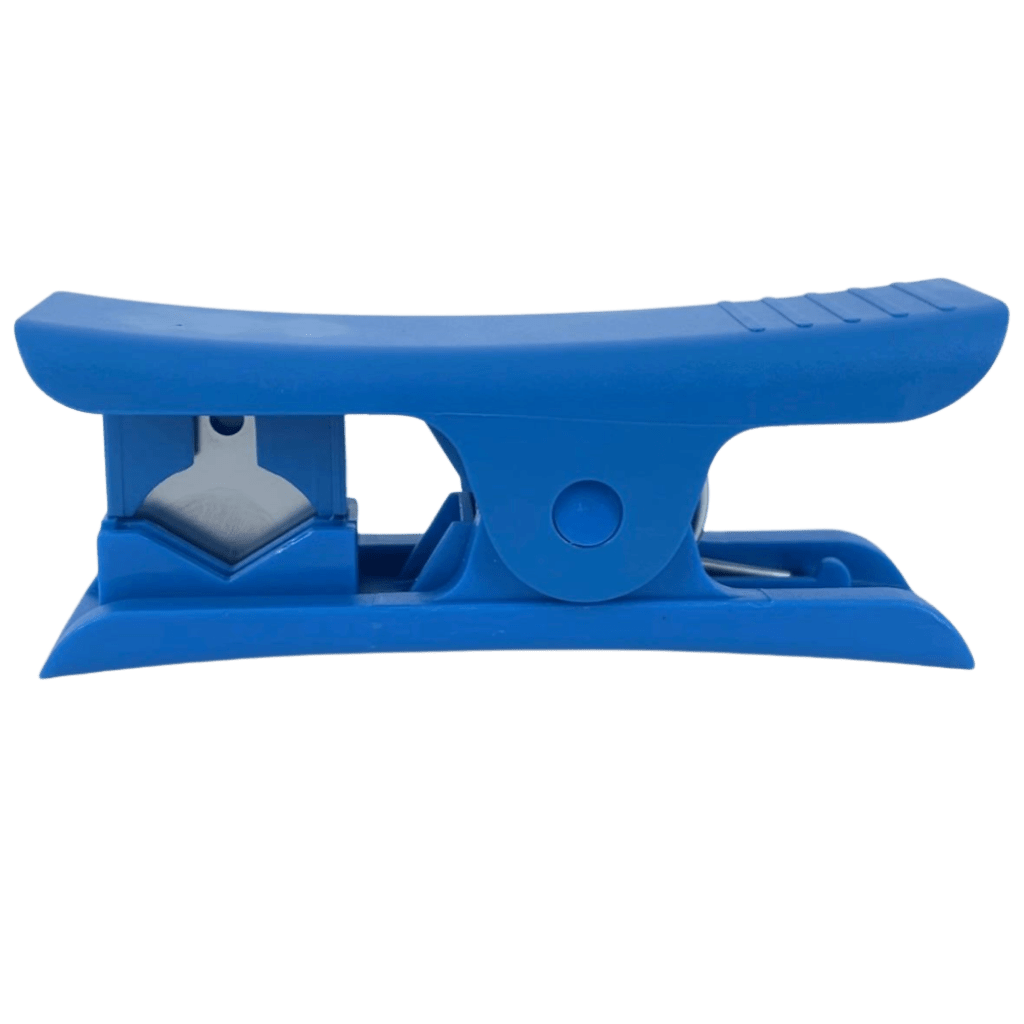

On Bowden printers and hotends with a PTFE lined heat break, the end of the tube needs to sit flat against the nozzle or fitting. An angled or squashed cut leaves a small pocket where molten filament collects, which shows up as under extrusion, stringing and eventually a jam that needles cannot reach. The PTFE Tube cutter is designed for clean perpendicular cuts, and replacement PTFE Bowden tubing is sold by the metre in our consumables range. Let the hotend cool fully before removing a tube.

A simple printer maintenance schedule

When	Task	Tool
Each print session	Check the nozzle for residue and brush it while warm, clear any strings from the plate	Brass wire brush
Weekly	Wipe dust and filament scraps from the frame, check belts and screws are snug	Cloth and hand tools
Monthly	Clean the lead screw threads, lubricate as your printer maker recommends, inspect the PTFE tube end	Microfibre rope, PTFE tube cutter
Whenever extrusion thins	Clear the nozzle with a matching needle	Nozzle Cleaning Needles

Treat these intervals as a starting point. A print farm running around the clock needs more frequent checks than a printer used on weekends.

Buying maintenance tools from OzFDM

Needles come in packs of 10 per size, so keep a spare pack for the nozzle you use most. If your printers run 0.2, 0.4 and 0.6mm nozzles, the Nozzle Care Kit bundles all three sizes with the brush for less than buying each item on its own. Schools and print farms can apply for a trade account.

Nozzle cleaning FAQs

Which cleaning needle size should I use?

Use the needle that matches your nozzle diameter, so a 0.6mm needle for a 0.6mm nozzle. A smaller needle can also help break up a stubborn blockage in a larger nozzle. Check your printer documentation if you are unsure which nozzle is fitted. We stock sizes from 0.2mm to 1.0mm, which covers the nozzles most desktop printers use.

Can a cleaning needle damage my nozzle?

Used gently, no. The needles are smooth and flexible, and the risk comes from forcing one in, using a needle bigger than the nozzle or working on a cold nozzle. Always heat the nozzle first and let the needle find its way. If the blockage will not budge, it may sit higher up in the hotend, so check your printer maker's instructions.

How do I clean a lead screw with microfibre rope?

With the printer switched off, wrap a length of rope into the thread groove and draw it along the screw, turning it as you go so it follows the thread. The weave lifts out dirt, old grease and grime. Swap to a fresh length once it is loaded up, then lubricate the screw again as your printer manual recommends.

Does the PTFE tube cutter work on other tubing?

It is suitable for most flexible plastic tubing as well as PTFE. The spring loaded mechanism gives a clean, square cut that is hard to match with scissors or a hobby knife, which tend to crush or angle the end. Keep your fingers away from the blade while cutting and measure twice, because a tube cut too short cannot be saved.
