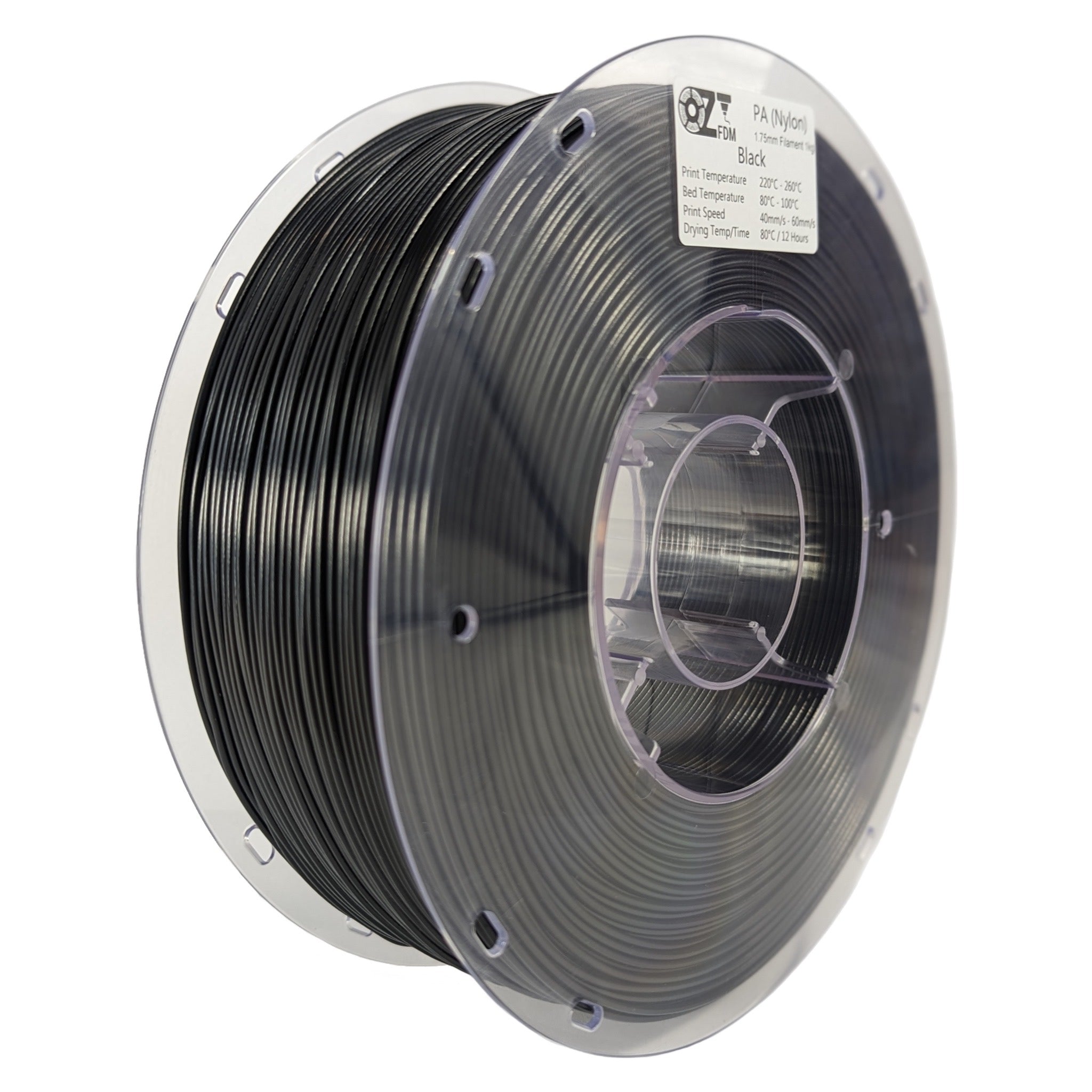

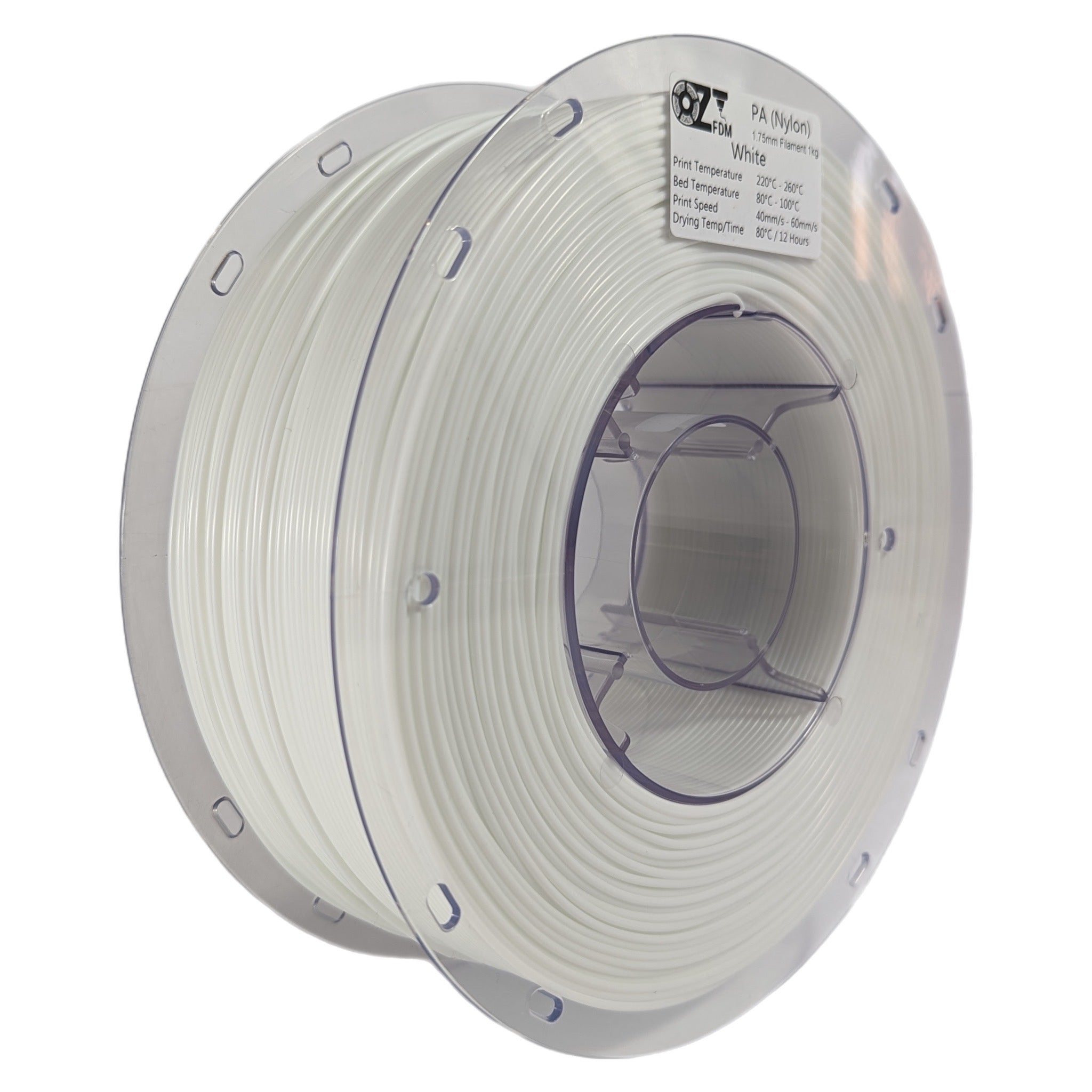

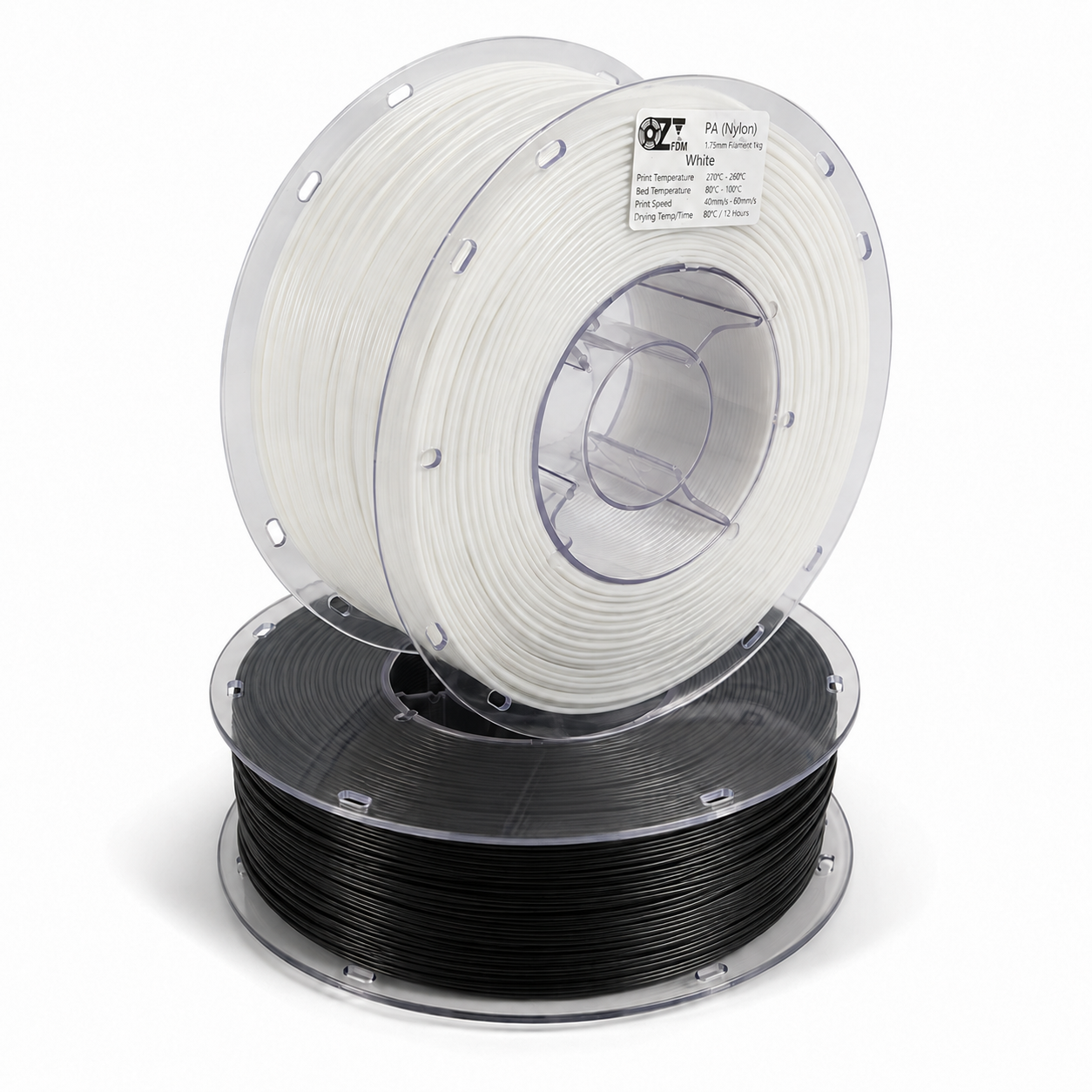

OzFDM PA6 (Nylon) 1.75mm 1KG is a 3D printing filament made of PA6 (Nylon), providing excellent temperature and corrosion resistance, superior wear and oil resilience, and outstanding mechanical strength. Ideal for engineering projects that demand toughness and durability.

Product specifications:

Filament weight	1KG
Filament diameter	1.75mm
Dimensional tolerance	±0.05mm
Spool weight (empty)	150g
Spool weight (new)	1.15KG
Spool diameter outer	200mm
Spool diameter inner (hub)	52mm
Spool width	65mm
Package weight	1.3KG
Package dimensions	210mm x 210mm x 75mm



Print parameters:

Nozzle temperature	240°C - 280°C (270°C recommended)
Bed temperature	80°C - 110°C (100°C recommended)
Printing speed	40mm/s - 60mm/s (50mm/s recommended)
Support material	PA6 (self support) , PVA



Physical Properties:

Density	ISO 1183	1.01~1.06 g/cm3
MFR(250°C/2.16Kg)	ISO 1133	2~5 g/10min
Moisture Absorbtion(23°C/24h)	ISO 62	3.2 %



Mechanical Properties:

Tensile Strength	ISO 527	55~58 Mpa
Elongation at Break	ISO 527	32~36 %
Flexural Modulus	ISO 527	1350~1450 Mpa
Flexural Strength	ISO 178	84~87 Mpa
Impact Strength	ISO 180	88.5~87 KJ/m²



Thermodynamic Properties:

HDT @ 0.455 Mpa(66 psi)

ISO 75

85 °C



Drying recommendation:

80°C for a minimum of 12 hours using a filament dryer / food dehydrator. We recommend 80°C for 24 Hours as we found it was still stringing a little after 12 hours, depending on your type of dryer.



Storage recommendation:

Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
