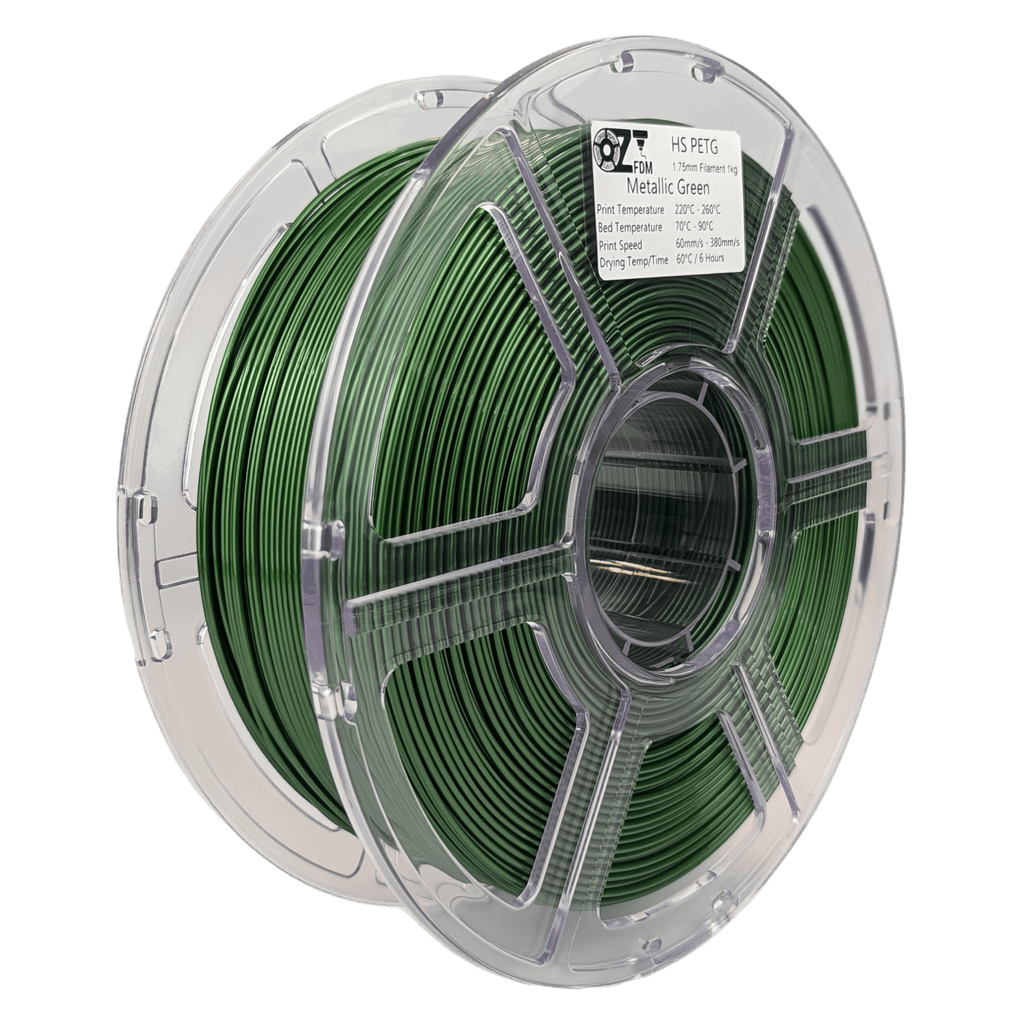

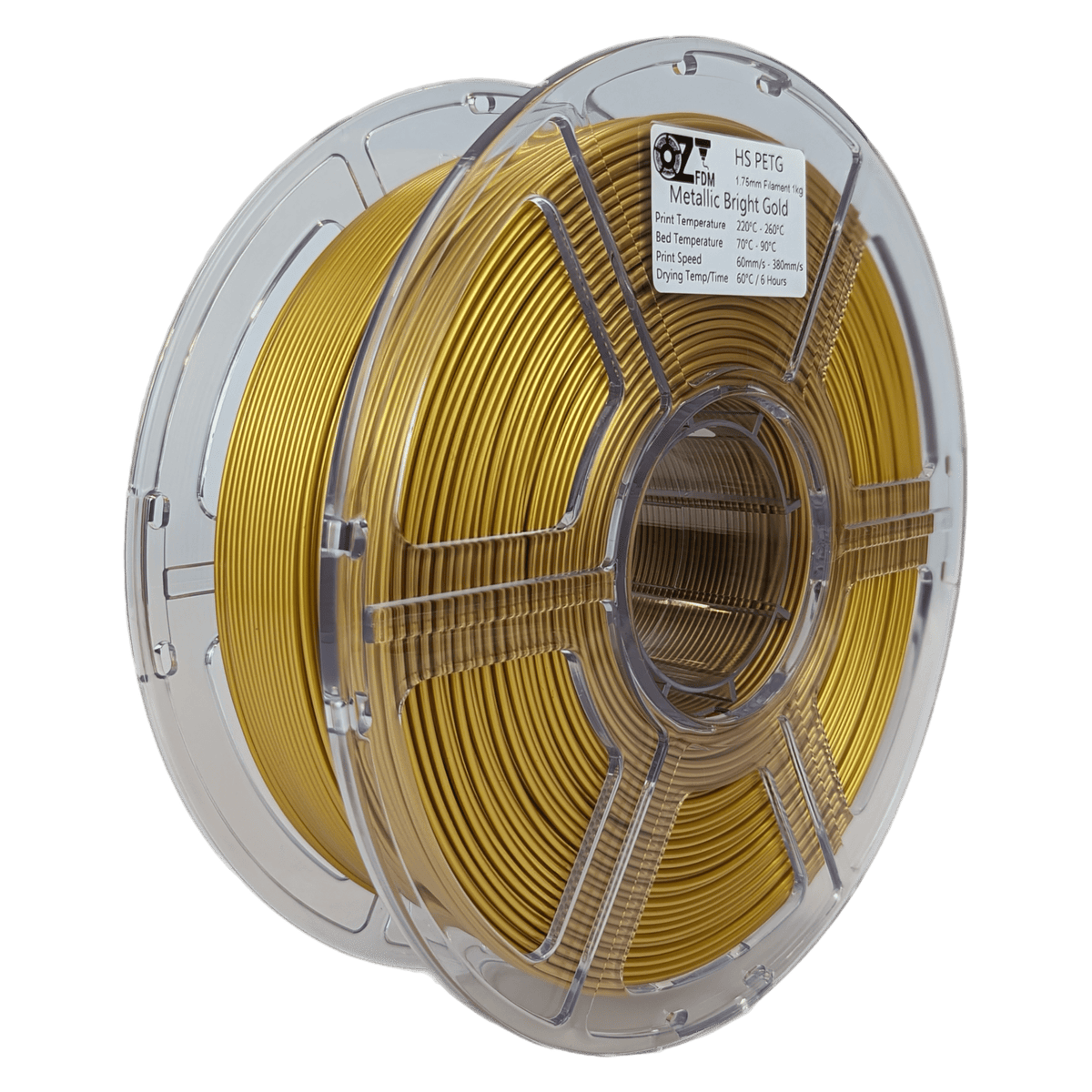

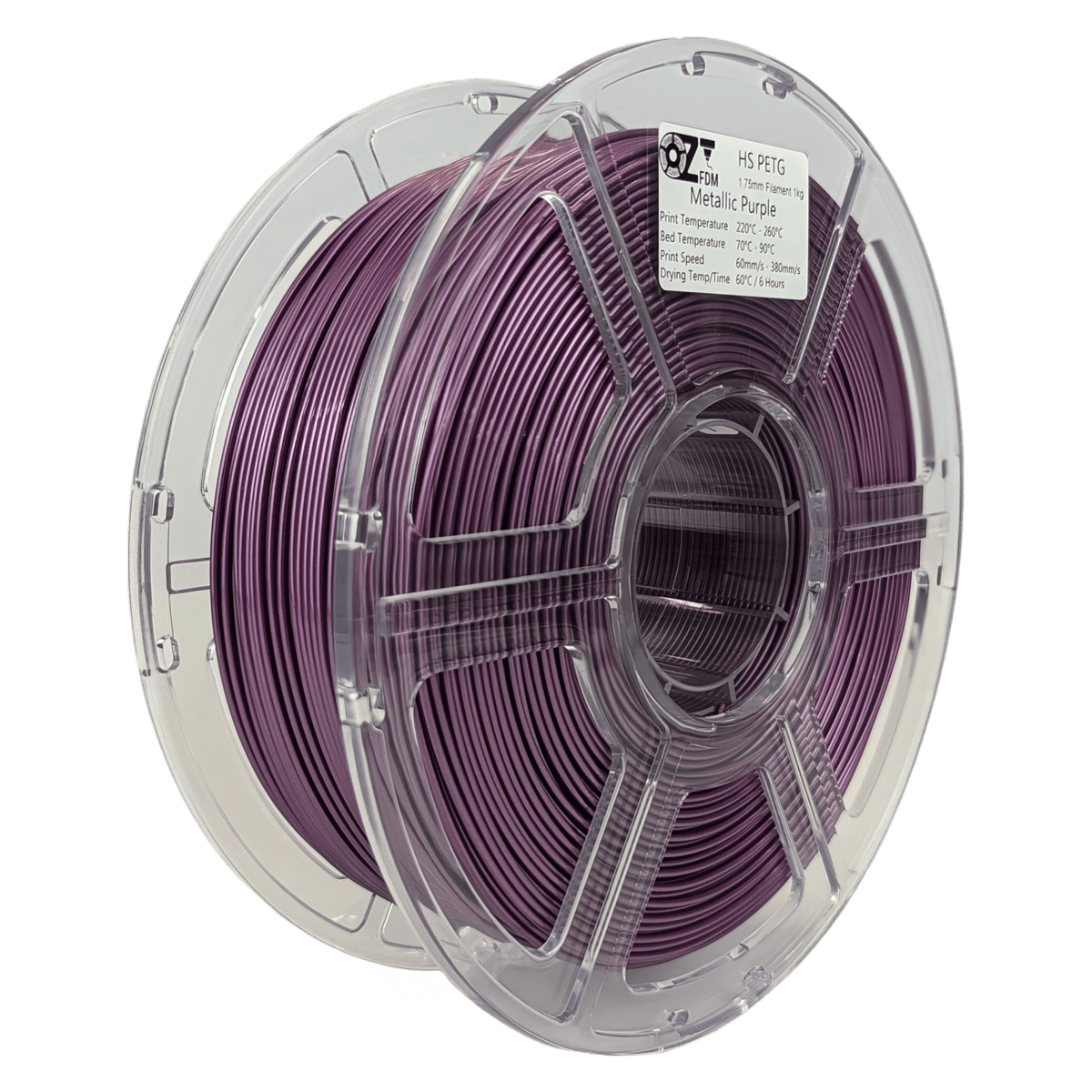

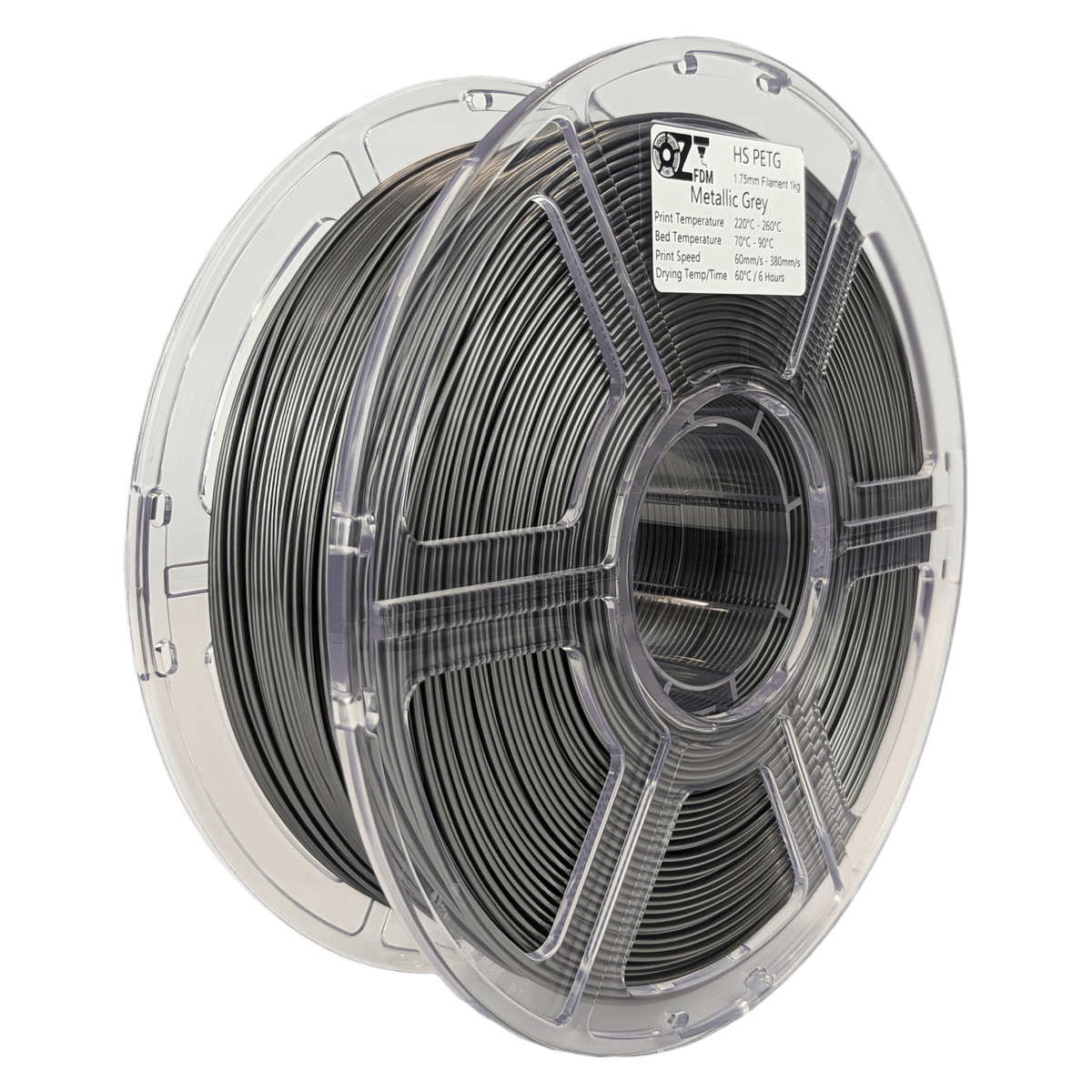

Oz FDM PETG+ filament is made from high quality specially modified PETG material. This offers low warping, non-cracking and low print and bed temperatures, making it easier to print than standard PETG while still maintaining its high strength and heat resistance. Recommended for a variety of applications, this filament is available in an array of colours.

Product specifications:

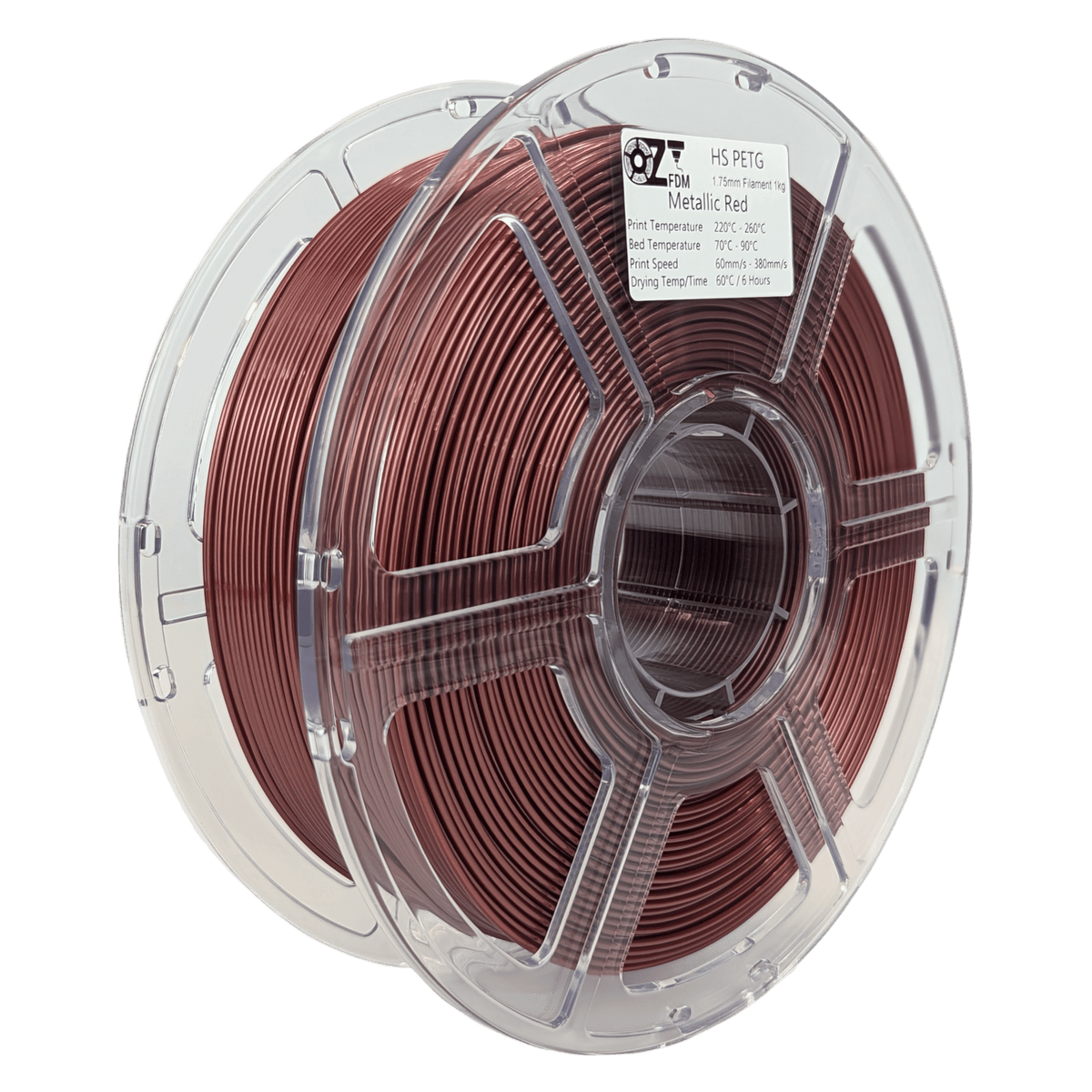

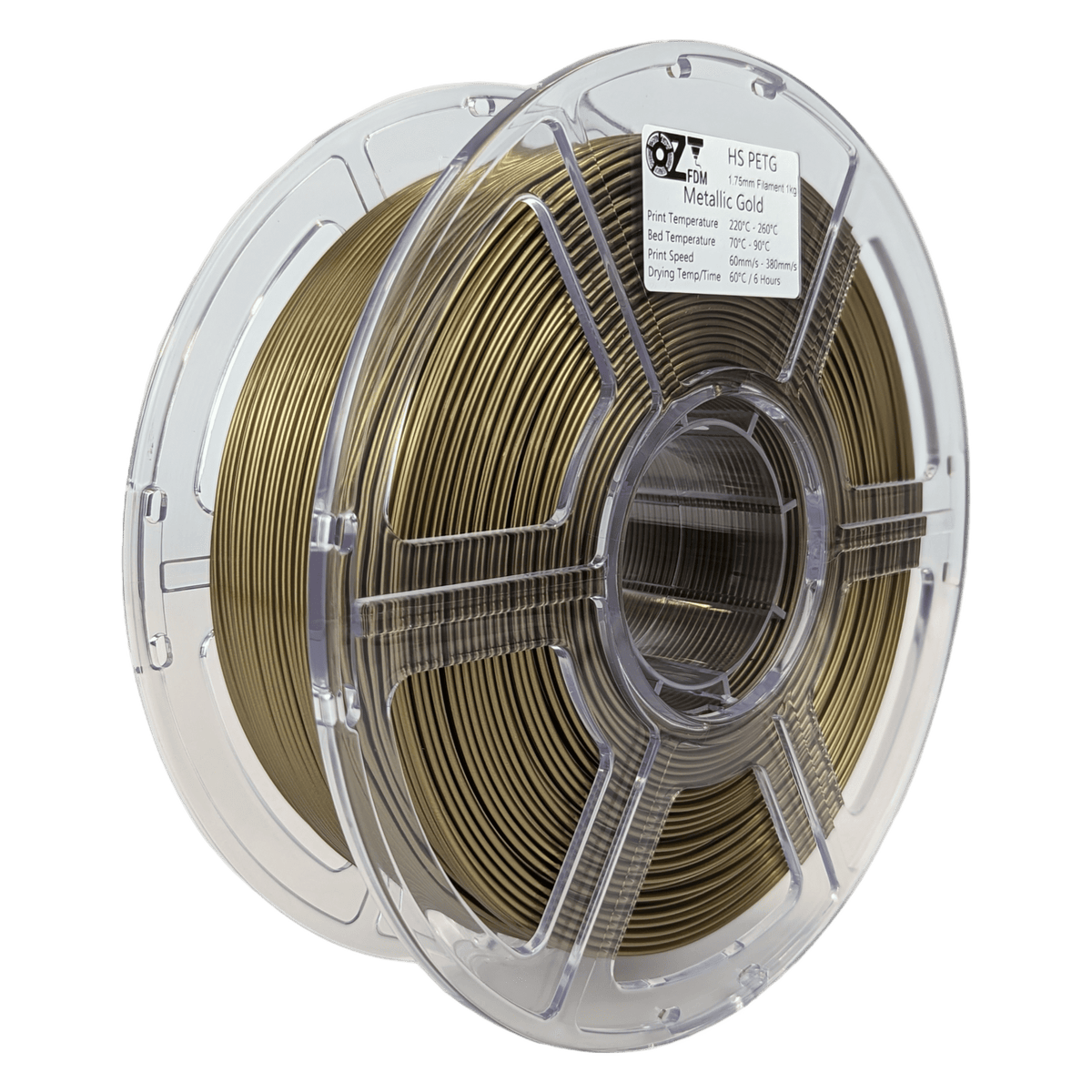

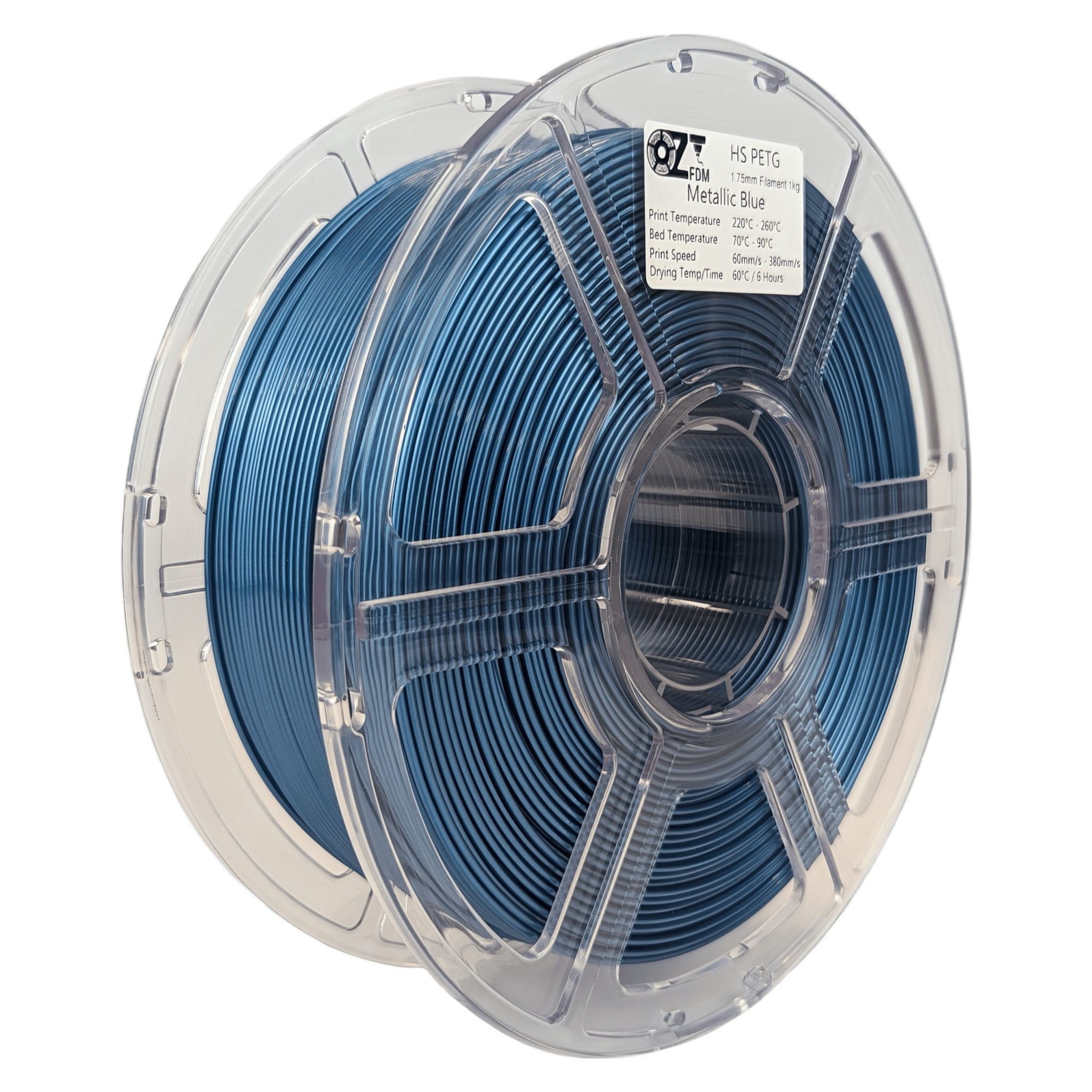

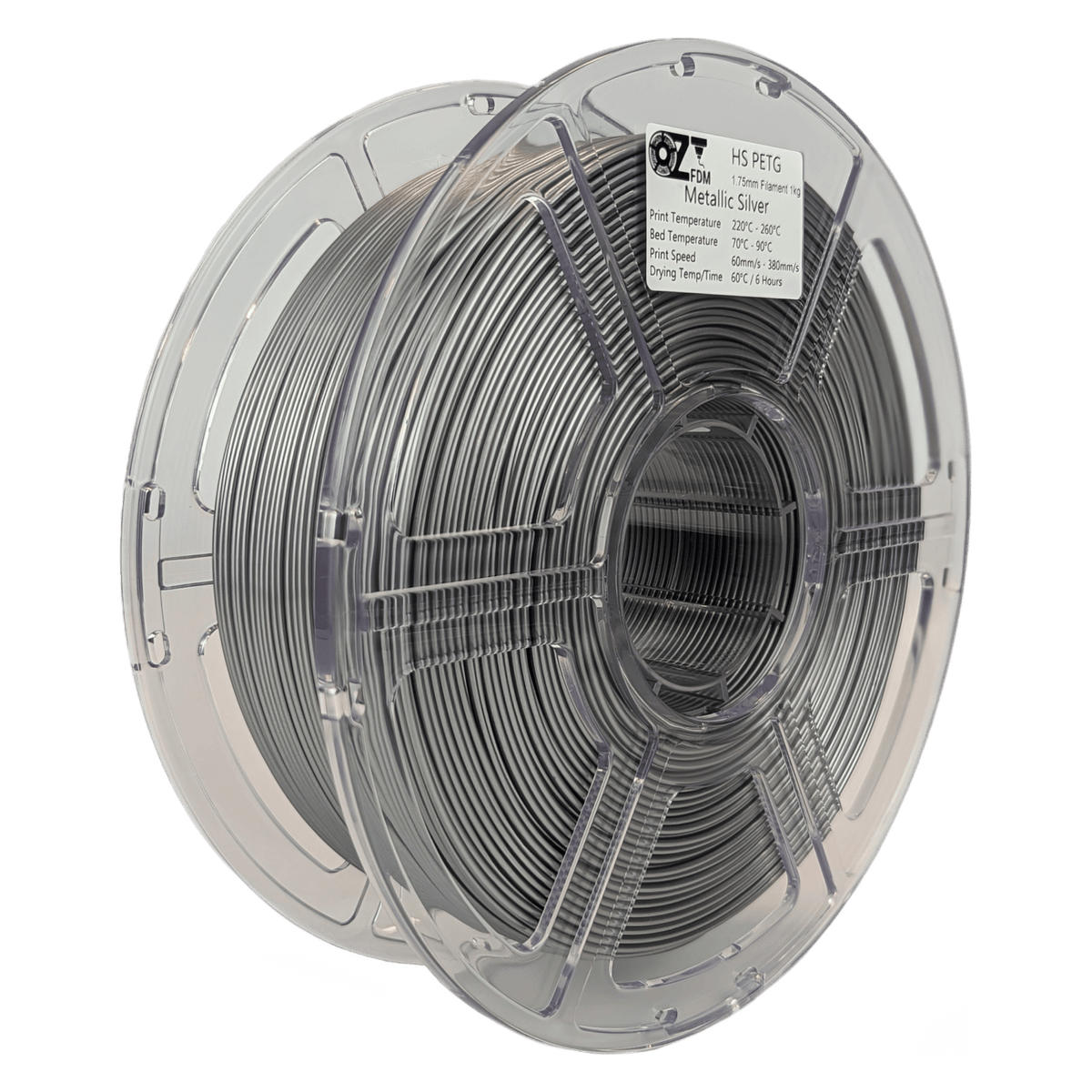

Filament weight	1KG
Filament diameter	1.75mm
Dimensional tolerance	±0.03mm
Spool weight (empty)	150g
Spool weight (new)	1.15KG
Spool diameter outer	200mm
Spool diameter inner (hub)	52mm
Spool width	65mm
Package weight	1.3KG
Package dimensions	210mm x 210mm x 75mm



Print parameters:

Nozzle temperature	210°C - 230°C
Bed temperature	50°C - 70°C
Printing speed	40mm/s - 380mm/s
Support material	PVA , PLA (as support interface)

Physical Properties:

Density	ISO 1183	1.27~1.28 g/cm3
MFR(250°C/2.16Kg)	ISO 1133	8~12 g/10min
Moisture Absorbtion(23°C/24h)	ISO 62	<0.2 %



Mechanical Properties:

Tensile Strength	ISO 527	41~45 Mpa
Elongation at Break	ISO 527	10~12 %
Flexural Modulus	ISO 527	1400~1500 Mpa
Flexural Strength	ISO 178	64~66 Mpa
Impact Strength	ISO 180	5~6 KJ/m²



Thermodynamic Properties:

HDT @ 0.455 Mpa(66 psi)	ISO 75	68 °C
Continuous Use Temperature	IEC 60216	65 °C



Drying recommendation:

70°C for a minimum of 5 hours using a filament dryer / food dehydrator.

Storage recommendation:

Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
