Technical Specifications
Product Specifications
- Filament weight
- 1 kg
- Filament diameter
- 1.75 mm
- Dimensional tolerance
- ±0.03mm
- Spool weight (empty)
- 150 g
- Spool weight (new)
- 1.15 kg
- Spool diameter outer
- 200 mm
- Spool diameter inner (hub)
- 52 mm
- Spool width
- 65 mm
- Package weight
- 1.3 kg
- Package dimensions
- 210mm x 220mm x 75mm
- Drying recommendation
- 80°C for a minimum of 5 hours using a filament dryer / food dehydrator.
- Storage recommendation
- Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
Print Parameters
- Nozzle temperature
- 220°C - 240°C (230°C Recommended)
- Bed temperature
- 80°C - 110°C (100°C Recommended)
- Printing speed
- 40mm/s - 60mm/s
- Support material
- HIPS , ABS (Self Supported)
Mechanical Properties
- Tensile strengthISO 527
- 33~37 MPa
- Elongation at breakISO 527
- 9~15 %
- Tensile modulusISO 527
- 1500~1650 MPa
- Flexural strengthISO 178
- 65~67 MPa
- Impact strengthISO 180
- 12~13.5 kJ/m²
Physical Properties
- DensityISO 1183
- 1.08~1.1 g/cm³
- Melt flow rate (220°C/5 kg)ISO 1133
- 2~5 g/10min
- Moisture absorption (23°C/24h)ISO 62
- 1 %
Thermodynamic Properties
- HDT @ 0.455 MPa (66 psi)ISO 75
- 85 °C
Colour Hex Codes

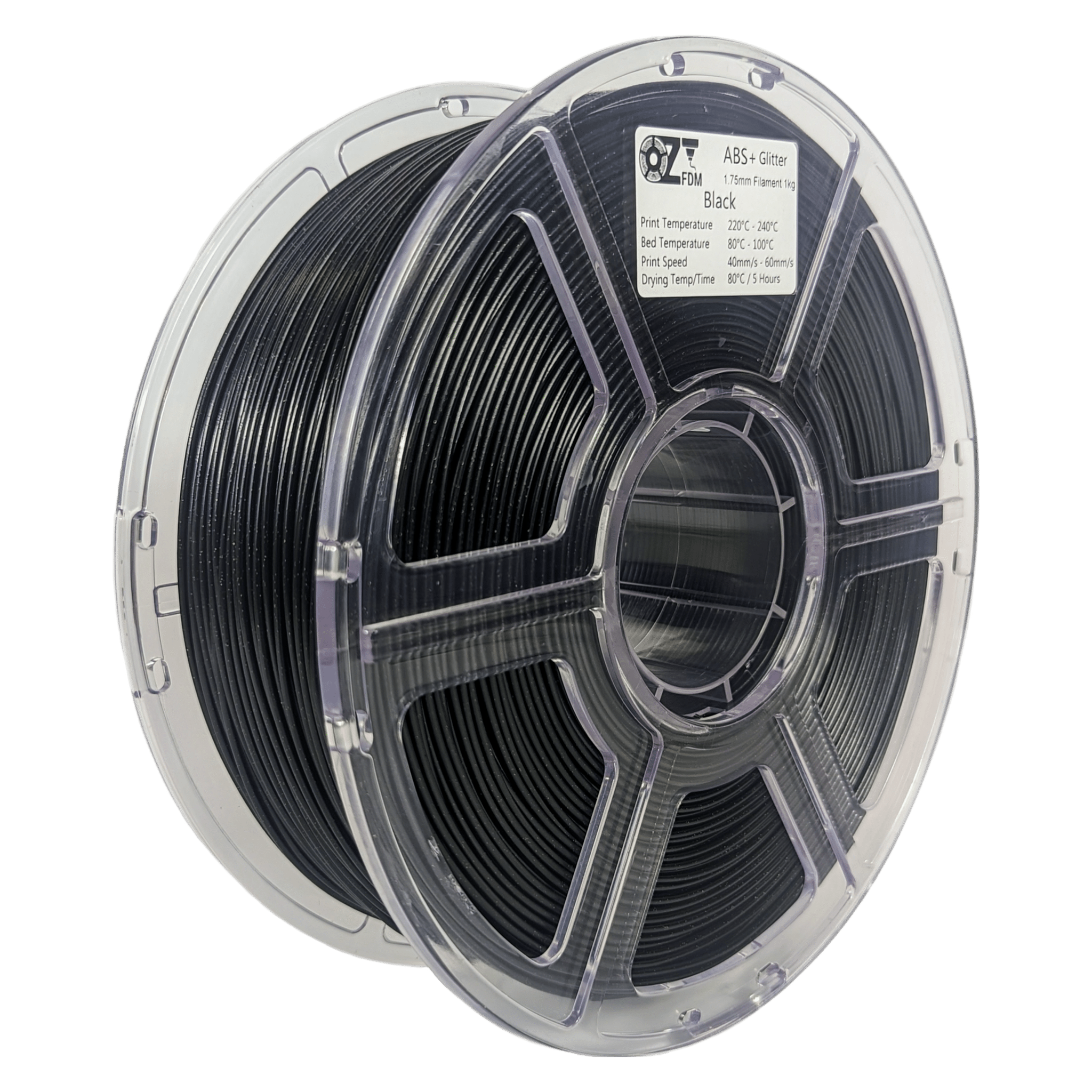

- Glitter Black #1c191c

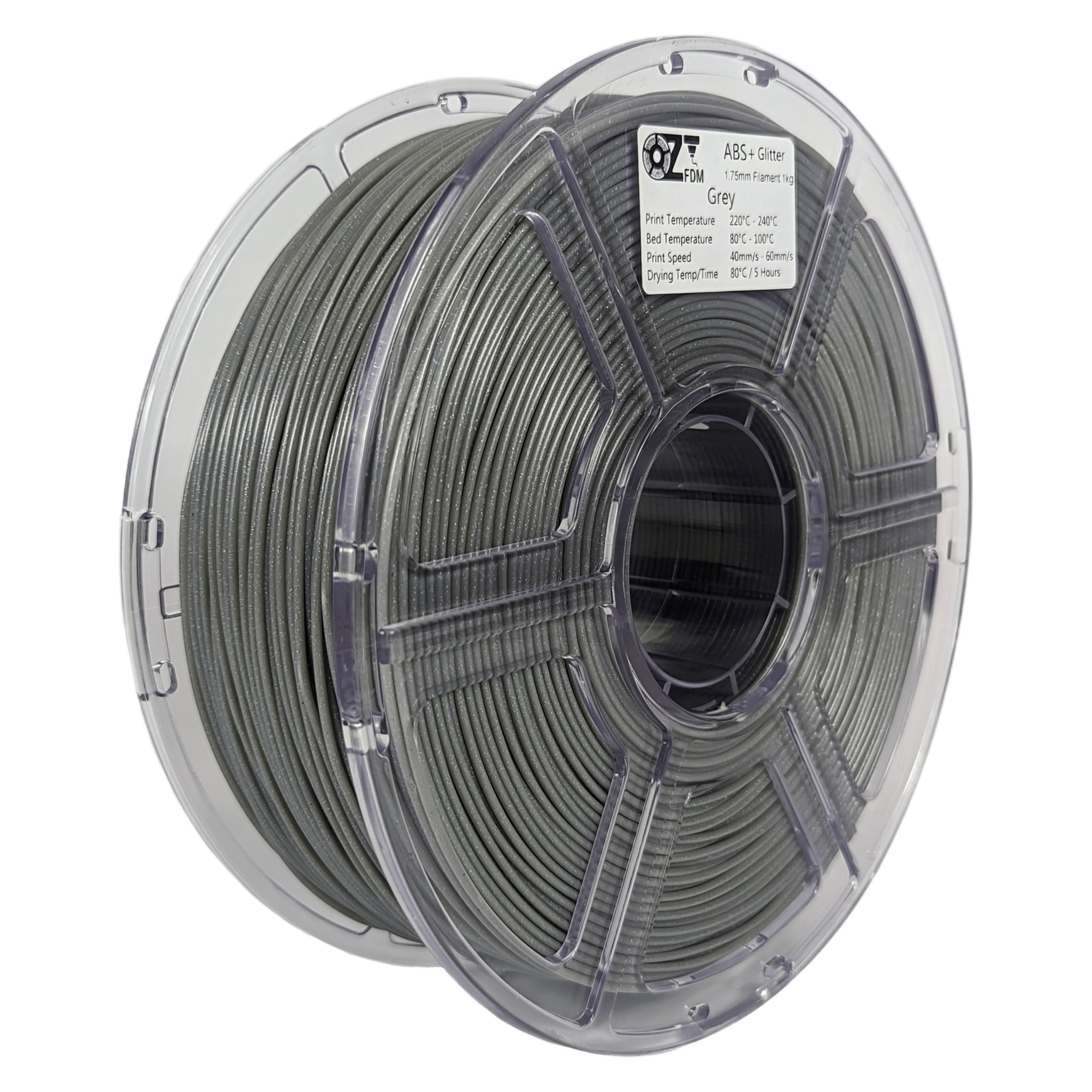

- Glitter Grey #808081

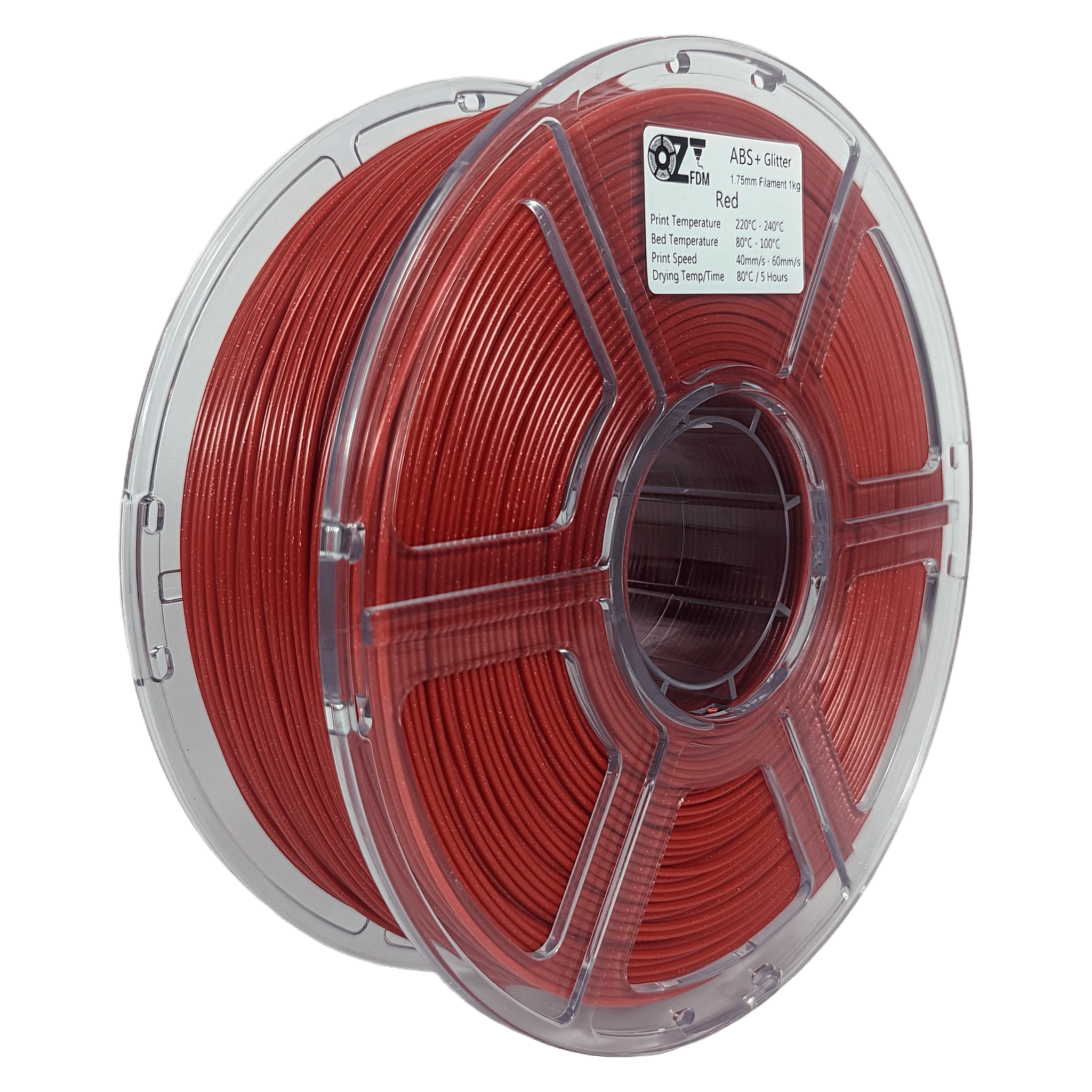

- Glitter Red #990d03

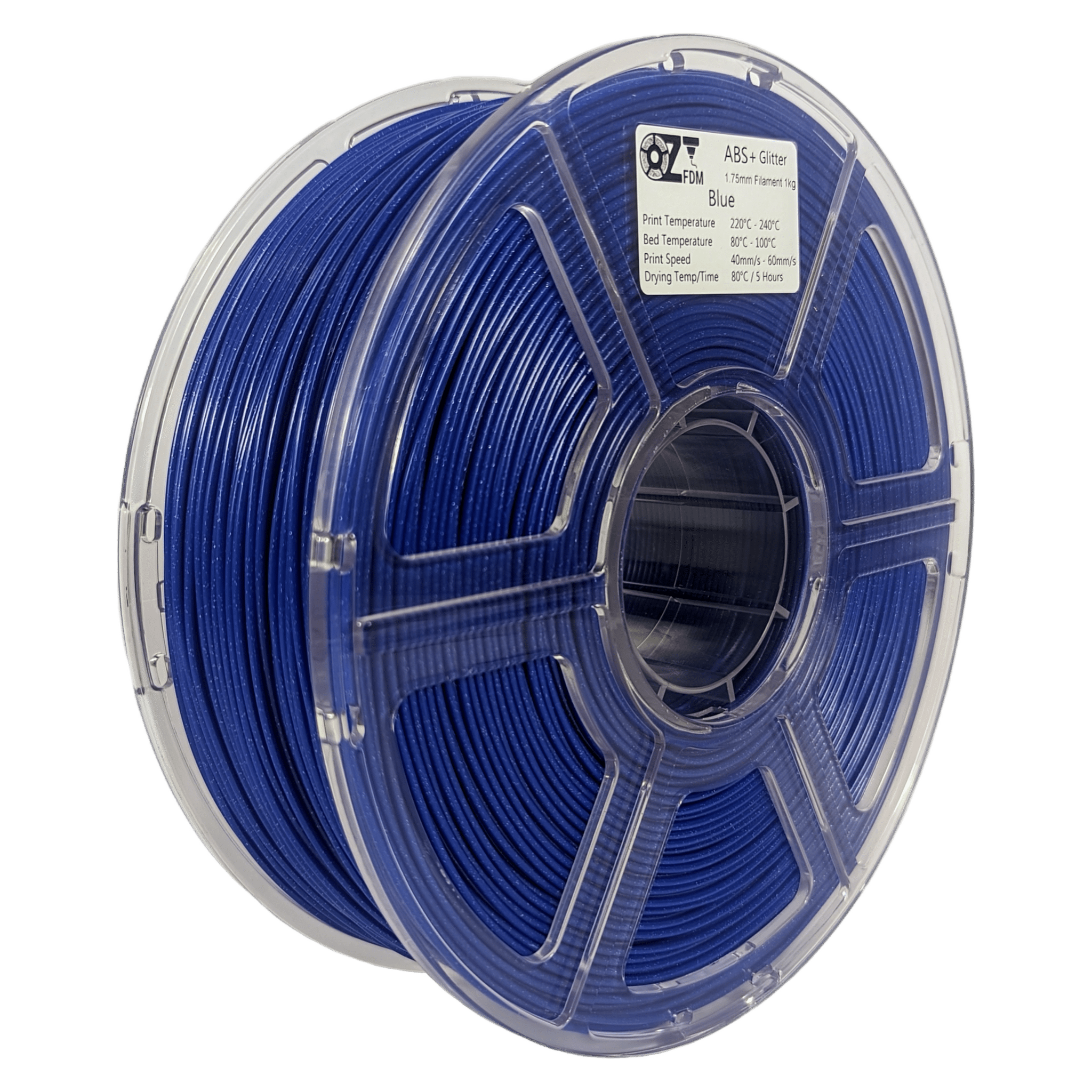

- Glitter Blue #041cd1

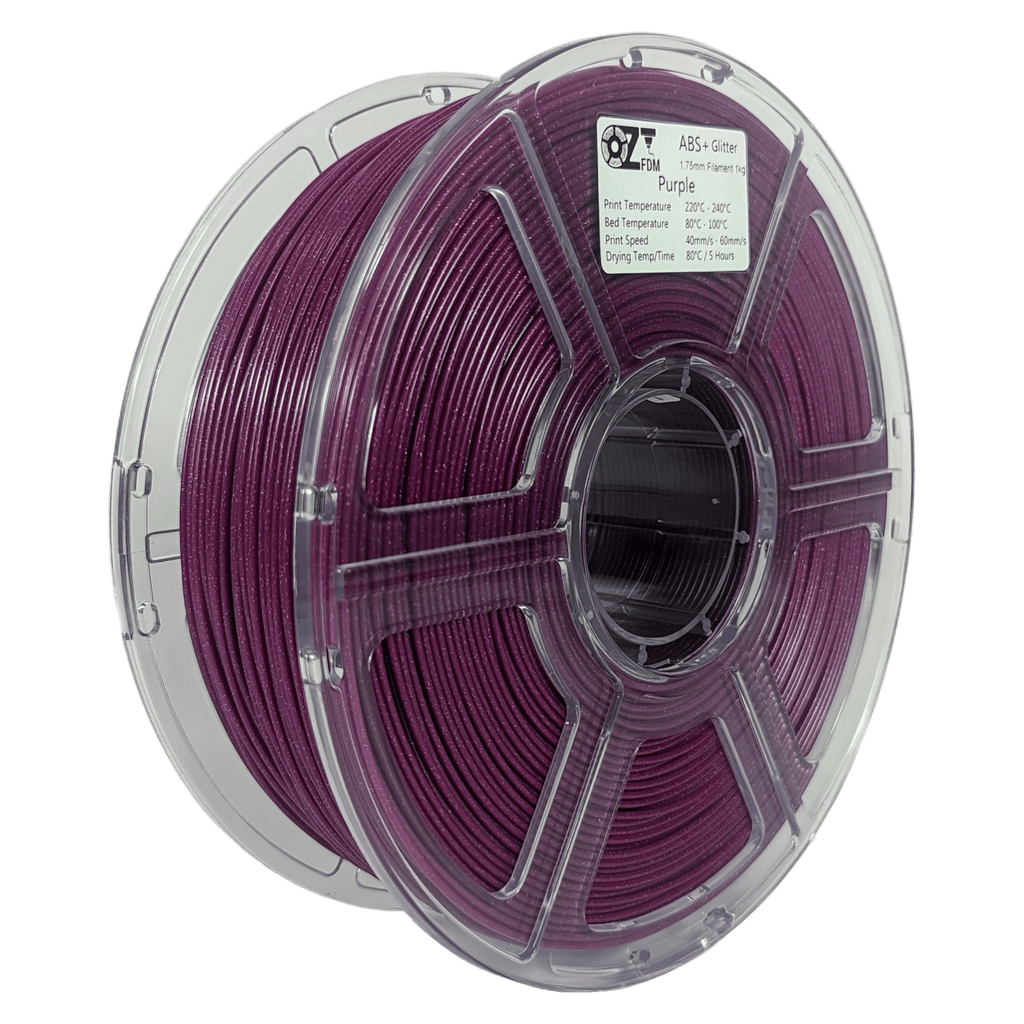

- Glitter Purple #7d0180
Approximate values taken from the colour swatches. Screen colours are a guide only.
