Technical Specifications
Product Specifications
- Filament weight
- 1 kg
- Filament diameter
- 1.75 mm
- Dimensional tolerance
- ±0.05mm
- Spool weight (empty)
- 150 g
- Spool weight (new)
- 1.15 kg
- Spool diameter outer
- 200 mm
- Spool diameter inner (hub)
- 52 mm
- Spool width
- 65 mm
- Package weight
- 1.3 kg
- Package dimensions
- 210mm x 220mm x 75mm
- Drying recommendation
- 80°C for a minimum of 5 hours using a filament dryer / food dehydrator.
- Storage recommendation
- Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
Print Parameters
- Nozzle temperature
- 240°C - 260°C (250°C Recommended)
- Bed temperature
- 100°C - 120°C (110°C Recommended)
- Printing speed
- 40mm/s - 60mm/s
- Support material
- HIPS , ASA, ASA Sparkling - Self Supported
Mechanical Properties
- Tensile strengthISO 527
- 42~45 MPa
- Elongation at breakISO 527
- 9~12 %
- Tensile modulusISO 527
- 1200~1400 MPa
- Flexural strengthISO 178
- 75~79 MPa
- Impact strengthISO 180
- 19~20 kJ/m²
Physical Properties
- DensityISO 1183
- 1.08~1.09 g/cm³
- Melt flow rate (220°C/10 kg)ISO 1133
- 20~25 g/10min
- Moisture absorption (23°C/24h)ISO 62
- 1 %
Thermodynamic Properties
- HDT @ 0.455 MPa (66 psi)ISO 75
- 88 °C
Colour Hex Codes

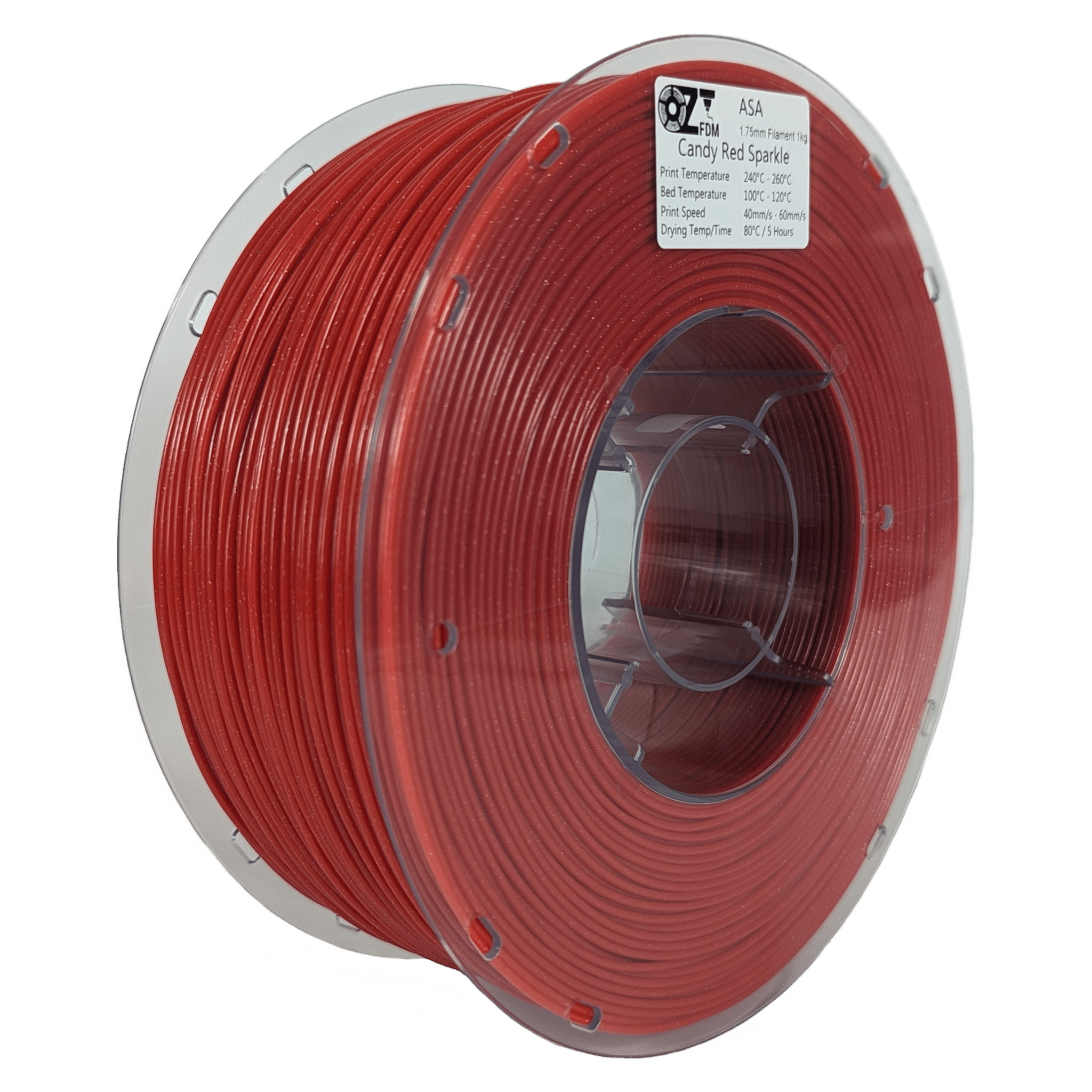

- Candy Red #cc0600

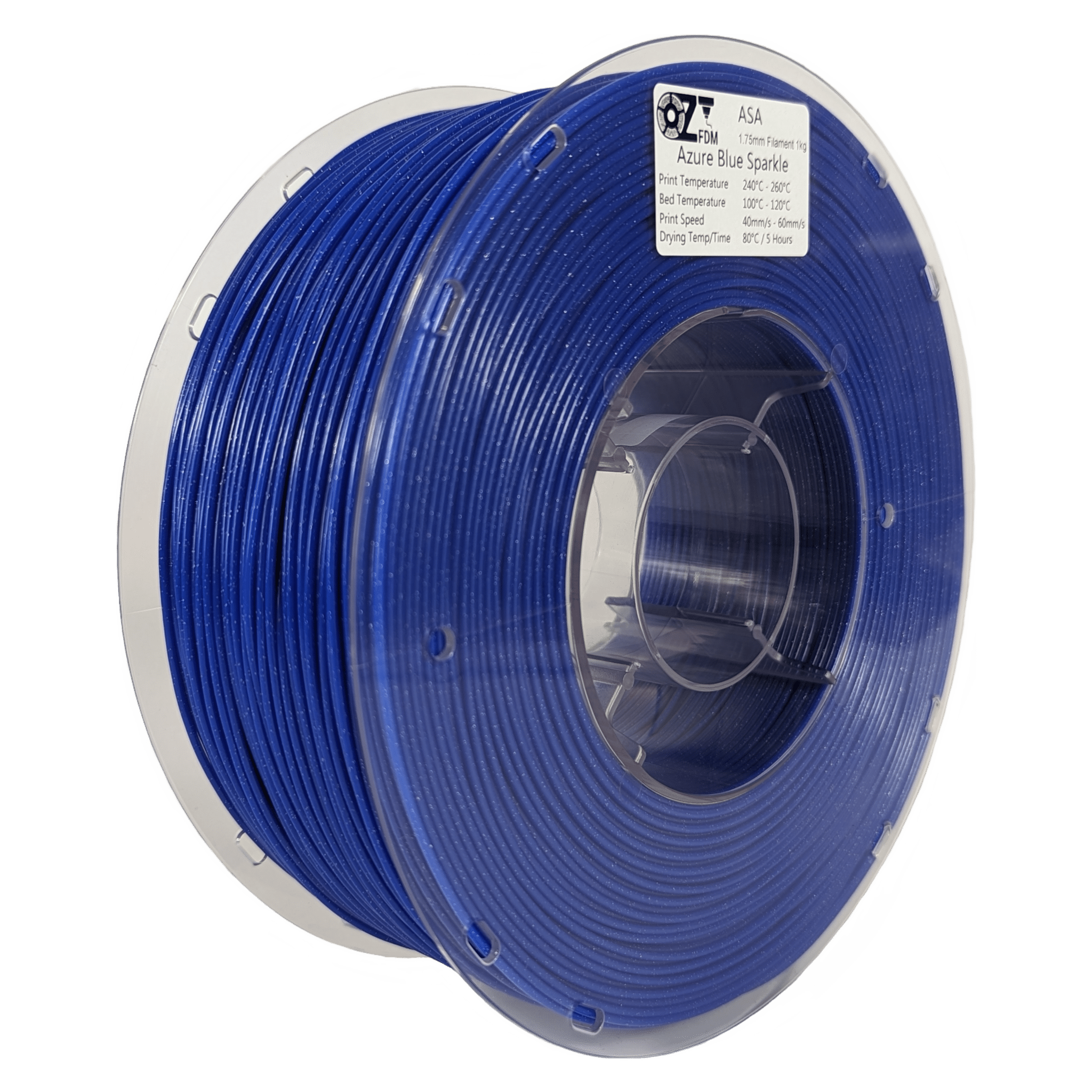

- Azure Blue #004589

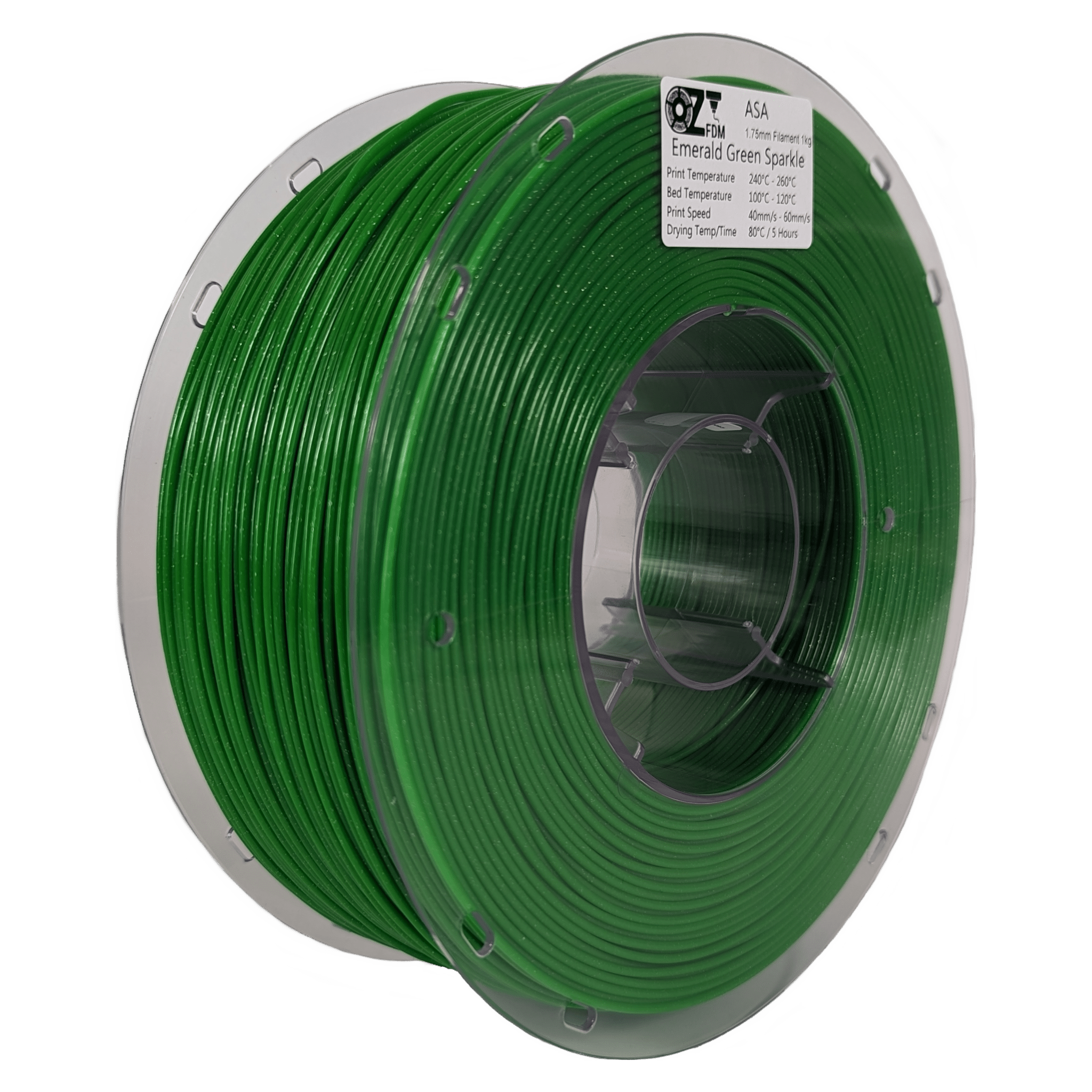

- Emerald Green #35b04b

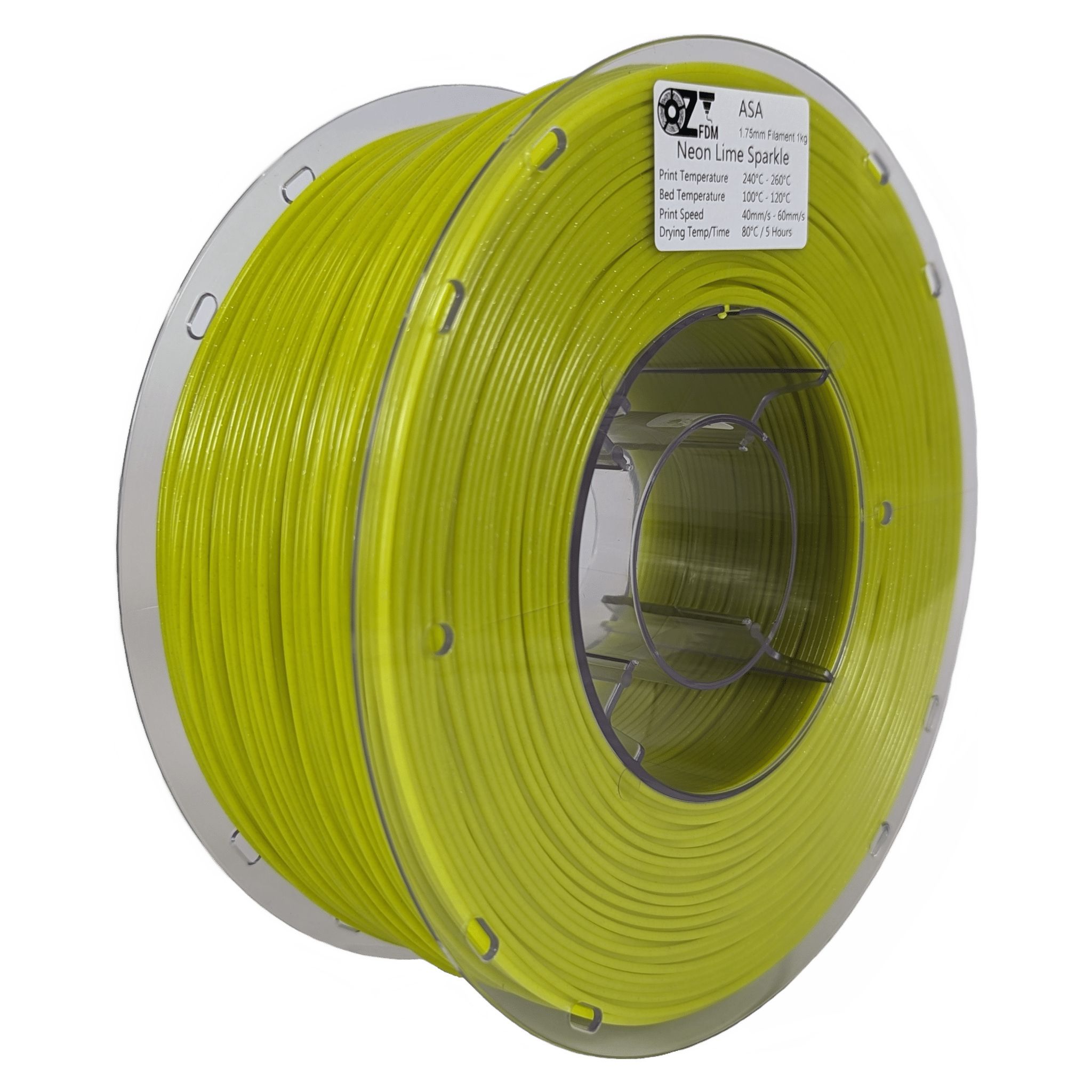

- Neon Lime #c8f902

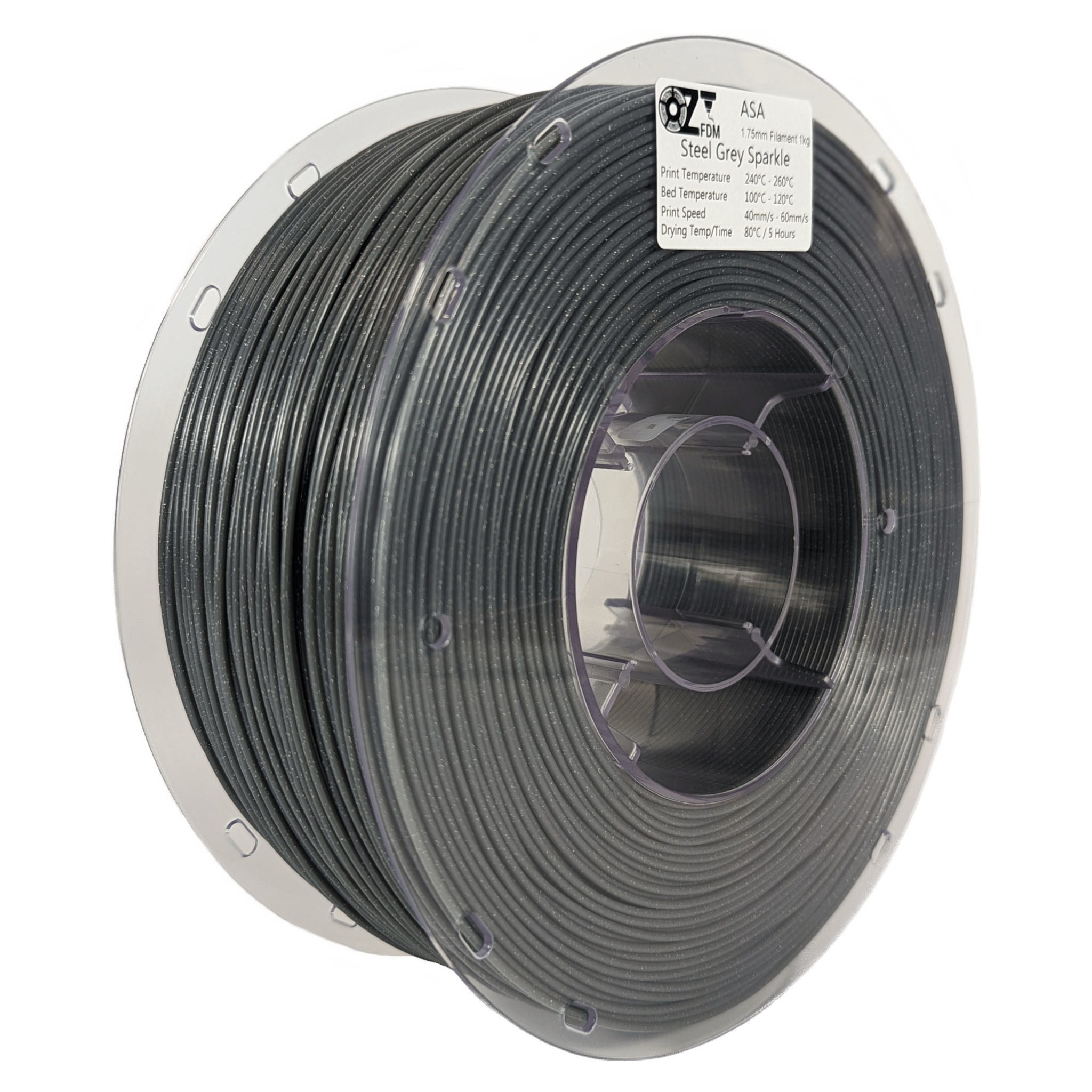

- Steel Grey #71797e

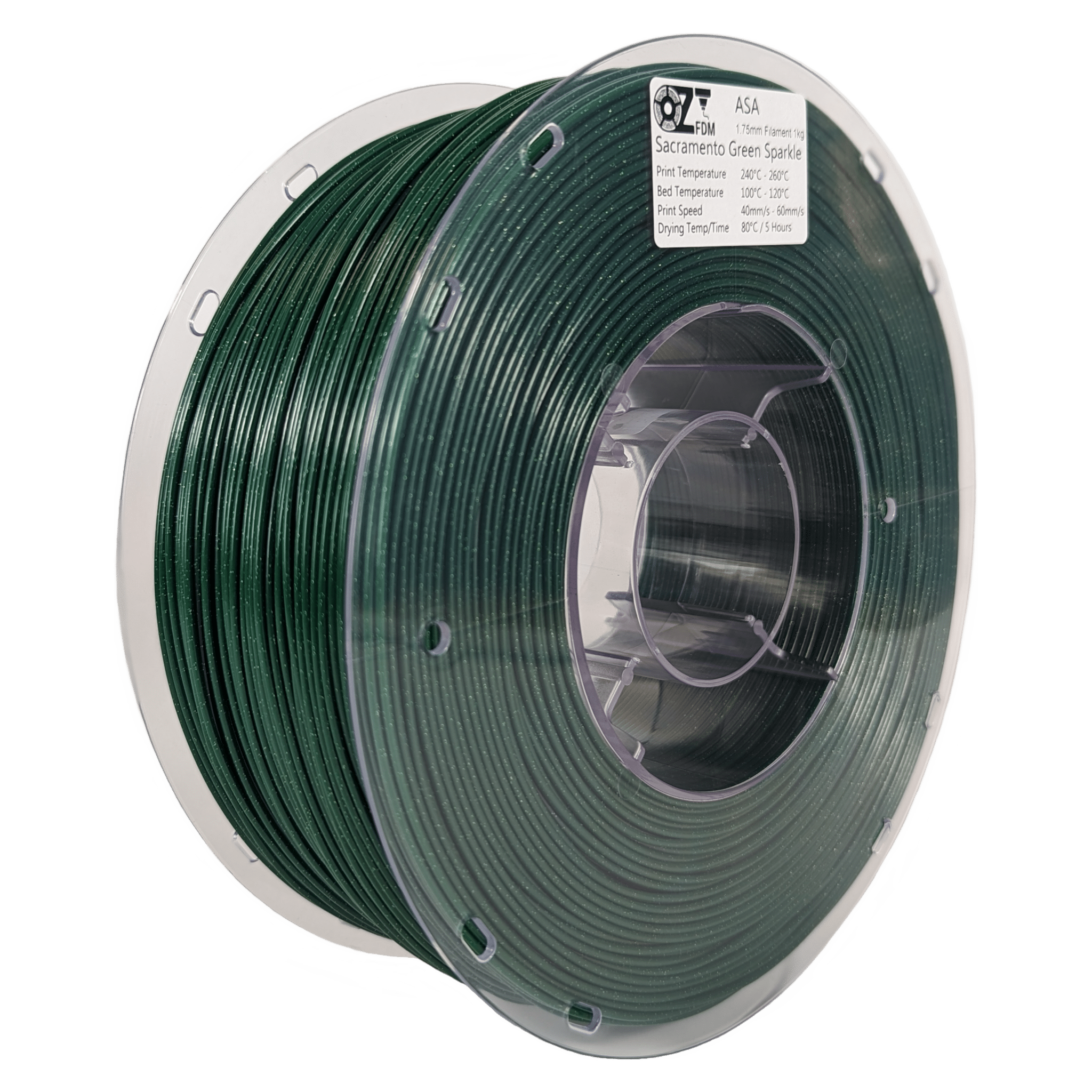

- Sacramento Green #004225

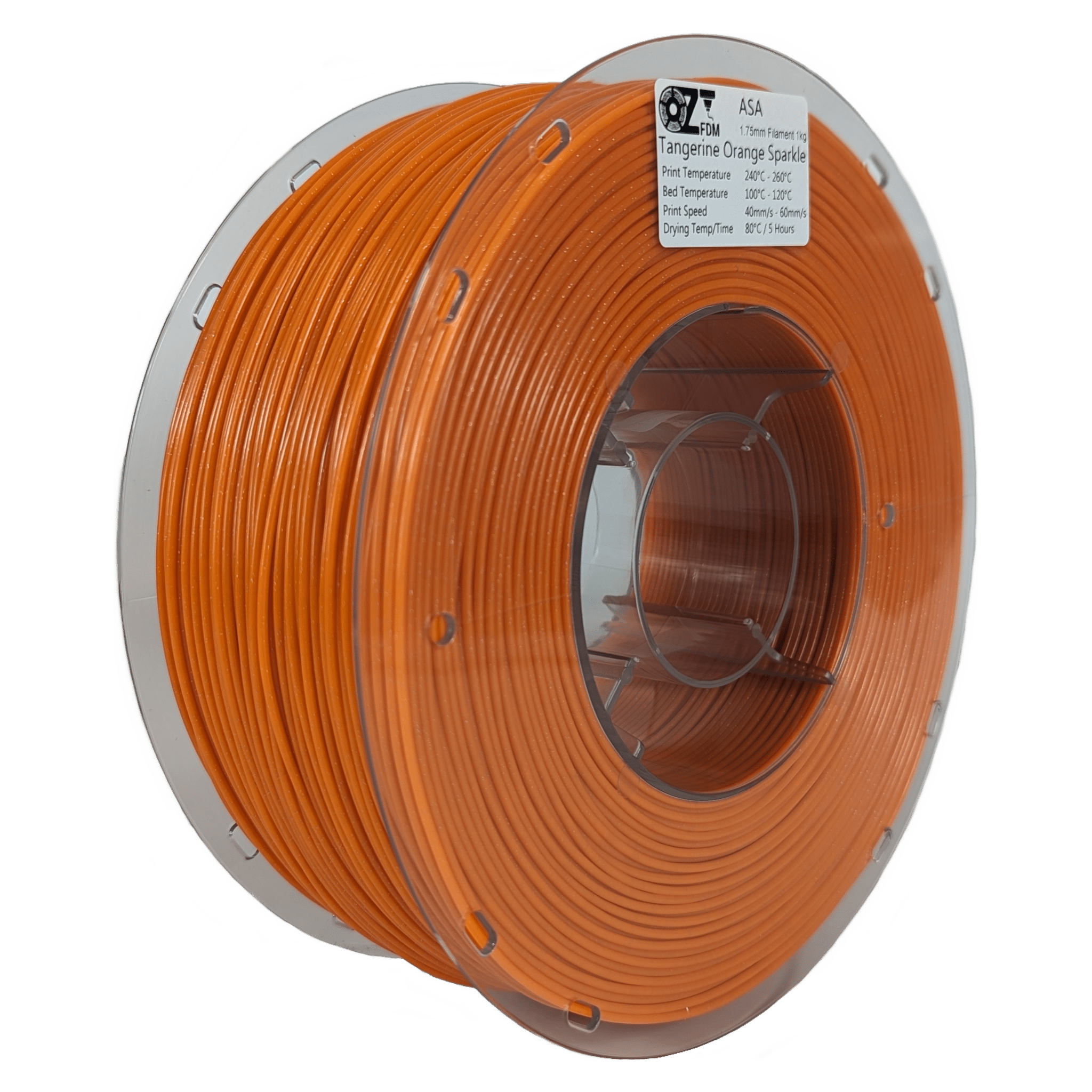

- Tangerine Orange #f28500

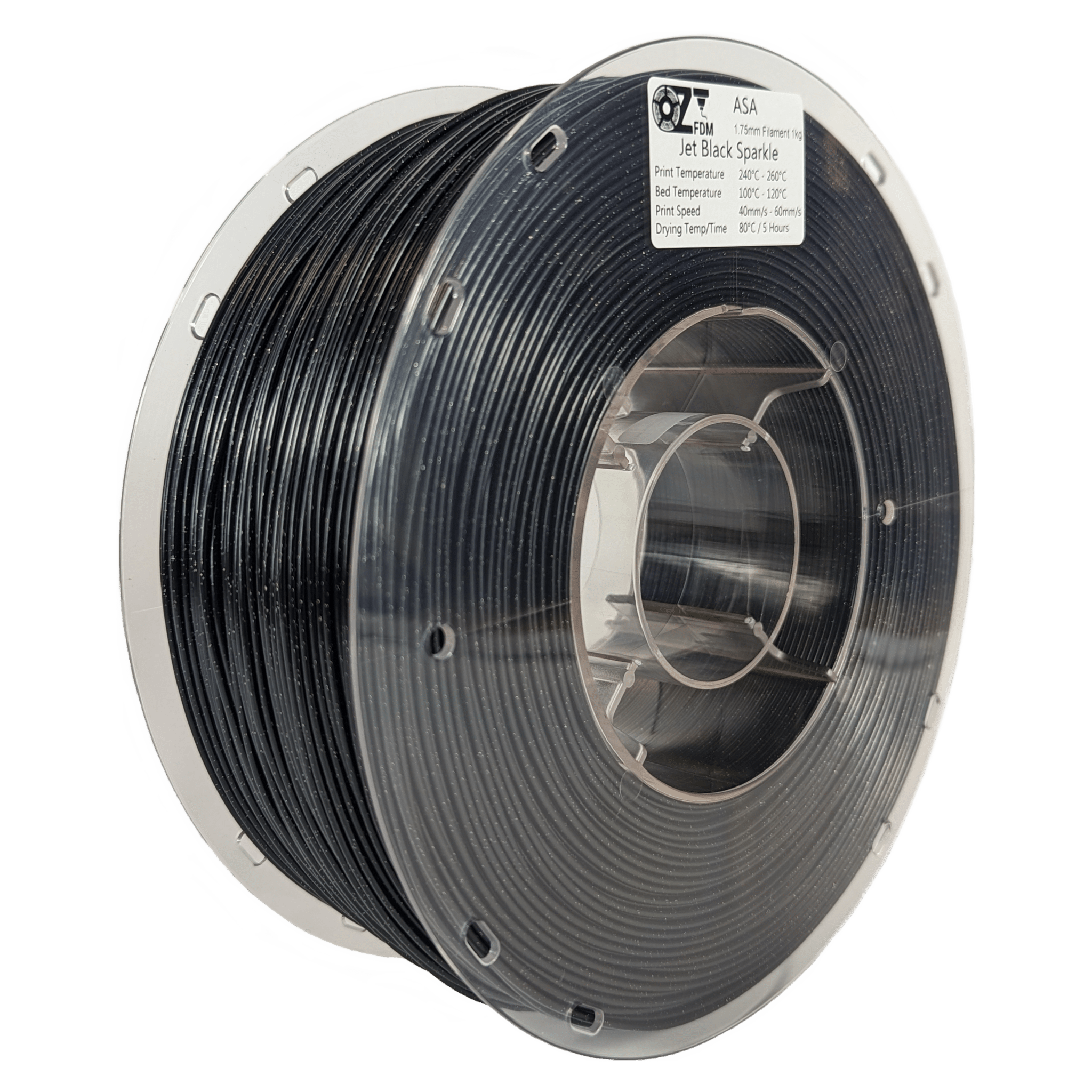

- Jet Black #0a0a0a
Approximate values taken from the colour swatches. Screen colours are a guide only.
