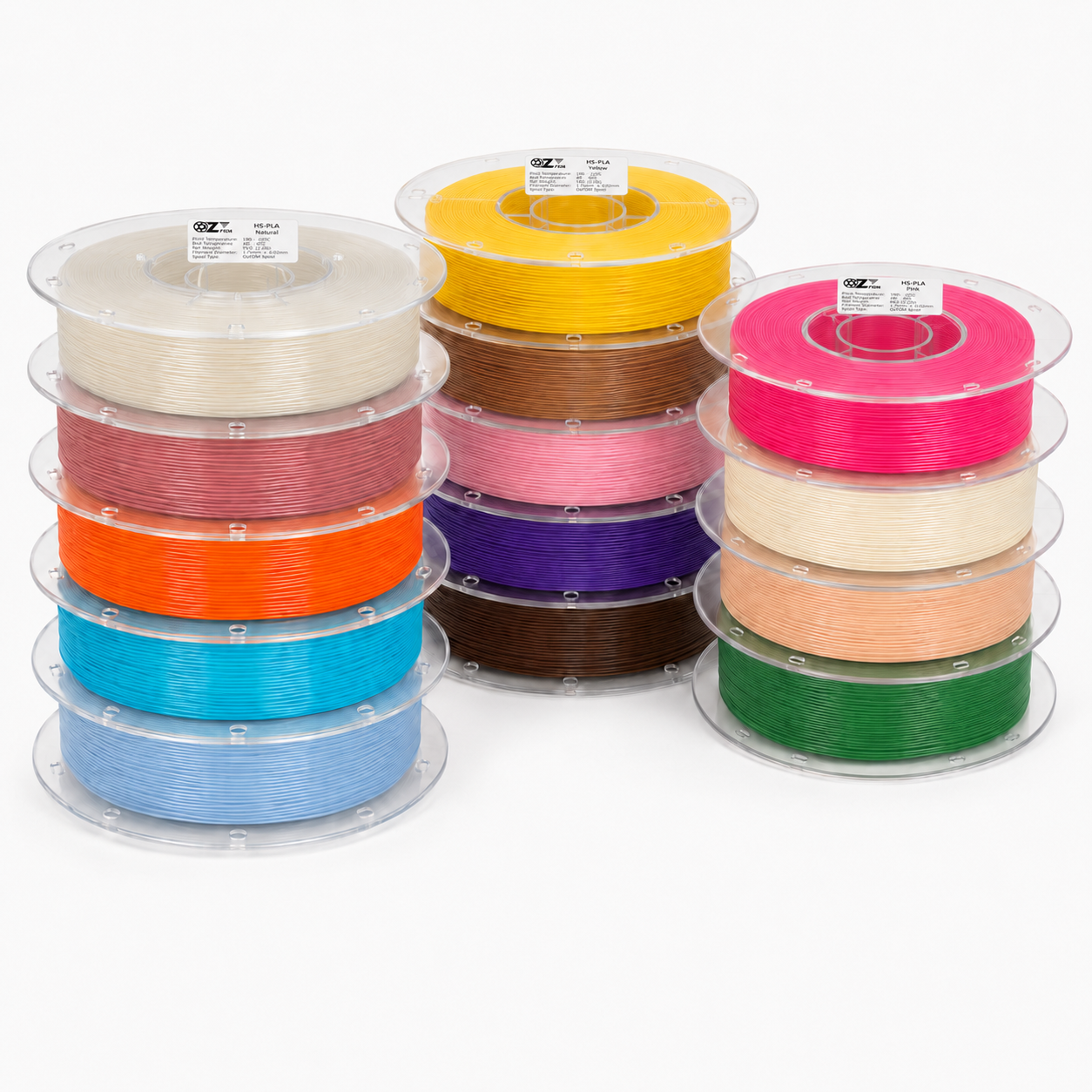

26 Colours. Endless Possibilities.

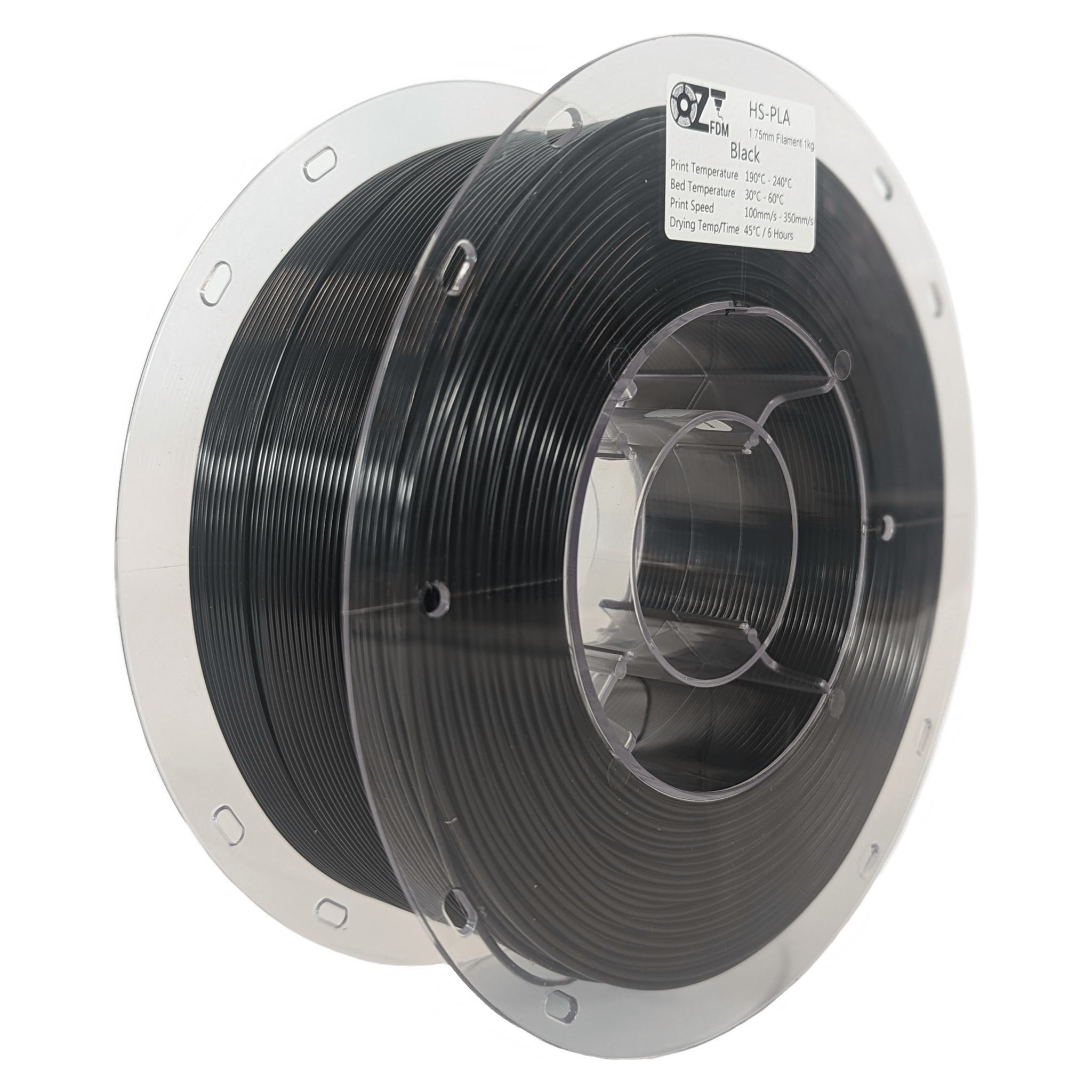

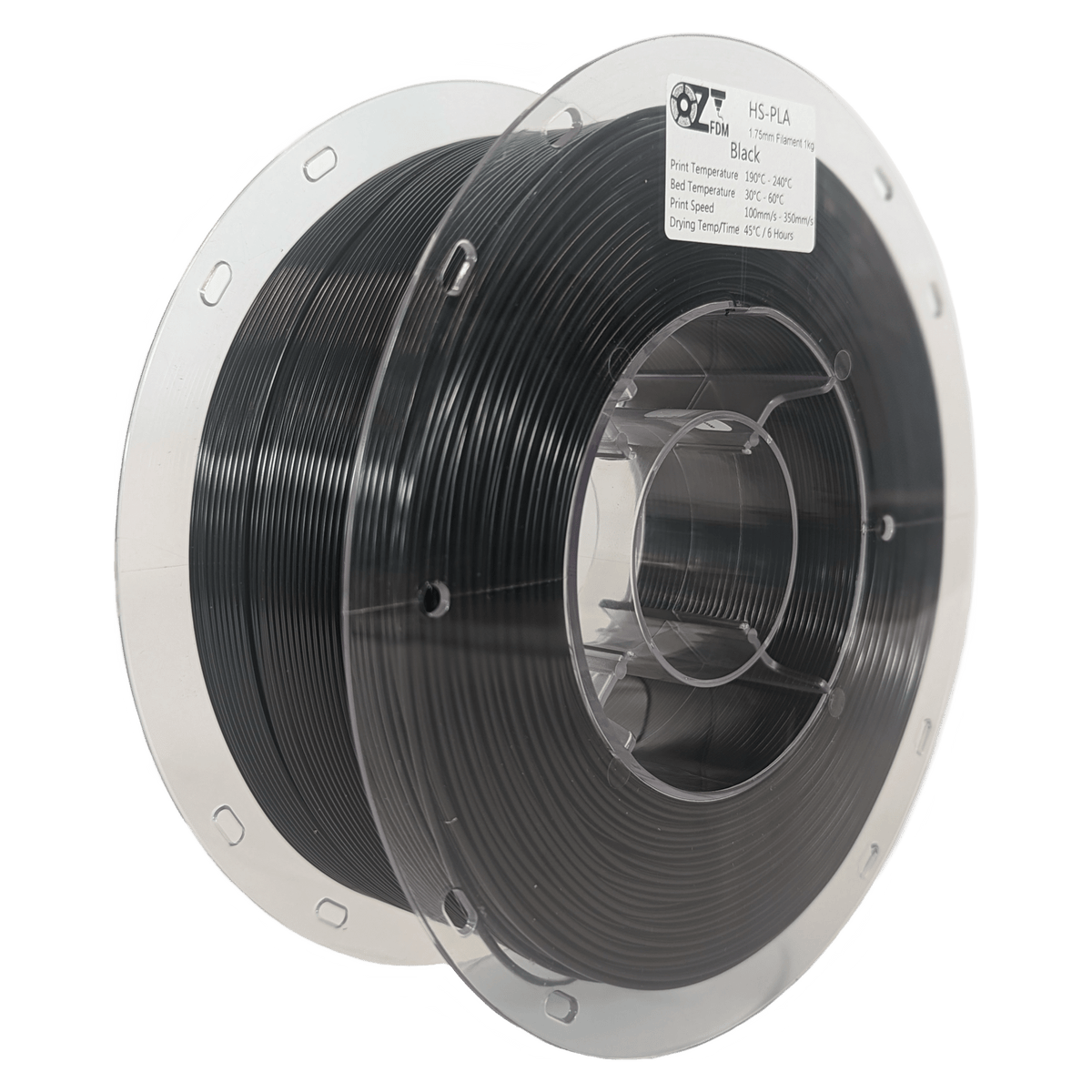

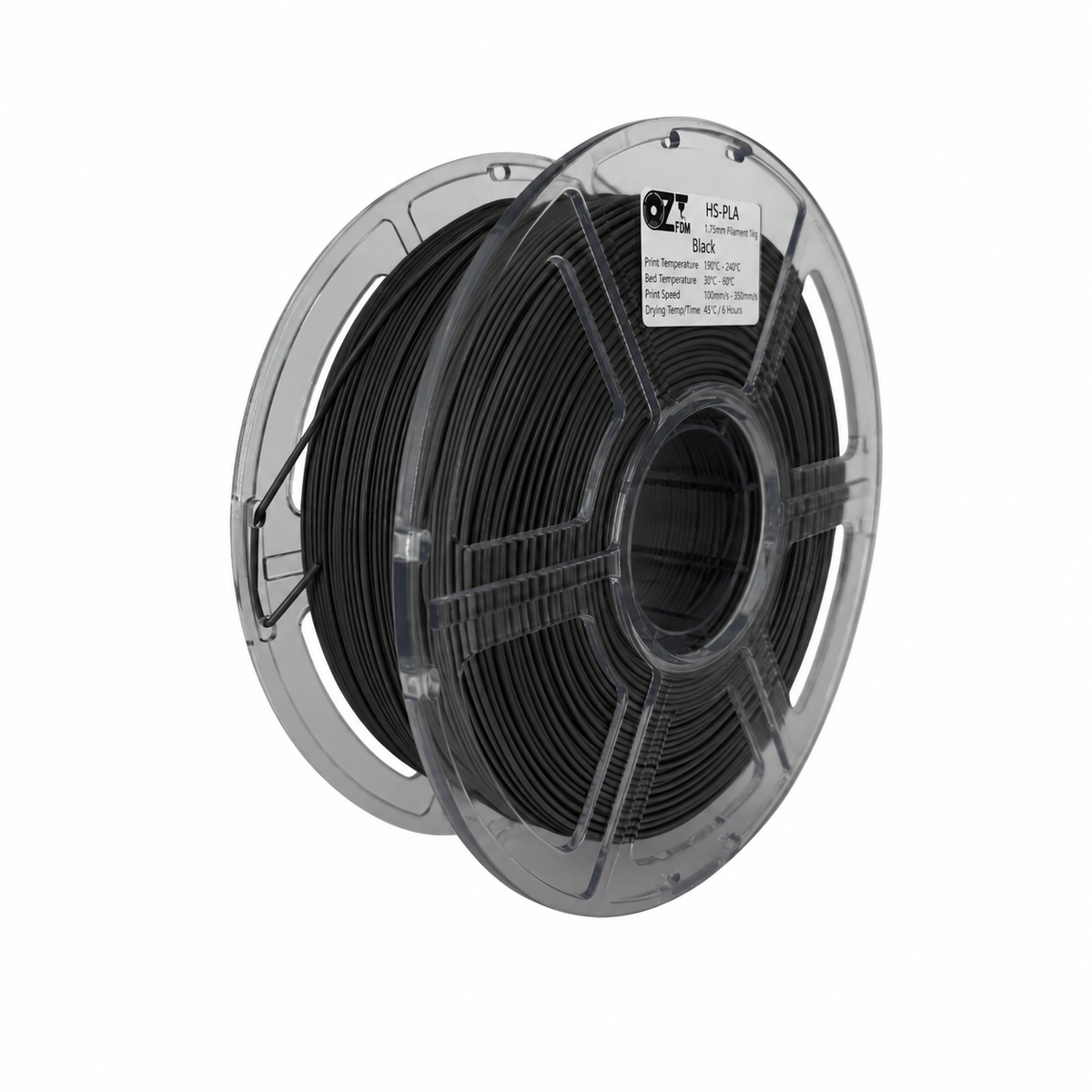

- Black#060807

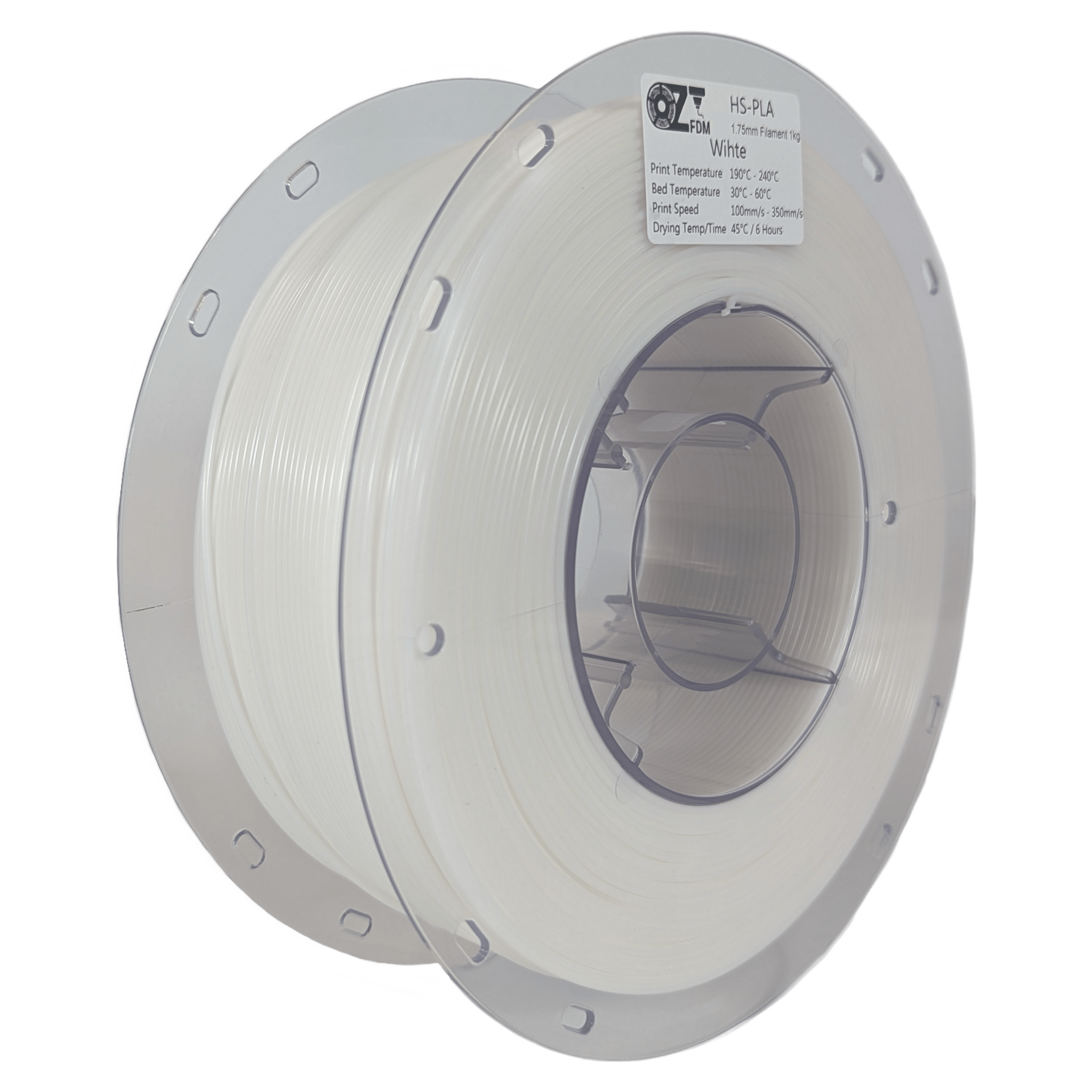

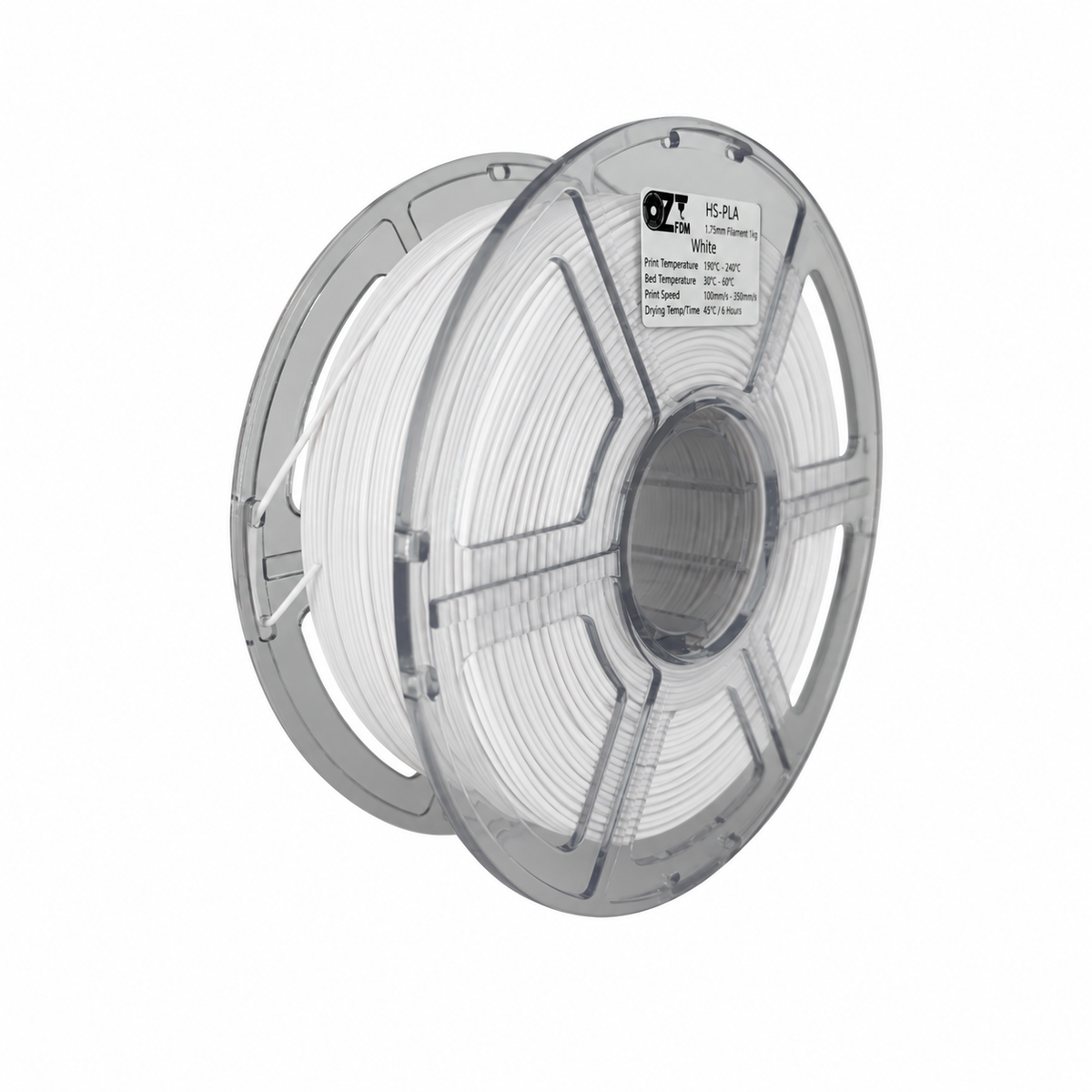

- White#F1F0EA

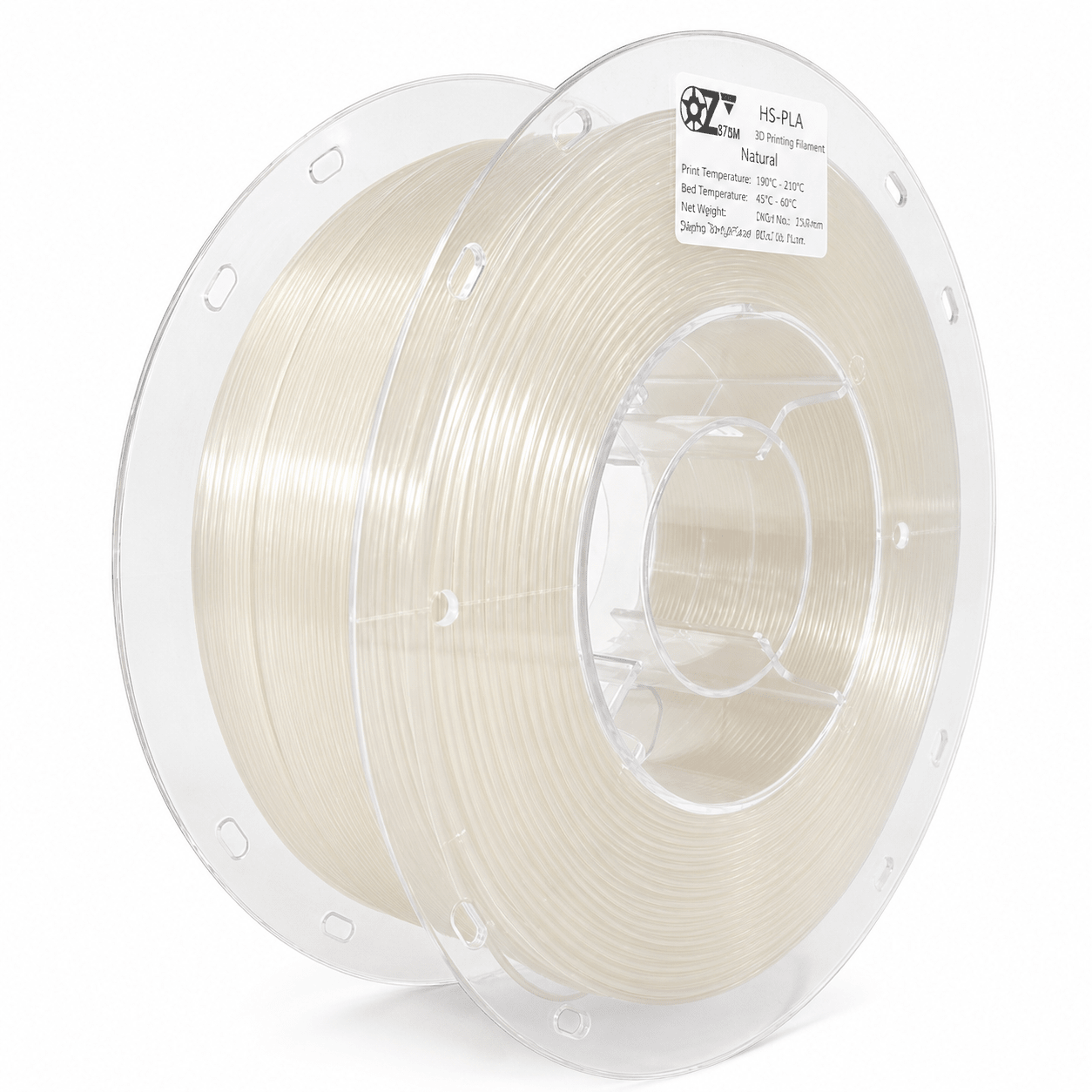

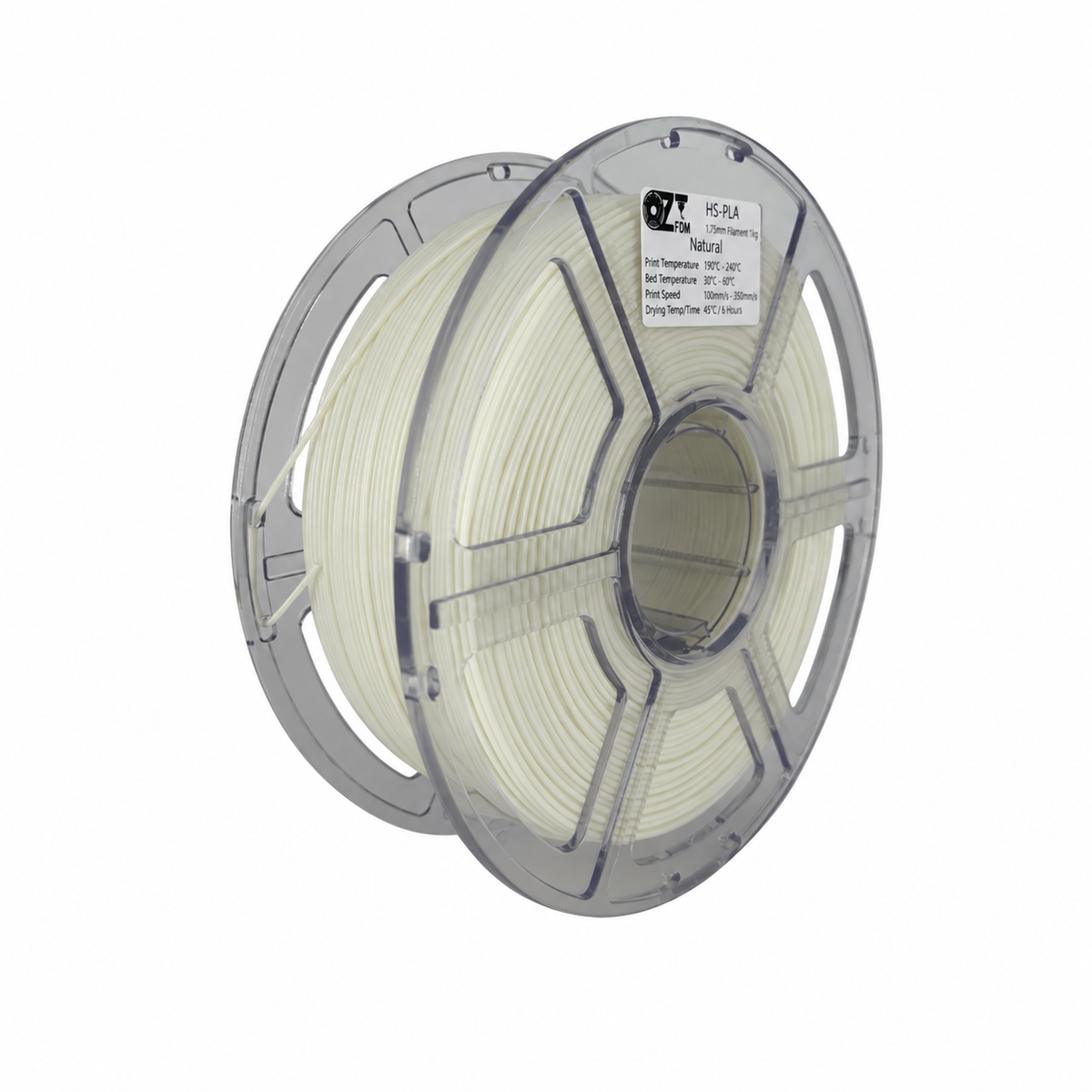

- Natural#E7E4D6

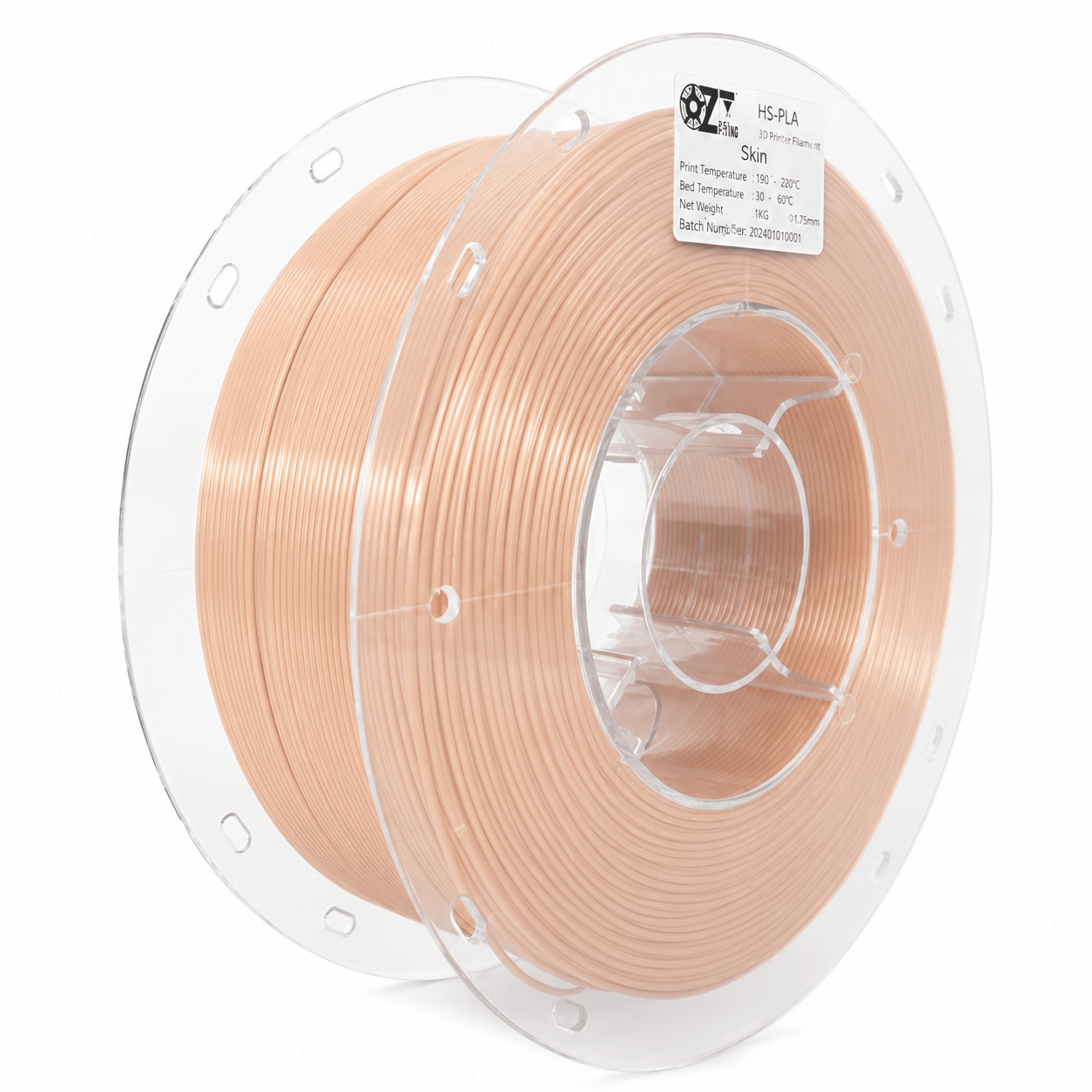

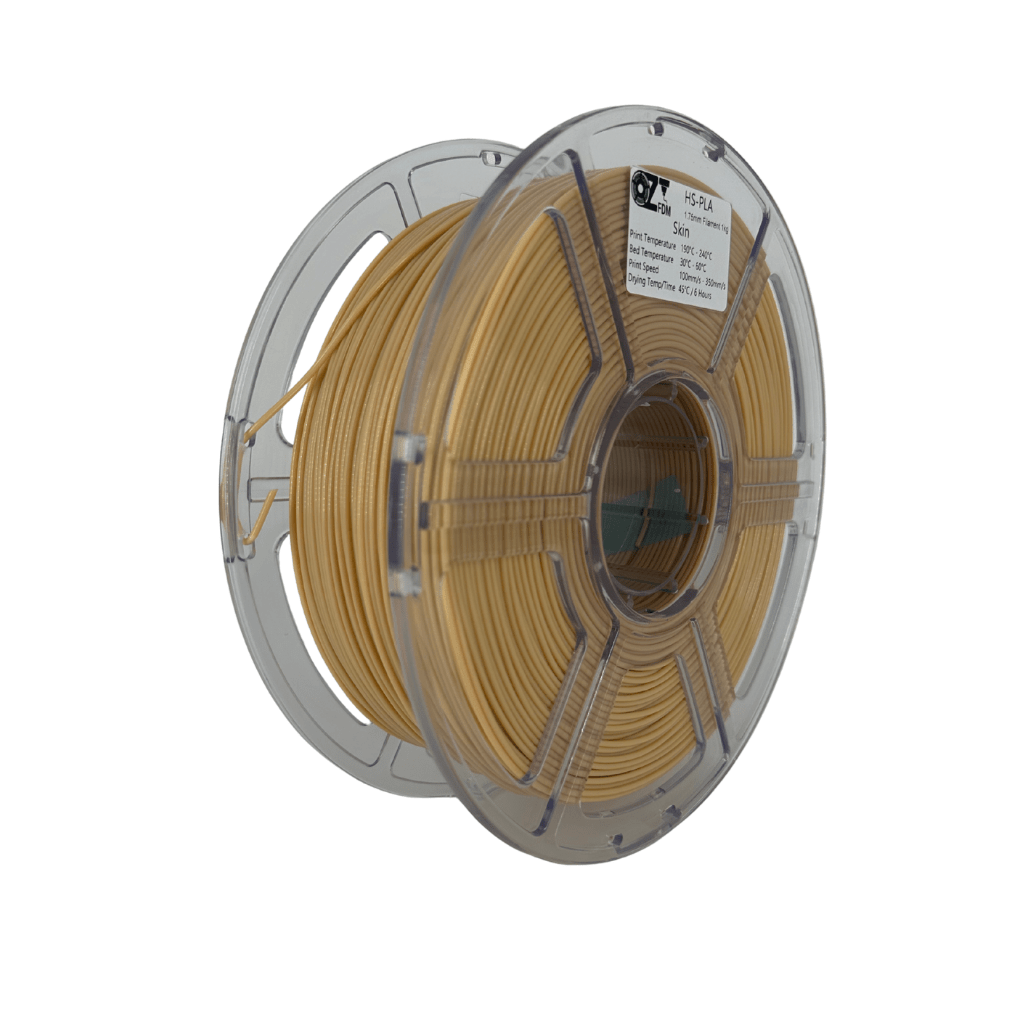

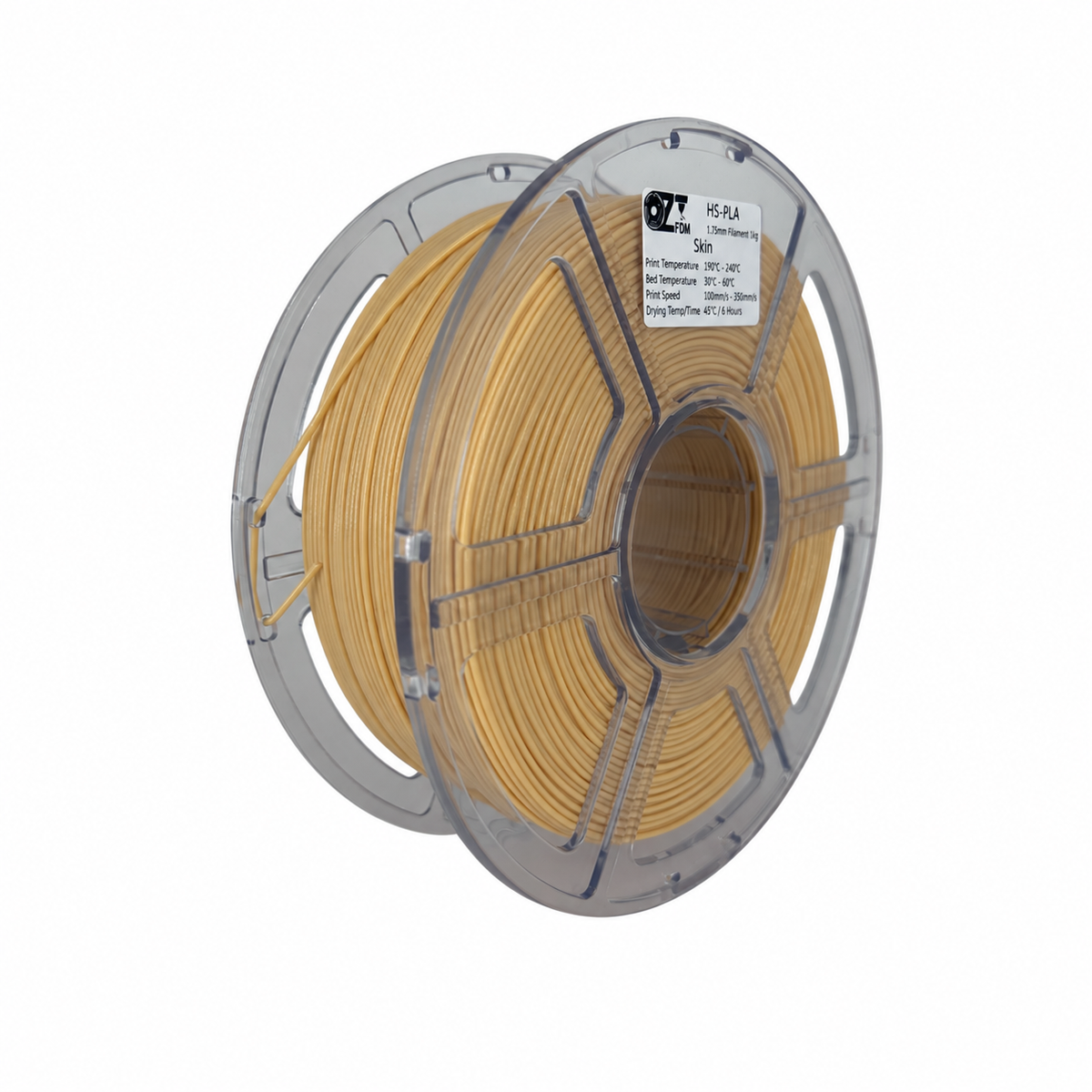

- Skin#E8C8B3

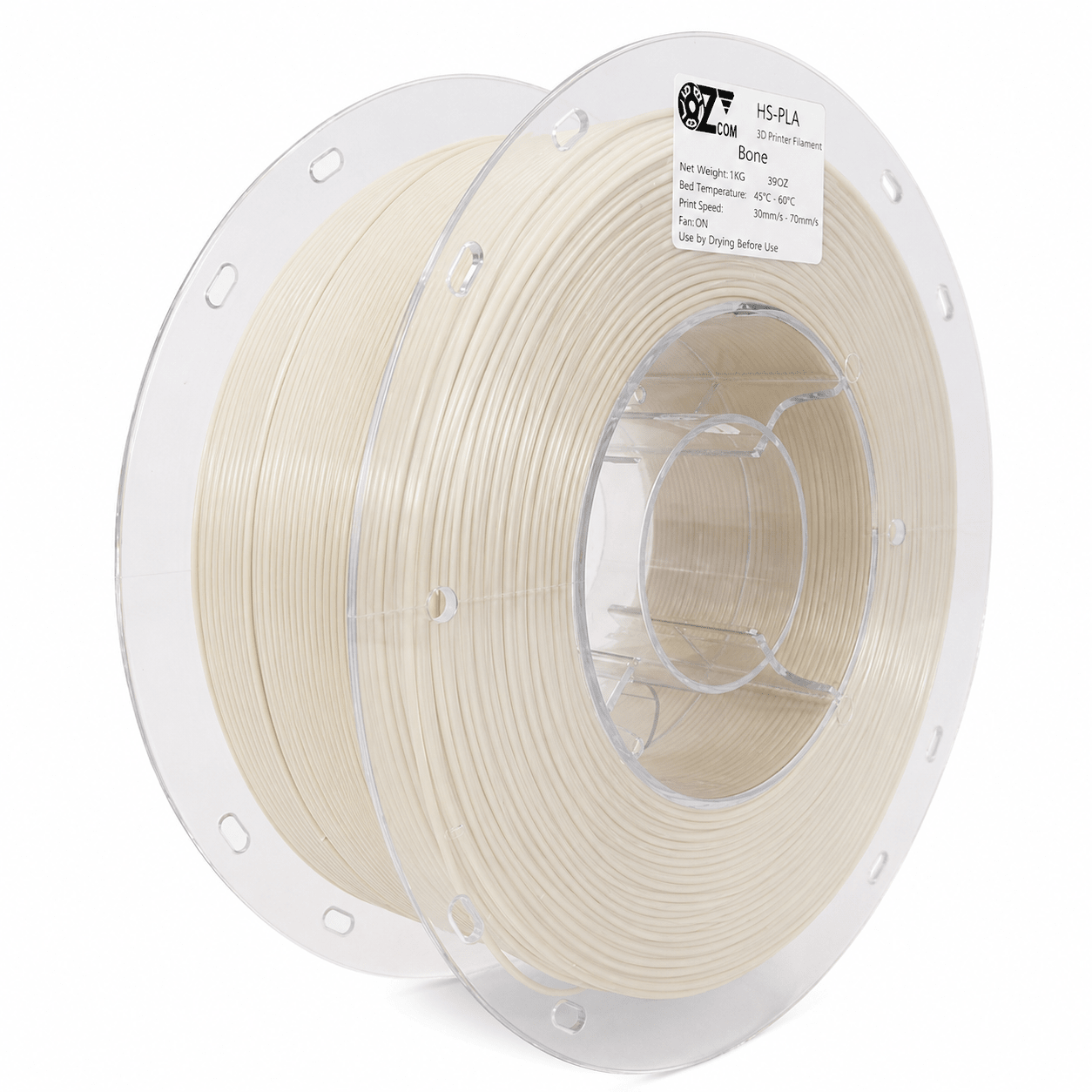

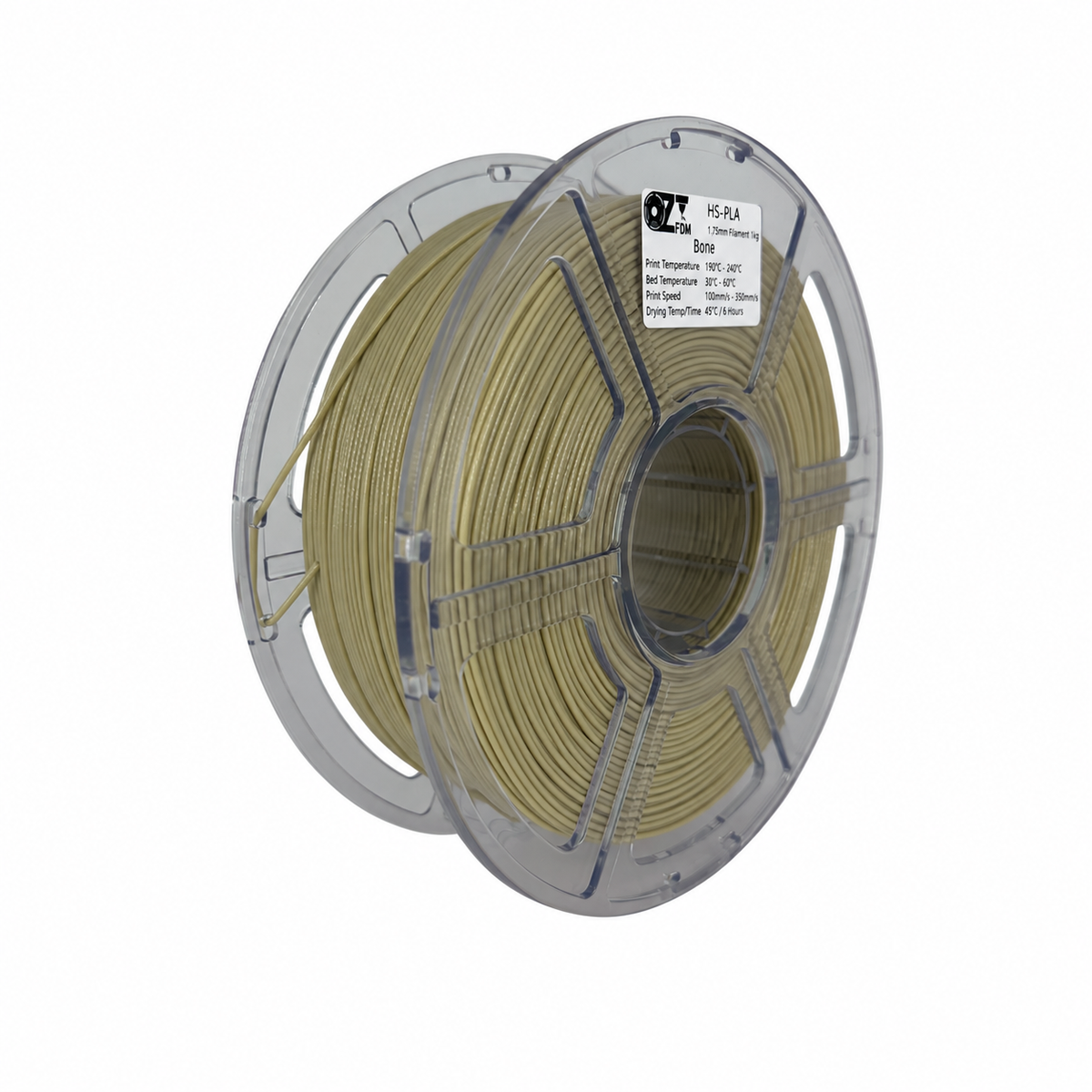

- Bone#E6E0D7

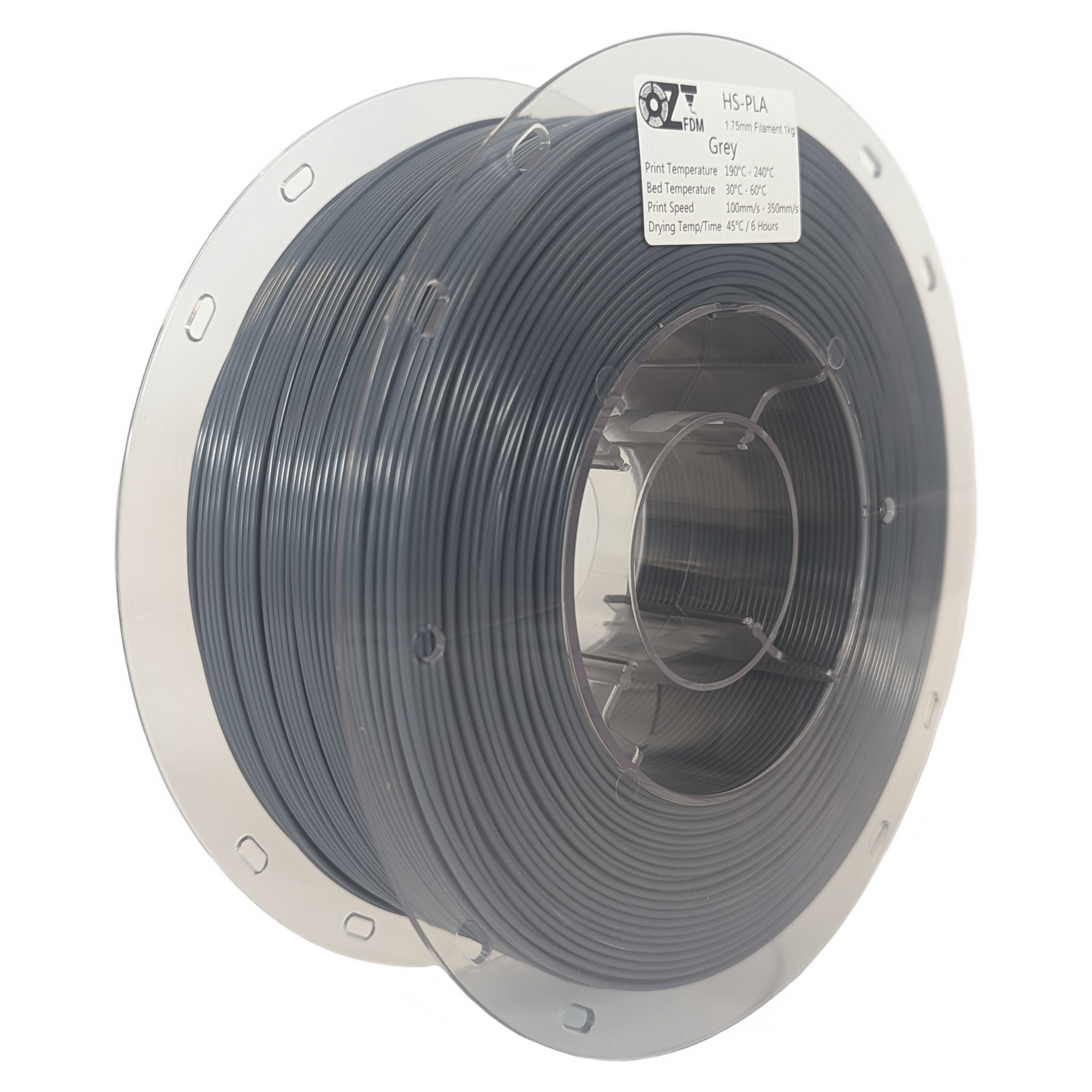

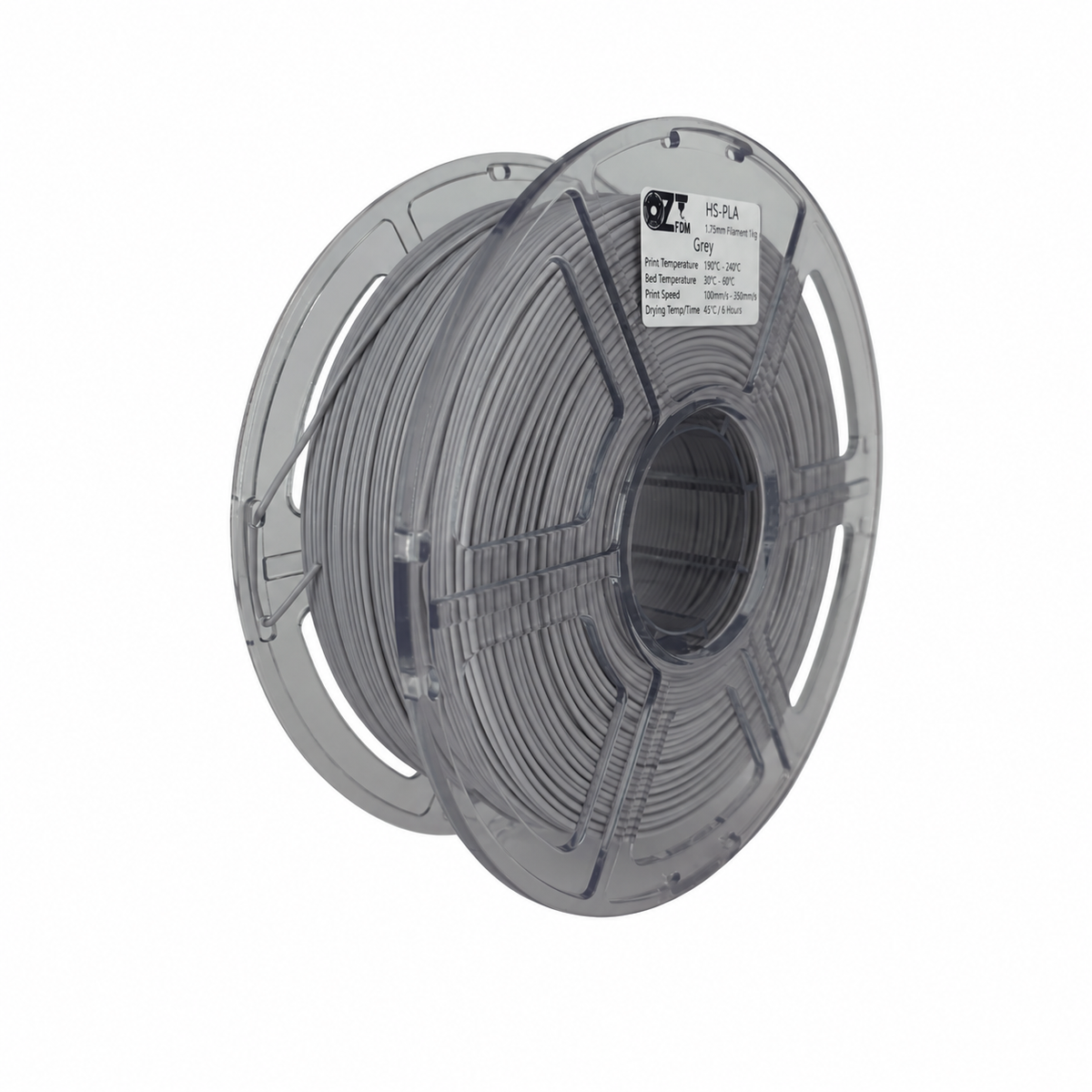

- Grey#72777D

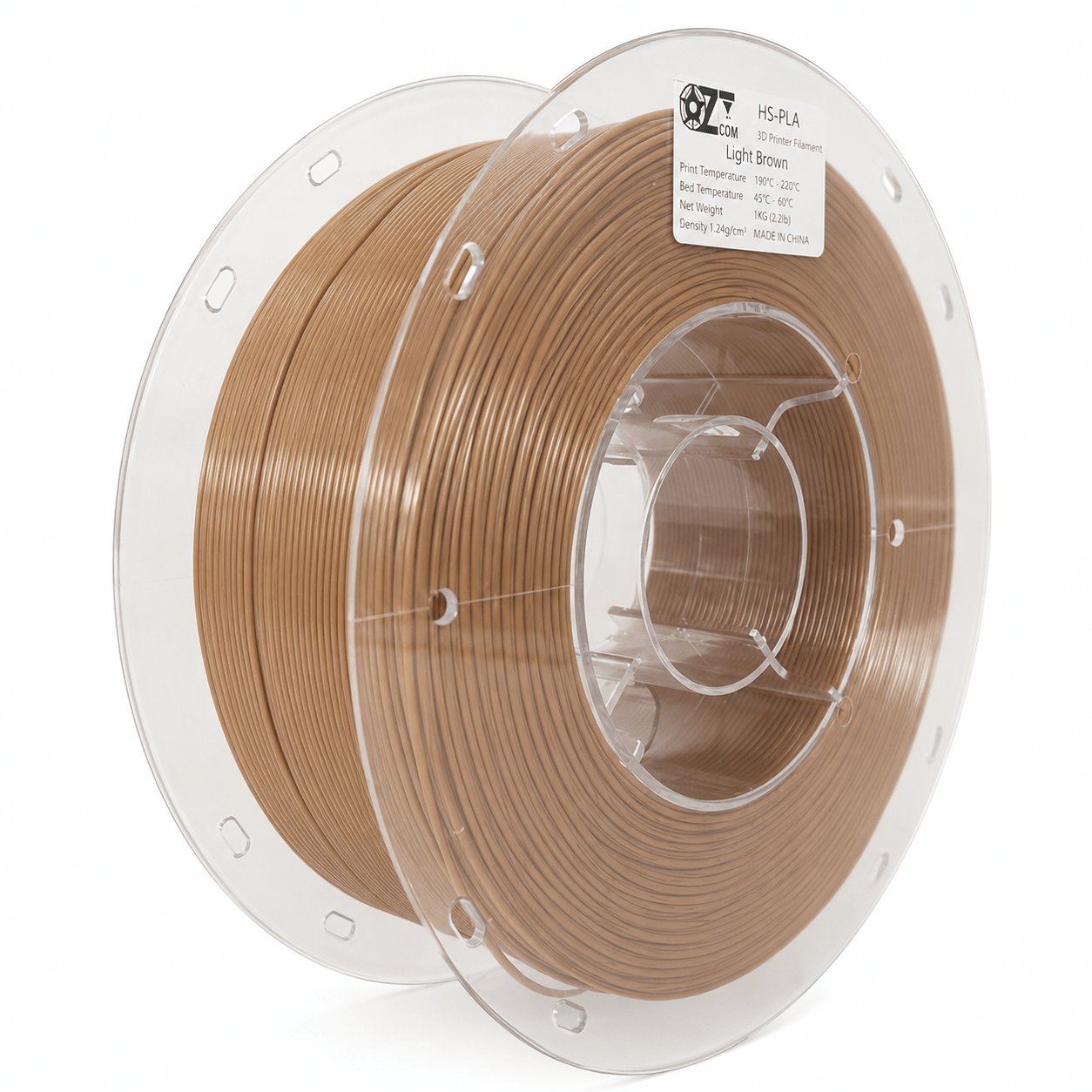

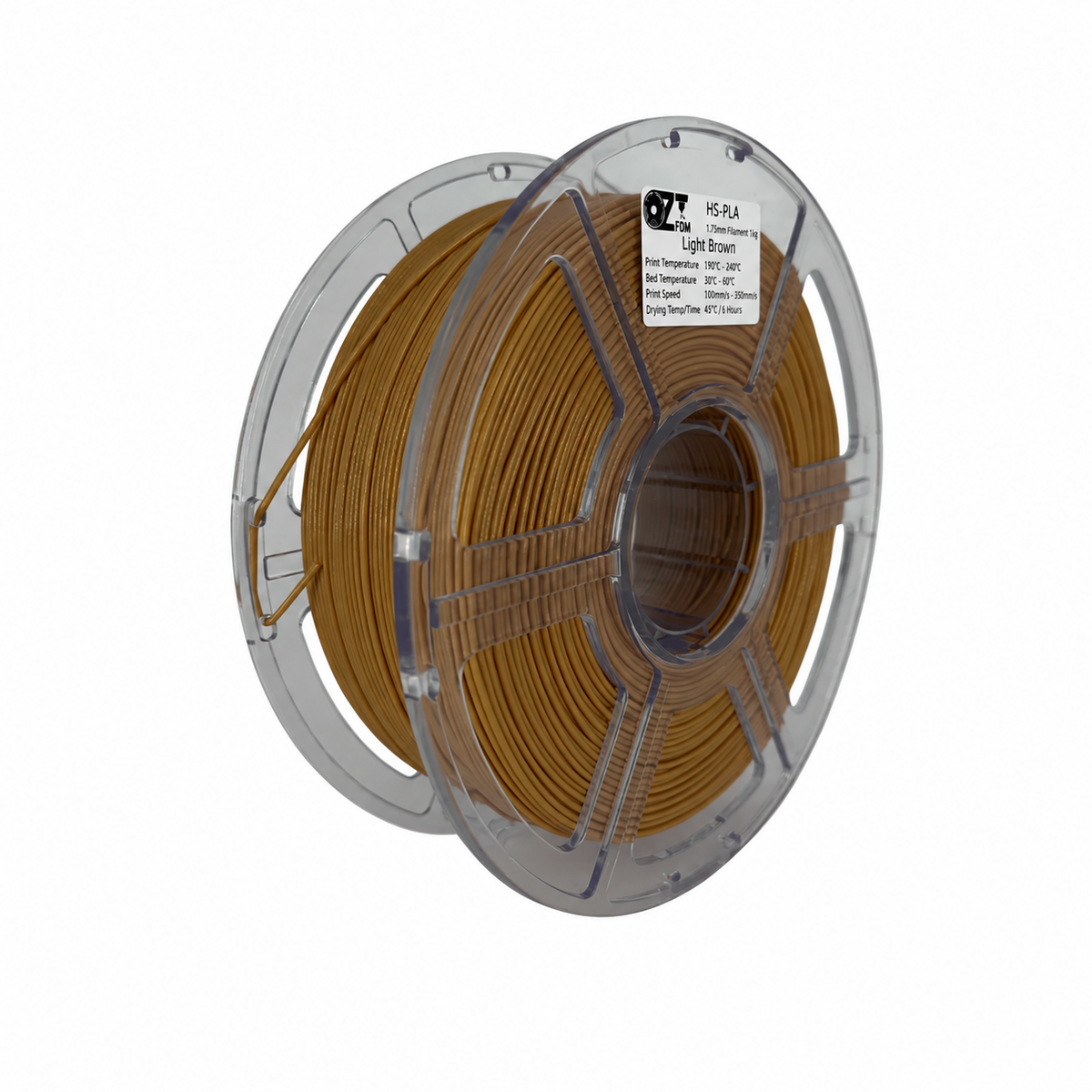

- Light Brown#BE9775

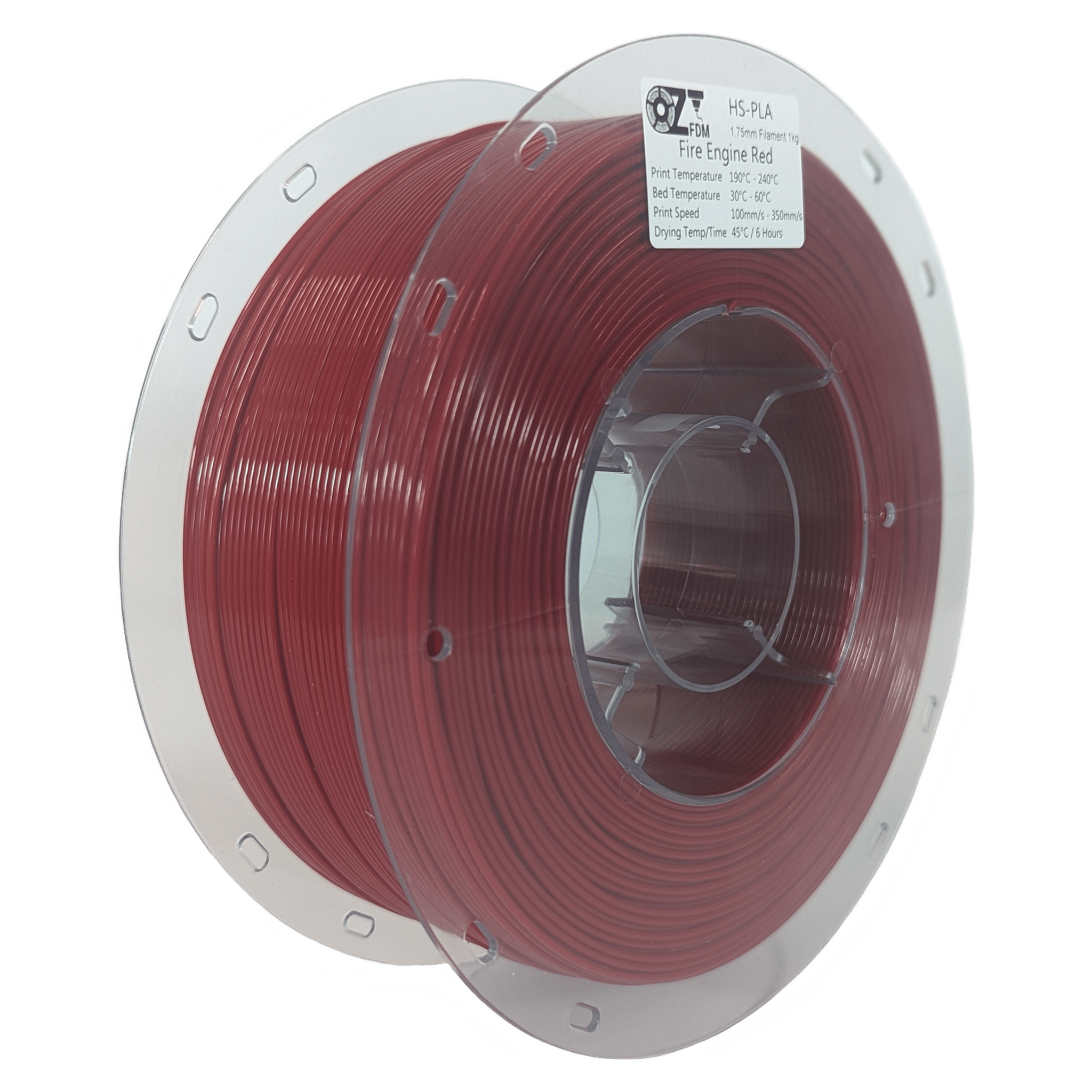

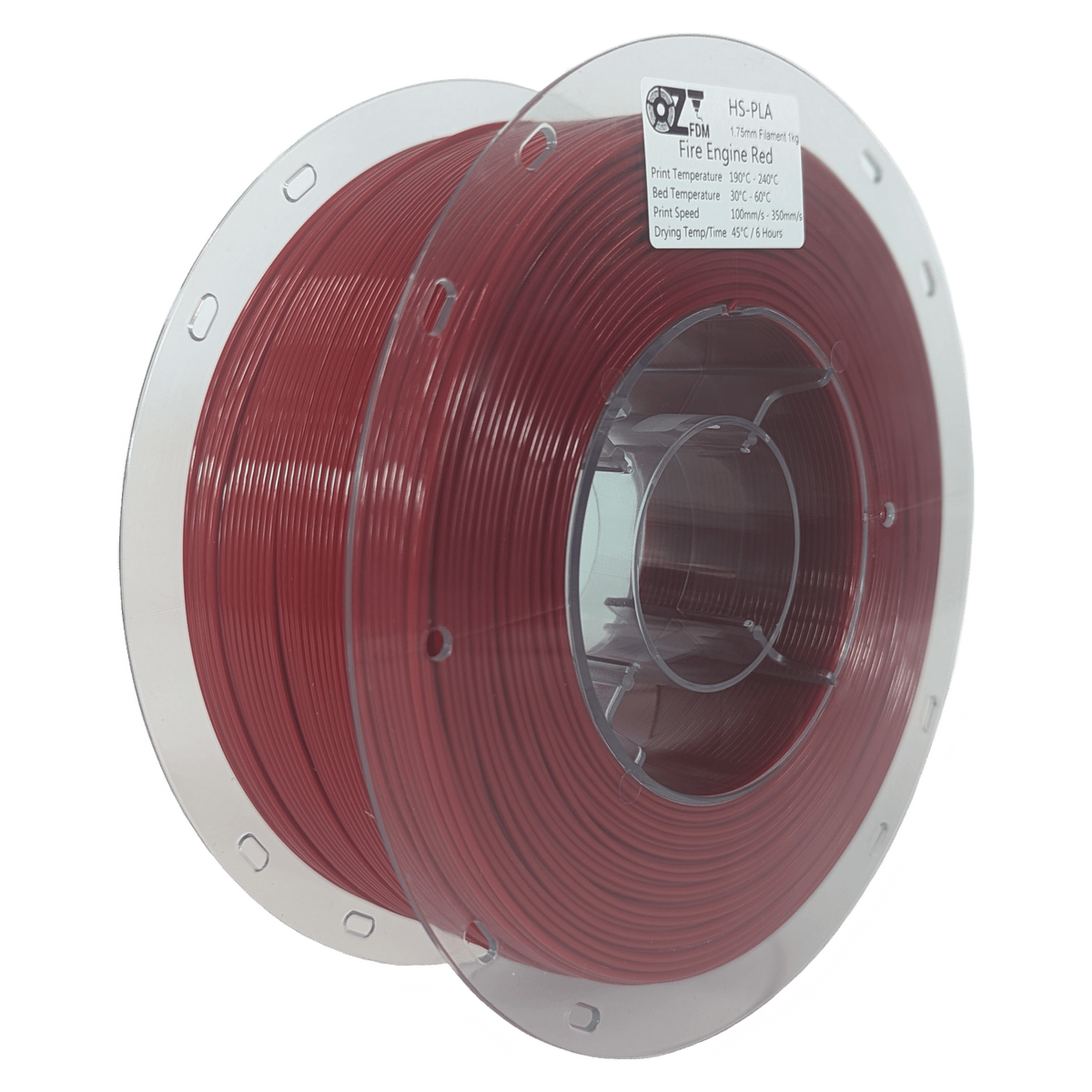

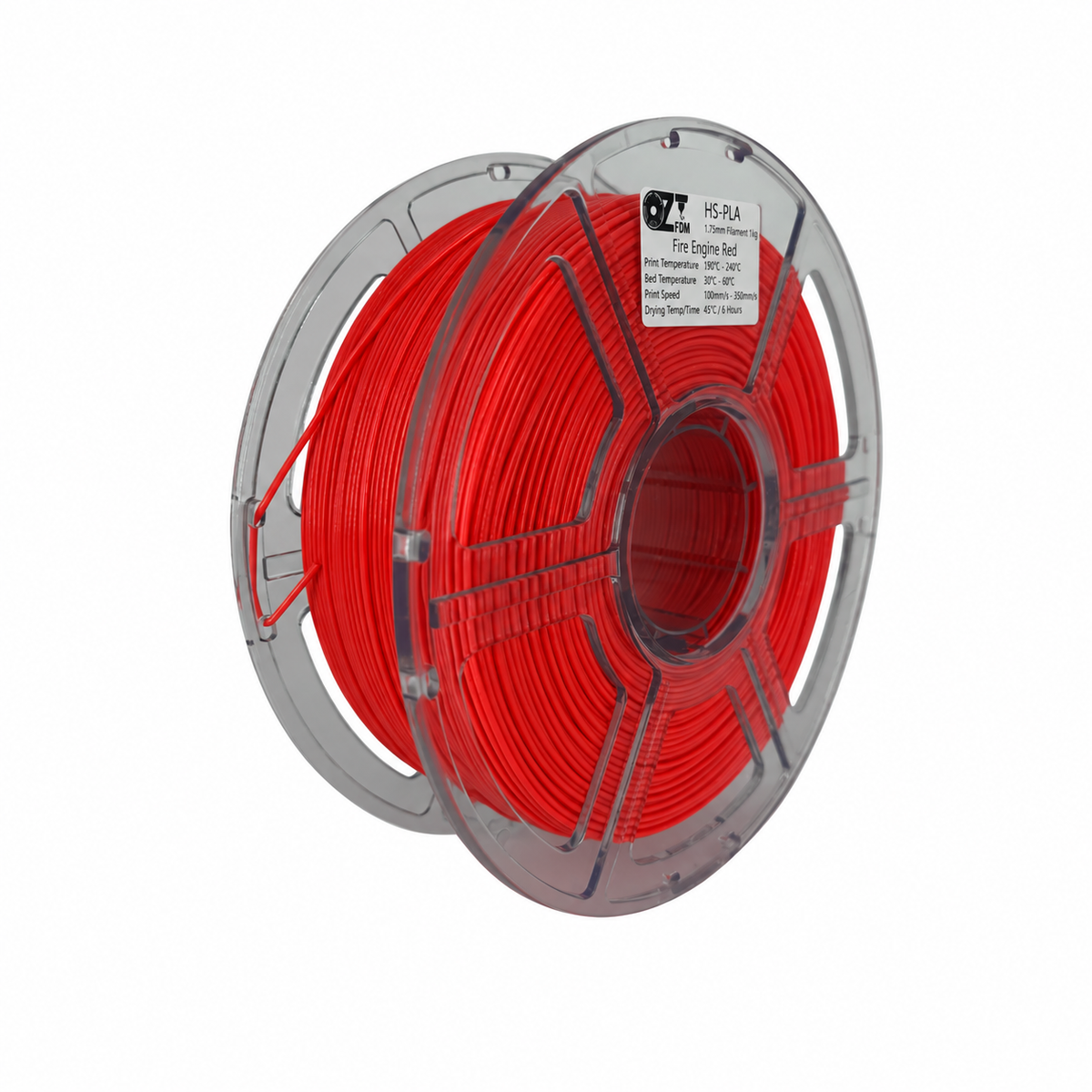

- Fire Engine Red#A72D27

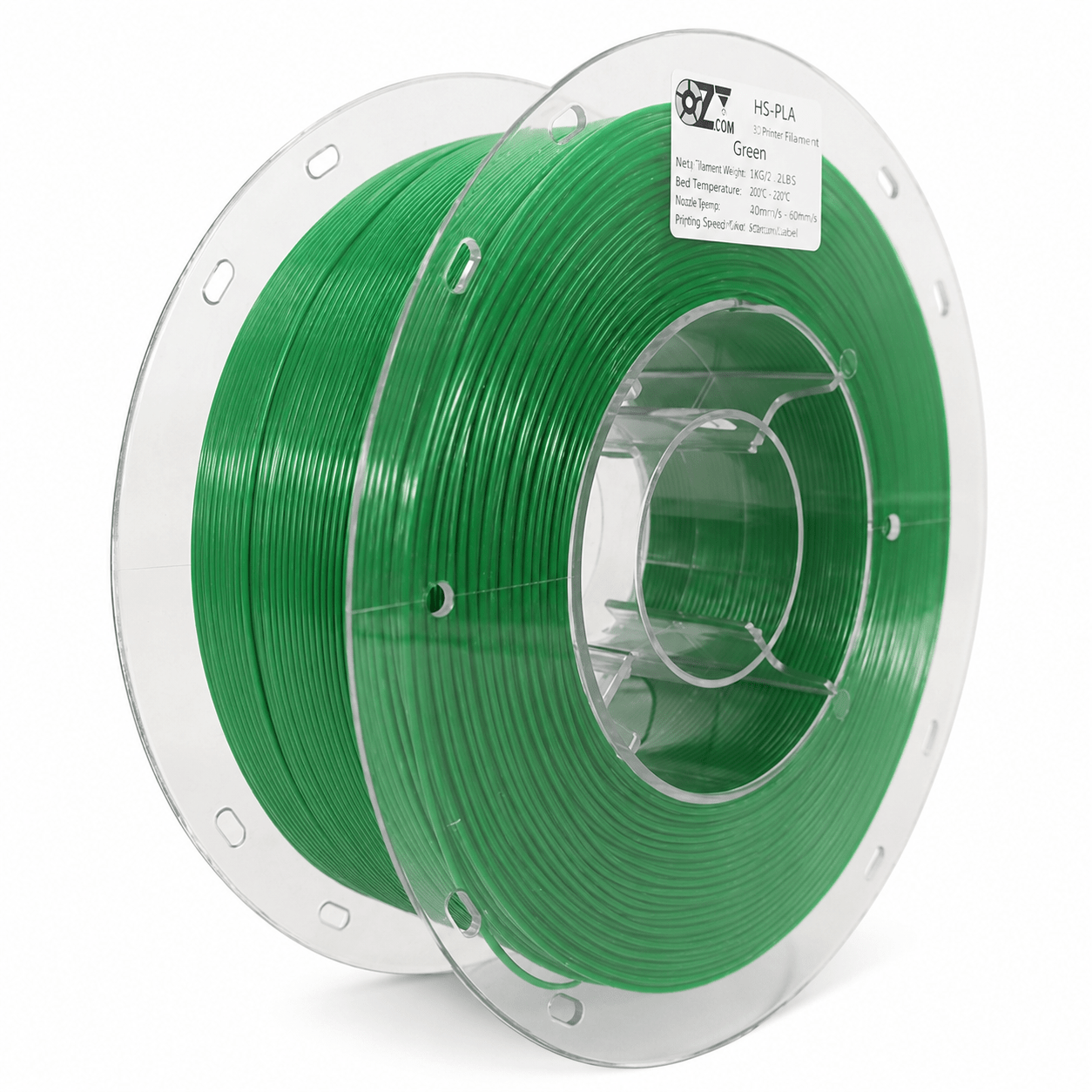

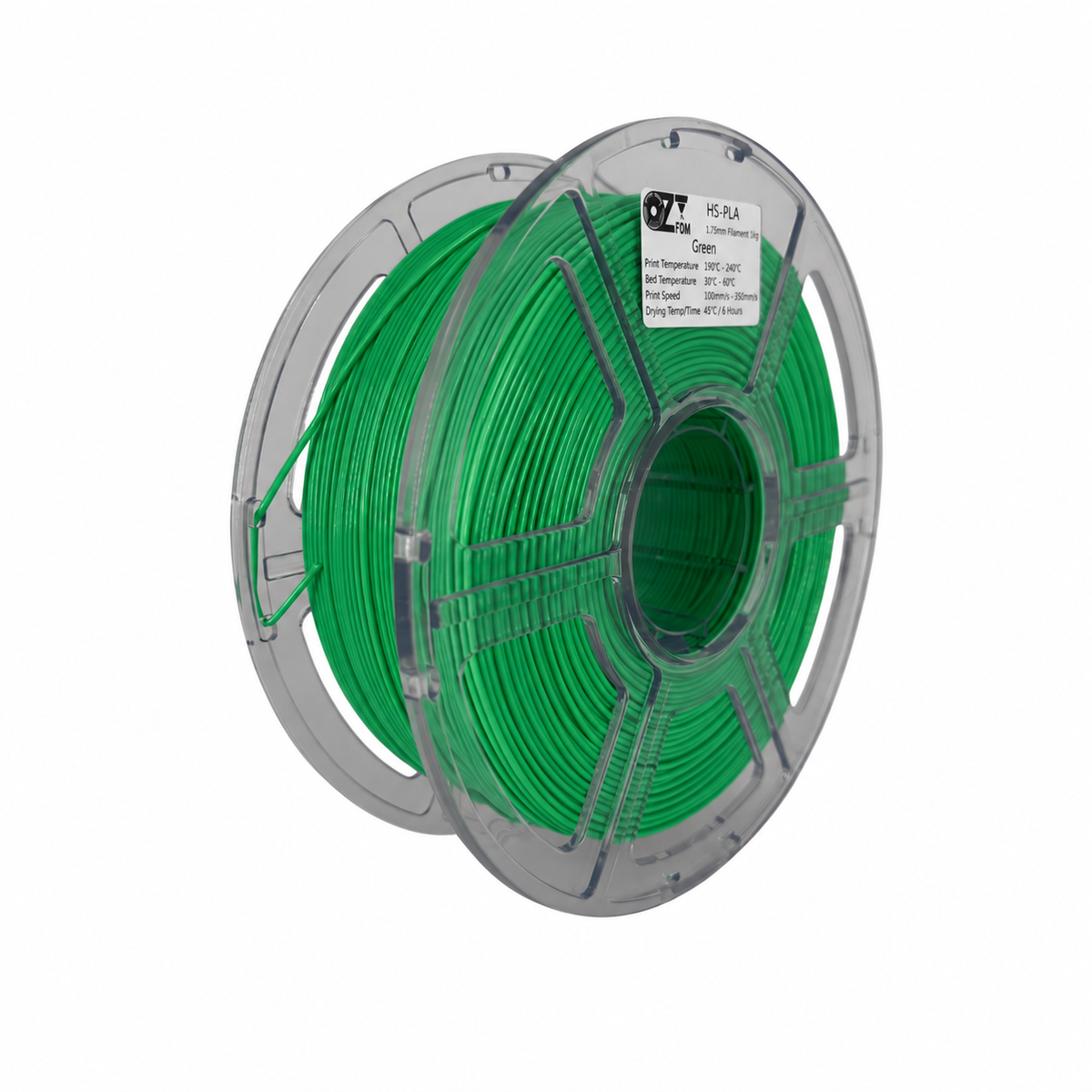

- Green#2E6706

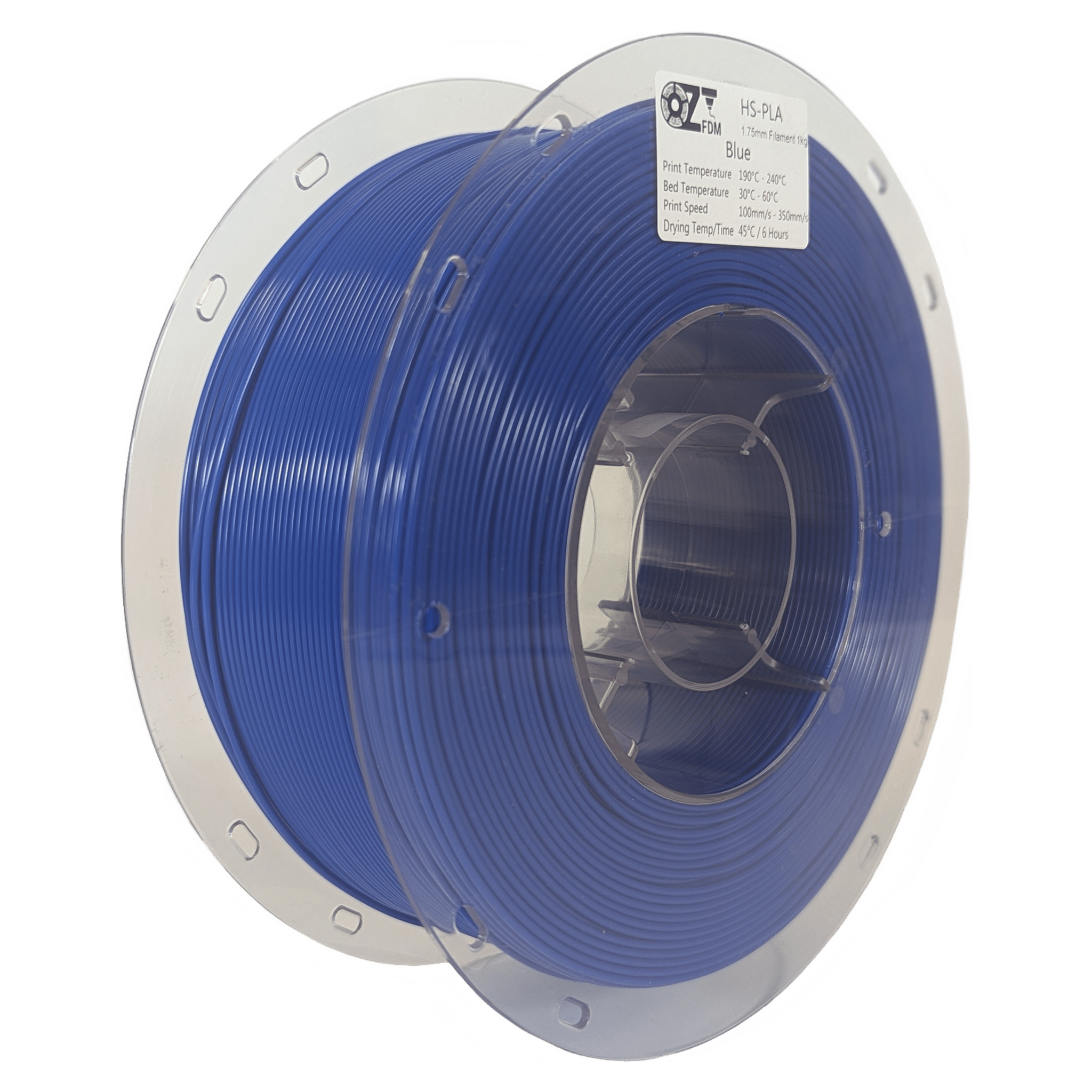

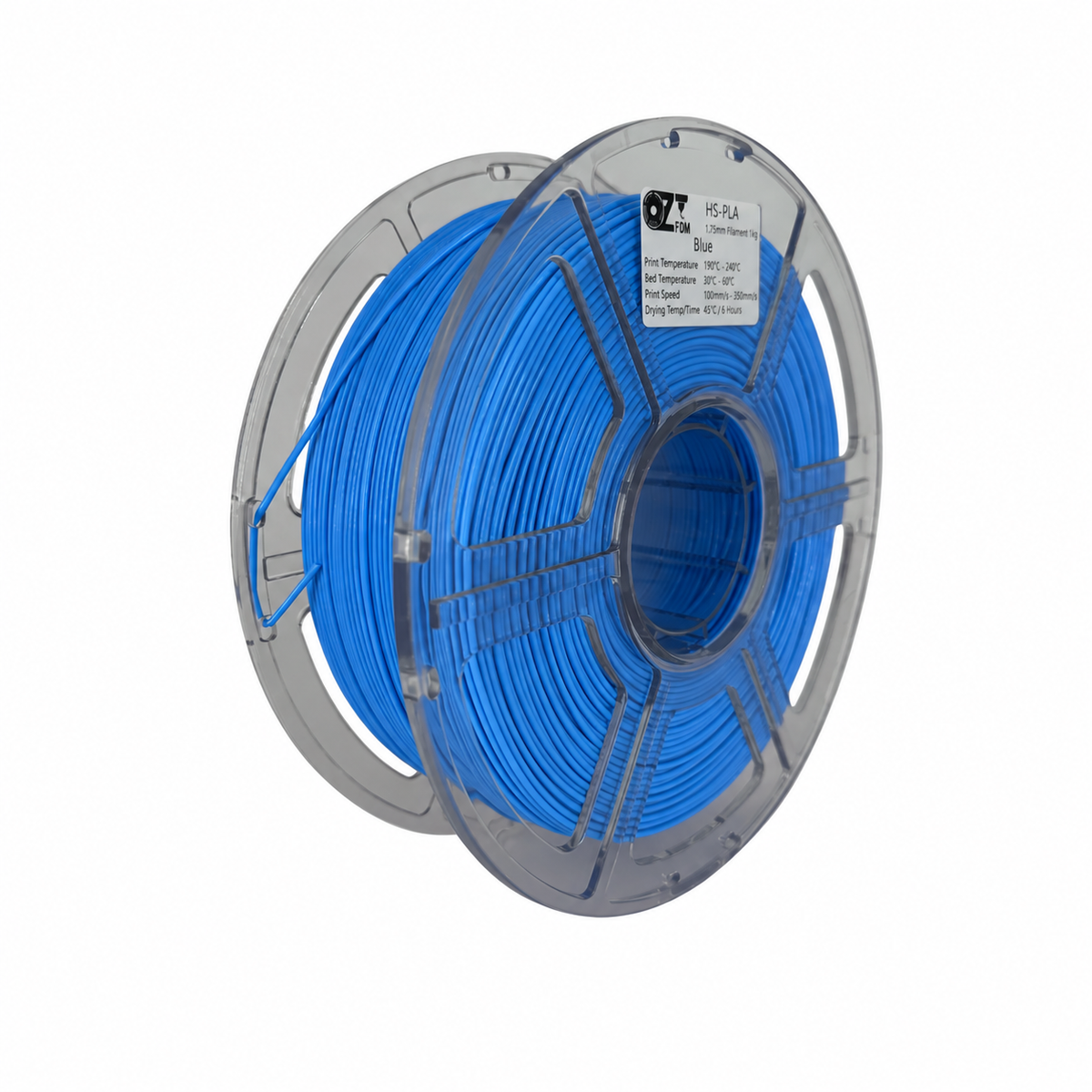

- Blue#262E72

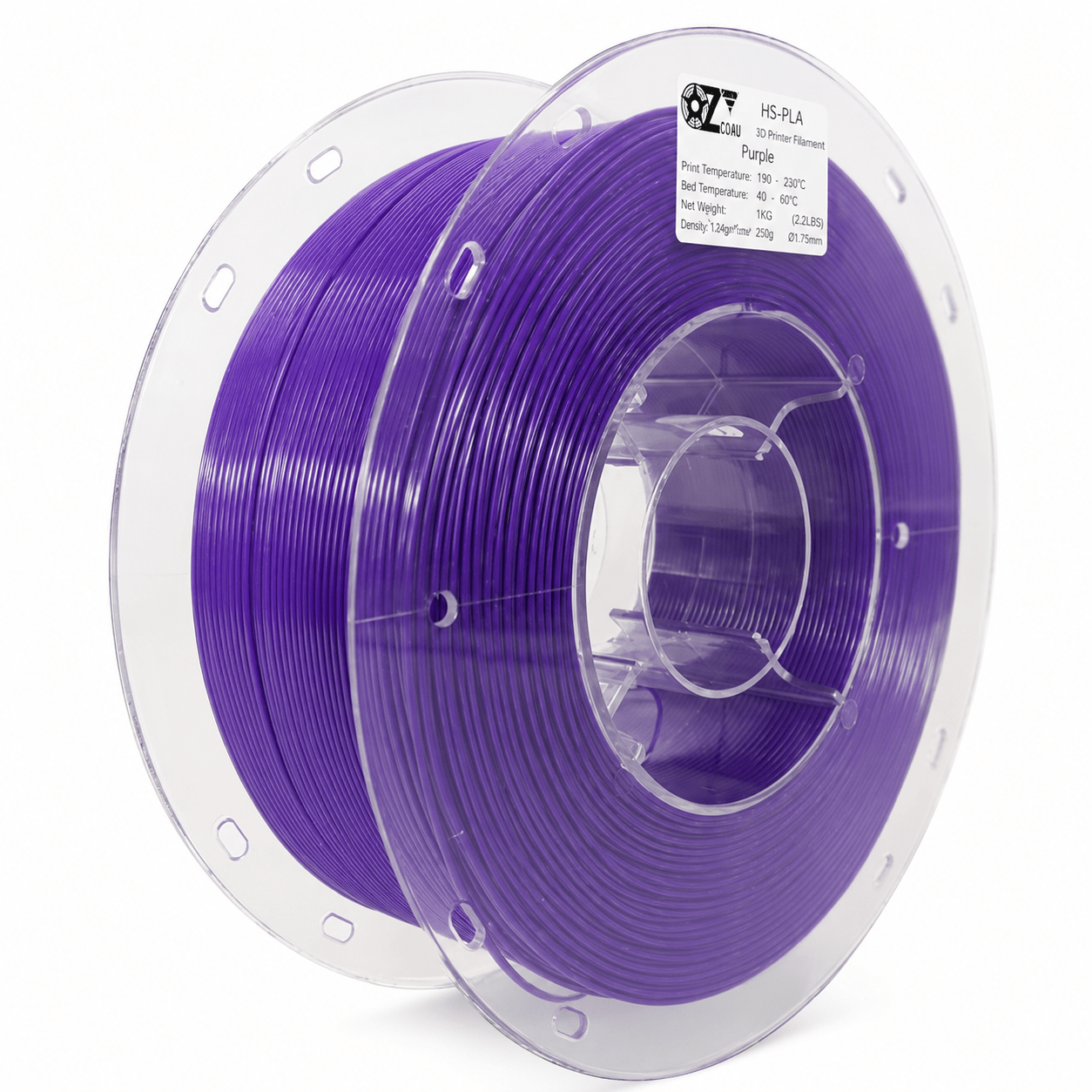

- Purple#7951B9

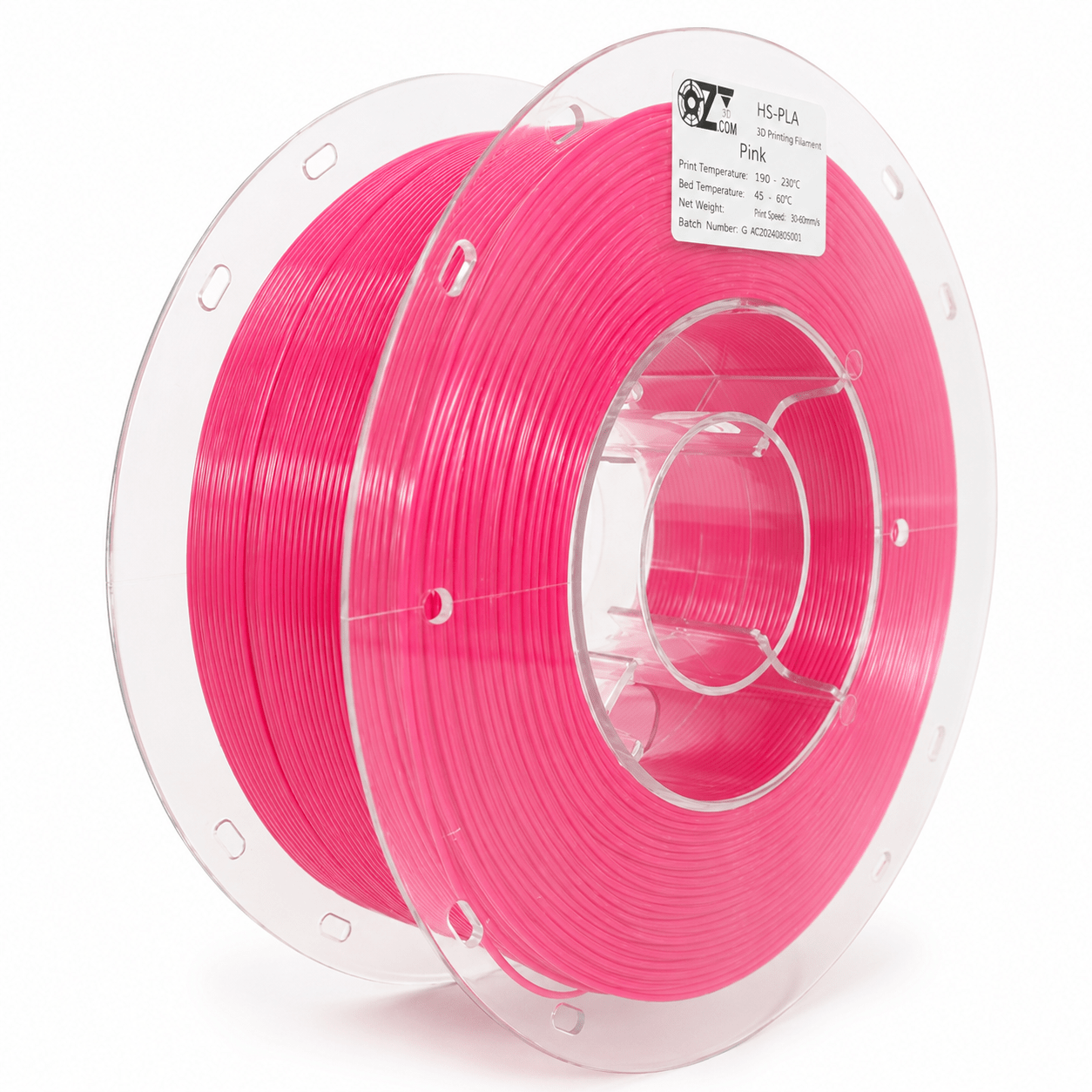

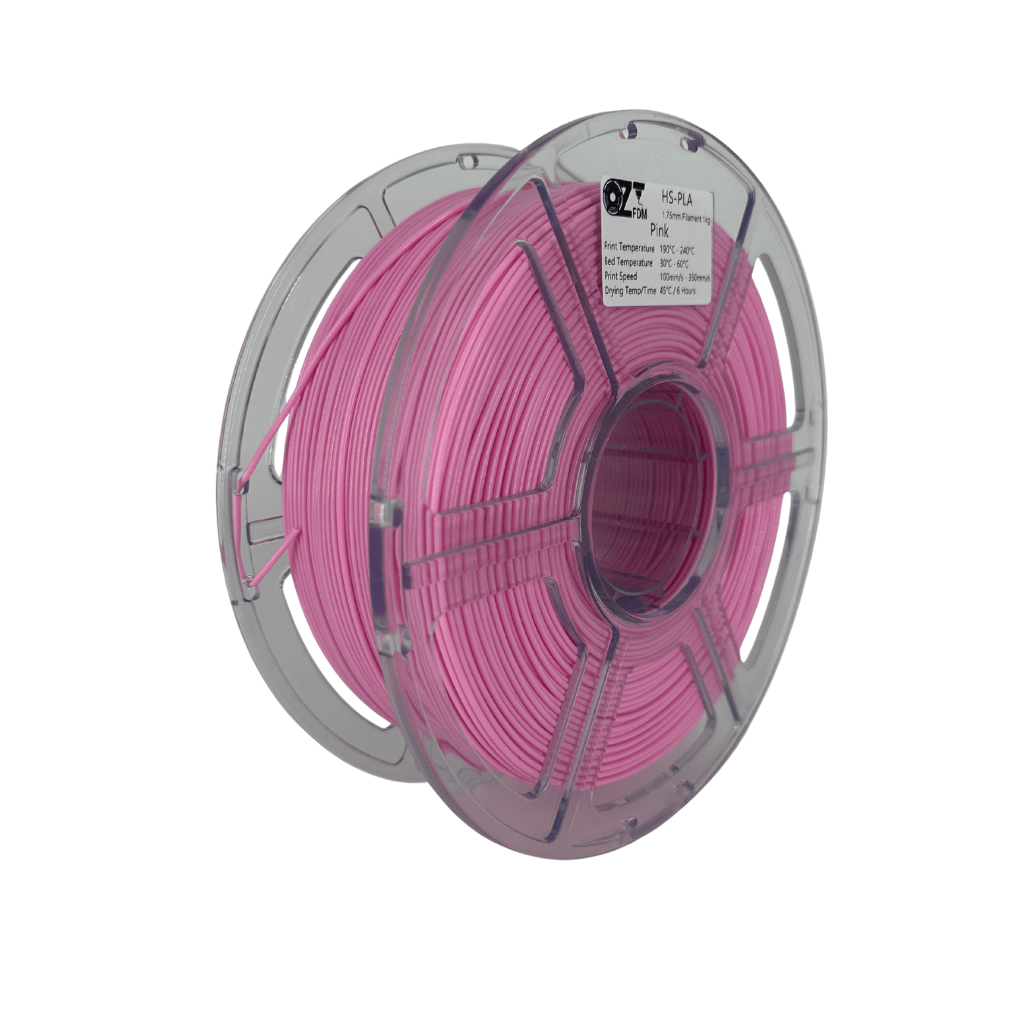

- Pink#DDA9CB

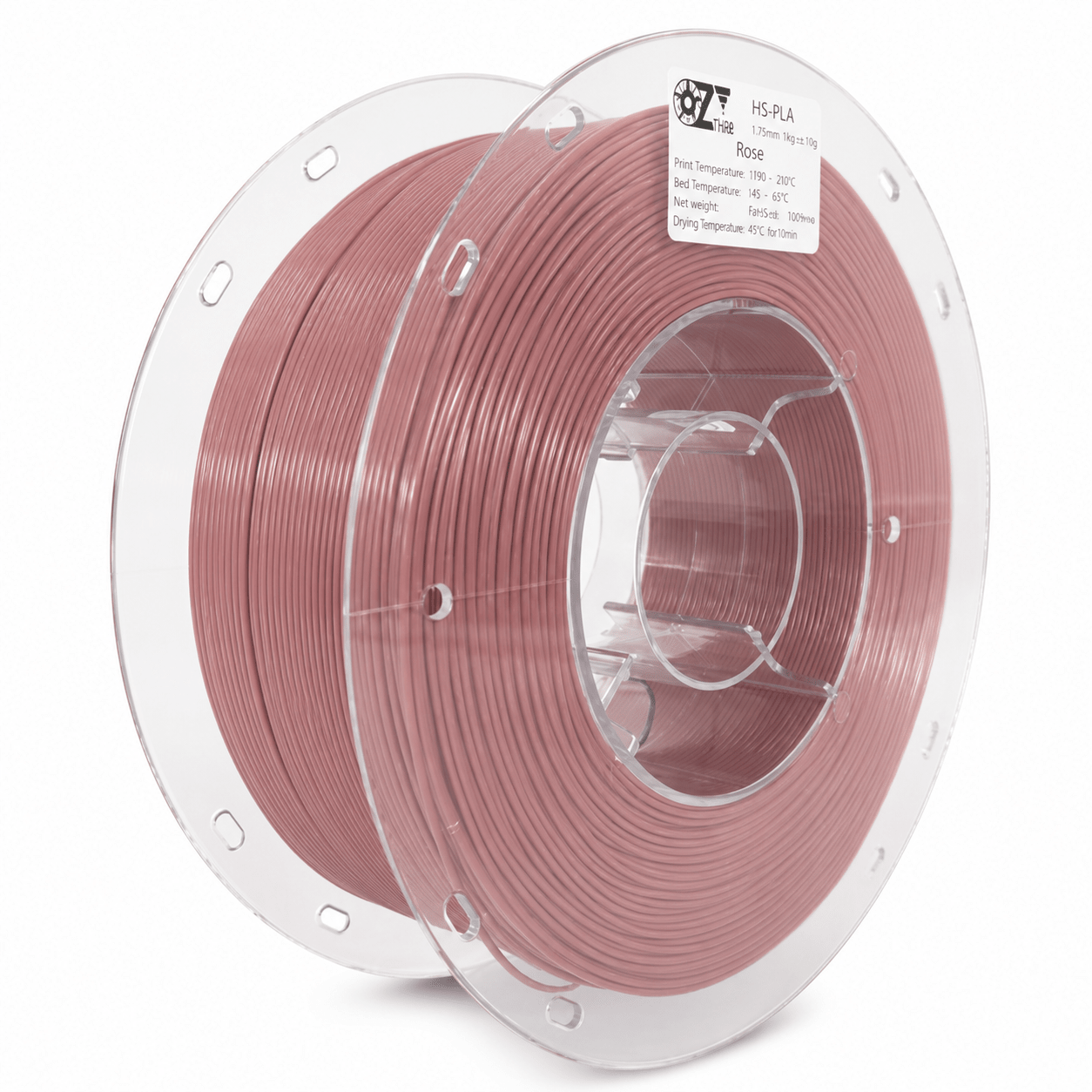

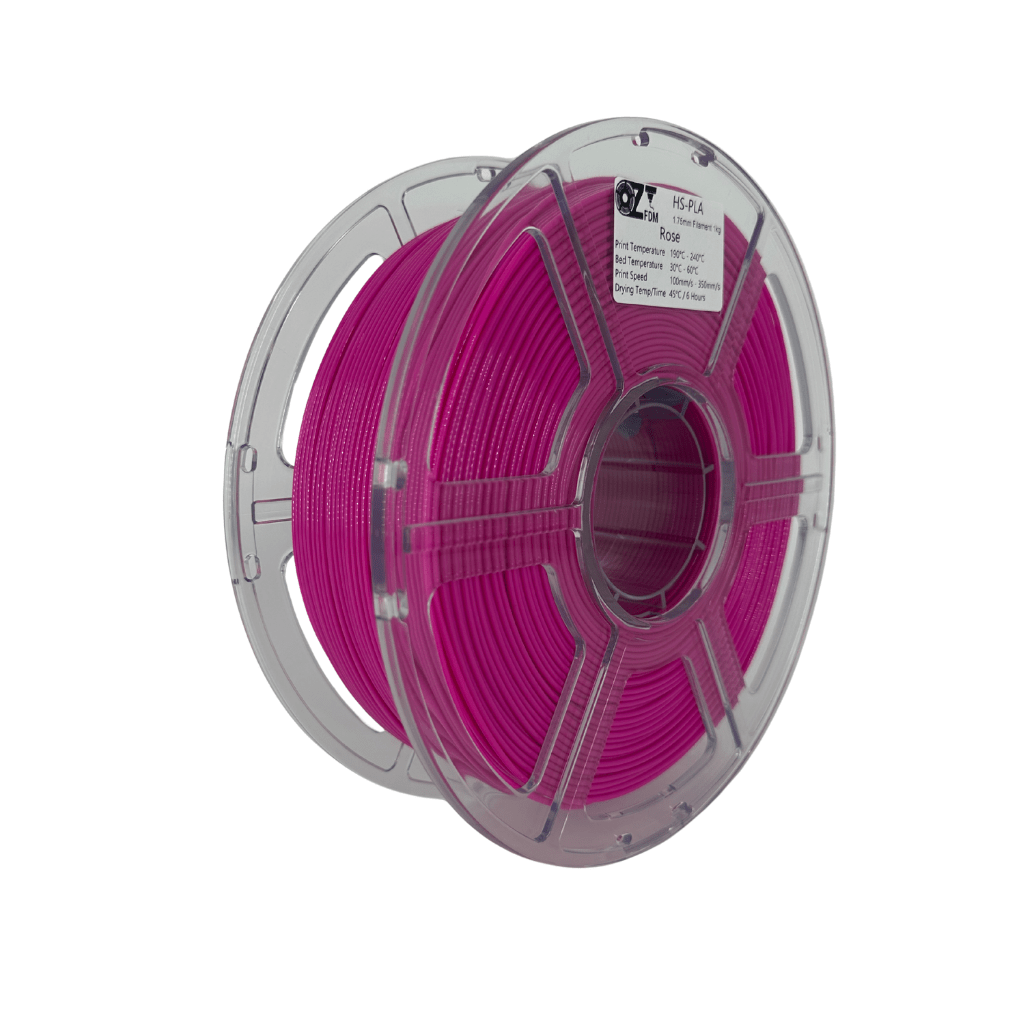

- Rose#AE7877

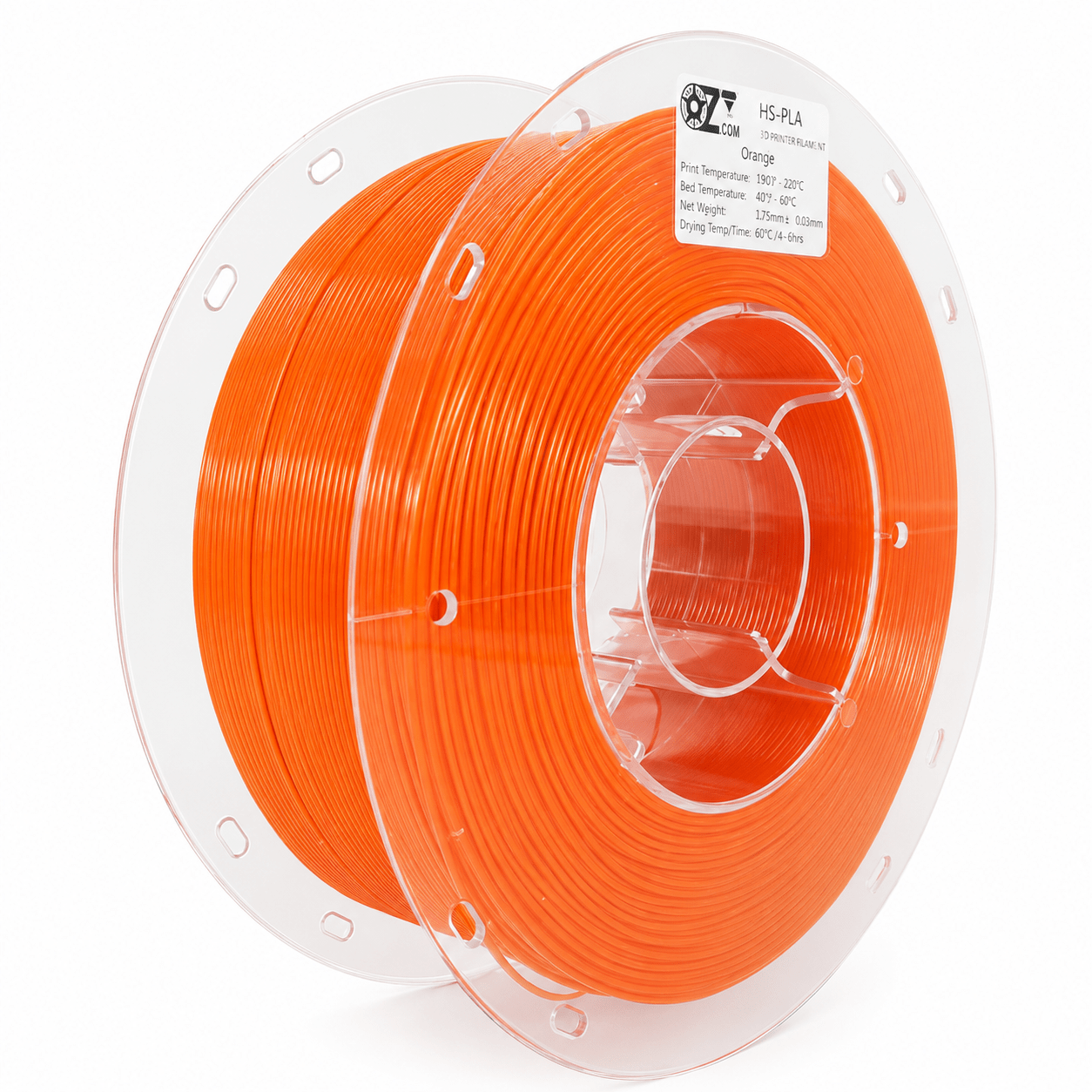

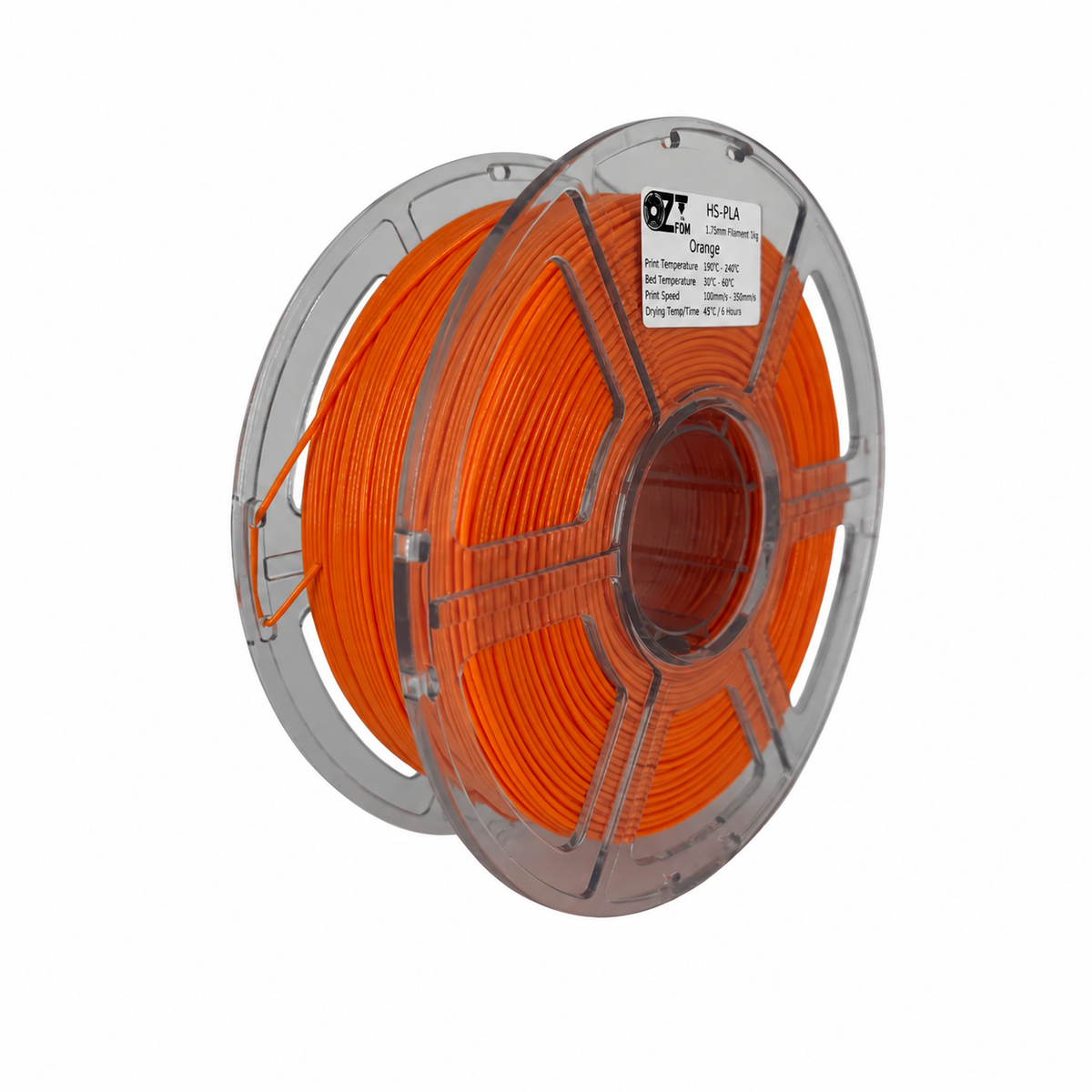

- Orange#FC7223

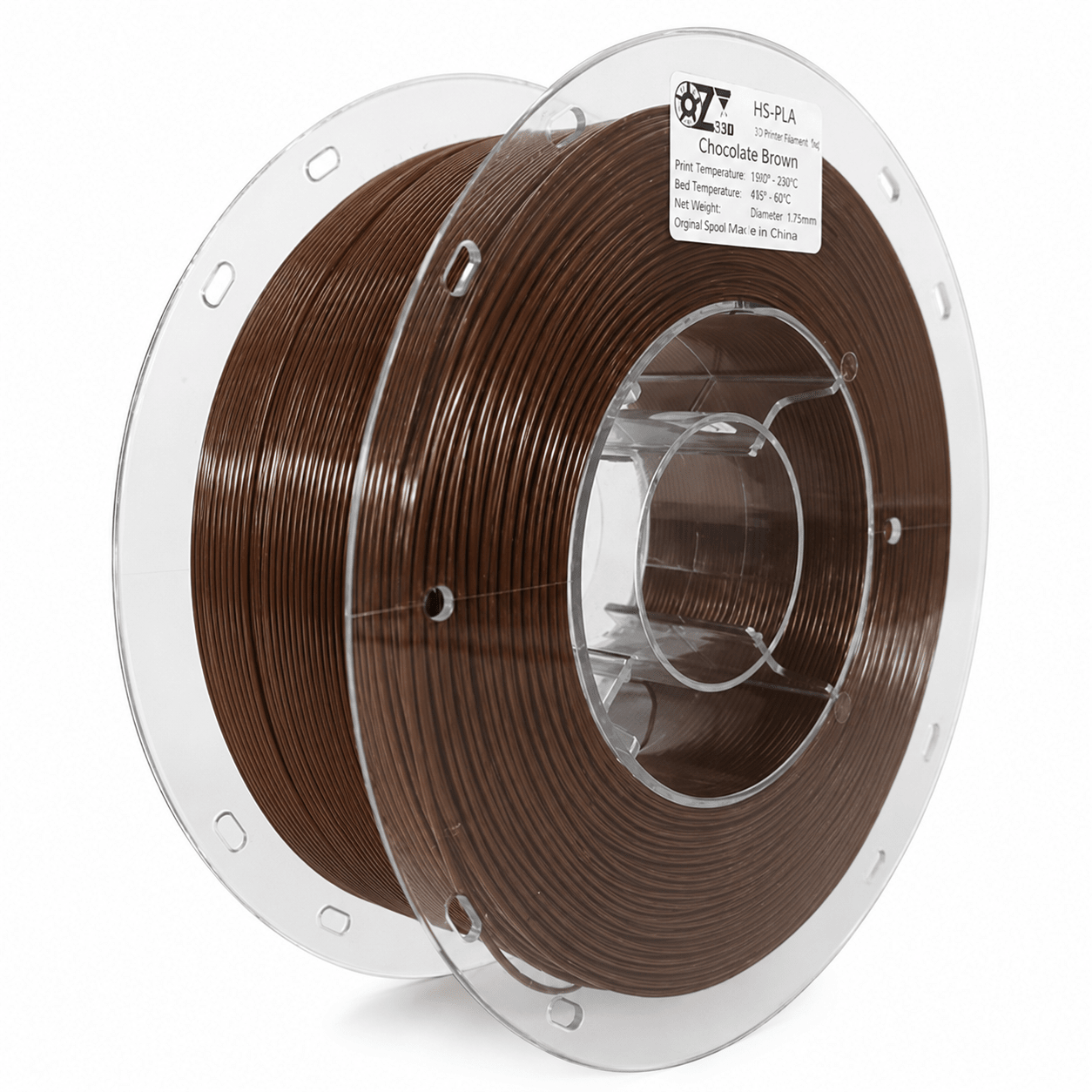

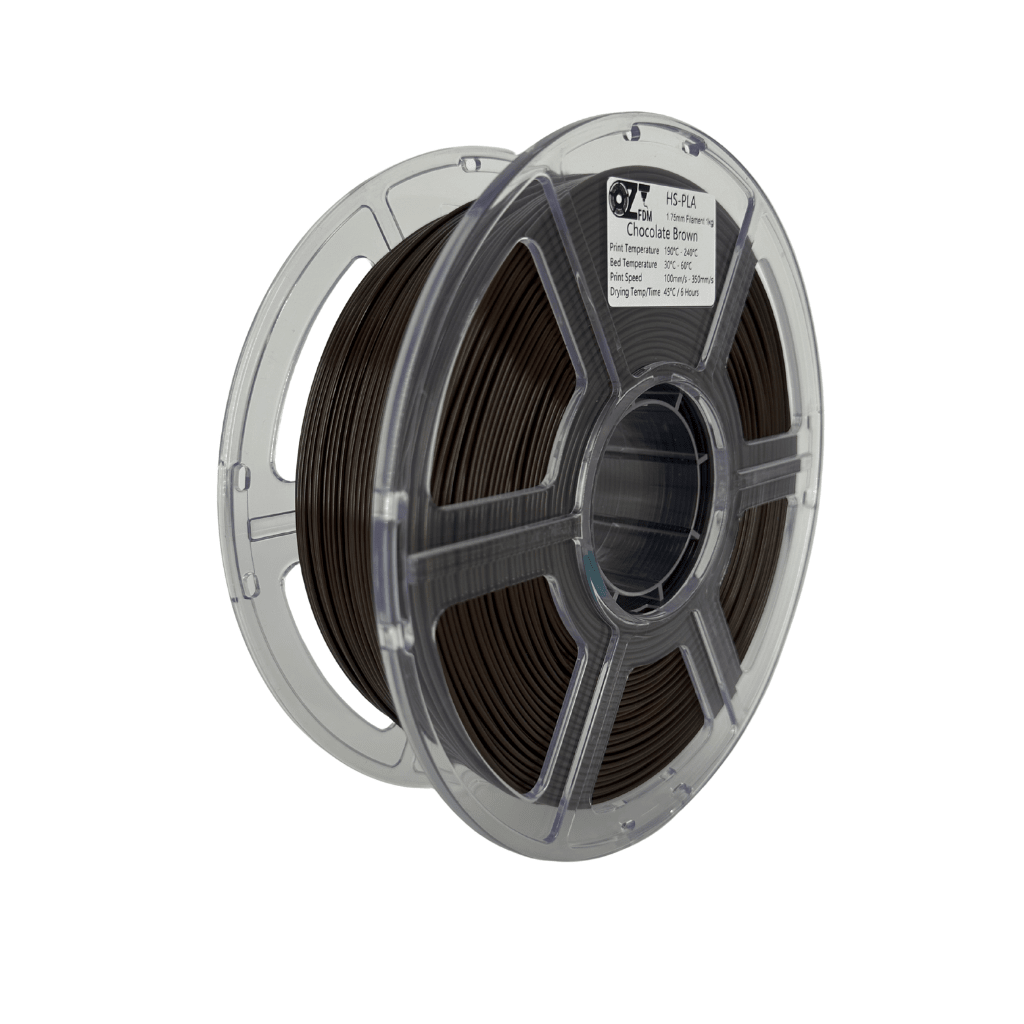

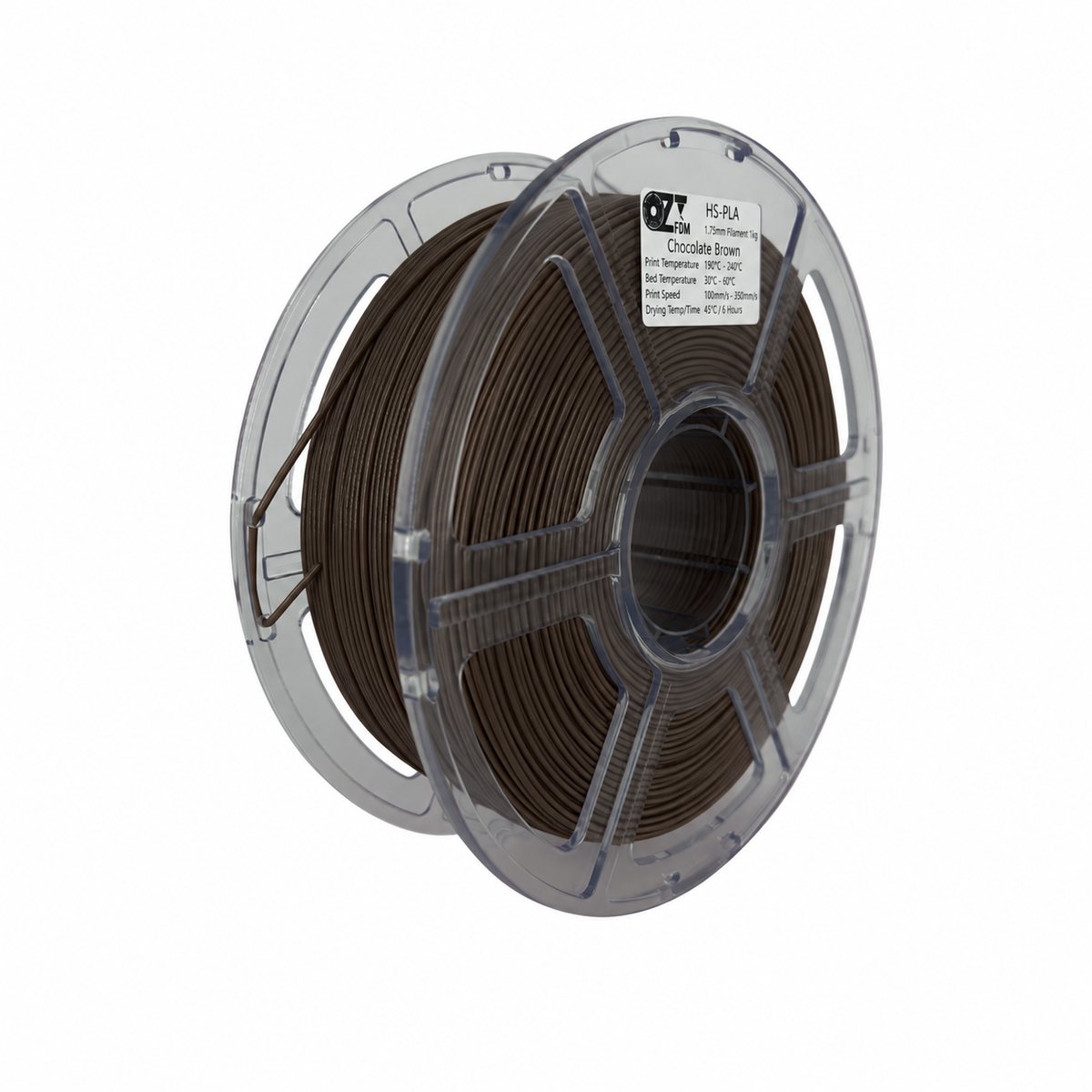

- Chocolate Brown#5A3823

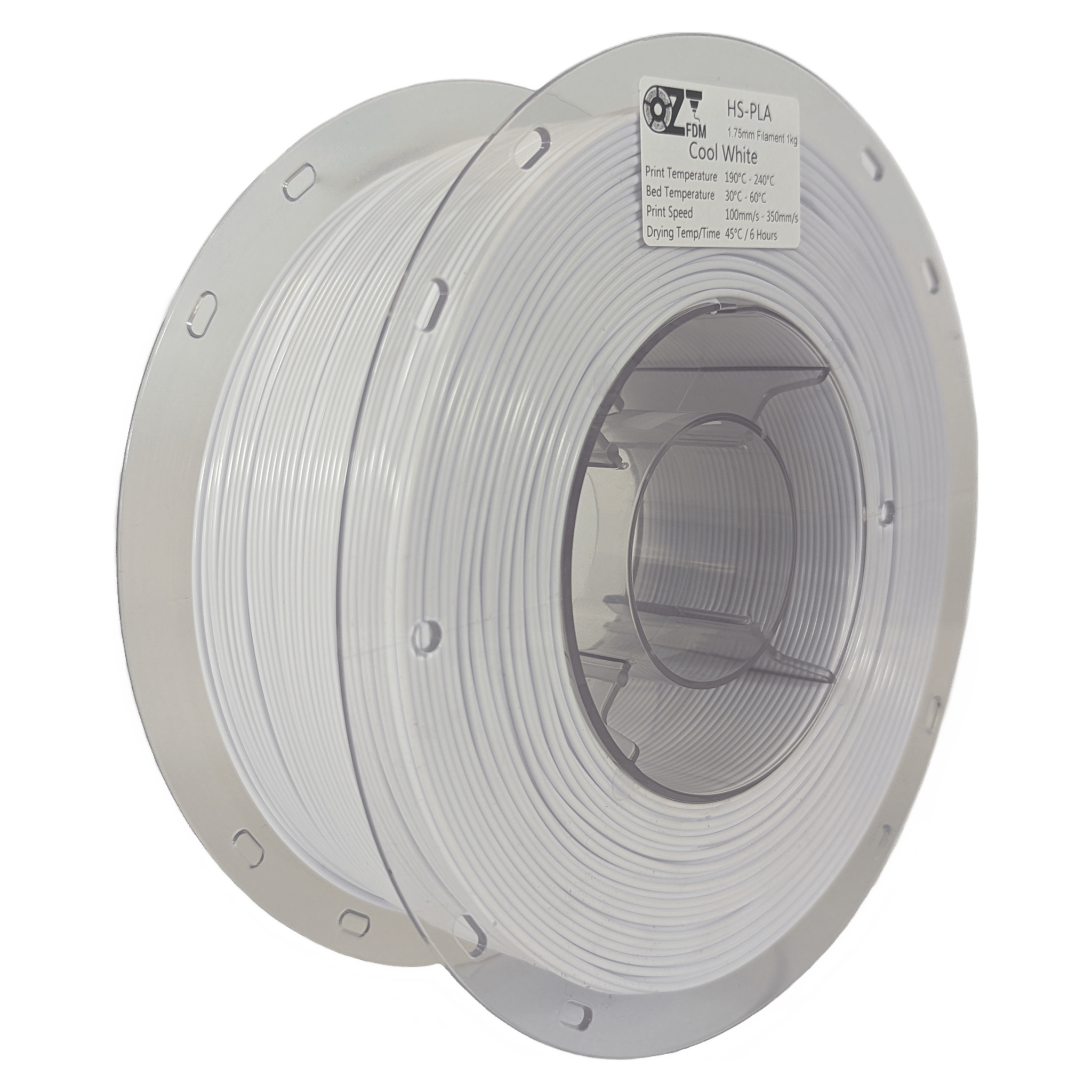

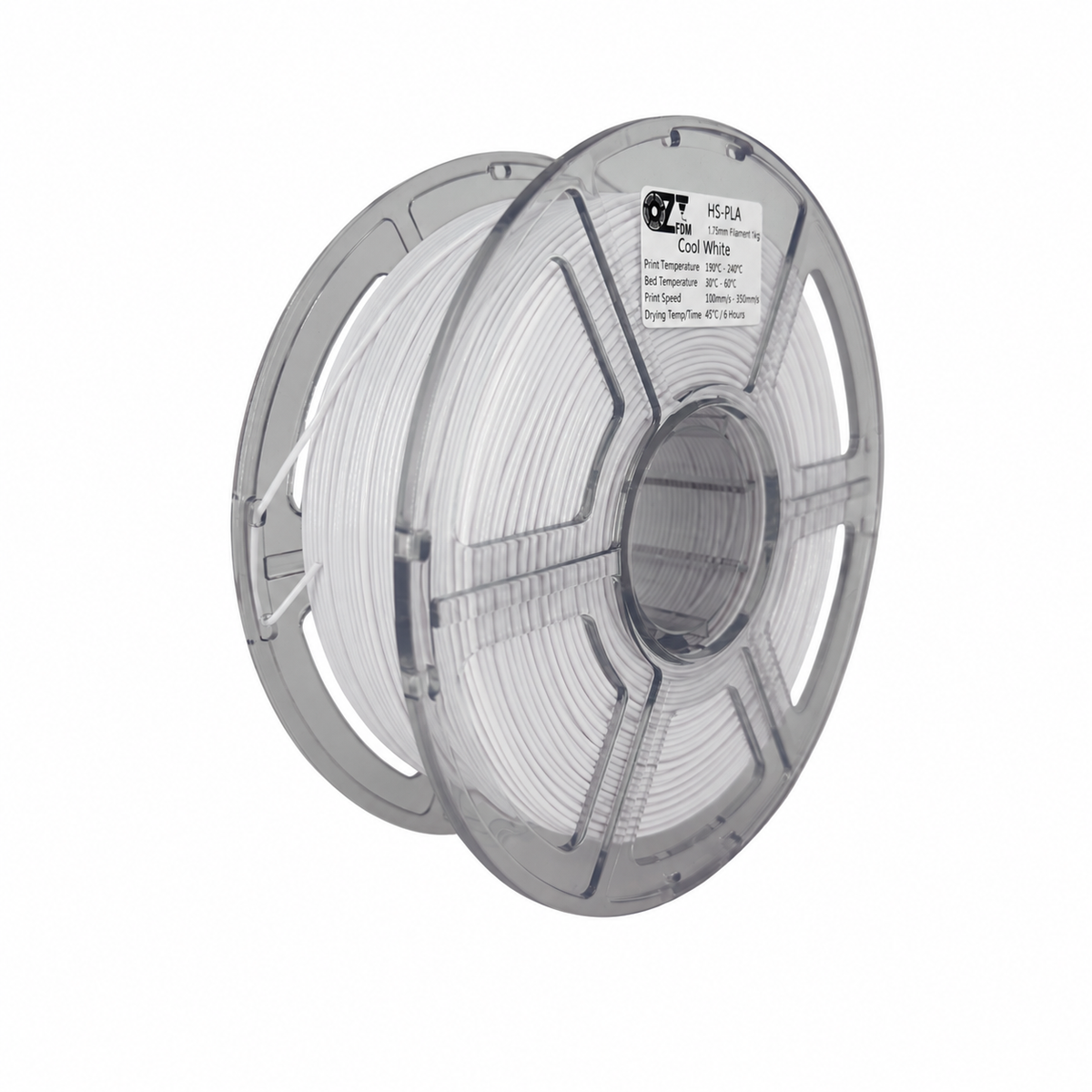

- Cool White#CCCCCA

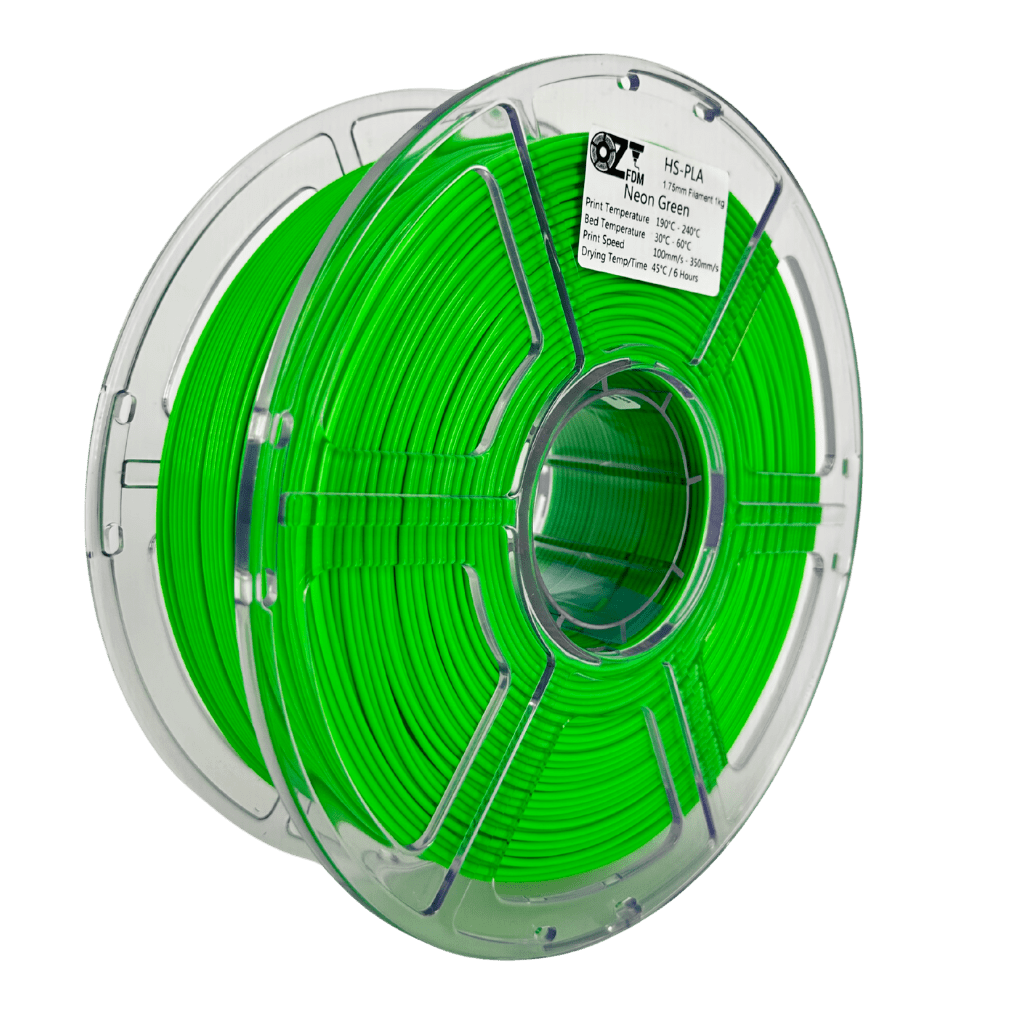

- Neon Green#54DD59

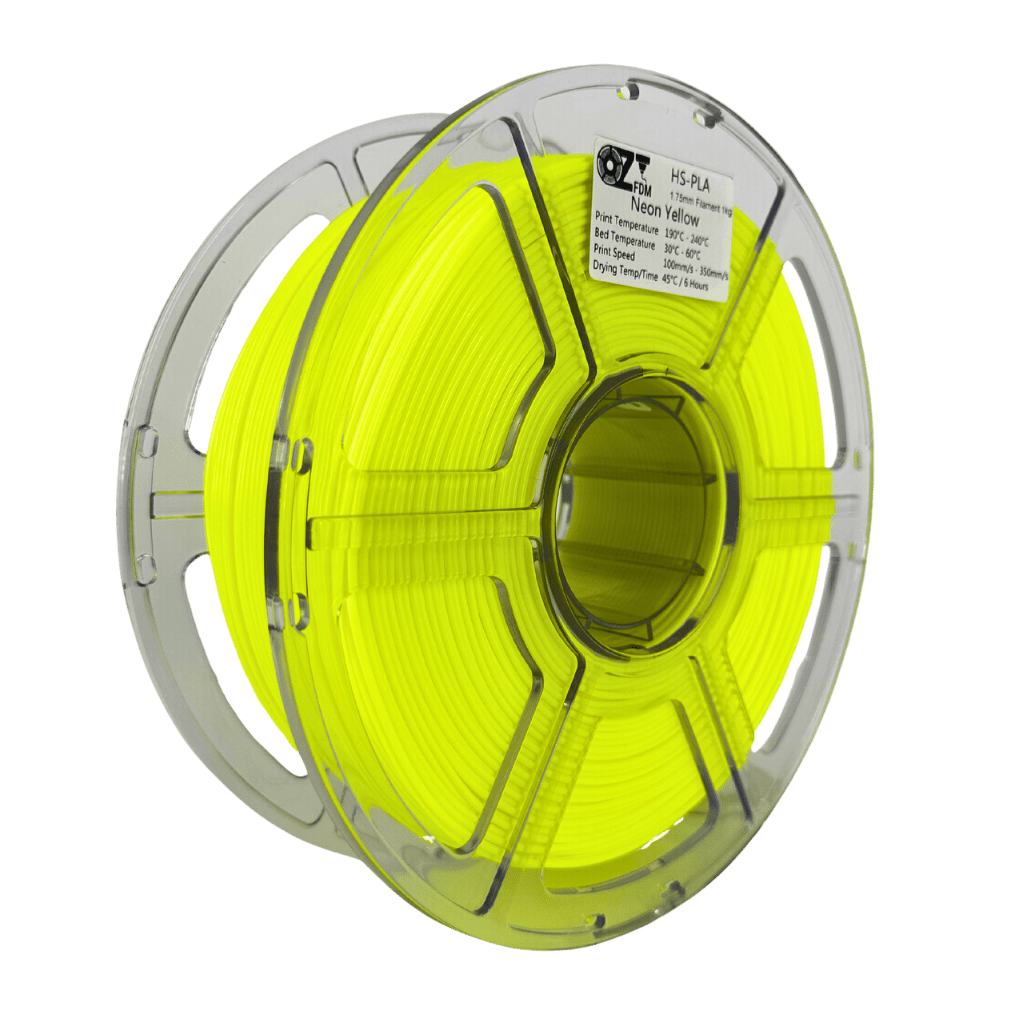

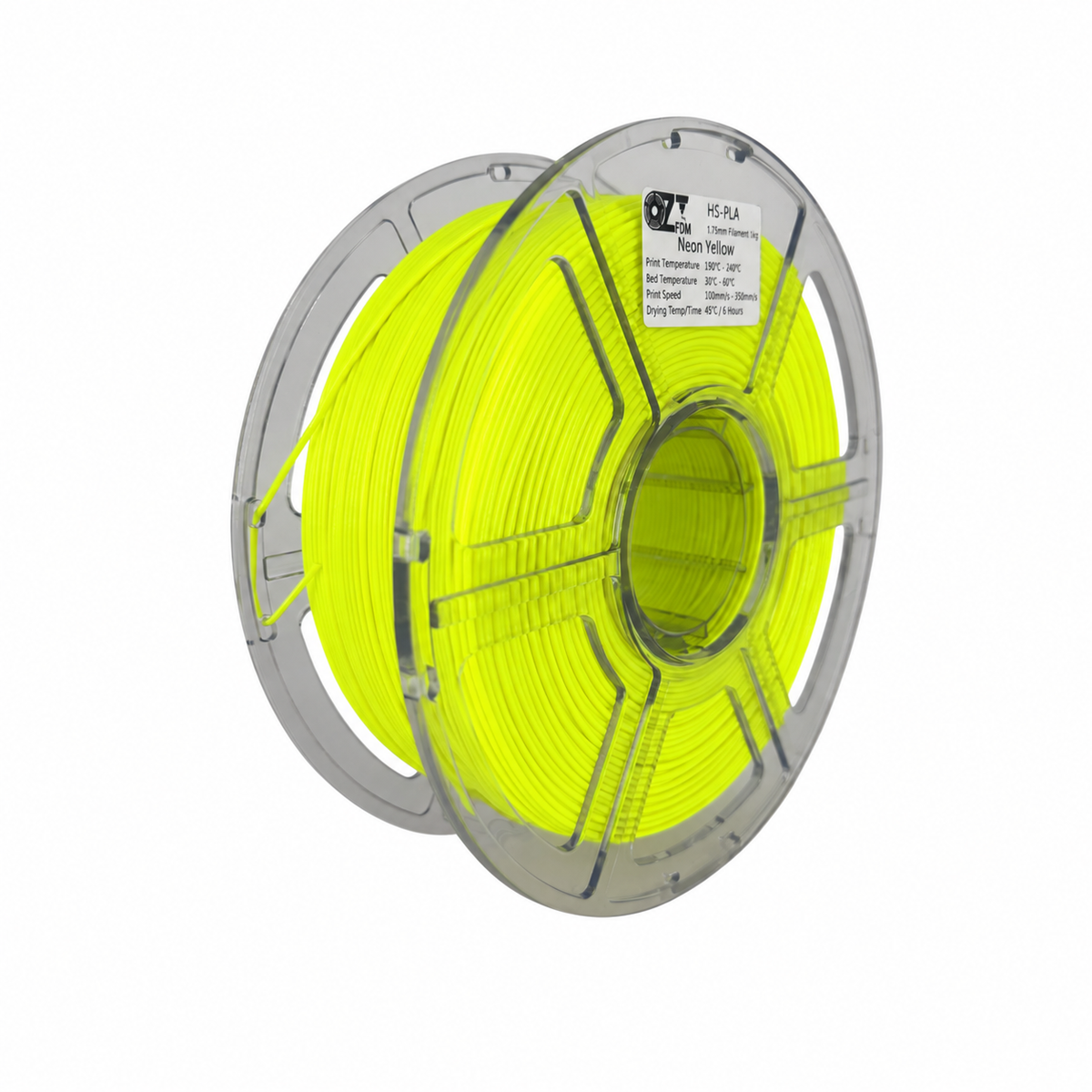

- Neon Yellow#DCF201

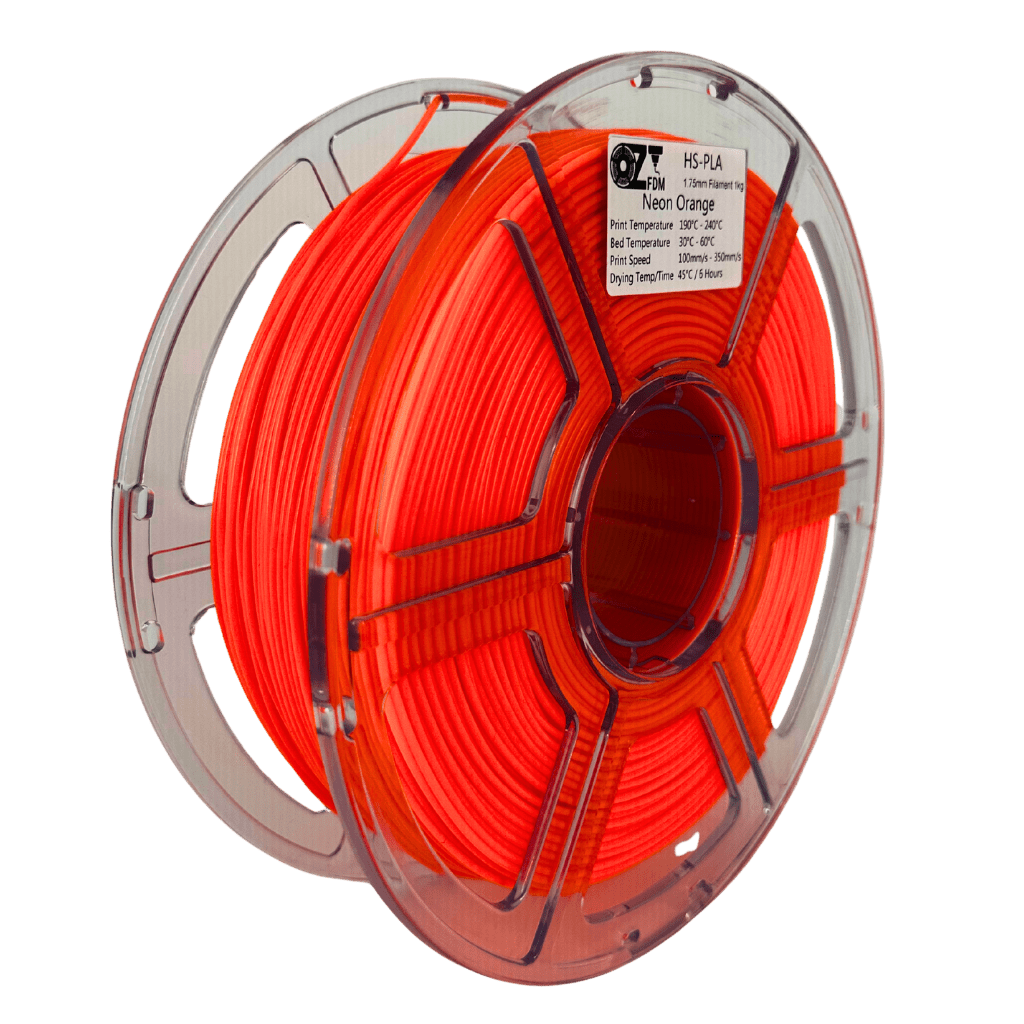

- Neon Orange#F12B00

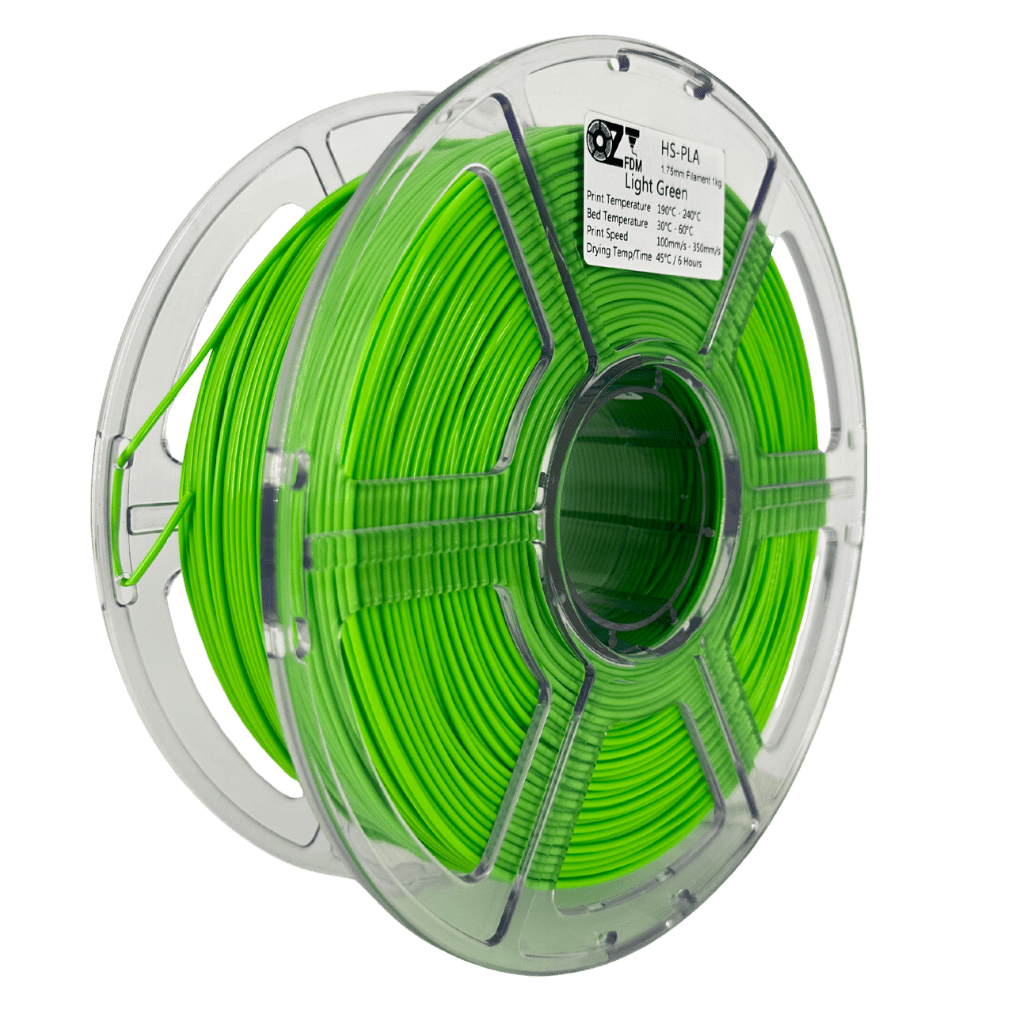

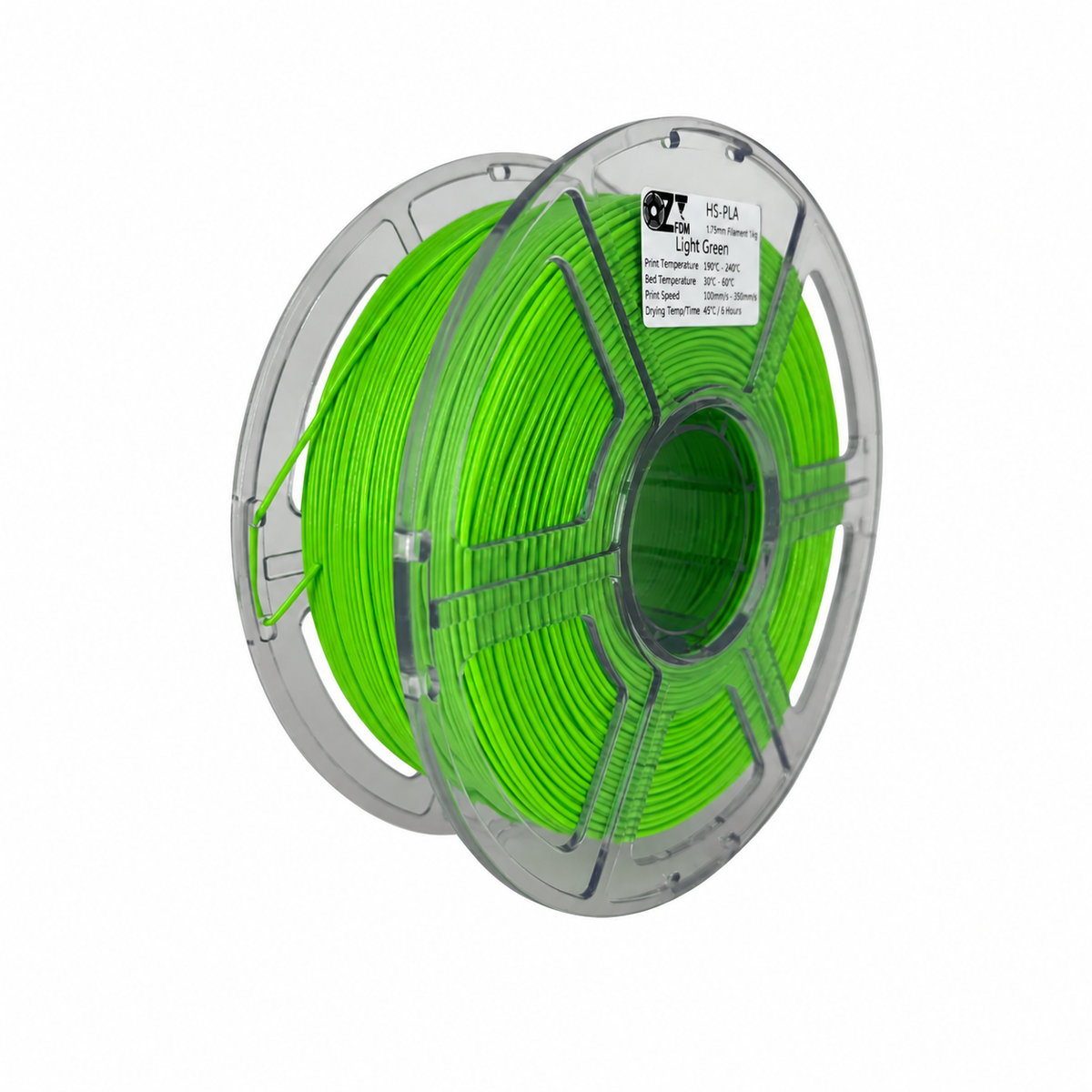

- Light Green#5ACA1F

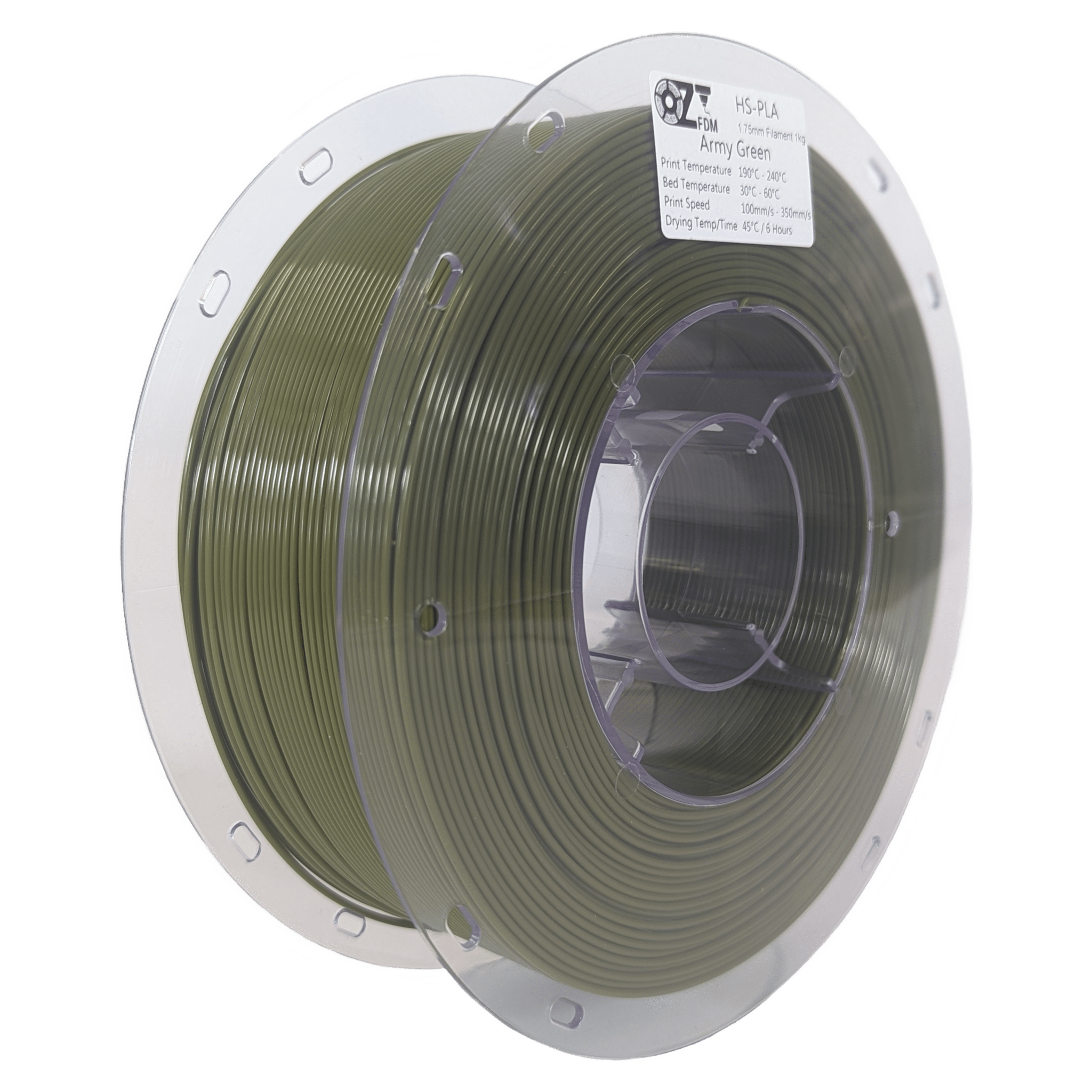

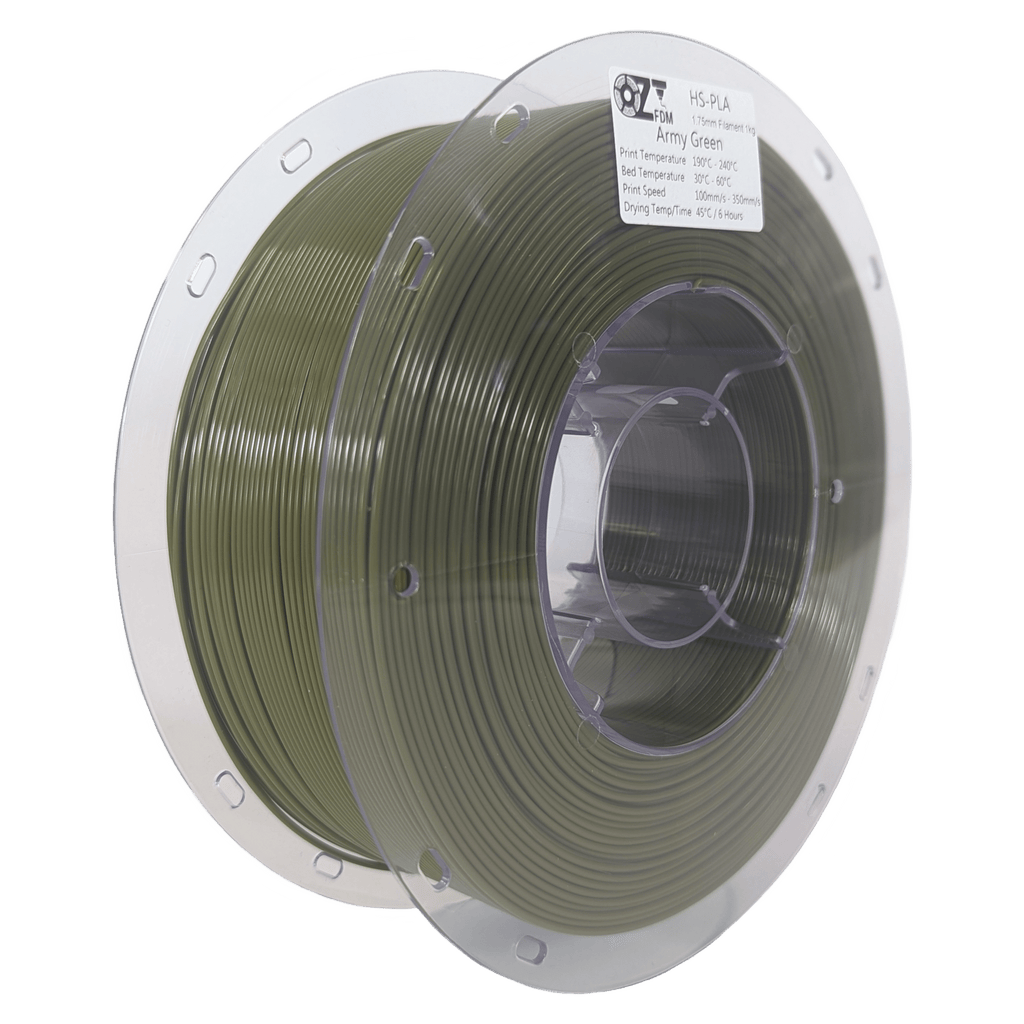

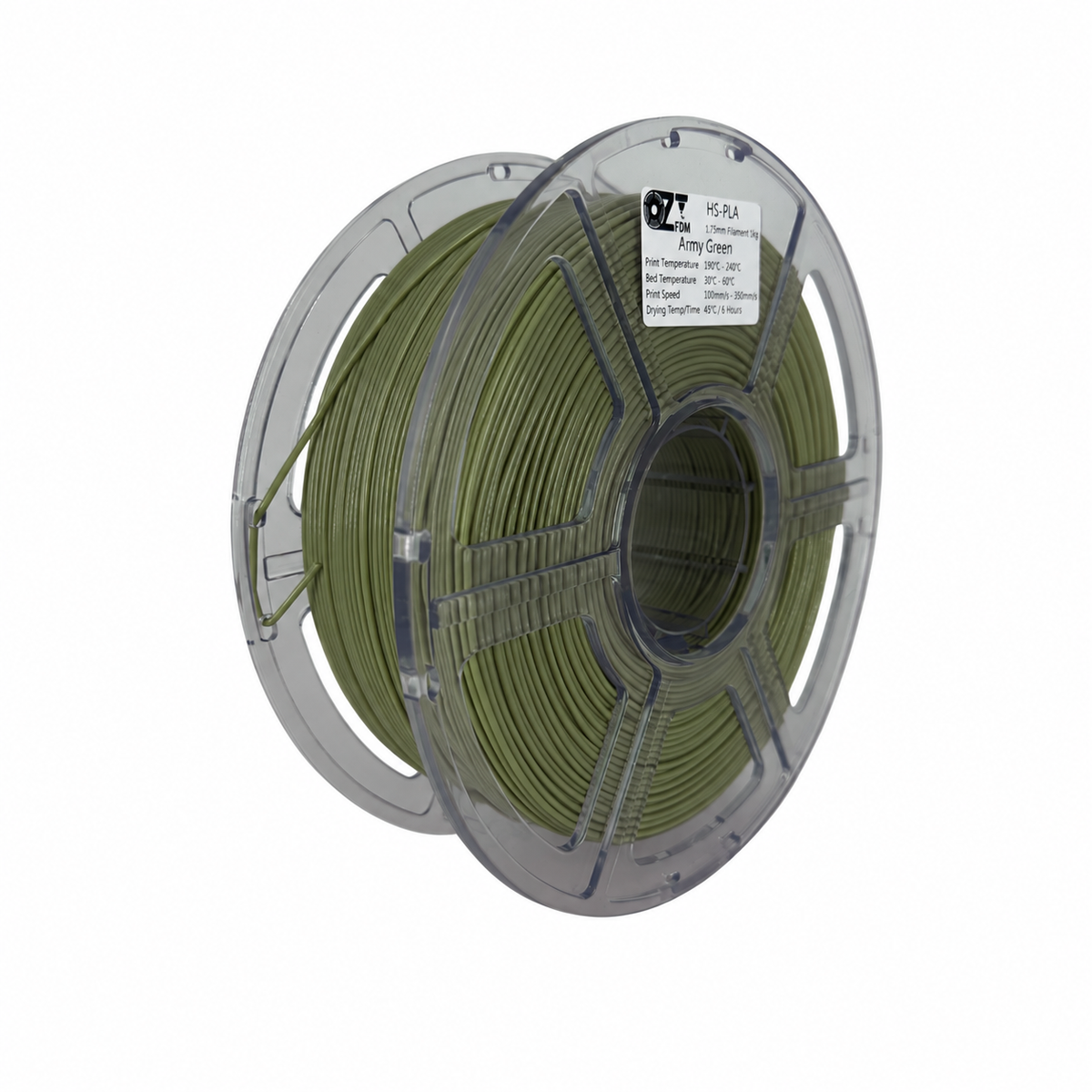

- Army Green#66684E

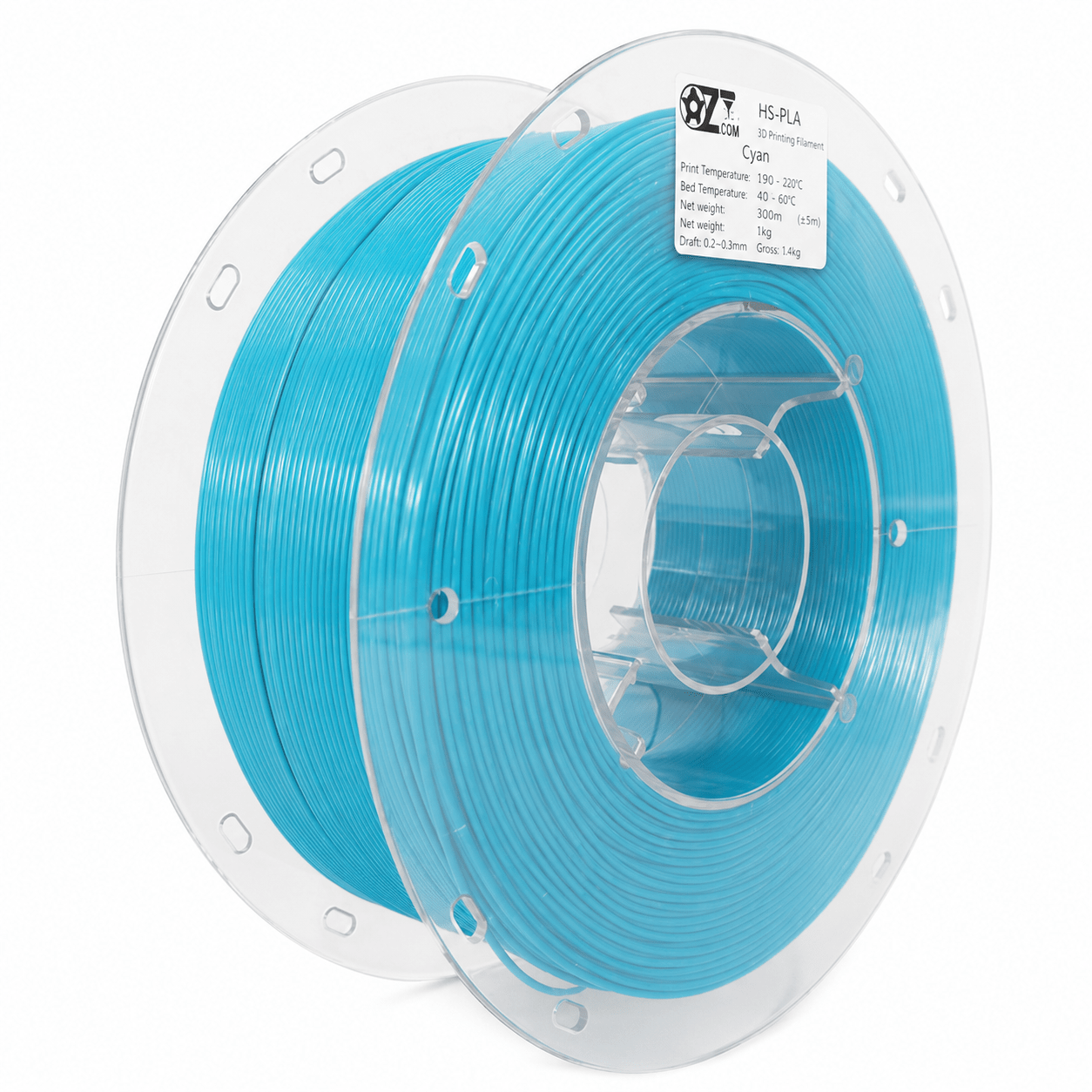

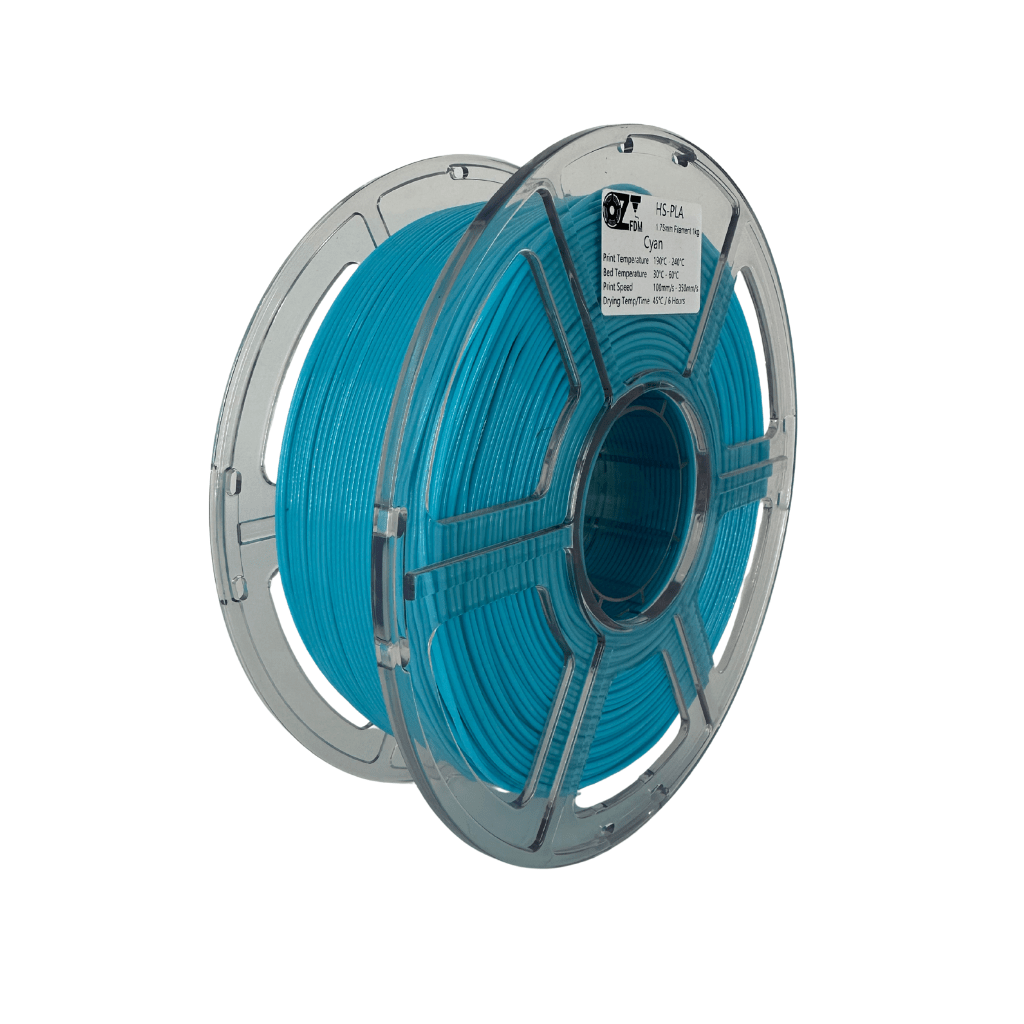

- Cyan#3AC3DF

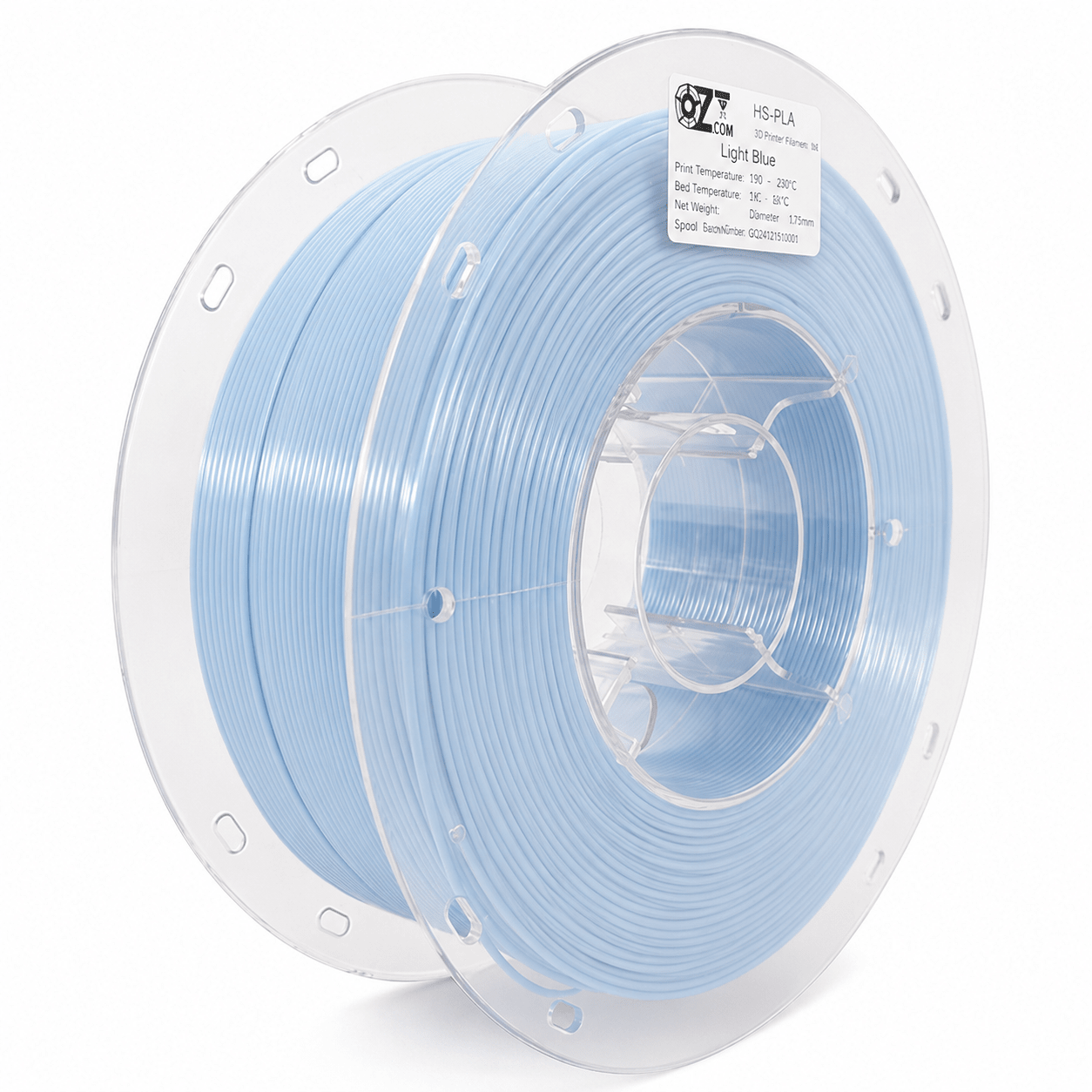

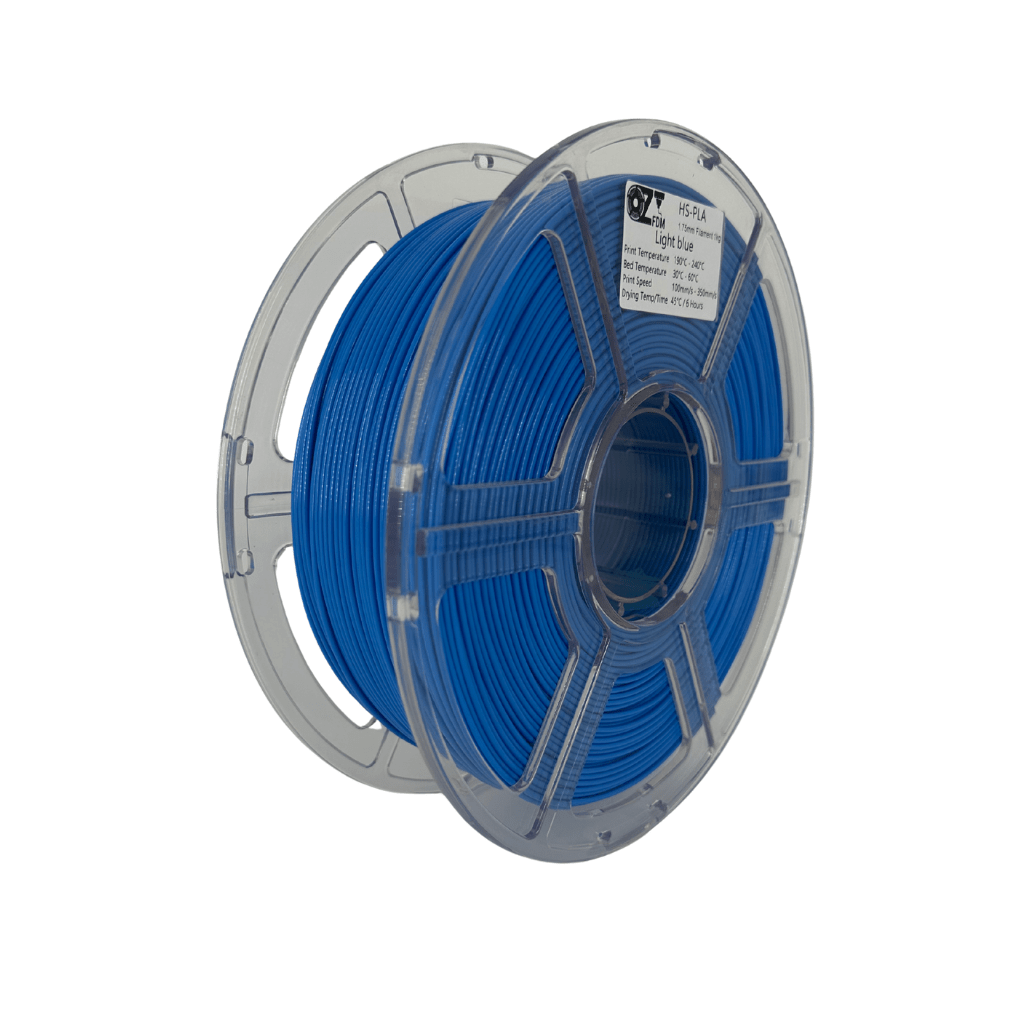

- Light Blue#B5CEE6

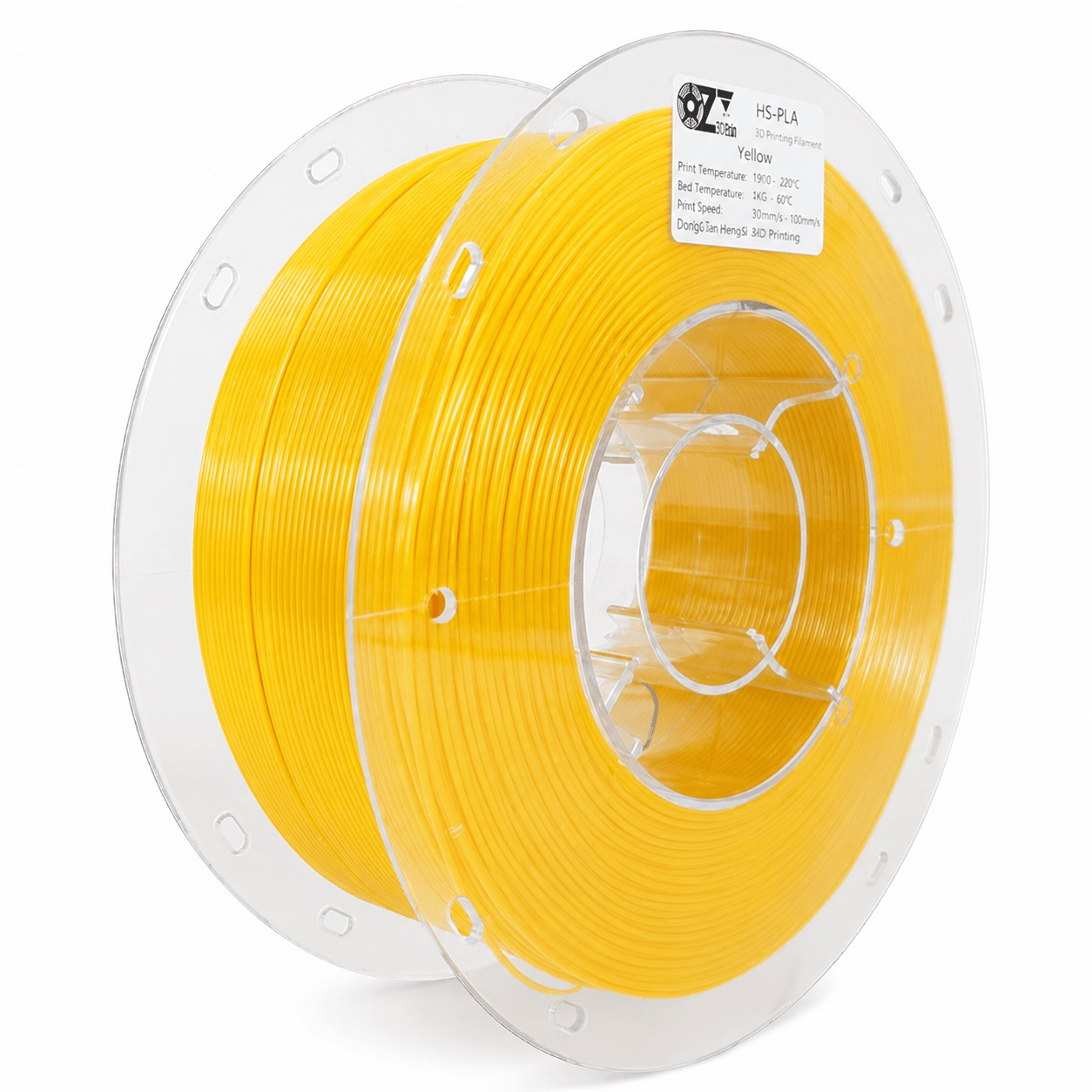

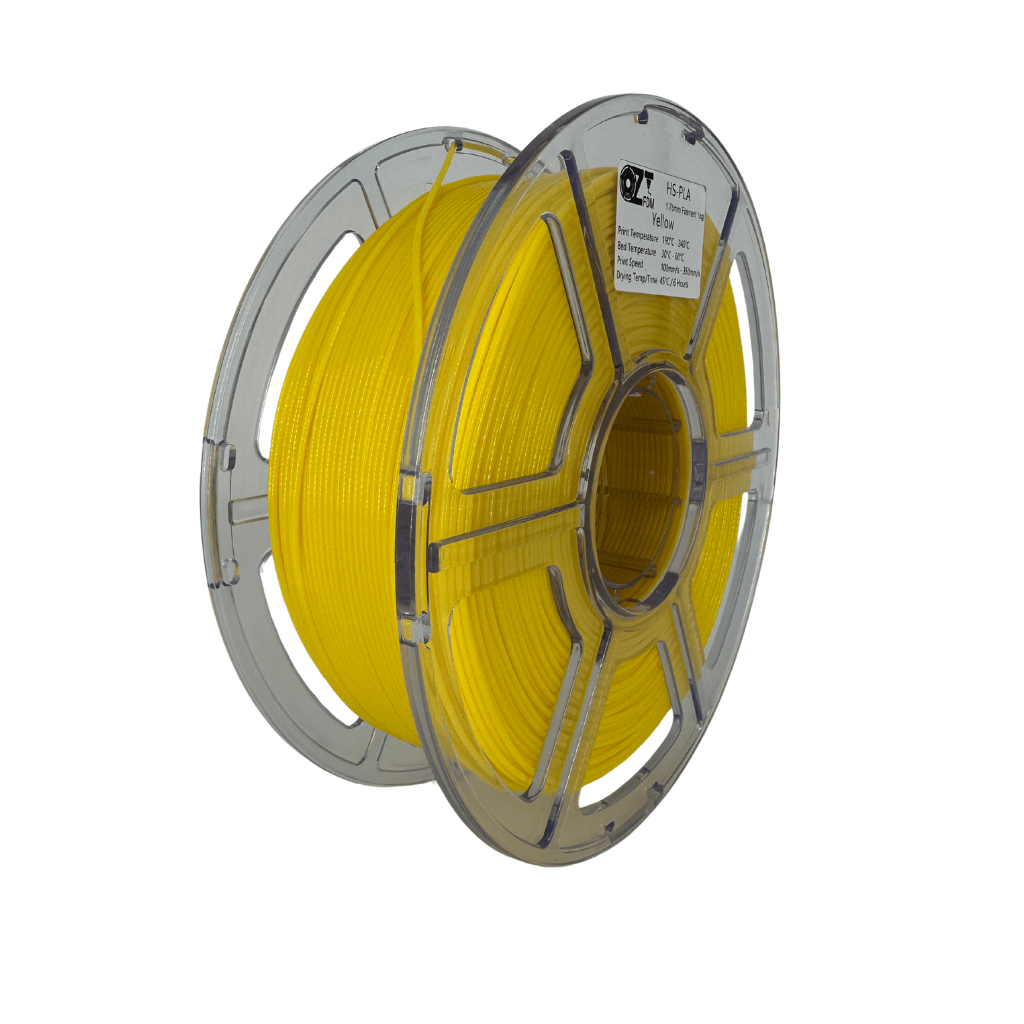

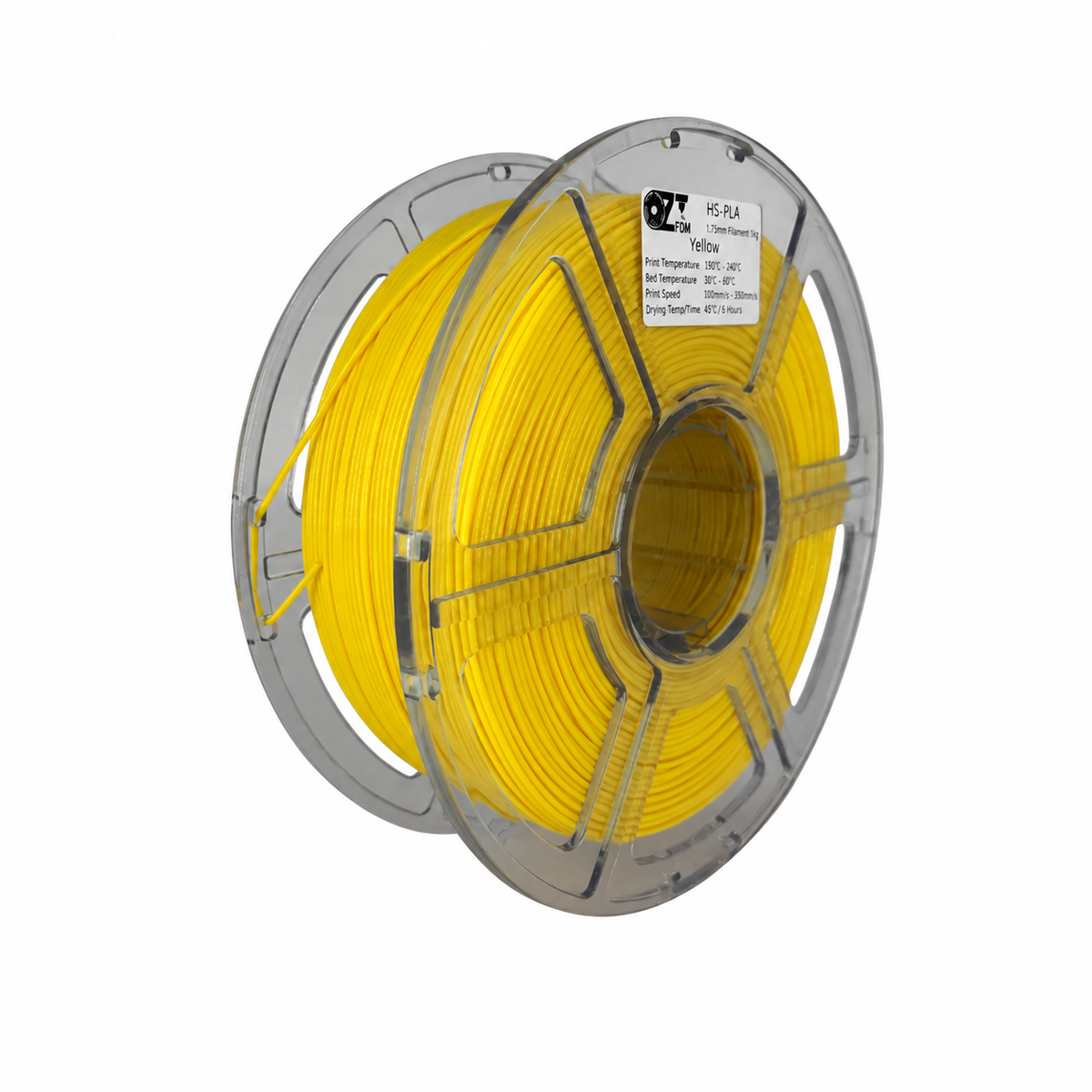

- Yellow#F4DF67

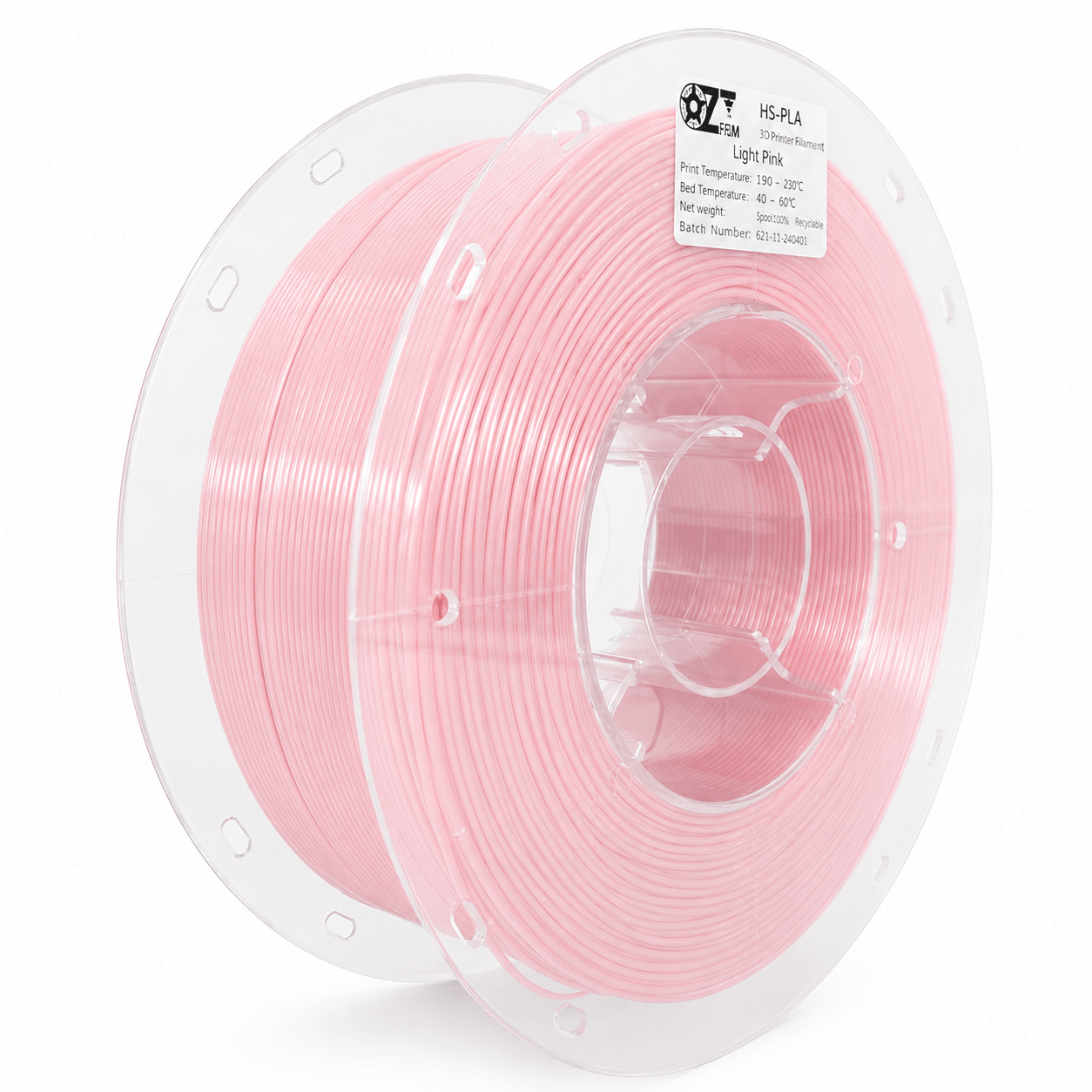

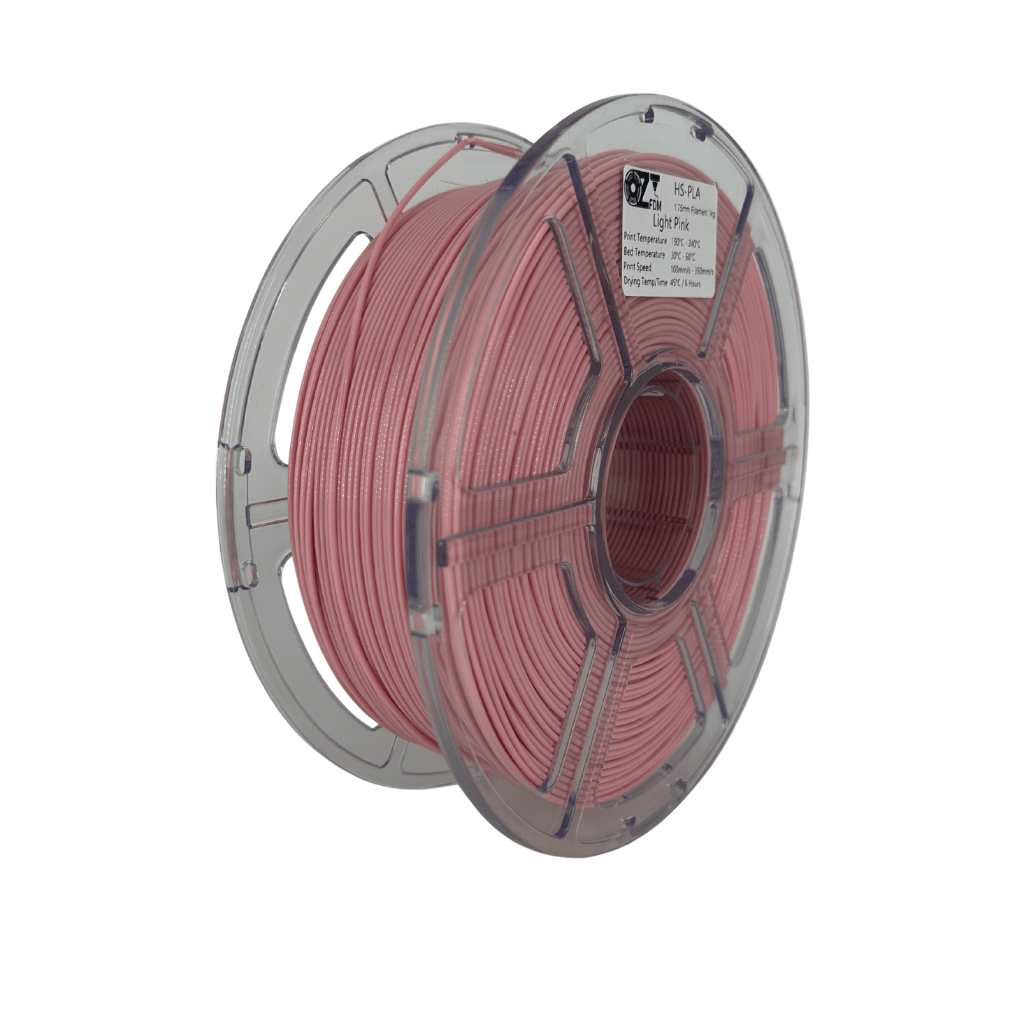

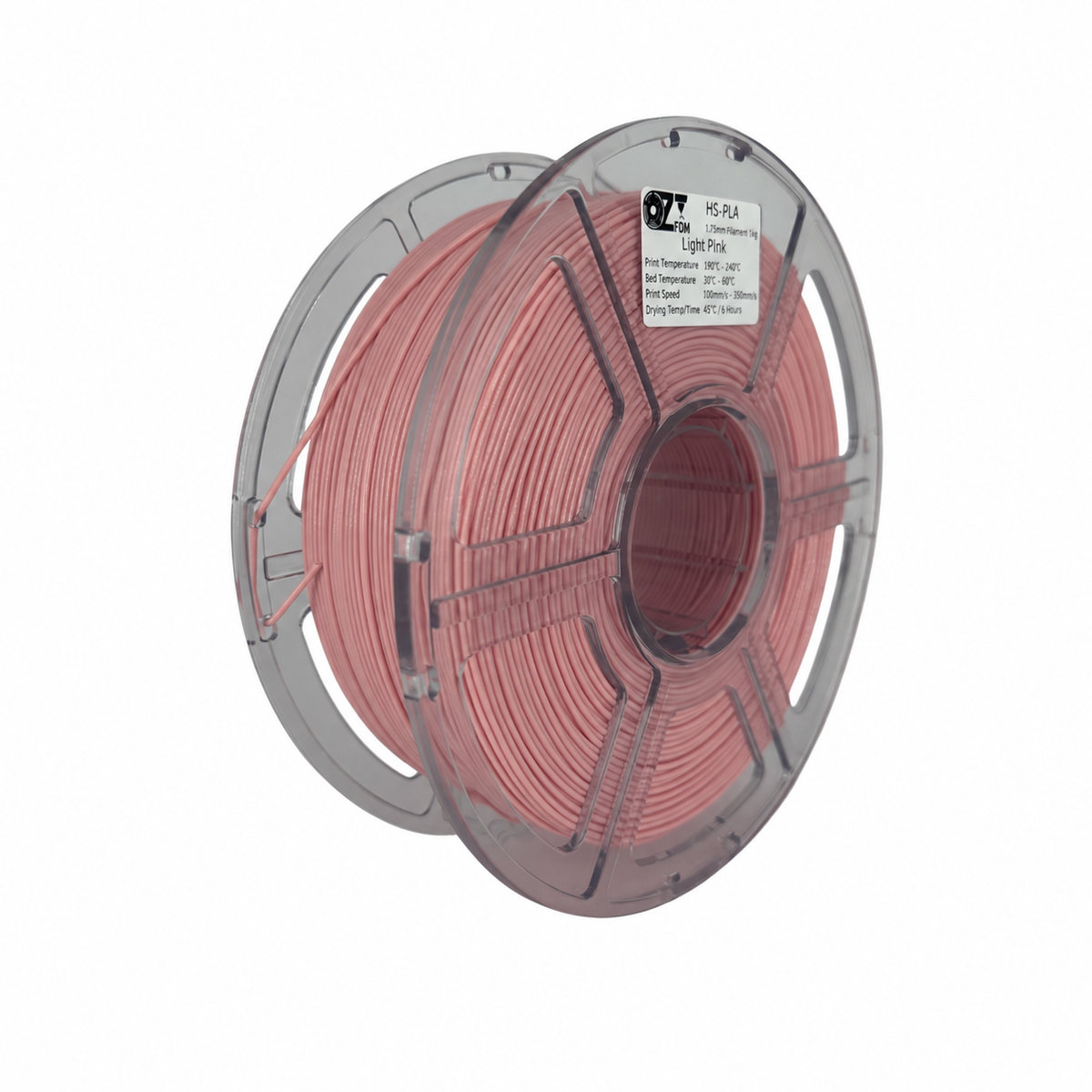

- Light Pink#FDDEE7

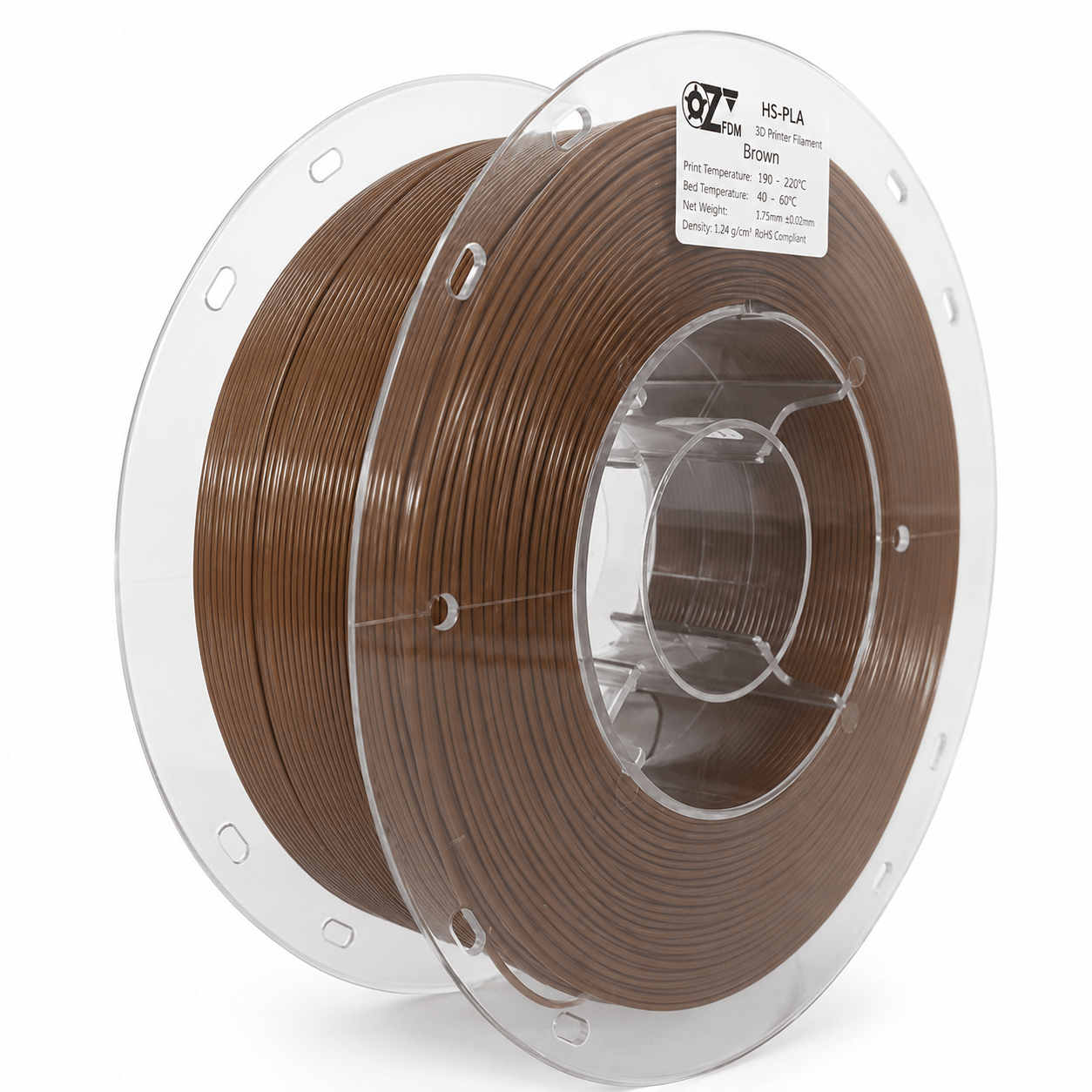

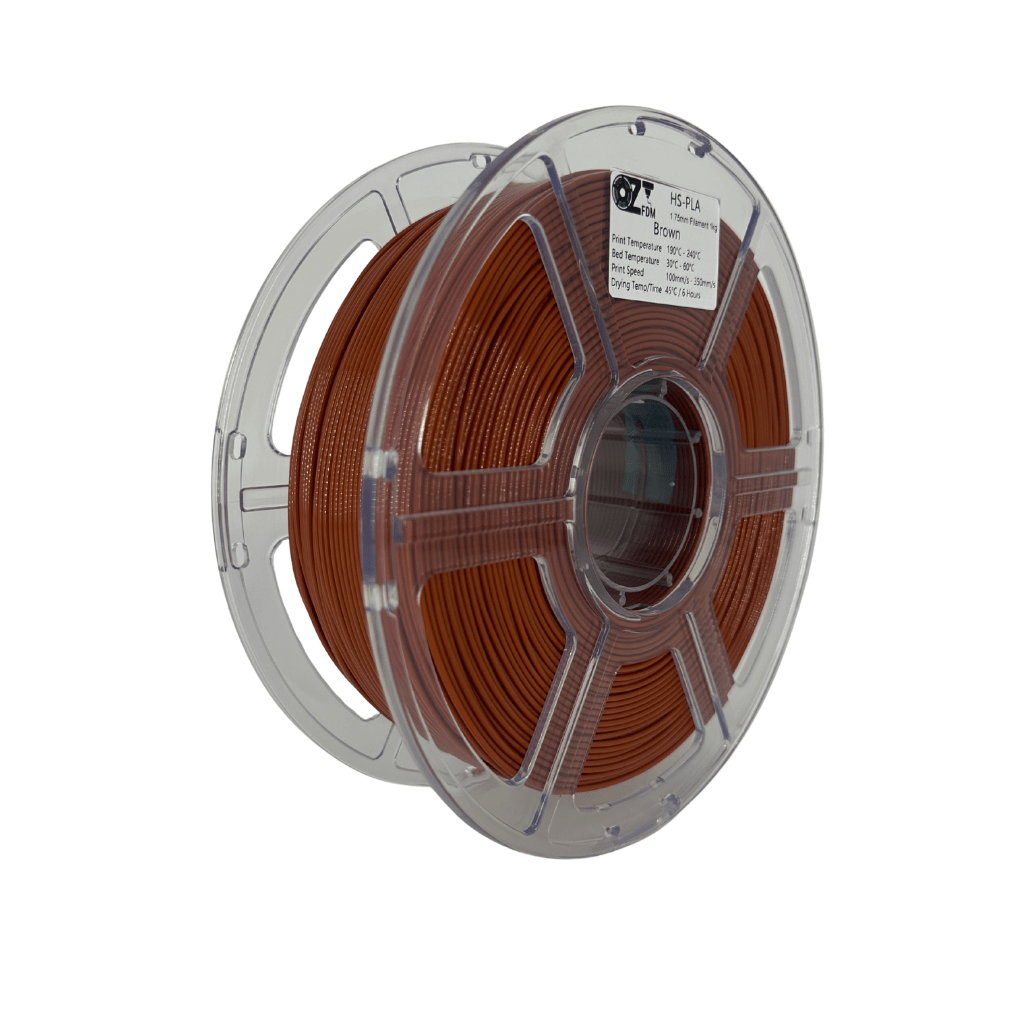

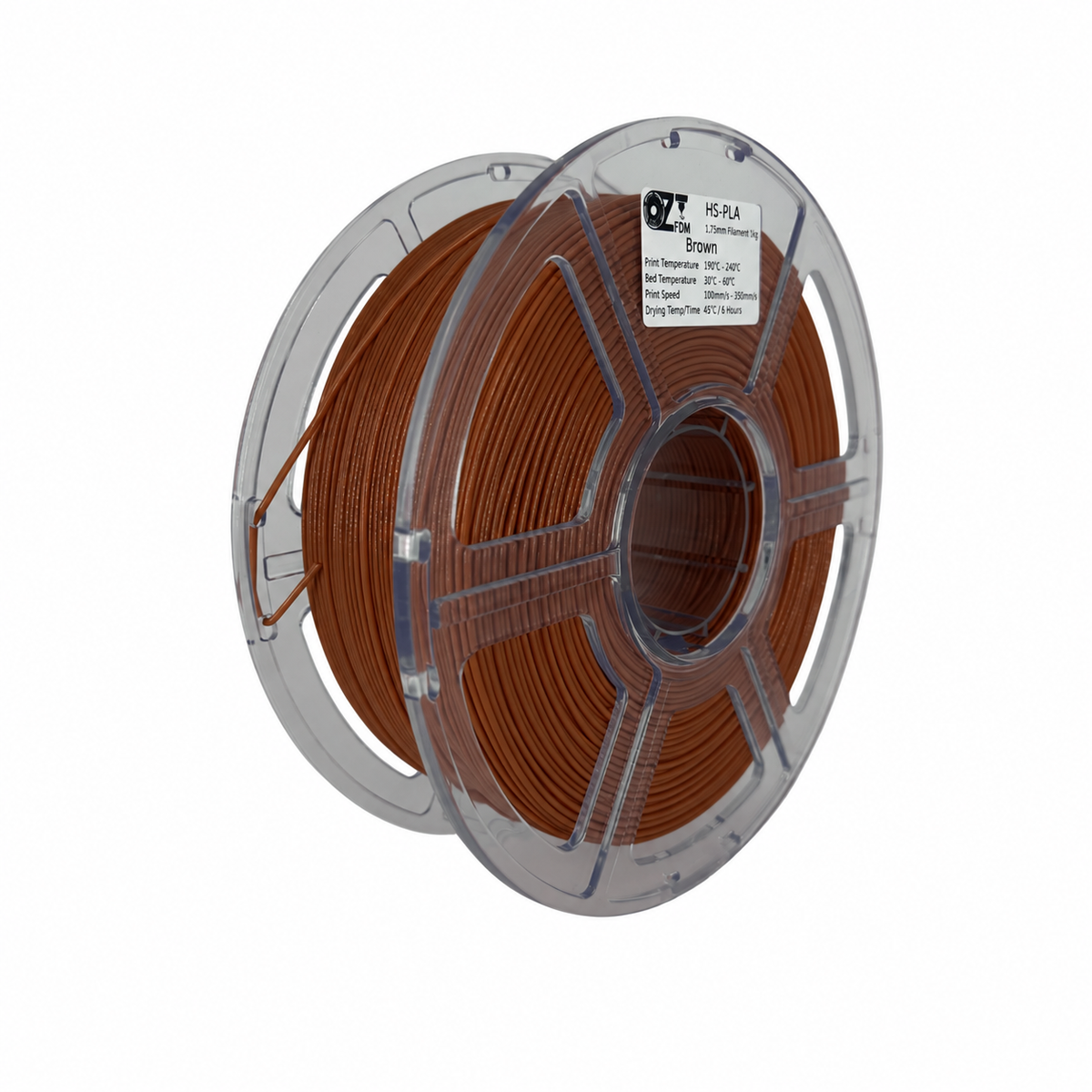

- Brown#73523F
Screen colours are a guide only. The finished print varies with lighting, layer height and finish.

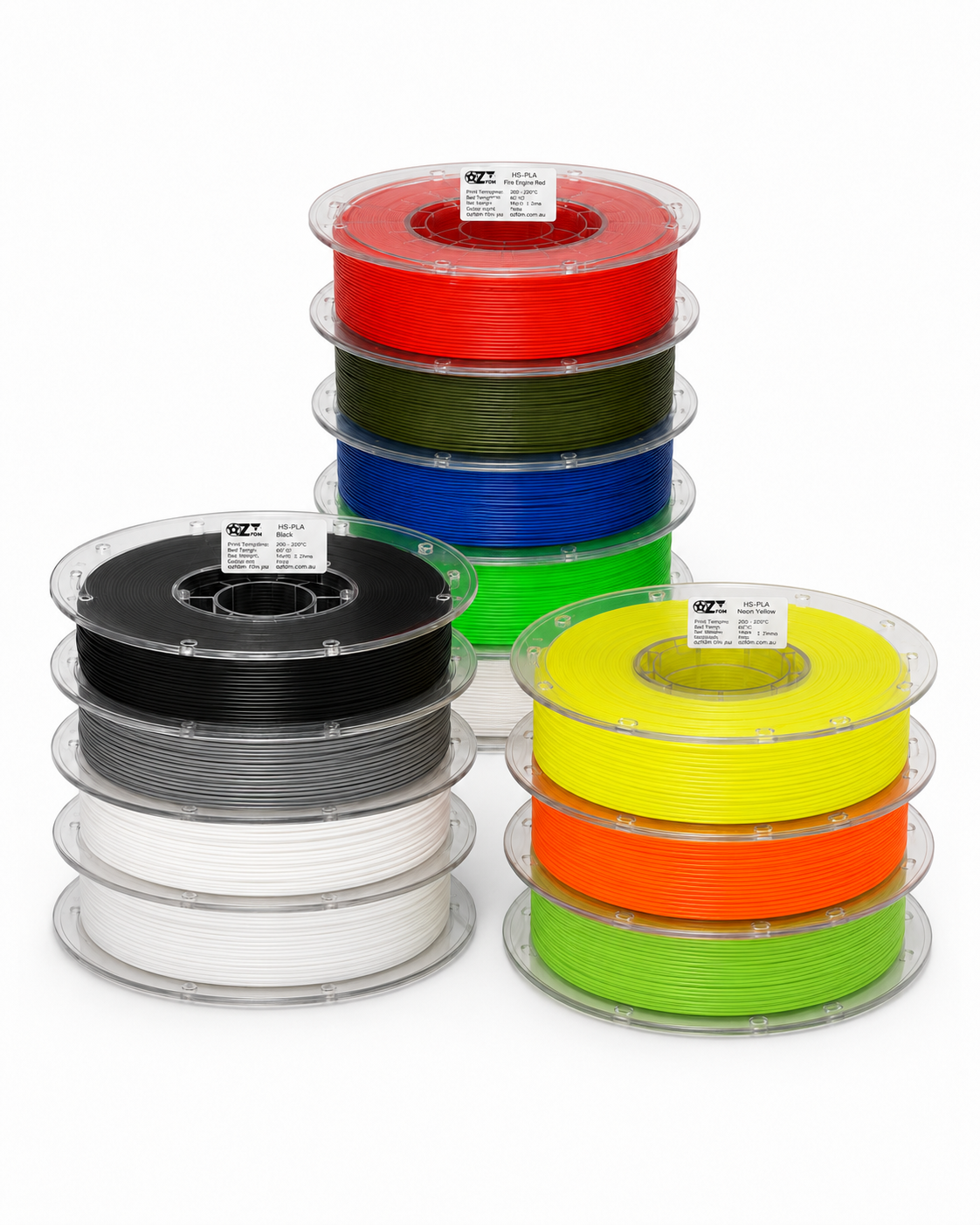

Ready for Multicolour Printing
Getting to know High Speed PLA
Fast, Consistent Printing
OzFDM PLA-HS is engineered to support faster printing speeds while maintaining smooth and consistent extrusion.
Its optimised flow properties help produce clean details, even layers and dependable surface quality, allowing users to reduce printing time without sacrificing the overall appearance or accuracy of their finished parts.
Strong and Dimensionally Stable
Made using modified and toughened PLA, PLA-HS offers improved strength and durability compared with standard PLA.
Its excellent dimensional stability helps reduce warping, shrinking and deformation, making it suitable for detailed models, prototypes, functional components and larger prints that require accurate dimensions.
Reliable Adhesion and Easy Use
PLA-HS provides dependable bed adhesion and strong bonding between layers, helping minimise lifting, cracking and failed prints.
Its consistent performance and easy printing characteristics make it suitable for beginners, experienced makers and professional users seeking reliable results across a wide range of FDM printers.
Technical Specifications
Product Specifications
- Filament weight
- 1 kg
- Filament diameter
- 1.75 mm
- Dimensional tolerance
- ±0.03mm
- Spool weight (empty)
- 150 g
- Spool weight (new)
- 1.15 kg
- Spool diameter outer
- 200 mm
- Spool diameter inner (hub)
- 52 mm
- Spool width
- 65 mm
- Package weight
- 1.3 kg
- Package dimensions
- 210mm x 220mm x 75mm
- Drying recommendation
- 40°C - 45°C for 4-6 hours using a filament dryer / food dehydrator.
- Storage recommendation
- Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
Print Parameters
- Nozzle temperature
- 190°C - 220°C
- Bed temperature
- 25°C - 60°C
- Printing speed
- 60mm/s - 350mm/s
- Support material
- PVA , PETG (as support interface)
Mechanical Properties
- Tensile Strength (X-Y)ISO 527
- 45~49 MPa
- Tensile Strength (X-Z)ISO 527
- 35~40 MPa
- Elongation at Break (X-Y)ISO 527
- 10.5~15.5 %
- Elongation at Break (X-Z)ISO 527
- 5~8 %
- Tensile Modulus (X-Y)ISO 527
- 2000~2100 MPa
- Tensile Modulus (X-Z)ISO 527
- 1950~2050 MPa
- Flexural Strength (X-Y)ISO 178
- 70~80 MPa
- Impact Strength (X-Y)ISO 180
- 4.5~5 kJ/m²
Physical Properties
- DensityISO 1183
- 1.25~1.26 g/cm³
- Melt flow rate (190°C/2.16 kg)ISO 1133
- 10~20 g/10min
- Moisture absorption (23°C/24h)ISO 62
- <0.3 %
Thermodynamic Properties
- HDT @ 0.455 MPa (66 psi)ISO 75
- 53 °C
- Continuous use temperatureIEC 60216
- 50 °C

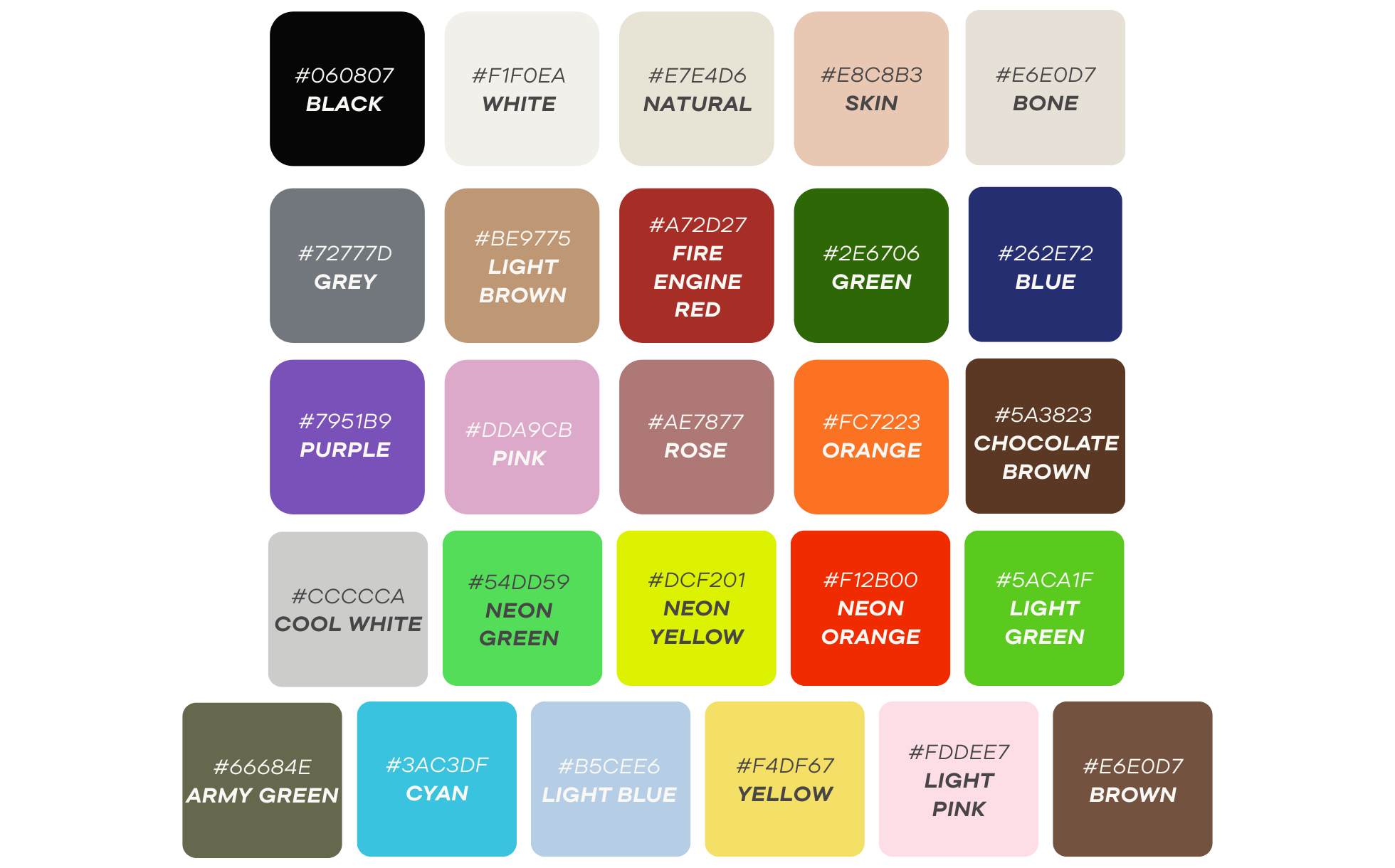

Colour Hex Codes
- Black #060807
- White #F1F0EA
- Natural #E7E4D6
- Skin #E8C8B3
- Bone #E6E0D7
- Grey #72777D
- Light Brown #BE9775
- Fire Engine Red #A72D27
- Green #2E6706
- Blue #262E72
- Purple #7951B9
- Pink #DDA9CB
- Rose #AE7877
- Orange #FC7223
- Chocolate Brown #5A3823
- Cool White #CCCCCA
- Neon Green #54DD59
- Neon Yellow #DCF201
- Neon Orange #F12B00
- Light Green #5ACA1F
- Army Green #66684E
- Cyan #3AC3DF
- Light Blue #B5CEE6
- Yellow #F4DF67
- Light Pink #FDDEE7
- Brown #73523F (Approximate)
Colour codes as listed on the range chart. Screen colours are a guide only; the finished print varies with lighting, layer height and finish.
