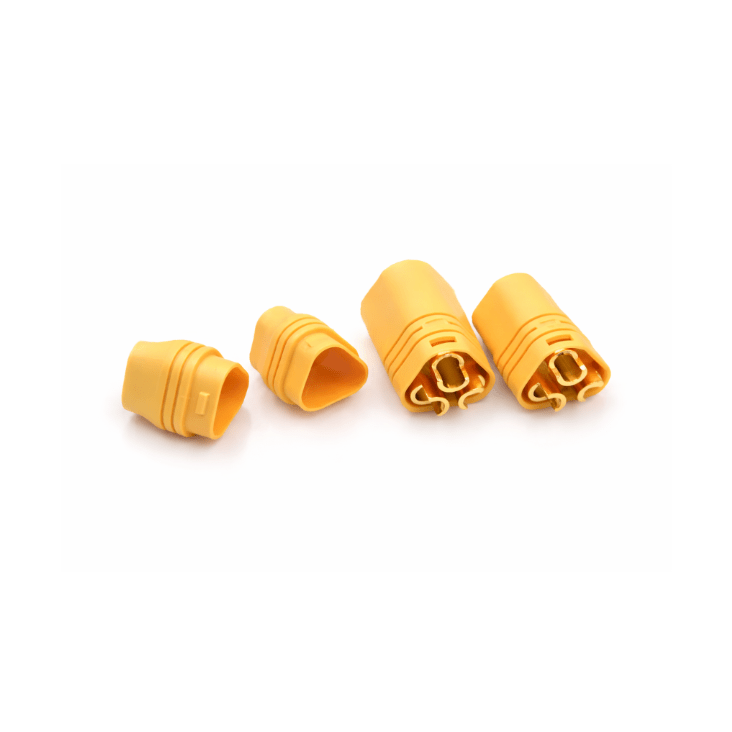

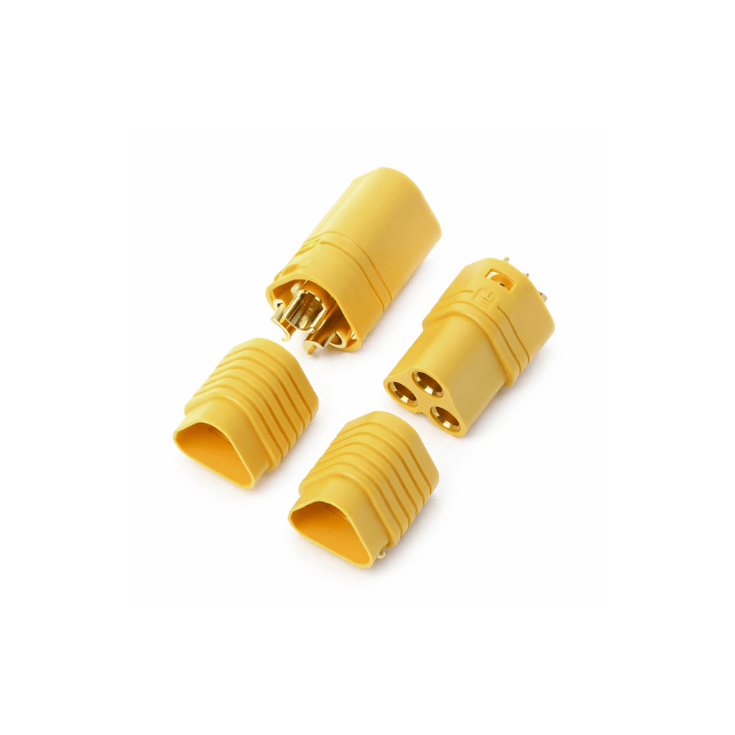

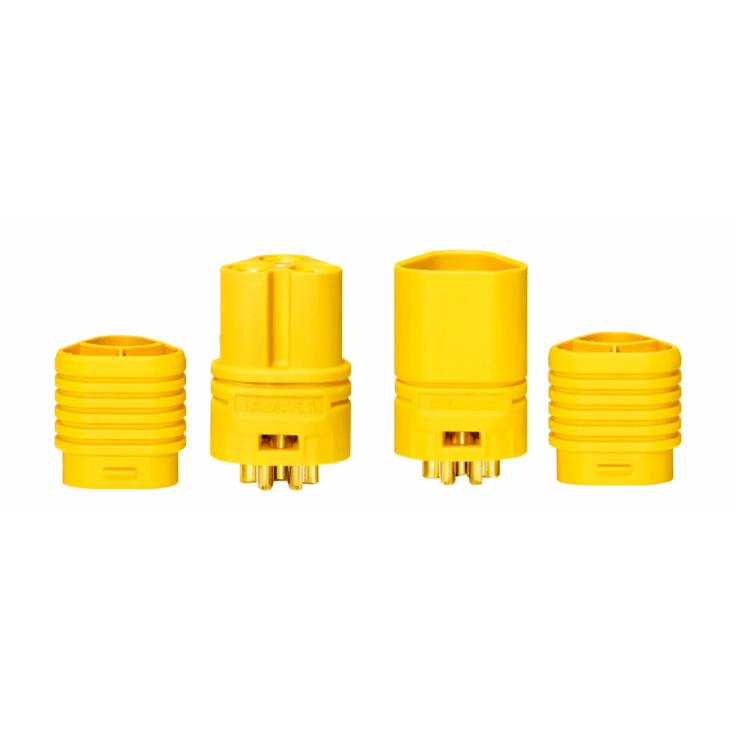

MT60 3.5mm 3 Pole Connector Pair (Male & Female)
Tax included. Shipping calculated at checkout
The MT60 3.5mm 3 Pole Bullet Connector Plug is a high quality power connector engineered for stable, high current electrical connections across RC, UAV, robotics, and custom wiring applications. Built with gold plated 3.5mm bullet terminals and a heat resistant housing, it provides excellent conductivity, minimal resistance, and dependable long term performance.
Key Features
- Includes 1× MT60 Male and 1× MT60 Female connector
- 3.5mm bullet terminals with a 3 pole configuration
- Designed for three phase brushless motor connections
- Gold plated copper contacts for improved conductivity and reduced resistance
- High temperature nylon housing for enhanced heat and impact resistance
- Keyed design to prevent incorrect polarity and misalignment
- Secure, tight fit to minimise vibration related disconnects
- Suitable for RC cars, drones, aircraft, and robotics applications
Choose options
3.5mm, 3 Pole, Male & Female Pair
OzFDM's MT60 Connectors
OzFDM’s The MT60 3.5mm Connector is a high current, 3 pole power solution designed for reliable brushless motor connections. Supplied as a male and female pair, it is commonly used between motors and Electronic Speed Controllers (ESCs), combining three 3.5mm gold plated bullet connectors into a single compact housing for a cleaner, more efficient wiring setup compared to individual connectors.
With a current rating of up to 60A, the MT60 is ideal for demanding applications such as RC vehicles, drones, electric scooters, and robotics. The gold plated brass terminals provide low resistance and consistent conductivity, supporting stable power delivery while reducing heat build up.
Housed in durable, heat resistant nylon, the connector features a keyed one way design to prevent reverse polarity and ensure correct alignment every time. The result is a secure, tidy, and dependable connection that performs reliably even in high vibration and high load environments.

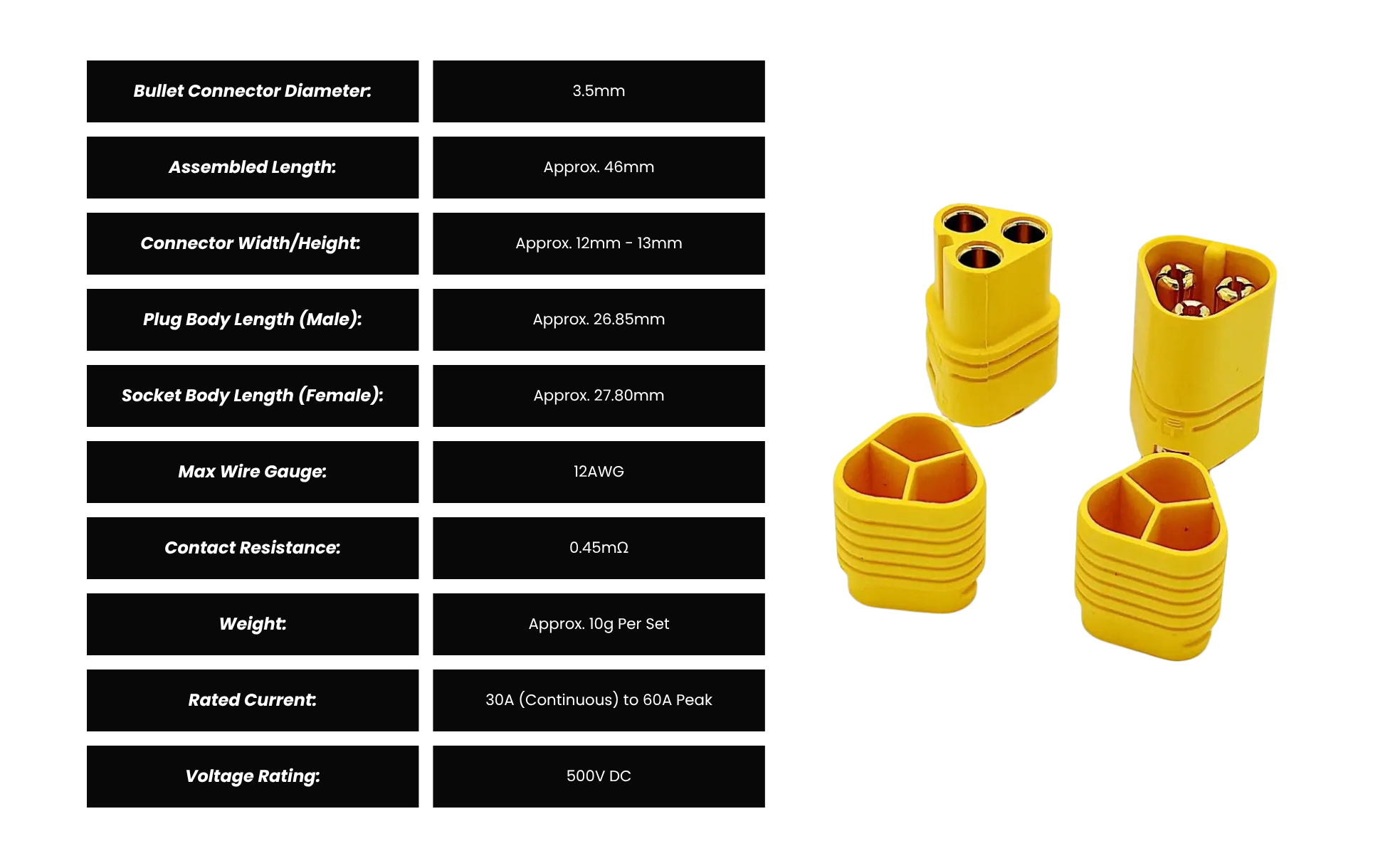

Design & Specifications
A Closer Look at the MT60 Connector
Subheading
Best Applications
RC Drones, Multicopters & Quadcopters
- Ideal for connecting brushless motors to ESCs, with a 3 pole design that allows for quick, clean motor swaps and reliable power delivery.
Electric Scooters & Personal Electric Vehicles
- Provides a robust and secure connection for consistent motor power transmission in high load applications.
RC Cars & Helicopters
- Well suited to high performance setups requiring stable current flow up to 60A, ensuring efficient and dependable operation.
Electric Skateboards & Custom Builds
- Delivers a tidy, compact solution for motor to ESC connections where space and reliability are critical.
DIY Robotics & Engineering Projects
- Perfect for compact, high current connections in custom builds, offering up to 60A capacity in a streamlined 3 pole configuration.
Why Choose MT60 Connectors
Safety & Reliability
- Keyed housing helps prevent reverse polarity and reduces the risk of short circuits, ensuring safe and consistent connections.
- The secure, tight fitting design also helps resist vibration and accidental disconnection in high movement applications.
Performance & Efficency
- Gold plated brass contacts provide low resistance and stable conductivity, supporting efficient power transfer with minimal energy loss.
- Rated for up to 60A, the MT60 is built to handle demanding, high current applications with confidence.
Clean Design & Ease of Use
- Combines three bullet connectors into one compact unit for a cleaner, more organised wiring setup.
- The ergonomic, non slip housing allows for easy connection and removal, while included protective end caps deliver a neat finish without the need for heat shrink.
