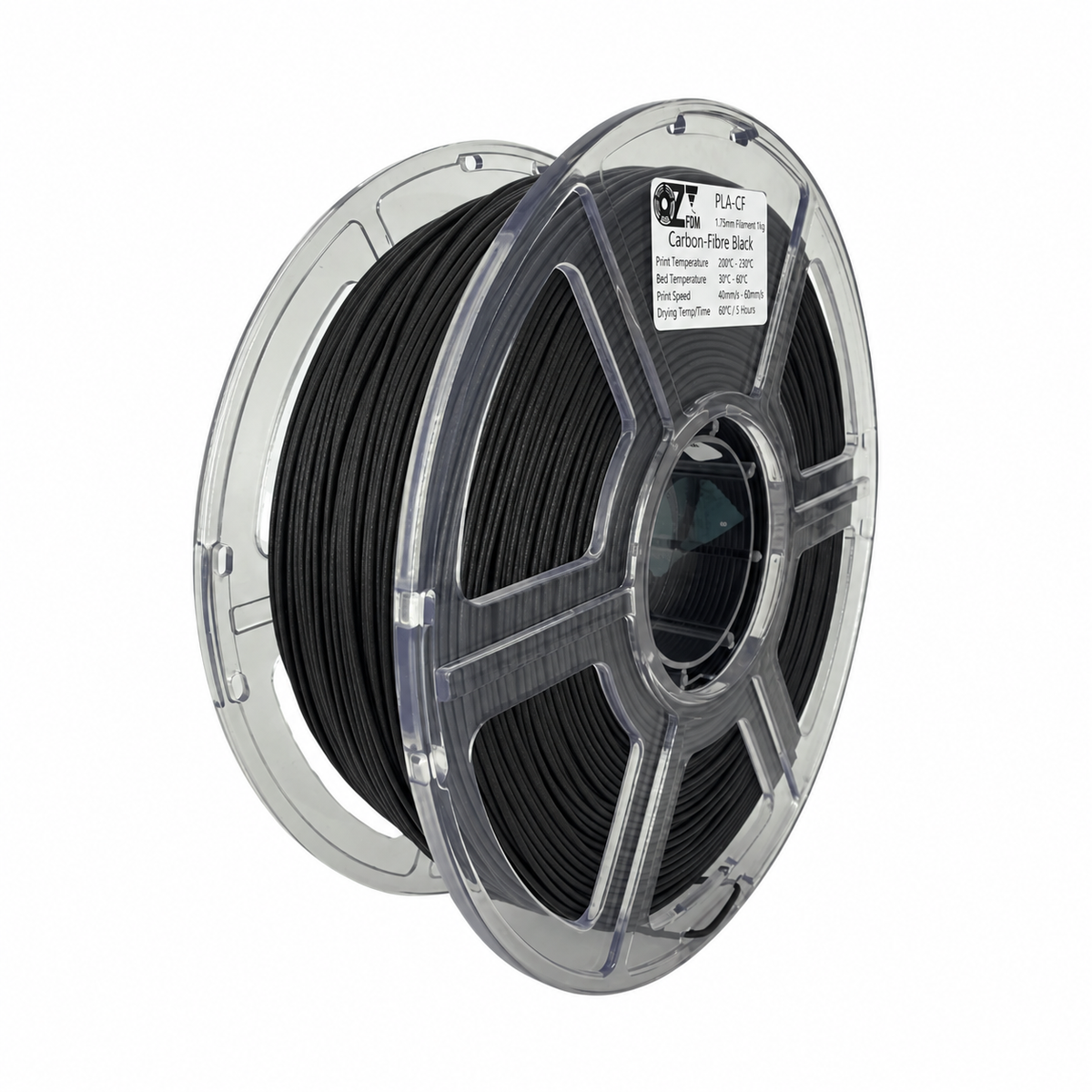

OzFDM PLA-CF Filament
OzFDM PLA-CF is a premium carbon fibre reinforced PLA developed for strong, rigid and dimensionally accurate 3D printed parts. It combines the straightforward printing experience of PLA with added carbon fibre content, creating a material that feels more substantial and performs more reliably in functional applications.
The reinforced formula improves stiffness and helps printed parts maintain their shape under mechanical stress. It also supports excellent dimensional stability, reduced warping and clean detail across both small components and larger models.
PLA-CF produces a smooth matte surface that helps conceal layer lines and gives prints a refined, professional appearance. It is ideal for prototypes, brackets, housings, tools, fixtures, mechanical components and display models where strength and presentation are equally important.
A hardened steel nozzle is recommended because carbon fibre is abrasive and may cause additional wear to standard brass nozzles.

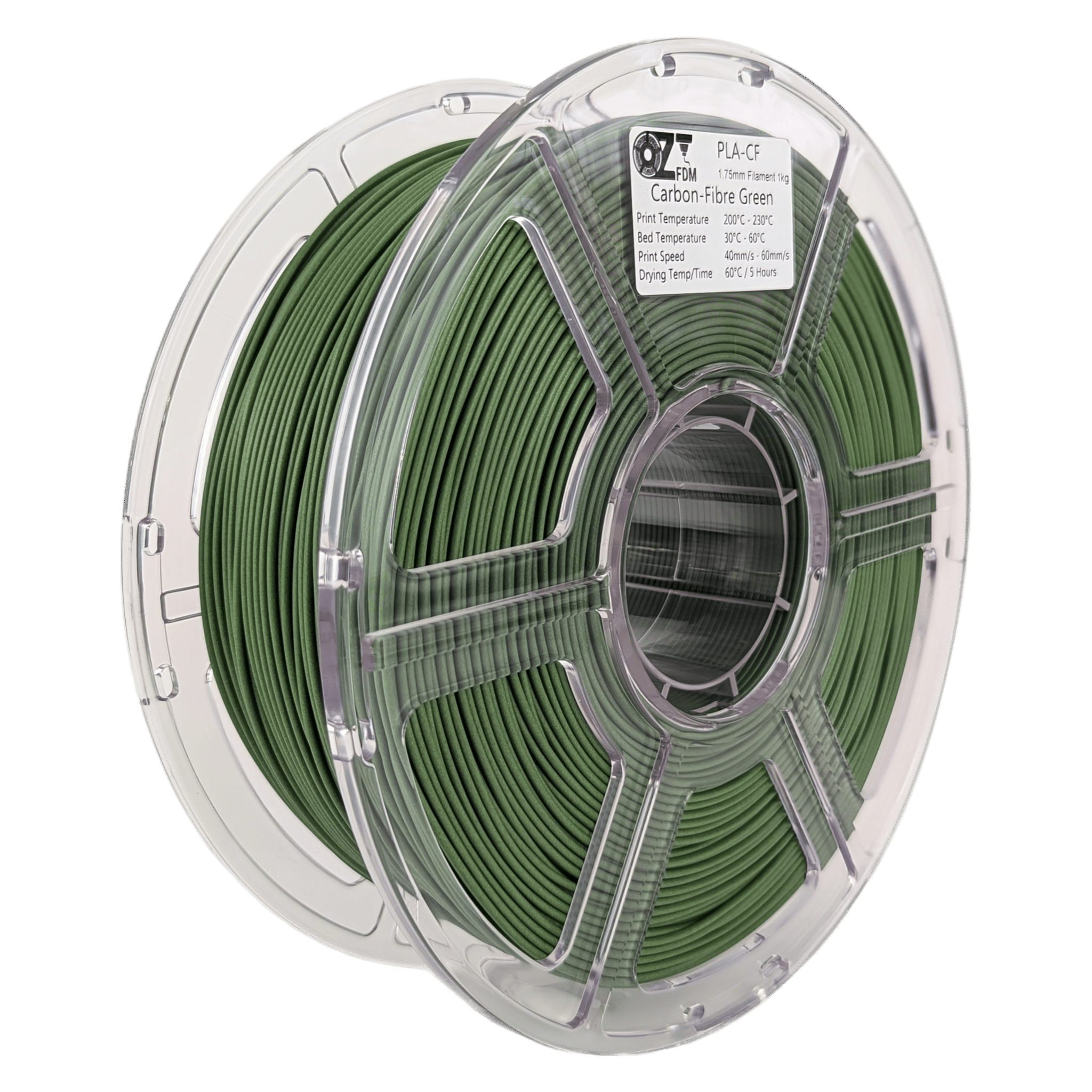

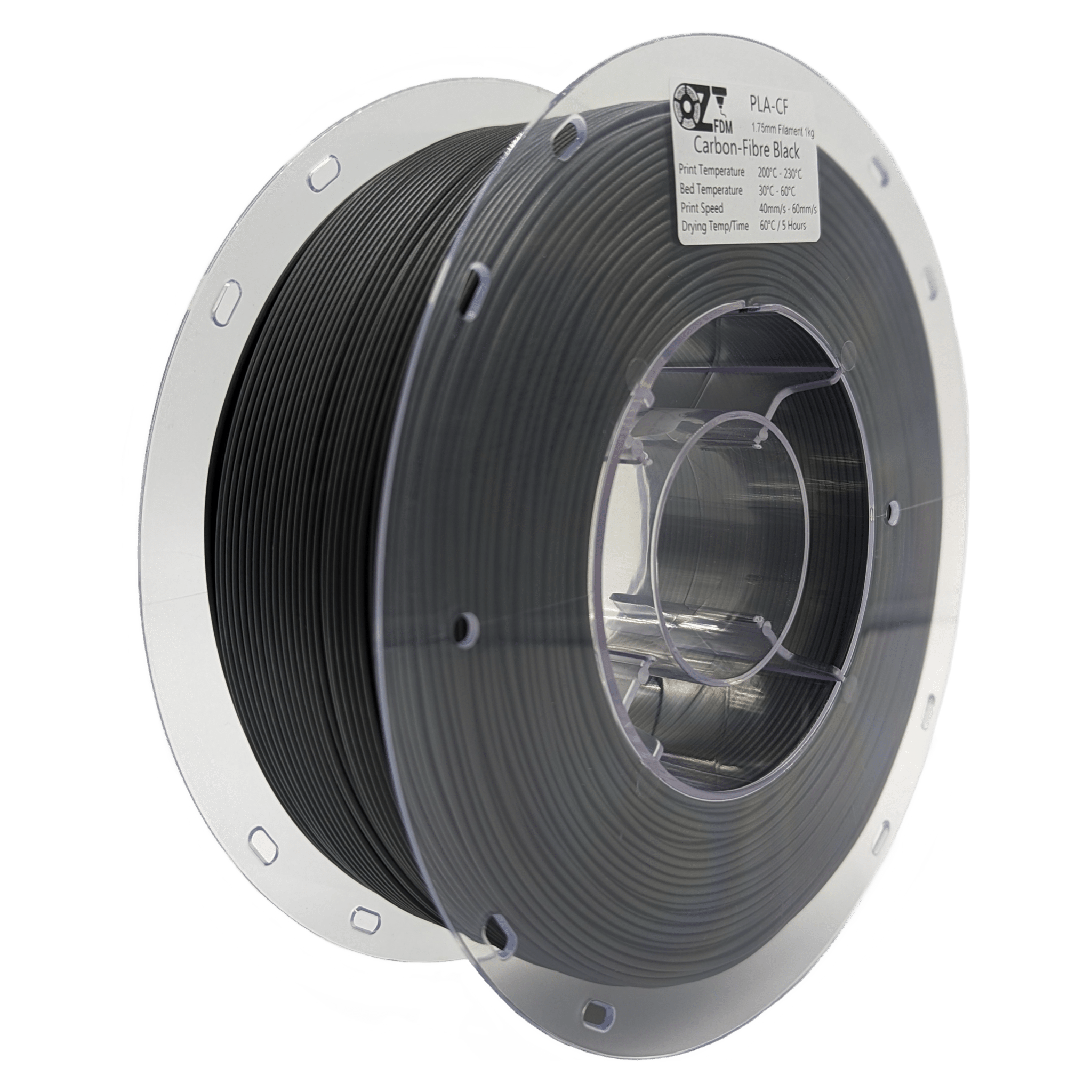

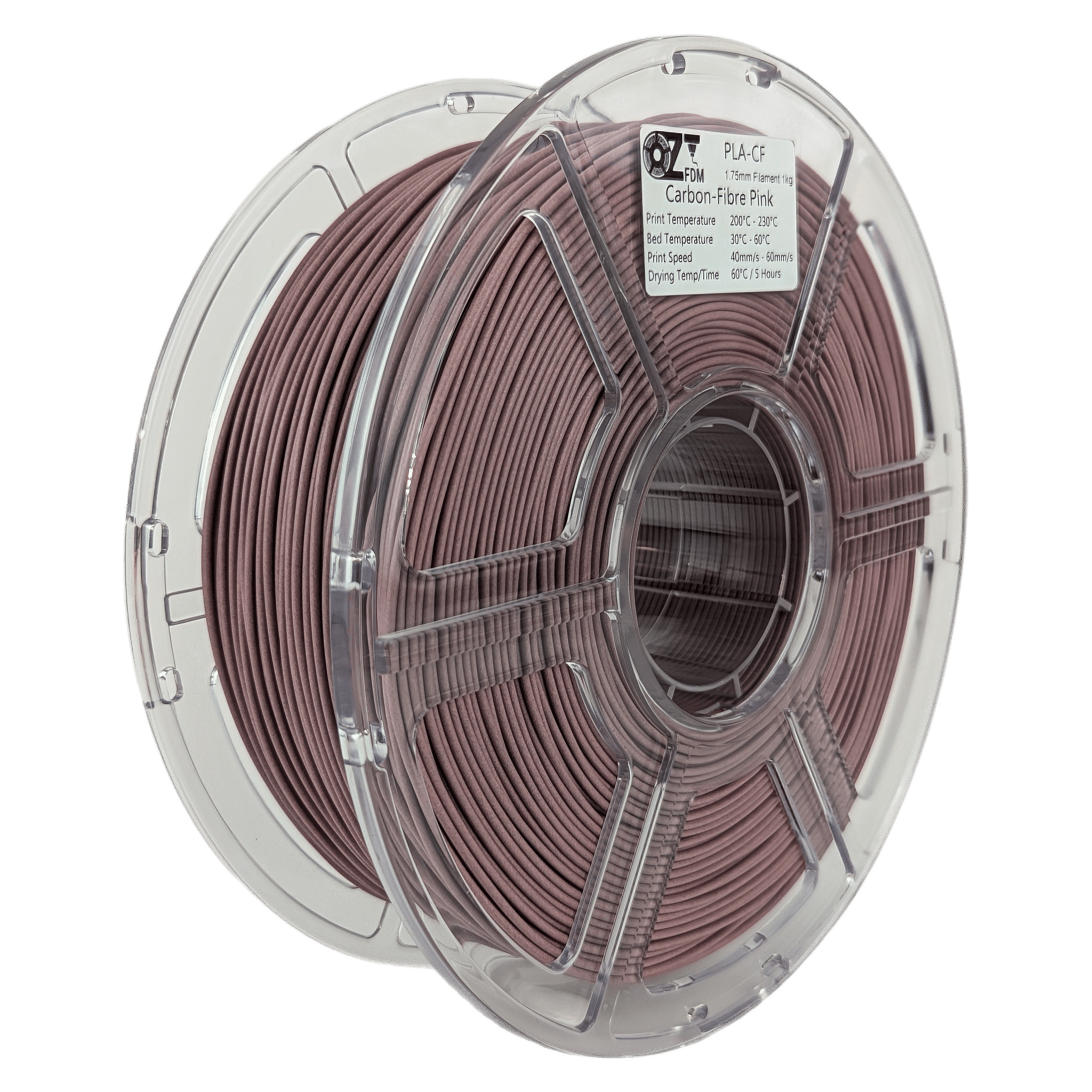

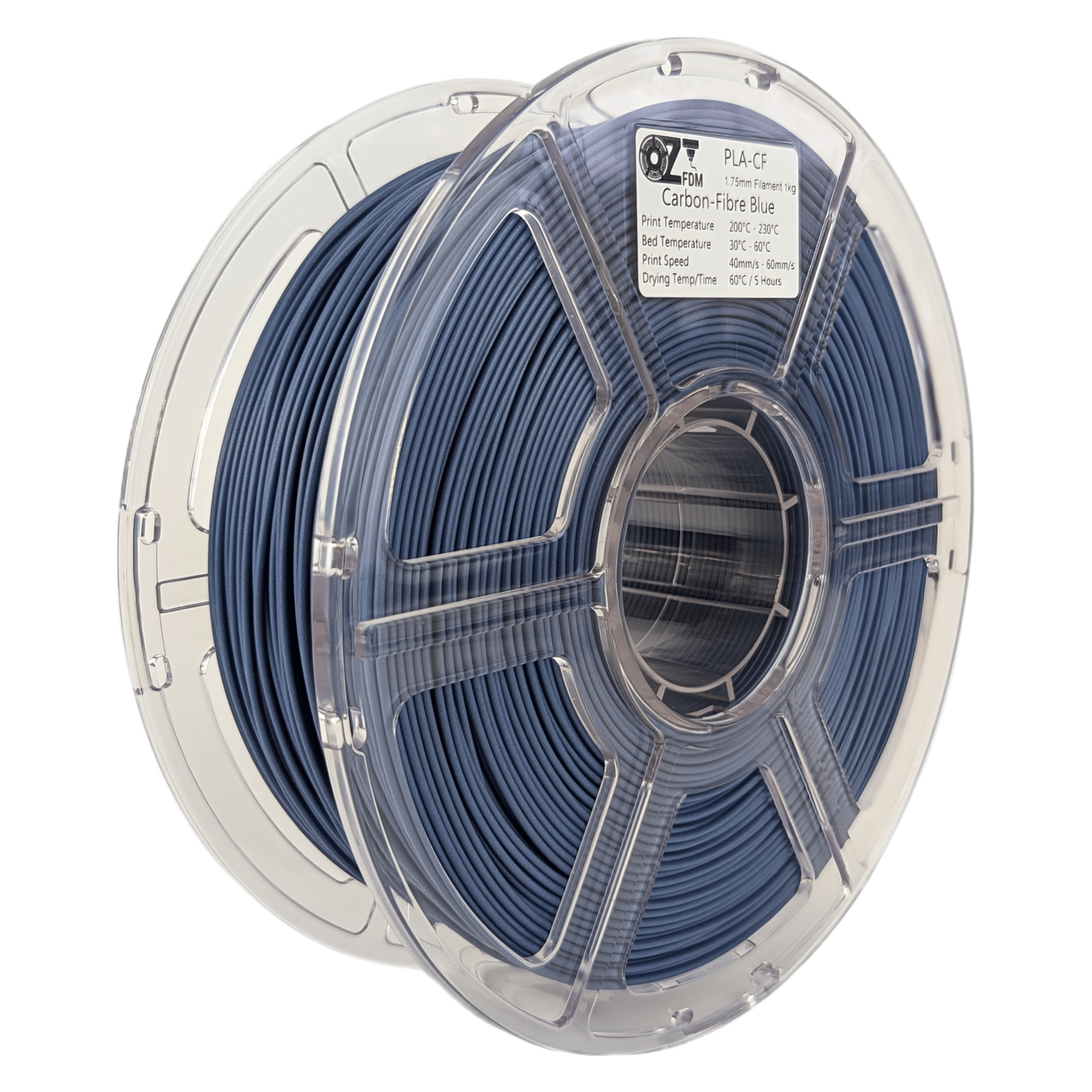

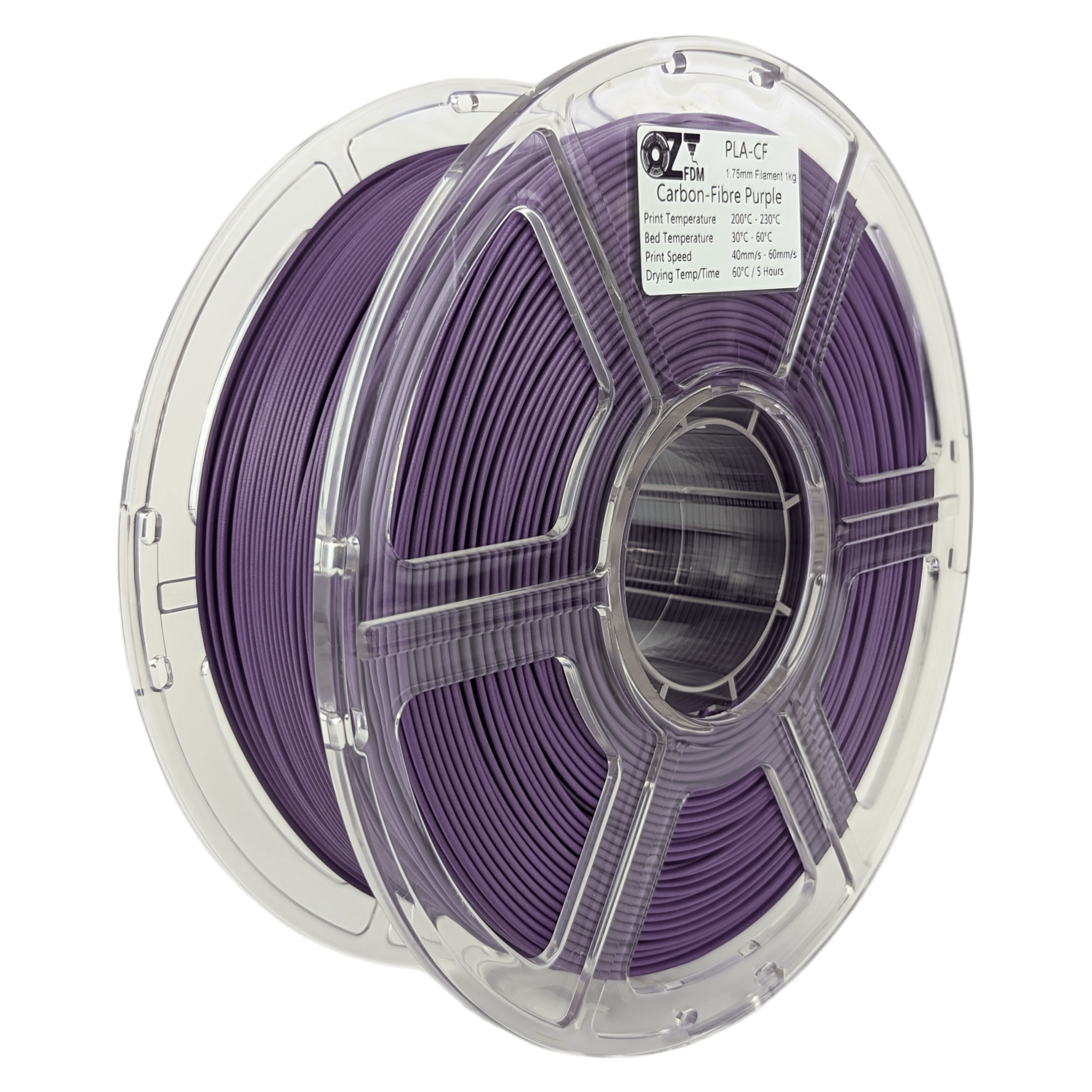

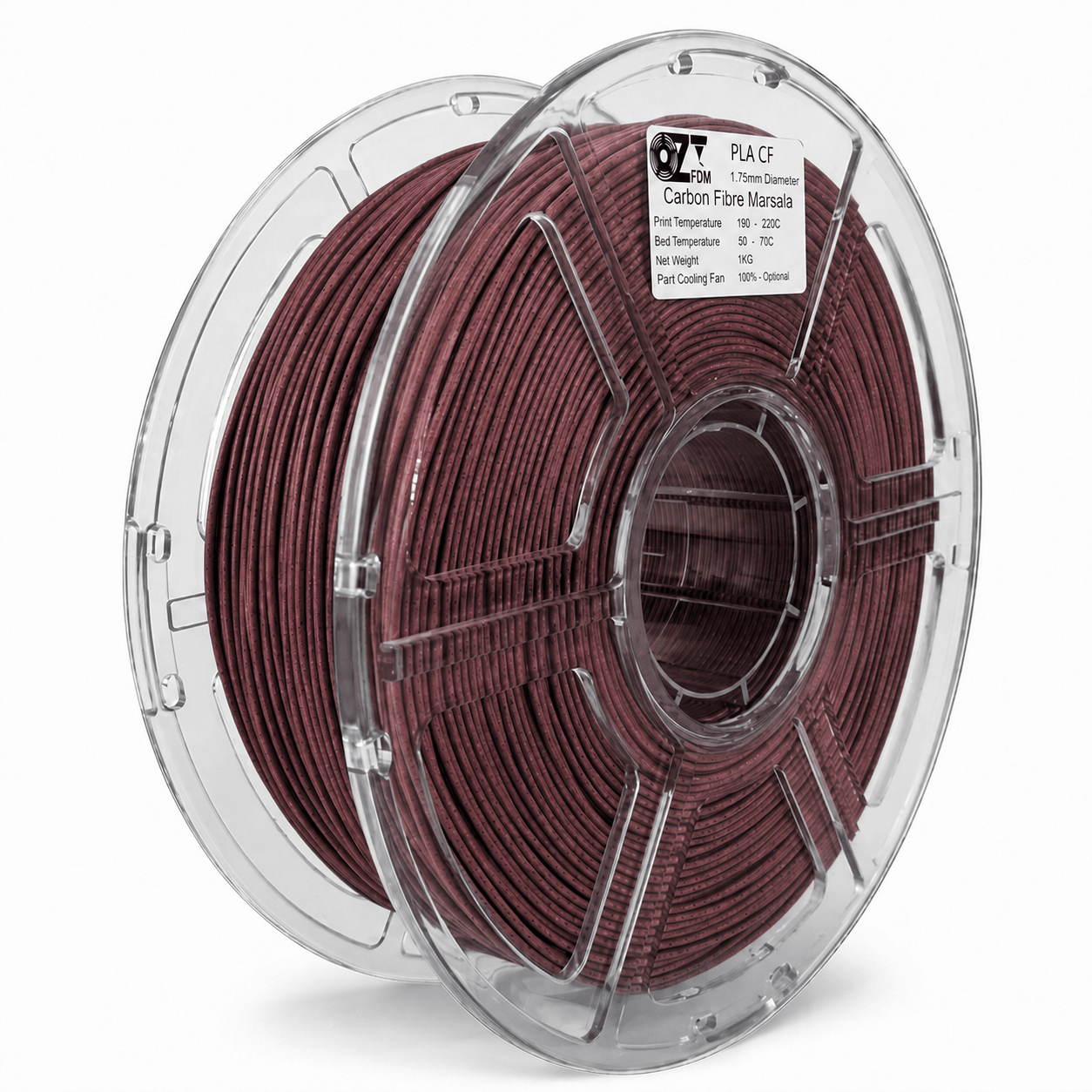

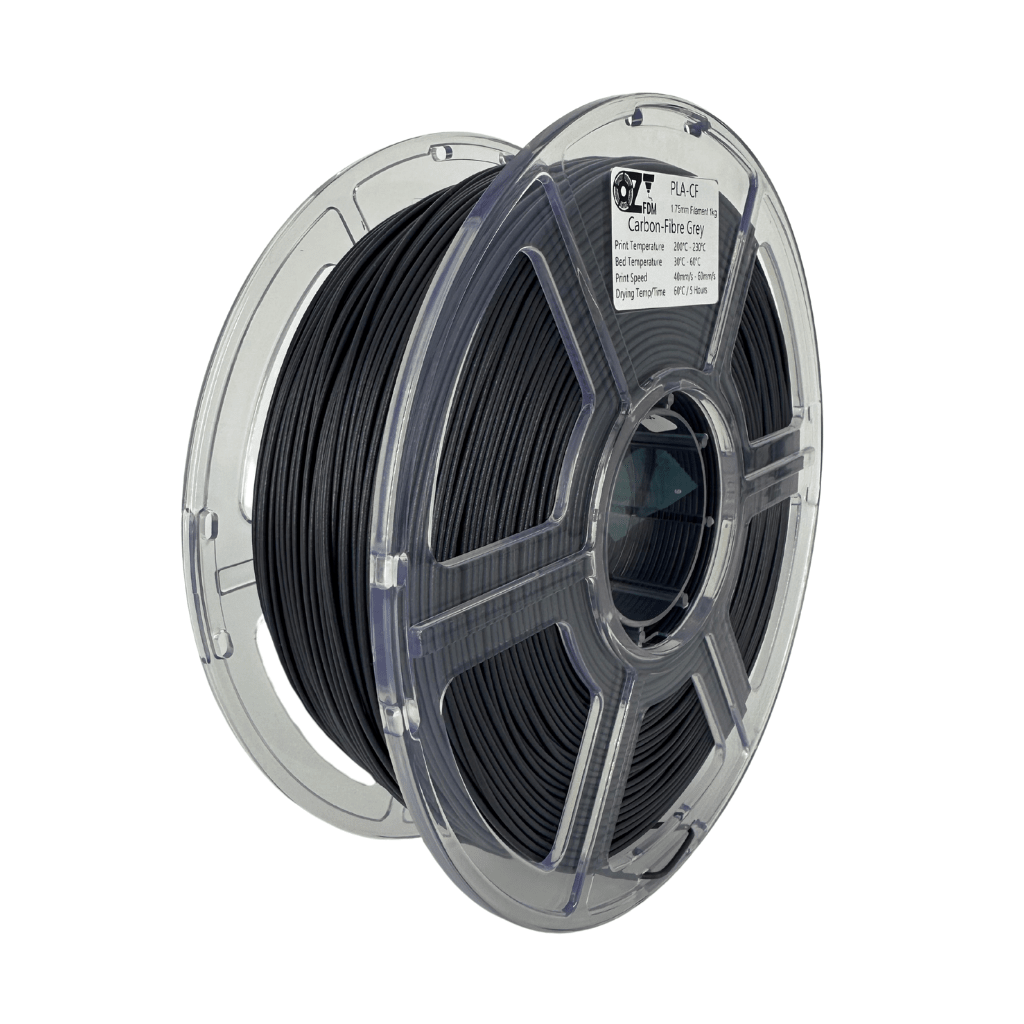

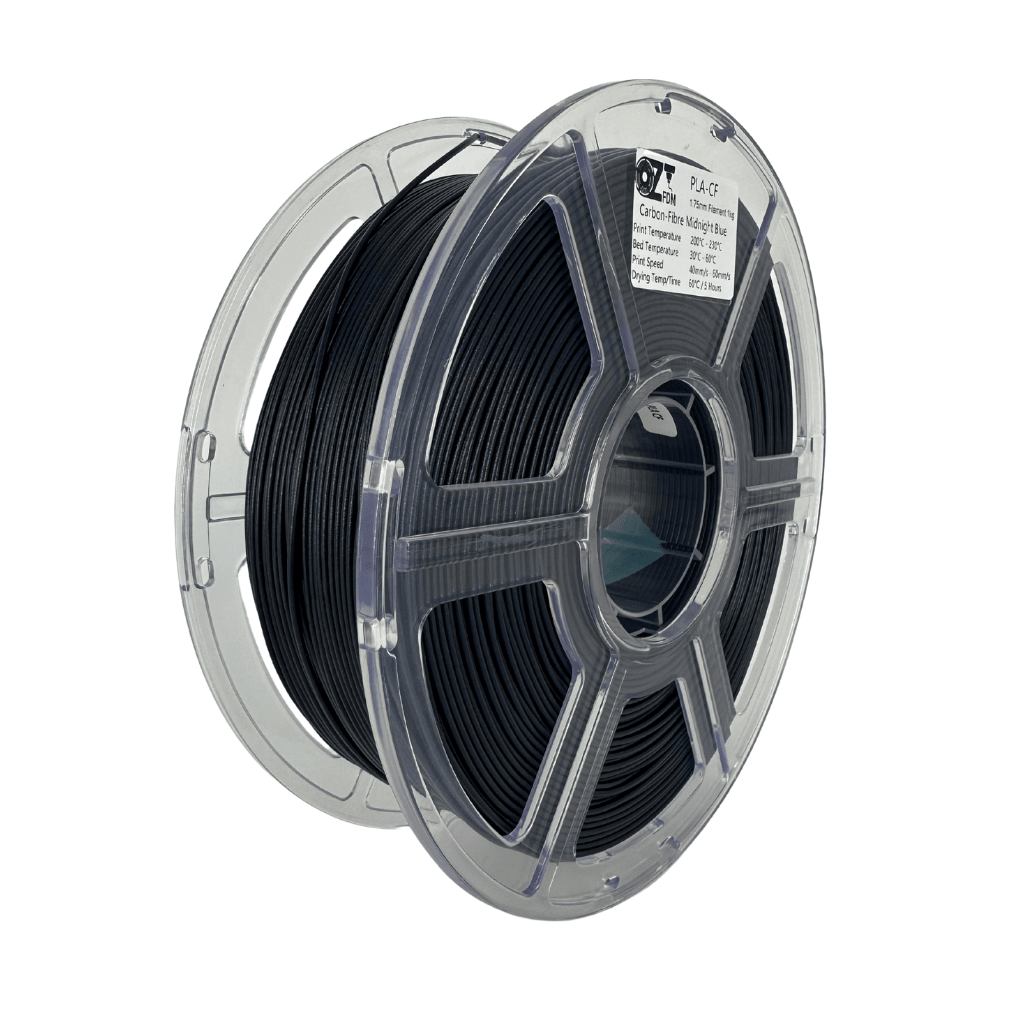

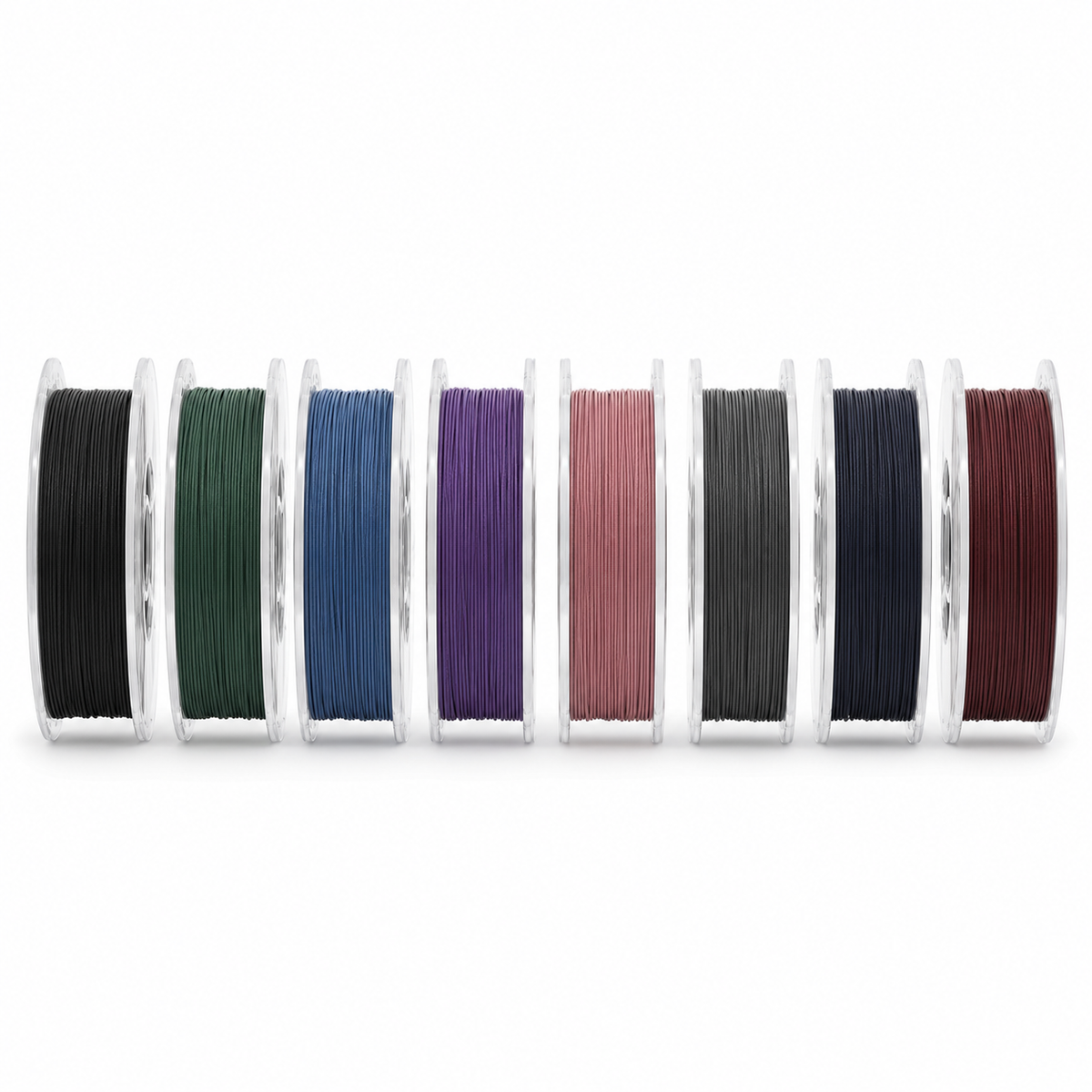

PLA-CF Colour Range - 8 Versatile Shades
The OzFDM PLA-CF range is available in eight carefully selected shades, offering versatile options for engineering parts, functional prototypes and professional display models.
Each shade features the distinctive matte texture associated with carbon fibre reinforced filament. The subtle surface finish reduces visible layer lines and creates consistent colour across detailed and functional prints.
Whether you prefer classic industrial tones or colours that make individual components easier to identify, the eight shade range provides flexibility without compromising the strong and refined appearance of PLA-CF.
AMS Compatibility: Reliable Feeding With the Correct Setup
OzFDM PLA-CF may be used with AMS systems when the spool fits correctly and the system is approved for abrasive materials. Because carbon fibre can cause additional wear to internal feeding components, users should always check their printer and AMS manufacturer recommendations before loading the filament.
Ensure the spool rotates freely and the filament path remains smooth. If feeding resistance or excessive wear is a concern, manual loading from an external spool holder may provide a more reliable option.
A hardened steel nozzle and wear resistant filament path are recommended for consistent long term printing.
Engineered for Professional Results
Reinforced for Functional Parts
Carbon fibre reinforcement increases stiffness and helps printed components resist bending and deformation.
This makes PLA-CF an excellent option for brackets, fixtures, housings, prototypes and other parts requiring greater structural stability than standard PLA.
Cleaner Details and Reduced Layer Lines
The carbon fibre texture creates a refined matte surface that helps conceal layer lines and minor surface imperfections.
Printed parts have a clean and professional appearance without requiring extensive finishing or post processing.
Accurate and Consistent Printing
PLA-CF offers excellent dimensional stability with reduced warping and dependable layer adhesion.
It supports accurate geometries, sharp details and consistent results across functional models, engineering components and larger prints.
Whether you’re prototyping, teaching, or printing in shared spaces, PLA+ ensures a smooth, sustainable workflow that’s comfortable, reliable, and better for you — and the planet.
PLA-CF Technical Specifications
Product Specifications
For additional details on packaging, storage, and shipping, see the information provided below.
Filament weight
1KG
Filament diameter
1.75mm
Dimensional tolerance
±0.05mm
Spool weight (empty)
150g
Spool weight (new)
1.15KG
Spool diameter outer
200mm
Spool diameter inner (hub)
52mm
Spool width
65mm
Package weight
1.3KG
Package dimensions
210mm x 210mm x 75mm
Drying recommendation:
60°C for a minimum of 5 hours using a filament dryer / food dehydrator.
Storage recommendation:
Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
Print Parameters
For best results, follow the recommended print parameters provided below to achieve reliable, high-quality prints every time.
Nozzle temperature
200°C - 230°C (210°C recommended)
Bed temperature
30°C - 60°C (50°C recommended)
Printing speed
40mm/s - 60mm/s (50mm/s recommended)
Support material
PVA , PETG (as support interface)
Mechanical Properties
For a deeper look at strength, durability, and tested material performance, refer to the mechanical property data outlined below.
Tensile Strength
ISO 527
40~45 MPa
Elongation at Break
ISO 527
11.5~13.5 %
Tensile Modulus
ISO 527
1100~1300 MPa
Flexural Strength
ISO 178
85~95 MPa
Impact Strength
ISO 180
8.5~9.5 kJ/m²
Physical Properties
For a closer look at density, flow rate, and moisture resistance, see the physical property data outlined below.
Density
ISO 1183
1.26~1.27 g/cm³
MFR (190°C/2.16 kg)
ISO 1133
10~15 g/10min
Moisture Absorption (23°C/24h)
ISO 62
<0.5 %
Thermodynamic Properties
For detailed insights on heat deflection and continuous use ratings, refer to the thermal property data provided below.
HDT @ 0.455 MPa (66 psi)
ISO 75
60 °C
Continuous Use Temperature
IEC 60216
55 °C
