Watch OzFDM's ASA-GF in Natural, Do What It Does Best
Performance in Motion
Strong. Stable. Ready for Anything.
ASA-GF Colour Range
- Black#020408
- Natural#D9D7CF
Screen colours are a guide only. The finished print varies with lighting, layer height and finish.
Feed ASA-GF from an external spool holder.
Not Recommended for the Bambu Lab AMS
From Print to Performance - Getting the Best From ASA
Outdoor Strength Meets Engineering Precision
OzFDM ASA-GF filament is built to perform in outdoor and high-stress environments. The glass fibre infusion strengthens ASA’s naturally durable base, resulting in exceptional rigidity, impact resistance, and dimensional precision.
Unlike standard filaments that warp or degrade in sunlight, ASA-GF maintains shape, colour, and stability under UV exposure and heat.

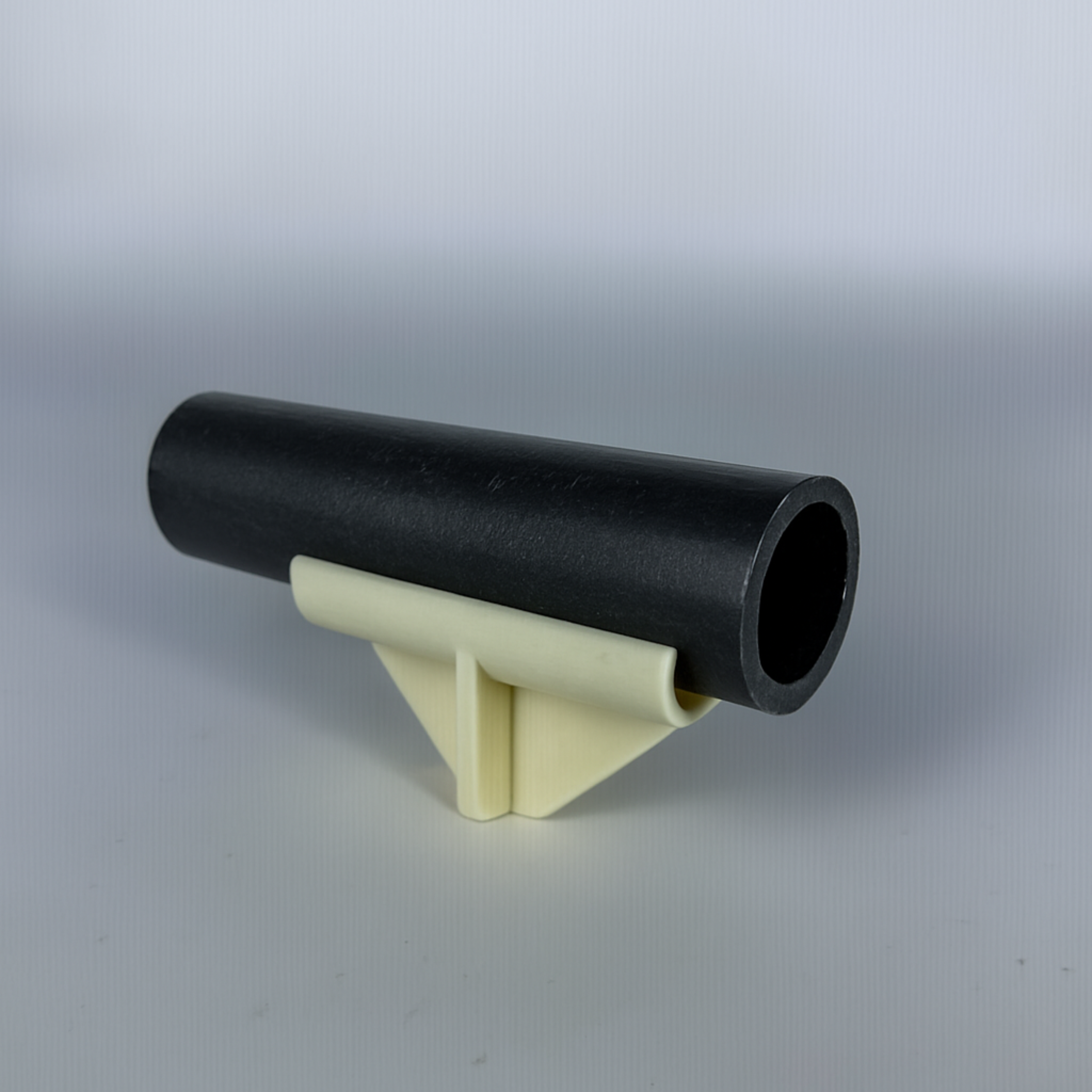

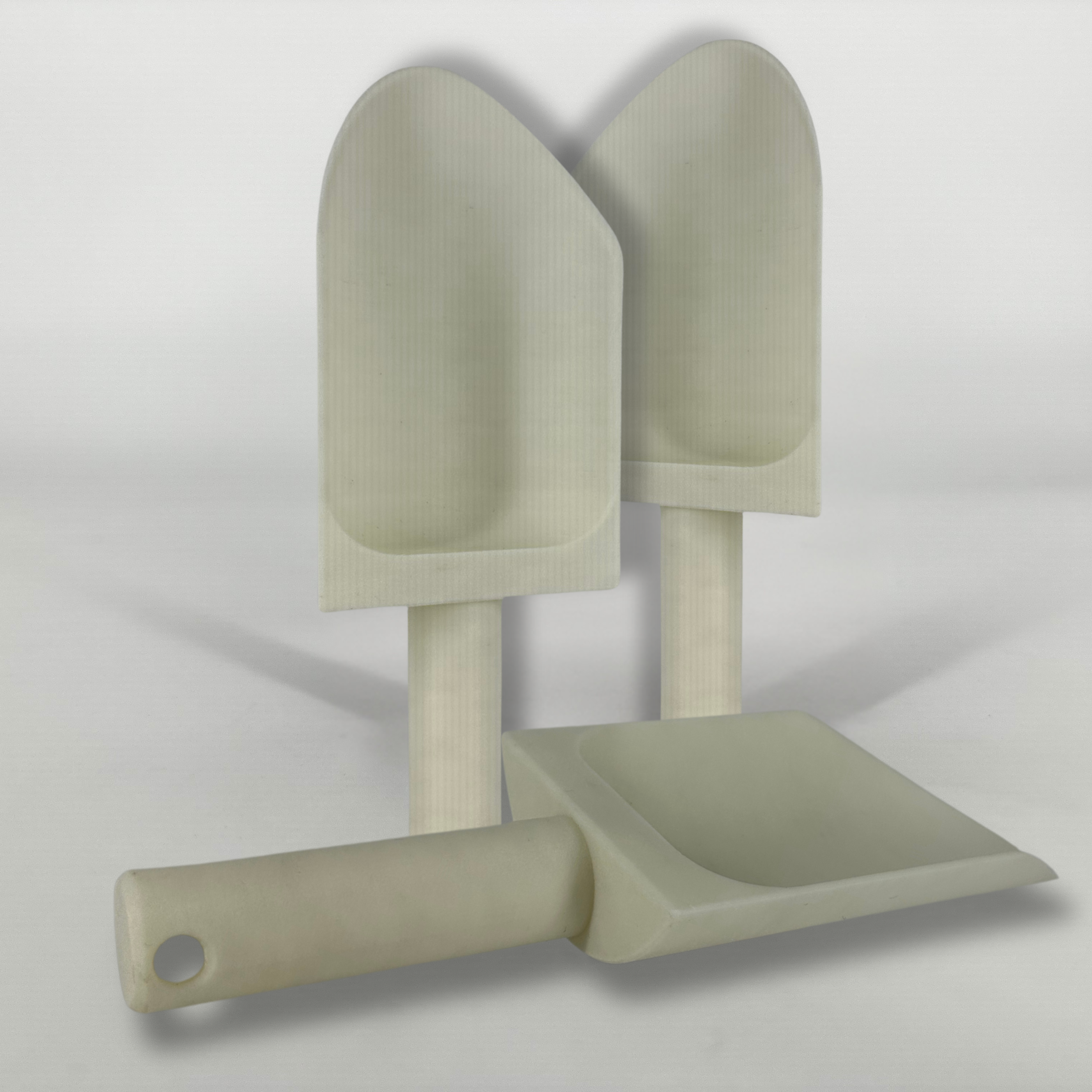

It’s ideal for 3D-printed parts used outdoors, such as brackets, panels, protective covers, and structural components where strength and weather resistance are essential.
Professional Print Quality and Performance
Printing with ASA-GF is straightforward for those seeking professional-level results. With a printing temperature range of 240–260 °C and a heated bed at around 110 °C, this filament offers excellent adhesion and minimal shrinkage.
The glass-fibre texture delivers a smooth matte surface that hides layer lines and enhances visual appeal. Use a hardened steel nozzle to manage abrasion and achieve consistent extrusion.
The result: dimensionally accurate, high-strength parts ready for long-term use in industrial and outdoor settings.
Storage and Best Practices
To maintain maximum print quality, store ASA-GF filament in an airtight container with desiccant and dry at 80 °C before printing.
Moderate cooling and precise first-layer calibration will further improve adhesion and finish quality. Designed to resist UV degradation, heat stress, and mechanical fatigue.
OzFDM ASA-GF filament remains reliable for months or years after printing, it is the ultimate choice for durable, outdoor 3D printing and professional engineering applications.
Find the Right Filament for Every Project
Technical Specifications
Product Specifications
- Filament weight
- 1 kg
- Filament diameter
- 1.75 mm
- Dimensional tolerance
- ±0.05mm
- Spool weight (empty)
- 150 g
- Spool weight (new)
- 1.15 kg
- Spool diameter outer
- 200 mm
- Spool diameter inner (hub)
- 52 mm
- Spool width
- 65 mm
- Package weight
- 1.3 kg
- Package dimensions
- 210mm x 220mm x 75mm
- Drying recommendation
- 80°C for a minimum of 5 hours using a filament dryer / food dehydrator.
- Storage recommendation
- Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
Print Parameters
- Nozzle temperature
- 240°C - 260°C (250°C recommended)
- Bed temperature
- 100°C - 120°C (110°C recommended)
- Printing speed
- 40mm/s - 250mm/s
- Support material
- HIPS , ASA-GF (self supported)
Mechanical Properties
- Tensile Strength (X-Y)ISO 527
- 40.8~41.3 MPa
- Elongation at Break (X-Y)ISO 527
- 5.3~5.8 %
- Flexural Strength (X-Y)ISO 178
- 72.5~74.1 MPa
- Flexural Strength (X-Z)ISO 178
- 27.2~31.7 MPa
- Flexural Modulus (X-Y)ISO 178
- 3359~3368 MPa
- Flexural Modulus (X-Z)ISO 178
- 1359~1590 MPa
- Impact Strength (X-Y)ISO 180
- 6.3~6.9 kJ/m²
- Impact Strength (X-Z)ISO 180
- 2.5~3.2 kJ/m²
Physical Properties
- DensityISO 1183
- 1.17~1.18 g/cm³
- Melt flow rate (220°C/5 kg)ISO 1133
- 9~15 g/10min
- Moisture absorption (23°C/24h)ISO 62
- <0.5 %
Thermodynamic Properties
- HDT @ 0.455 MPa (66 psi)ISO 75
- 88 °C
- Continuous use temperatureIEC 60216
- 85 °C
Colour Hex Codes
- Black #020408
- Natural #D9D7CF
Colour codes as listed on the range chart. Screen colours are a guide only; the finished print varies with lighting, layer height and finish.
