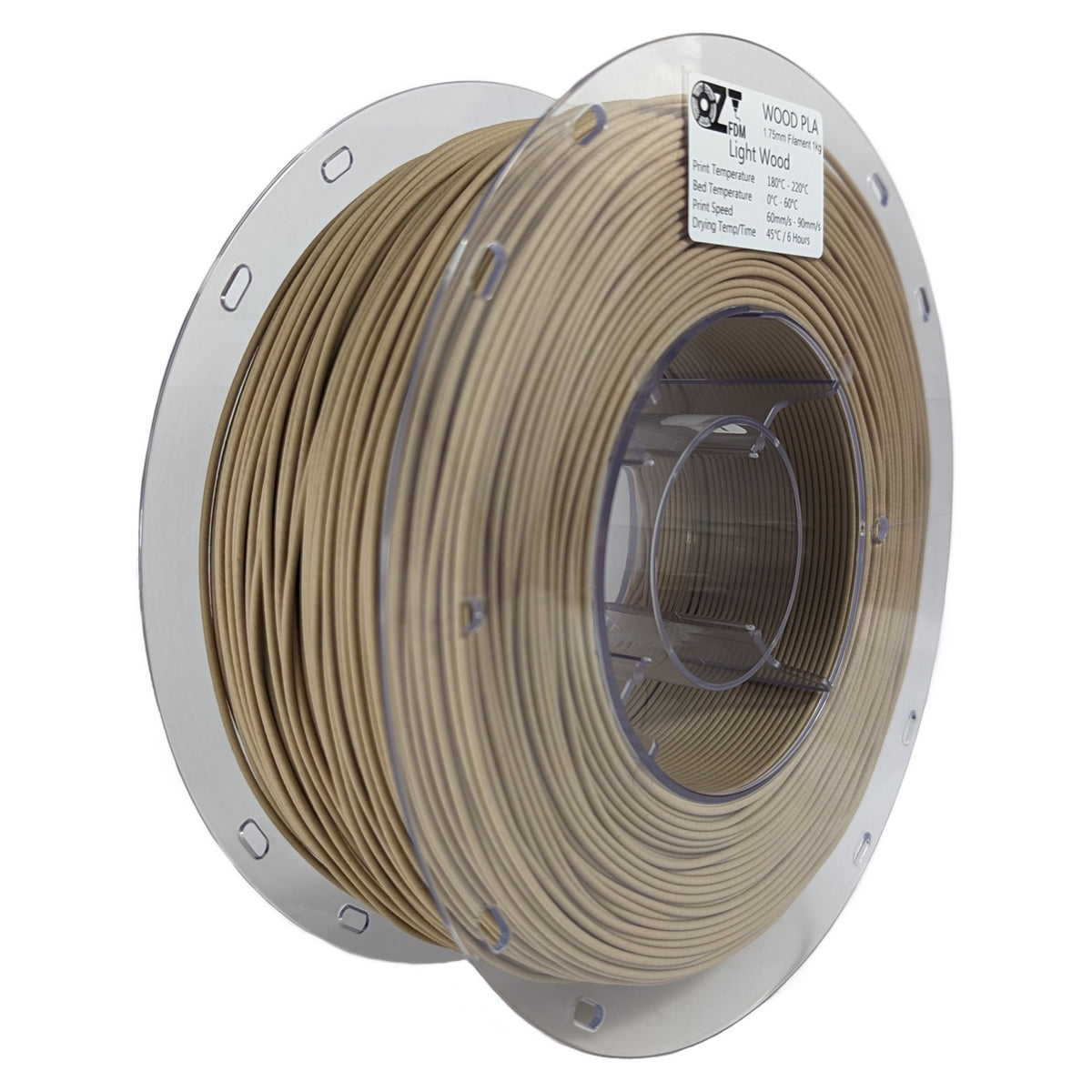

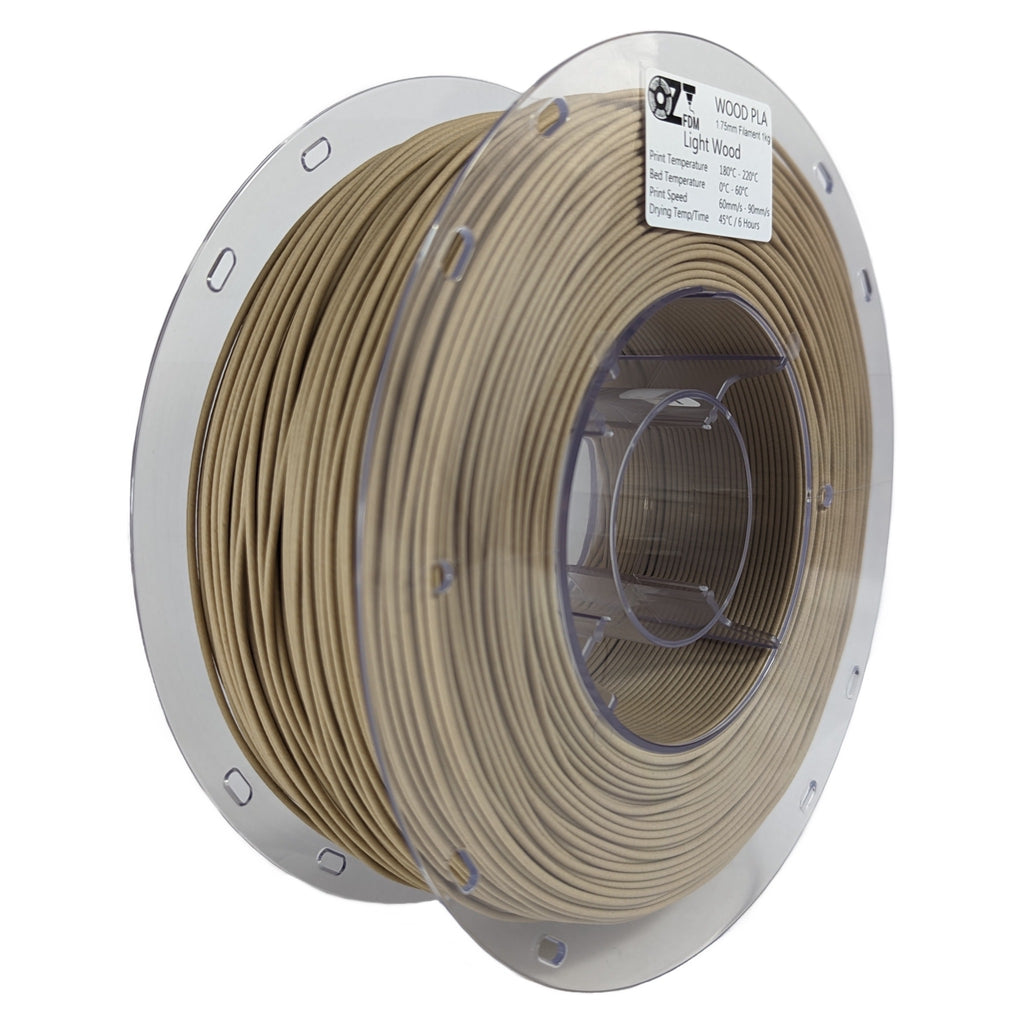

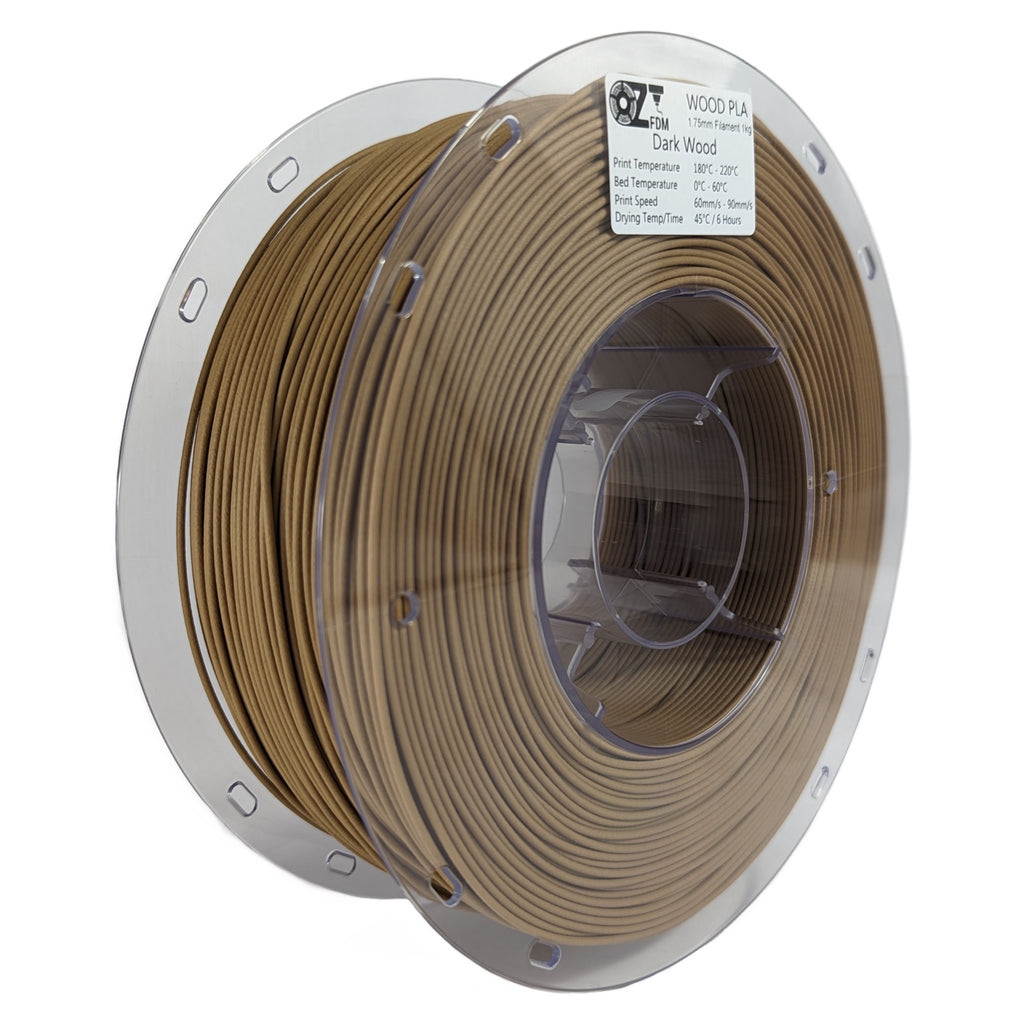

OzFDM PLA Wood 1.75mm 1KG produces a natural wood-like texture that is perfect for a variety of projects. With a diameter of 1.75mm, it offers superior accuracy and detail. This PLA filament also has great strength, making it easy to work with and ideal for a variety of printing projects.

Product specifications:

Filament weight	1KG
Filament diameter	1.75mm
Dimensional tolerance	±0.05mm
Spool weight (empty)	150g
Spool weight (new)	1.15KG
Spool diameter outer	200mm
Spool diameter inner (hub)	52mm
Spool width	65mm
Package weight	1.3KG
Package dimensions	210mm x 210mm x 75mm



Print parameters:

Nozzle temperature	180°C - 220°C
Bed temperature	25°C - 60°C
Printing speed	60mm/s - 90mm/s
Support material	PVA

Physical Properties:

Density	ISO 1183	1.20~1.21 g/cm3
MFR(250°C/2.16Kg)	ISO 1133	10~15 g/10min
Moisture Absorbtion(23°C/24h)	ISO 62	<0.6 %



Mechanical Properties:

Tensile Strength	ISO 527	30~35 Mpa
Elongation at Break	ISO 527	7.5~10 %
Flexural Modulus	ISO 527	1000~1100 Mpa
Flexural Strength	ISO 178	50~55 Mpa
Impact Strength	ISO 180	3.5~4 KJ/m²



Thermodynamic Properties:

HDT @ 0.455 Mpa(66 psi)	ISO 75	53 °C
Continuous Use Temperature	IEC 60216	50 °C



Drying recommendation:

40°C - 45°C for 4-6 hours using a filament dryer / food dehydrator.

Storage recommendation:

Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
