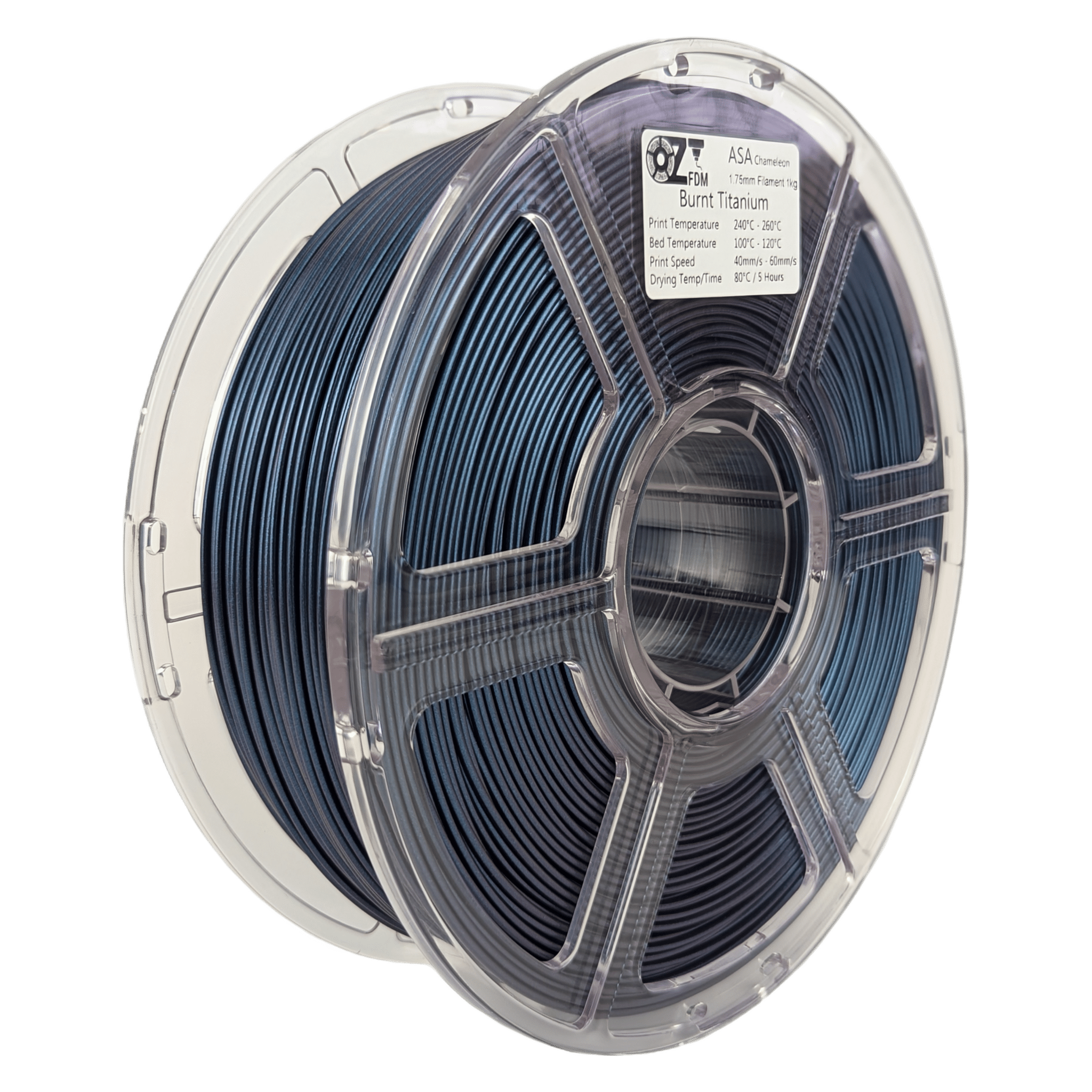

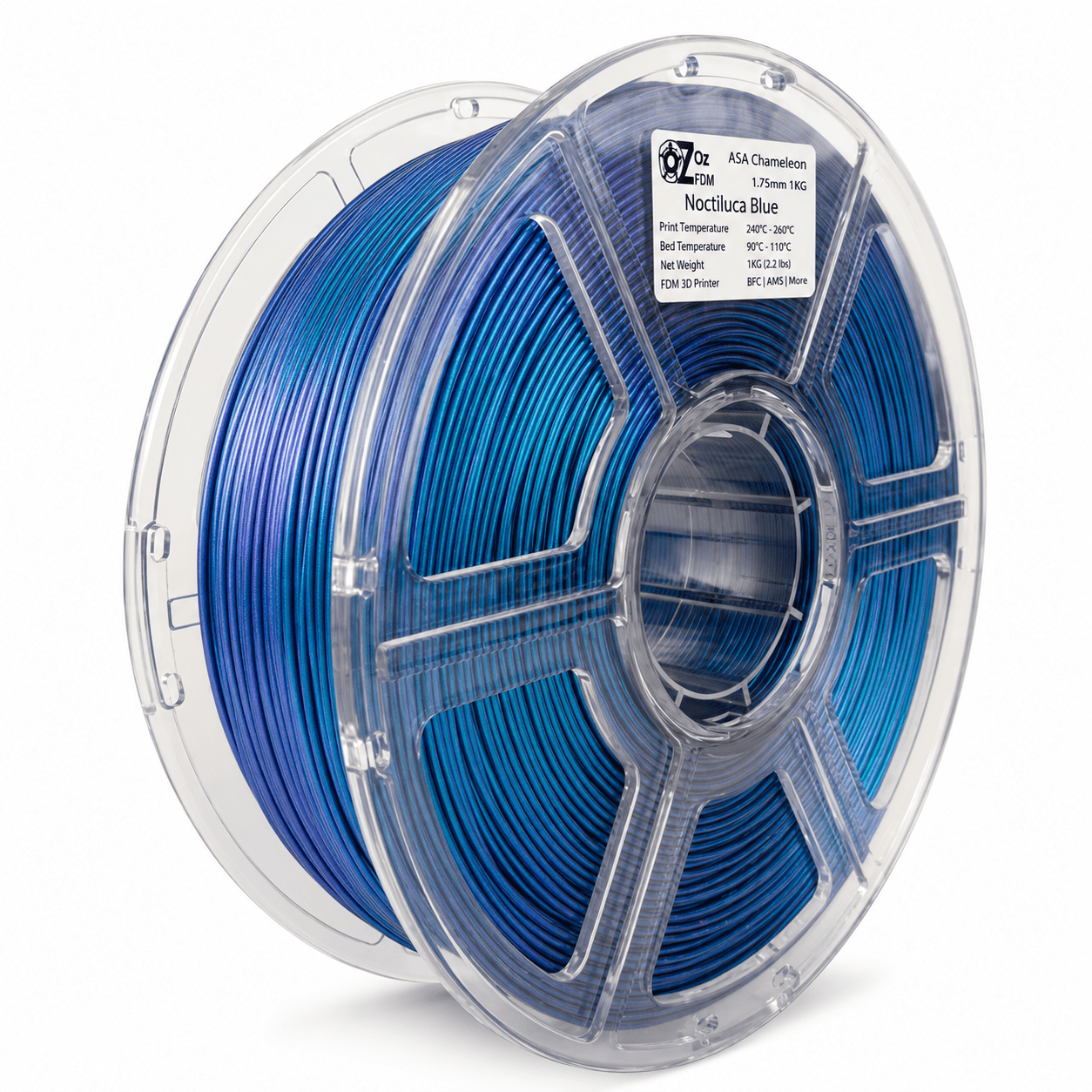

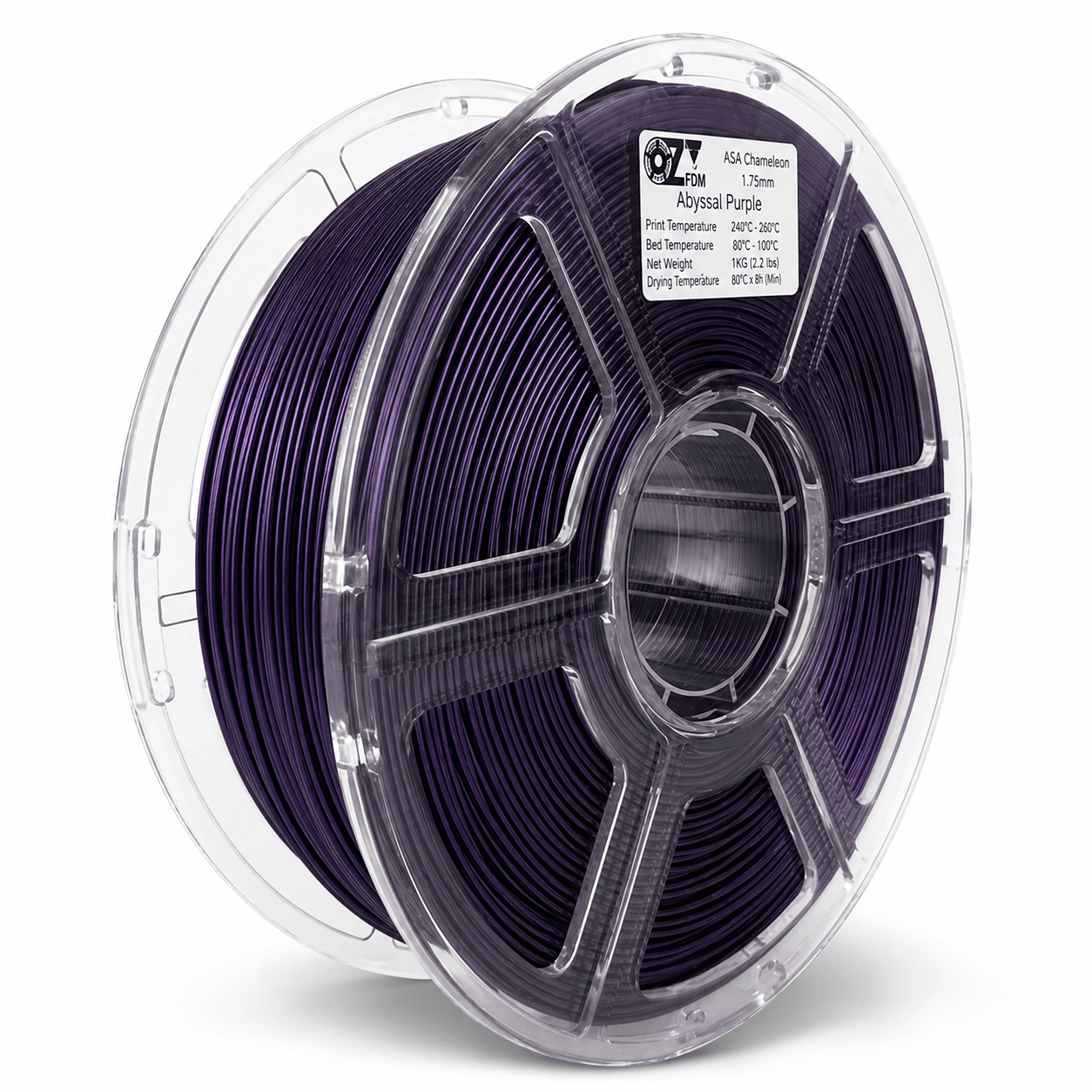

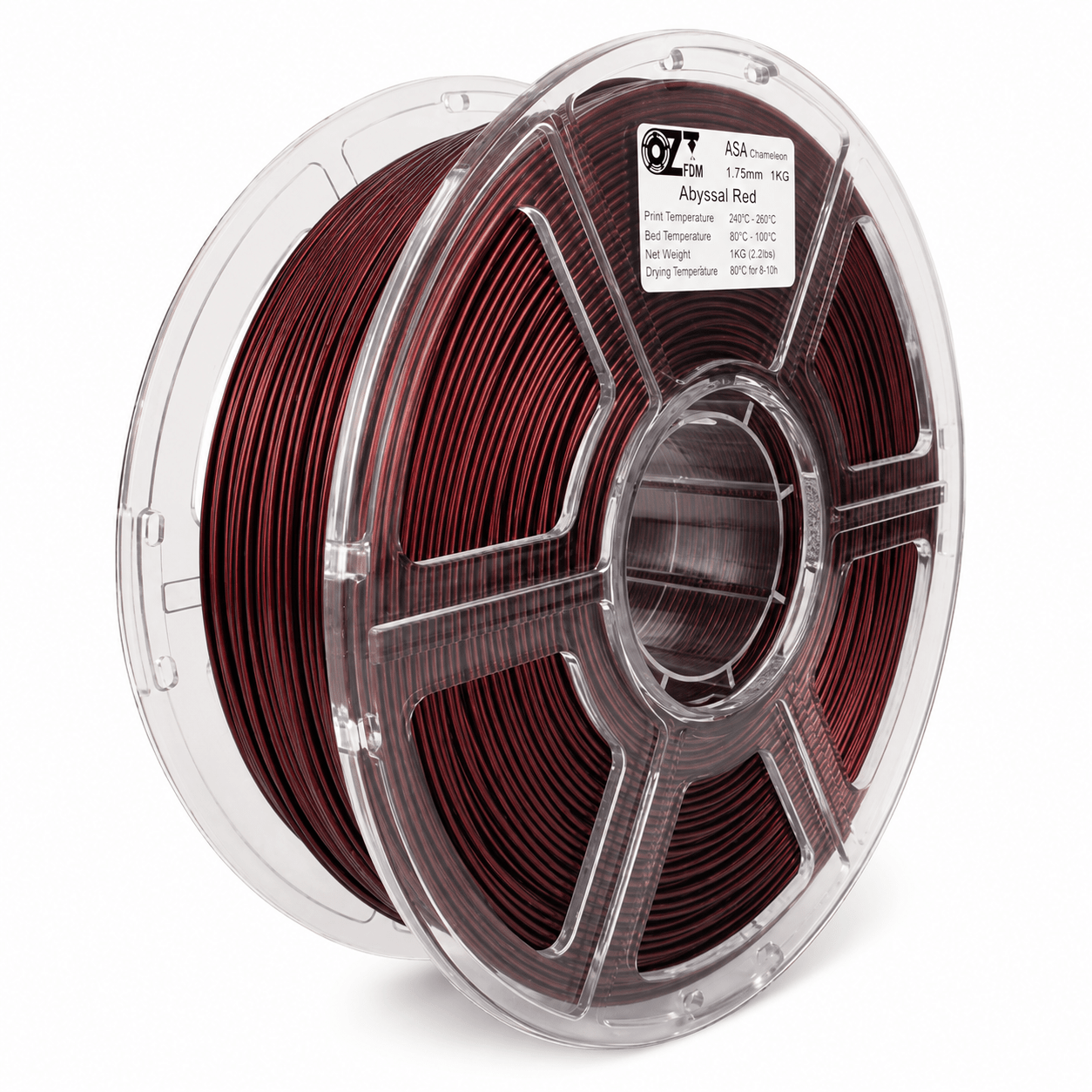

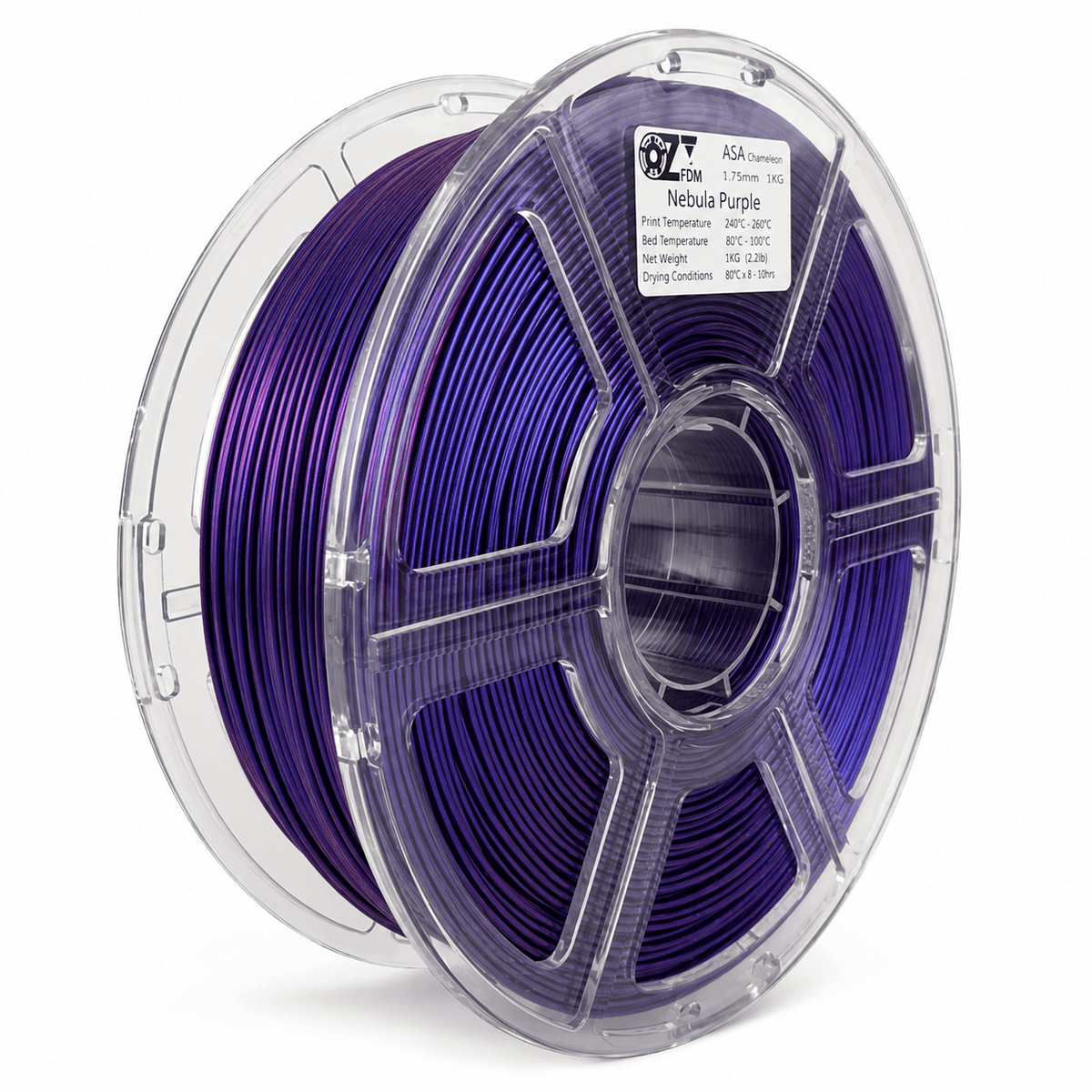

OzFDM ASA Chameleon 3D Printing Filament 1.75mm 1KG
Tax included. Shipping calculated at checkout
Product Features
- Extraordinary UV Resistance
- Exceptional Temperature Resistance
- High Impact Strength and Durability
- Outdoor Use for Long-Term Purpose
- Diameter: 1.75mm +/- 0.05mm
Choose options
OzFDM ASA 1.75mm 1KG filament is made of high-grade acrylonitrile styrene acrylate (ASA) engineering plastic, delivering superior impact resistance and weatherproof performance. With antistatic properties and compatibility with most 3D printers, this filament is a reliable choice for all your 3D printing needs.
Product specifications:
| Filament weight | 1KG |
| Filament diameter | 1.75mm |
| Dimensional tolerance | ±0.05mm |
| Spool weight (empty) | 150g |
| Spool weight (new) | 1.15KG |
| Spool diameter outer | 200mm |
| Spool diameter inner (hub) | 52mm |
| Spool width | 65mm |
| Package weight | 1.3KG |
| Package dimensions | 210mm x 210mm x 75mm |
Print parameters:
| Nozzle temperature | 240°C - 260°C (250°C Recommended) |
| Bed temperature | 100°C - 120°C (110°C Recommended) |
| Printing speed | 40mm/s - 60mm/s |
| Support material | HIPS , ASA (self support) |
Physical Properties:
| Density | ISO 1183 | 1.08~1.09 g/cm3 |
| MFR(250°C/2.16Kg) | ISO 1133 | 20~25 g/10min |
| Moisture Absorbtion(23°C/24h) | ISO 62 | 1 % |
Mechanical Properties:
| Tensile Strength | ISO 527 | 42~45 Mpa |
| Elongation at Break | ISO 527 | 9~12 % |
| Flexural Modulus | ISO 527 | 1200~1400 Mpa |
| Flexural Strength | ISO 178 | 75~79 Mpa |
| Impact Strength | ISO 180 | 19~20 KJ/m² |
Thermodynamic Properties:
| HDT @ 0.455 Mpa(66 psi) | ISO 75 | 88 °C |
Drying recommendation:
80°C for a minimum of 5 hours using a filament dryer / food dehydrator.
Storage recommendation:
Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.
