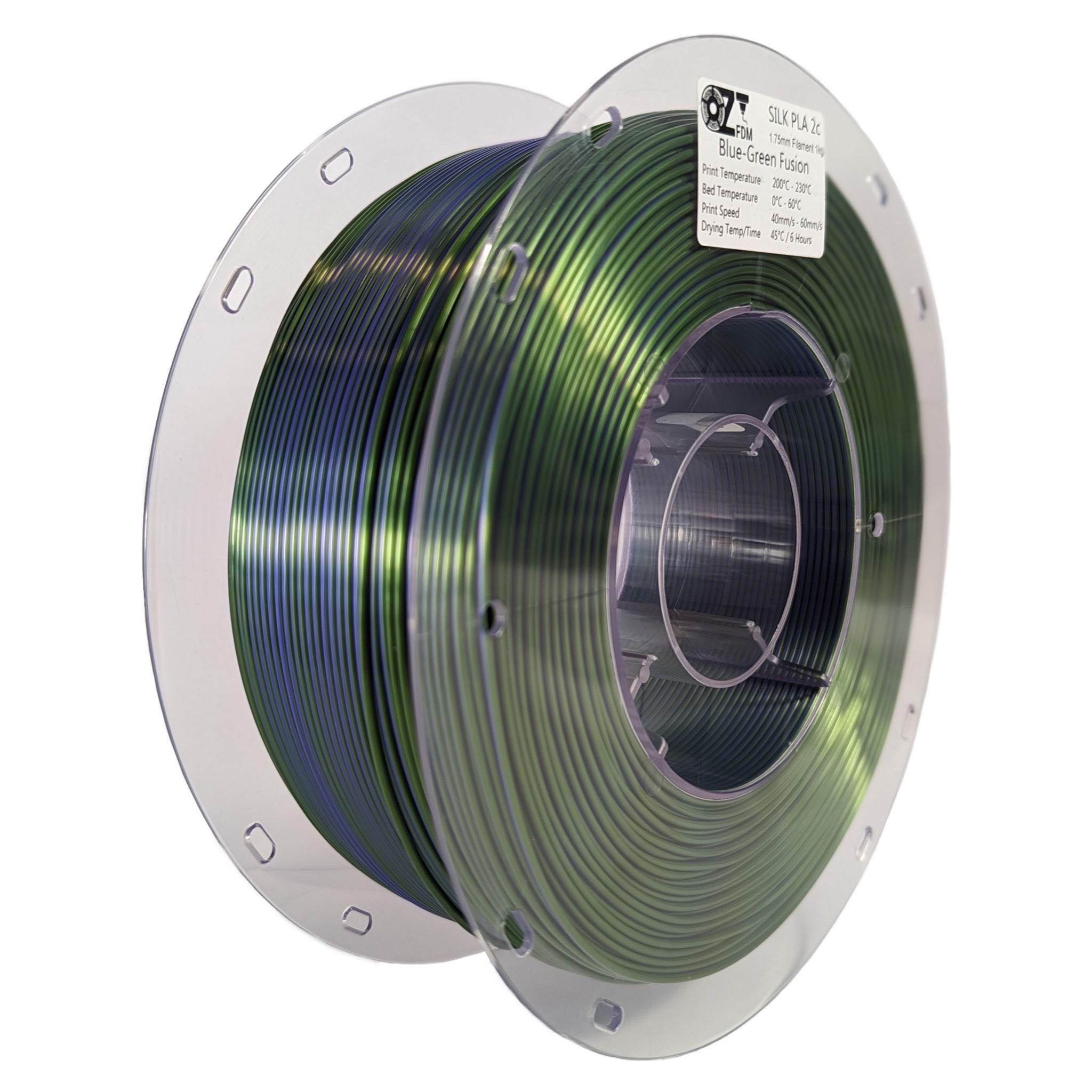

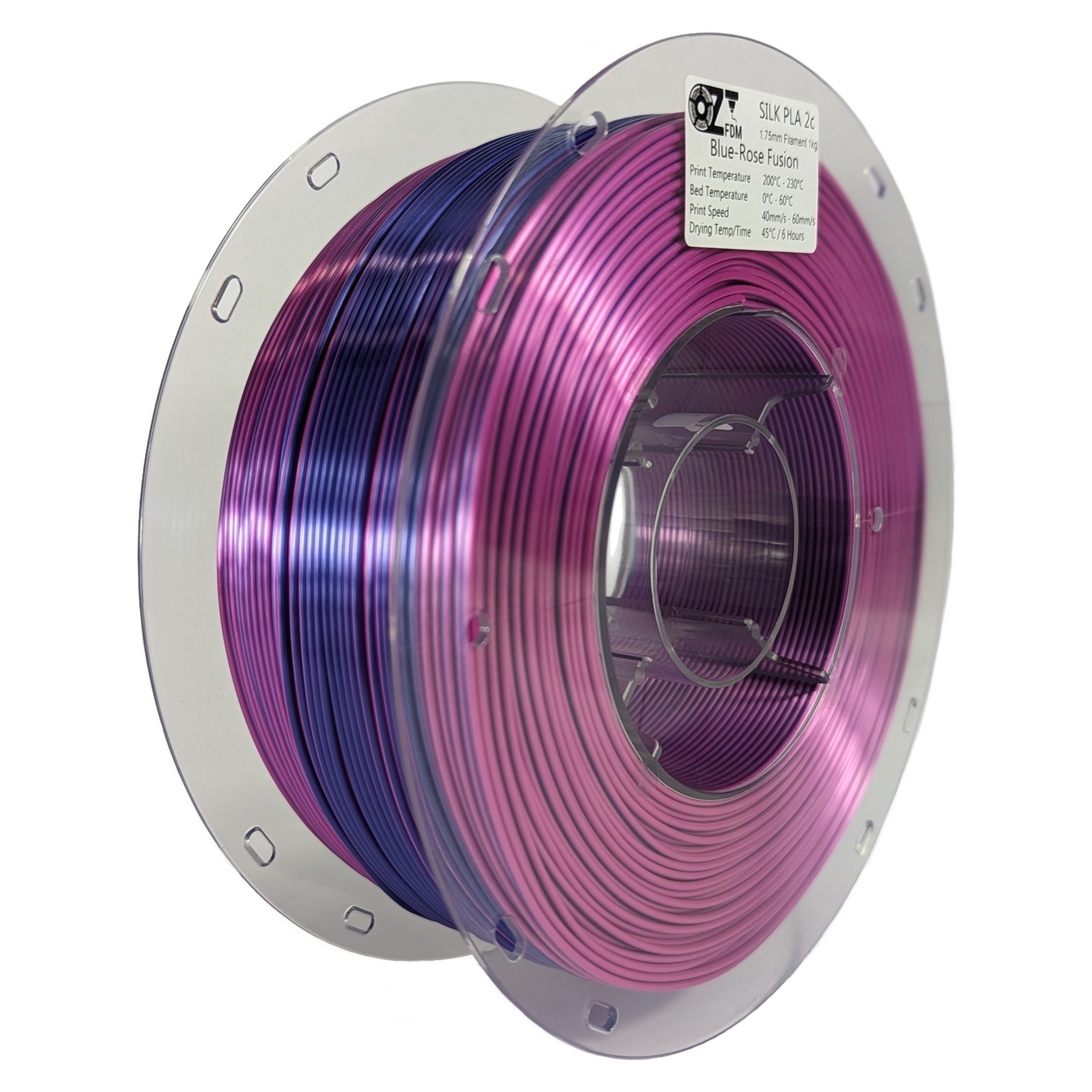

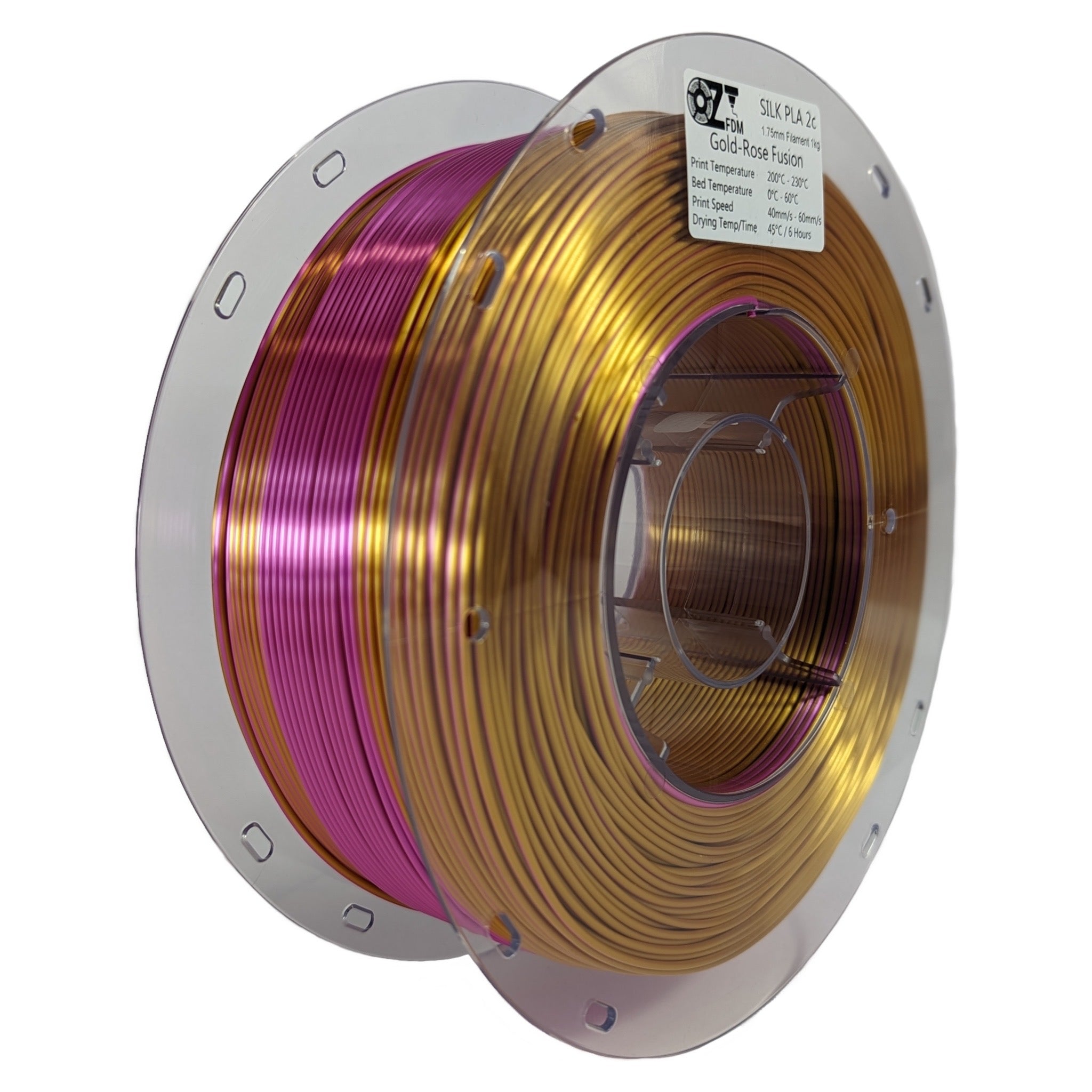

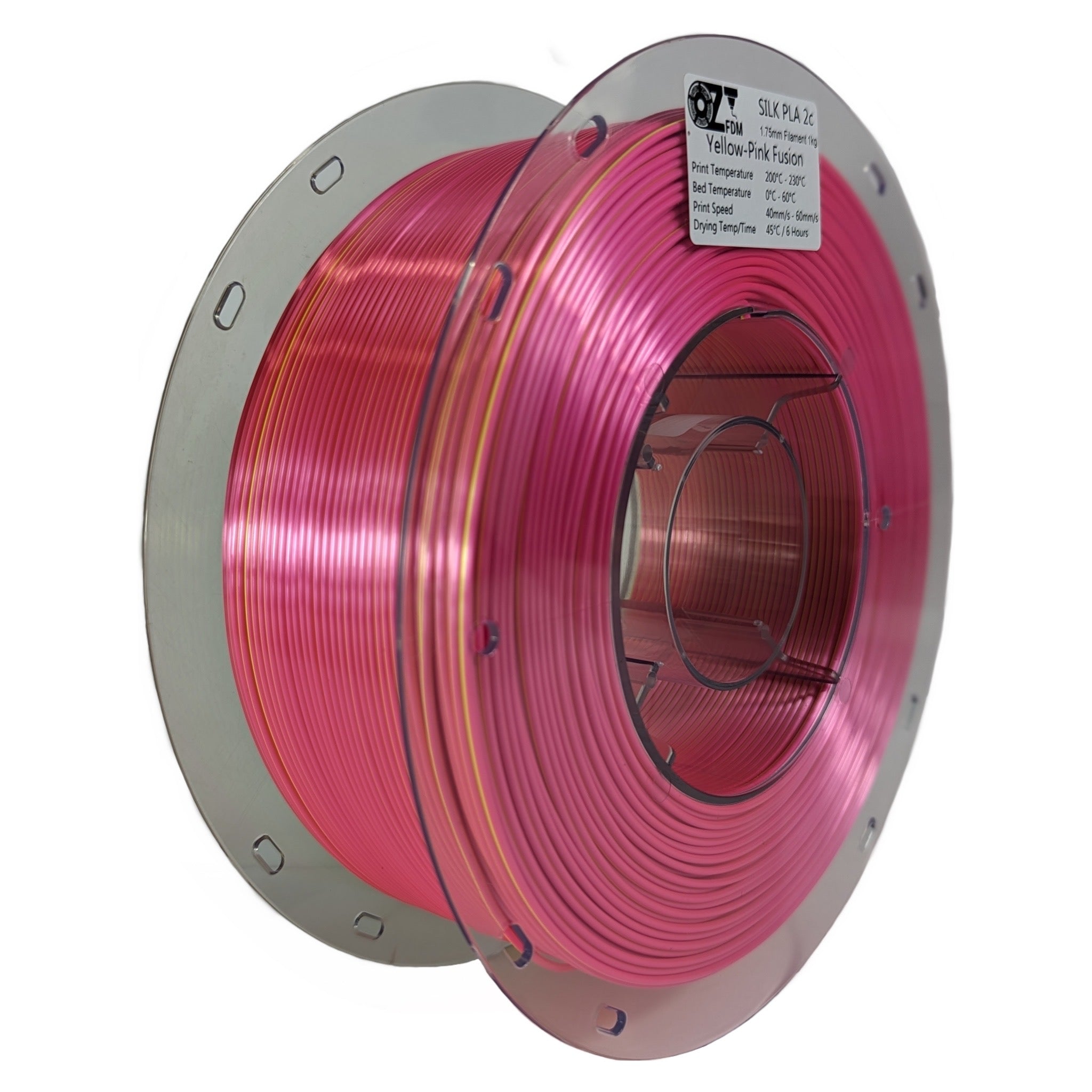

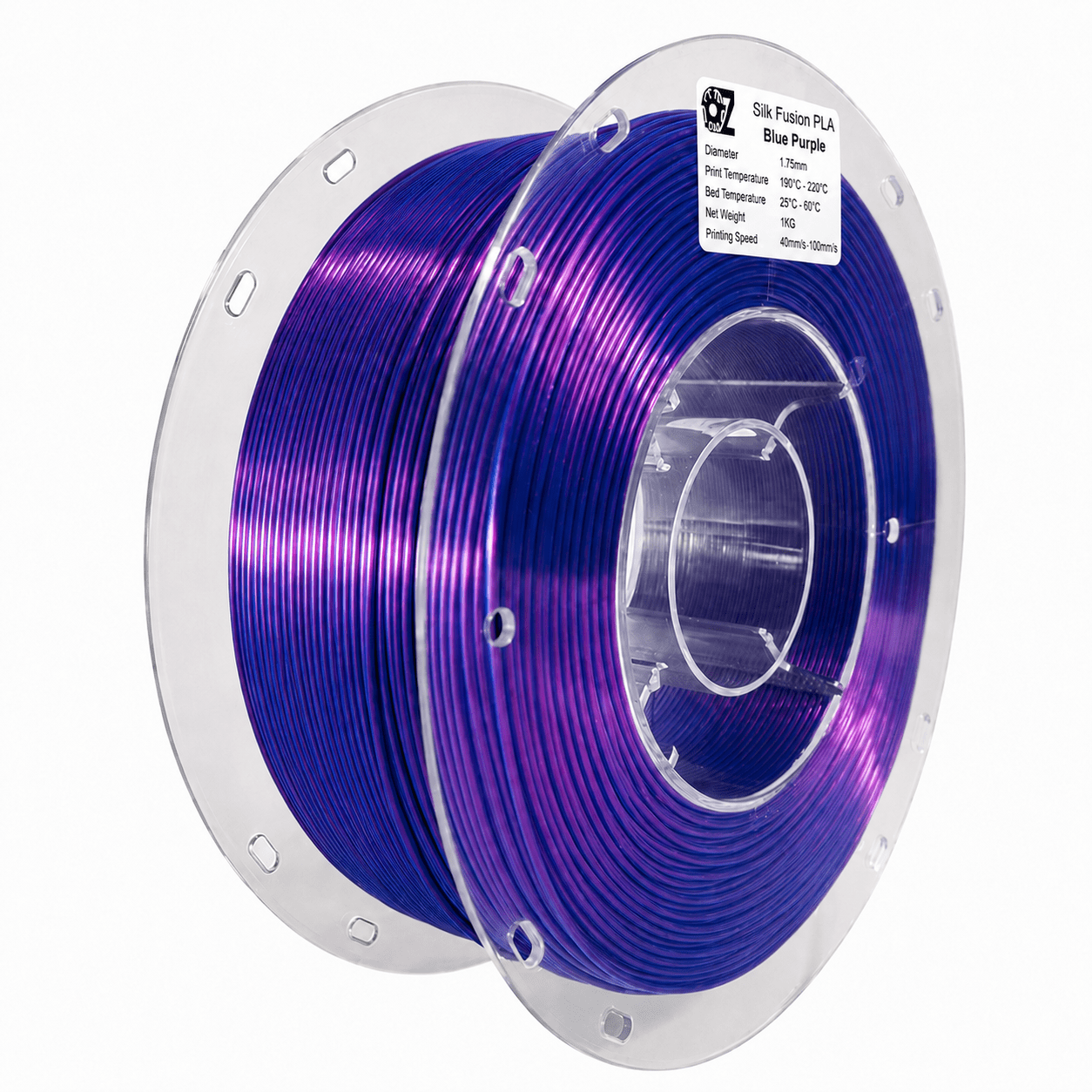

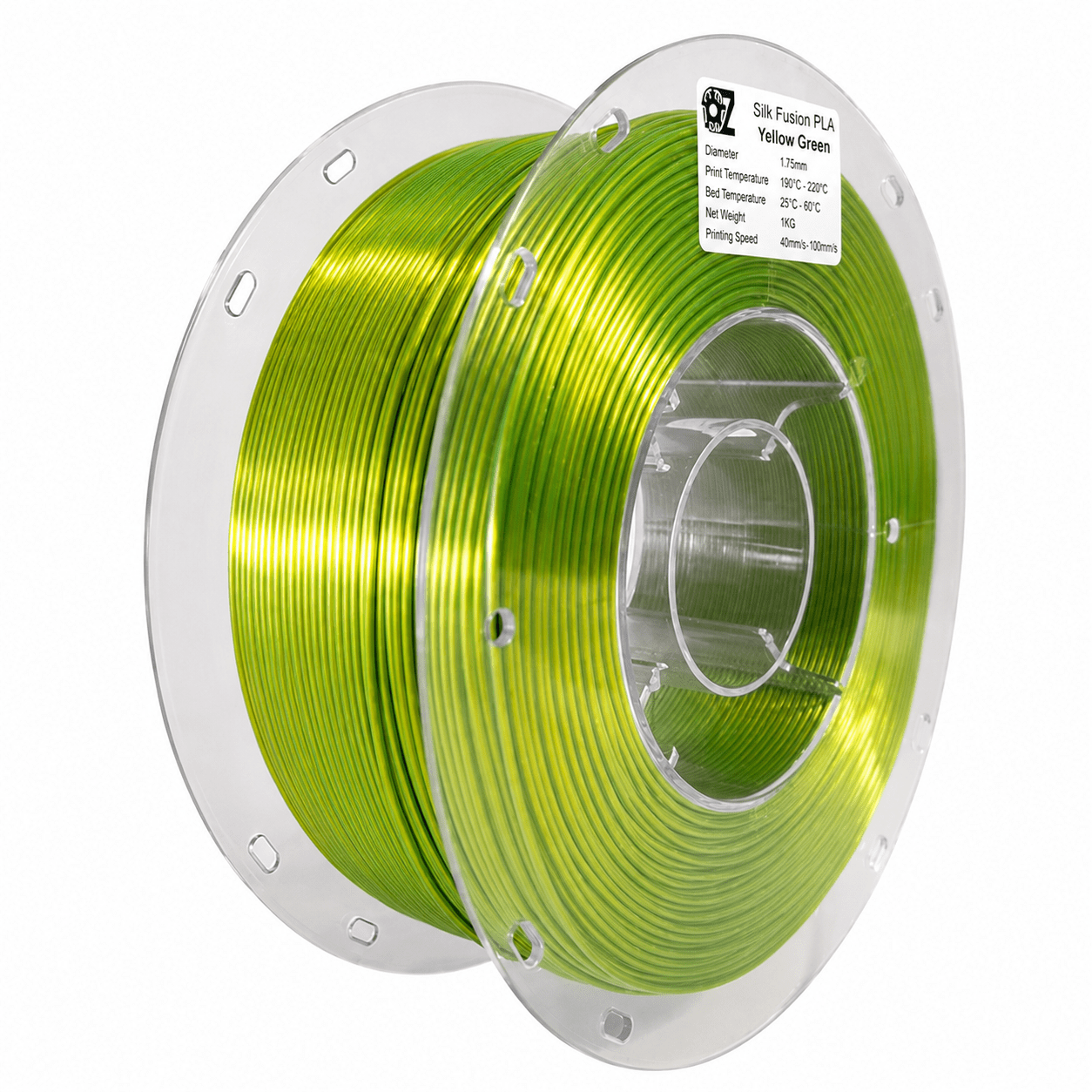

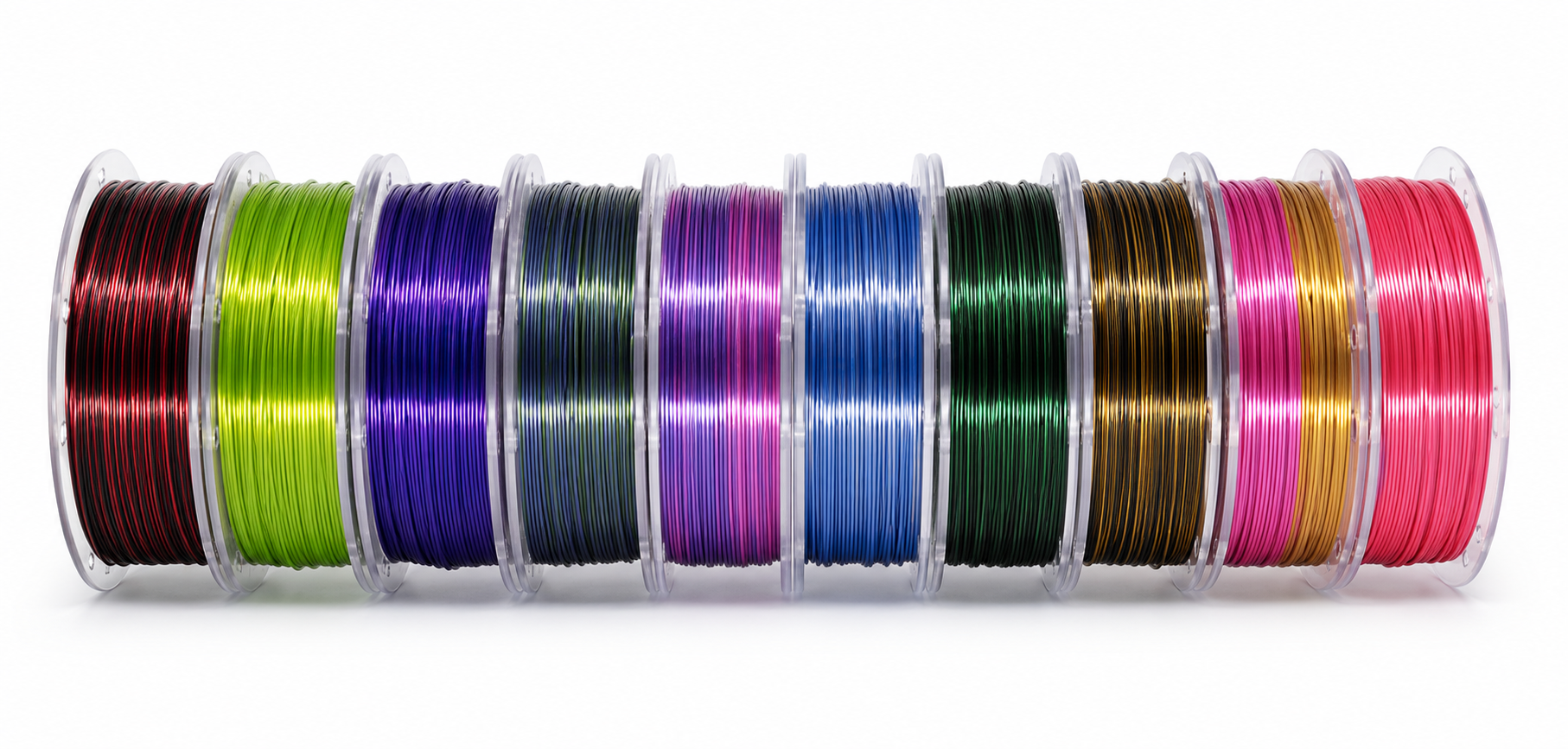

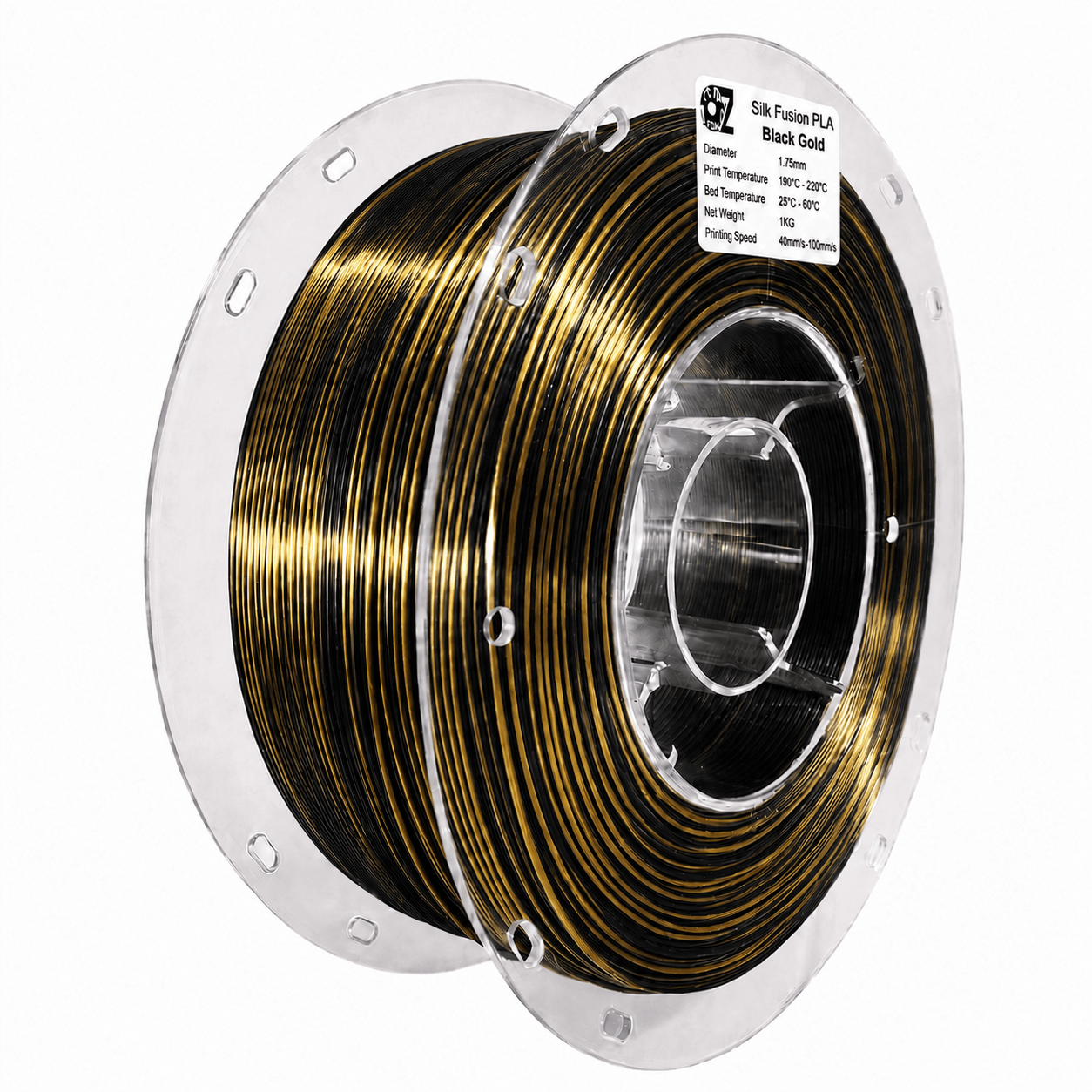

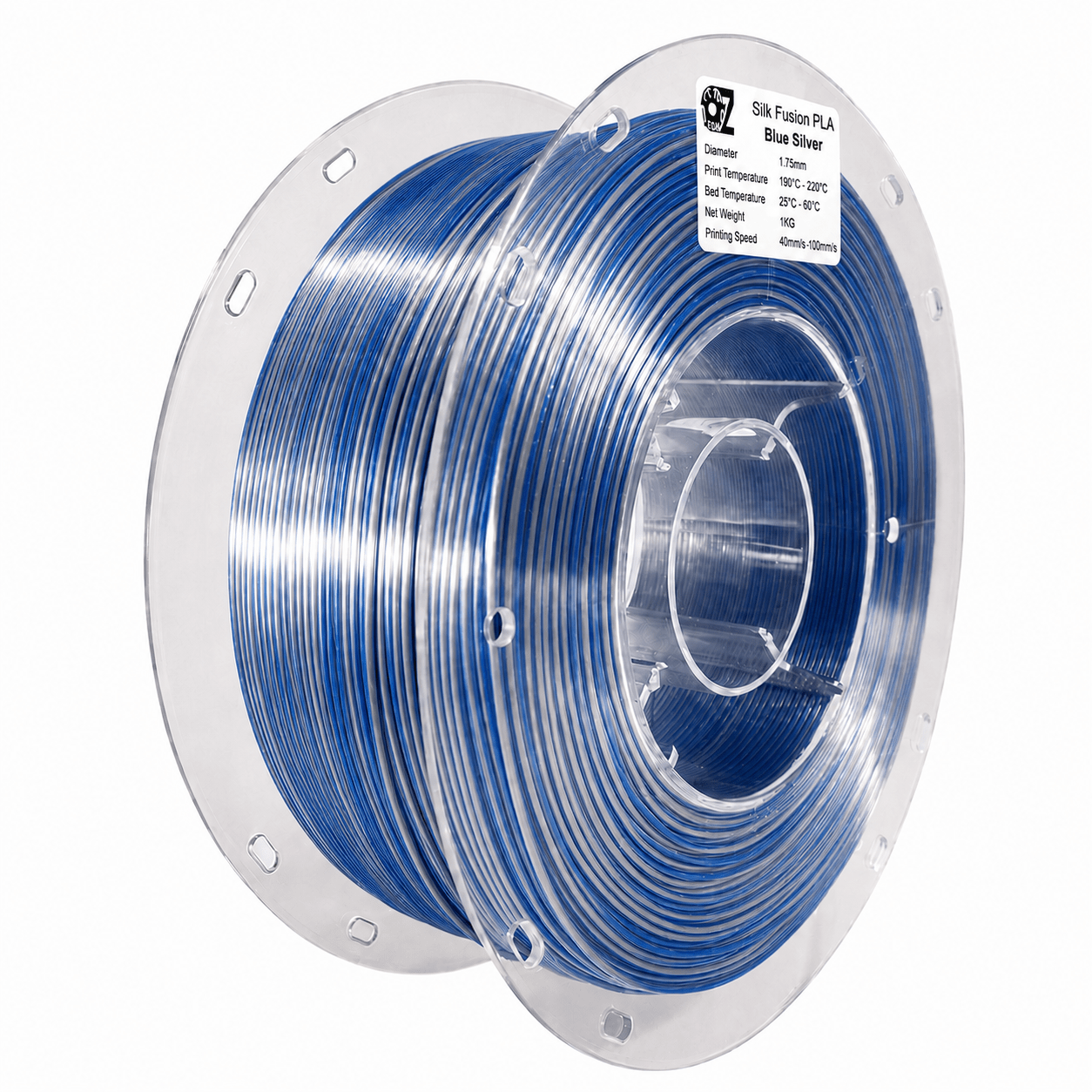

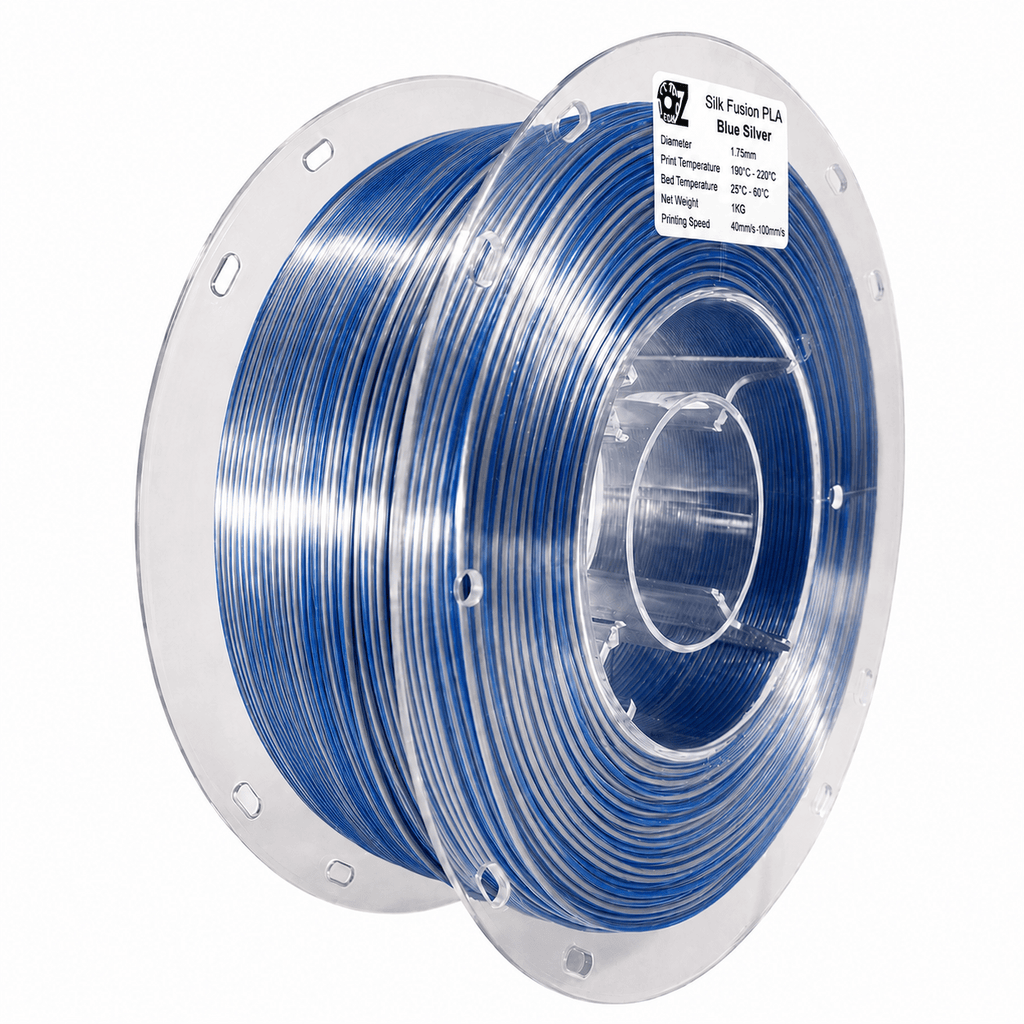

The OzFDM Silk Fusion PLA is a 1.75mm filament perfect for 3D printing projects. This 1KG spool features dual colour PLA silk fusion filament for beautiful, vibrant, and intricate prints that look professionally constructed. Its high tensile strength ensures your creations will stand the test of time.



Product specifications:

Filament weight	1KG
Filament diameter	1.75mm
Dimensional tolerance	±0.03mm
Spool weight (empty)	150g
Spool weight (new)	1.15KG
Spool diameter outer	200mm
Spool diameter inner (hub)	52mm
Spool width	65mm
Package weight	1.3KG
Package dimensions	210mm x 210mm x 75mm



Print parameters:

Nozzle temperature	200°C - 230°C
Bed temperature	25°C - 60°C
Printing speed	40mm/s - 60mm/s
Support material	PVA , PETG (as support interface)



Physical Properties:

Density	ISO 1183	1.25~1.26 g/cm3
MFR(250°C/2.16Kg)	ISO 1133	4~8 g/10min
Moisture Absorbtion(23°C/24h)	ISO 62	<0.3 %



Mechanical Properties:

Tensile Strength	ISO 527	45~49 Mpa
Elongation at Break	ISO 527	13.5~15.5 %
Flexural Modulus	ISO 527	1000~1100 Mpa
Flexural Strength	ISO 178	69~75 Mpa
Impact Strength	ISO 180	4.5~5 KJ/m²



Thermodynamic Properties:

HDT @ 0.455 Mpa(66 psi)	ISO 75	53 °C
Continuous Use Temperature	IEC 60216	50 °C



Drying recommendation:

40°C - 45°C for 4-6 hours using a filament dryer / food dehydrator.



Storage recommendation:

Airtight bag or container with desiccant in a cool, dark and dry area to prevent moisture absorption. For optimal long term storage we recommend drying the filament prior to sealing the filament spool in a vacuum bag with desiccant.



*Biodegradable under commercial composting conditions. Please do not throw into your compost bin at home.
