The Right Nut for Every Bolt

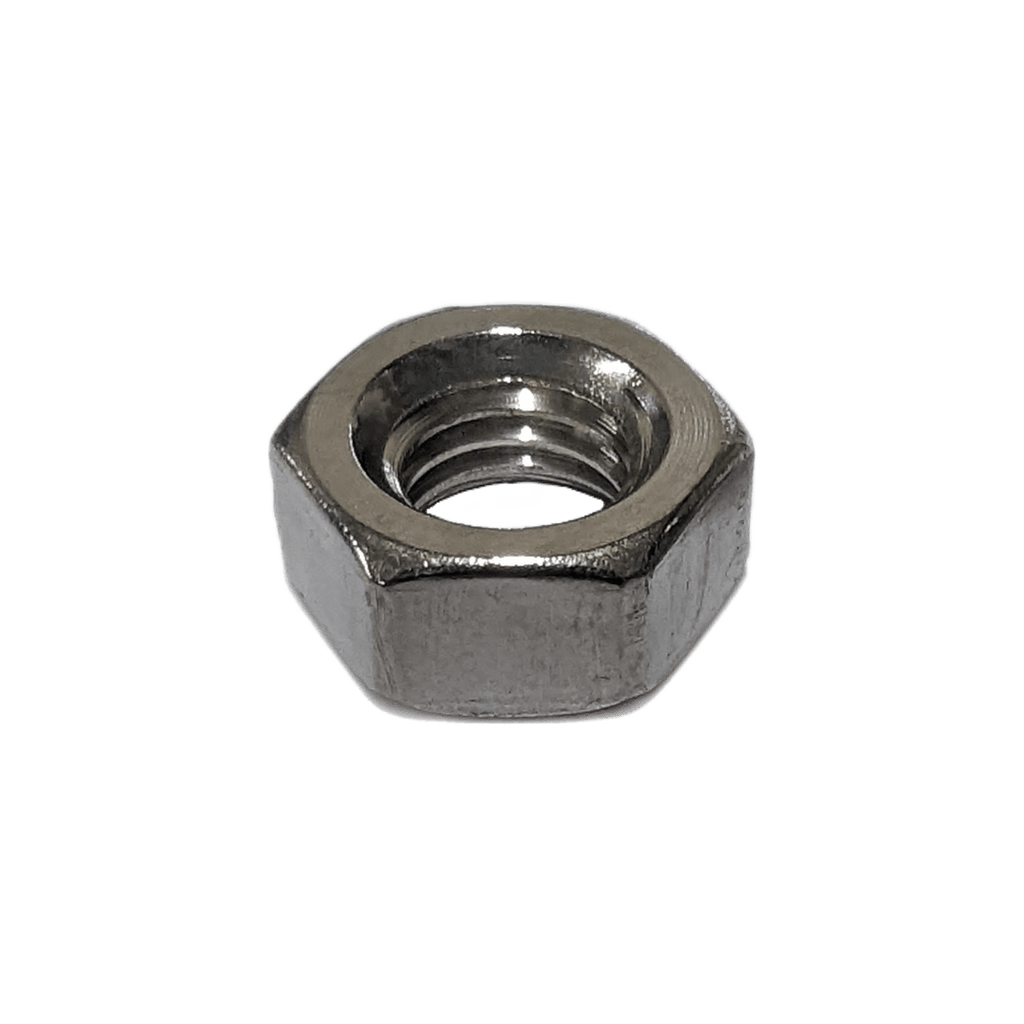

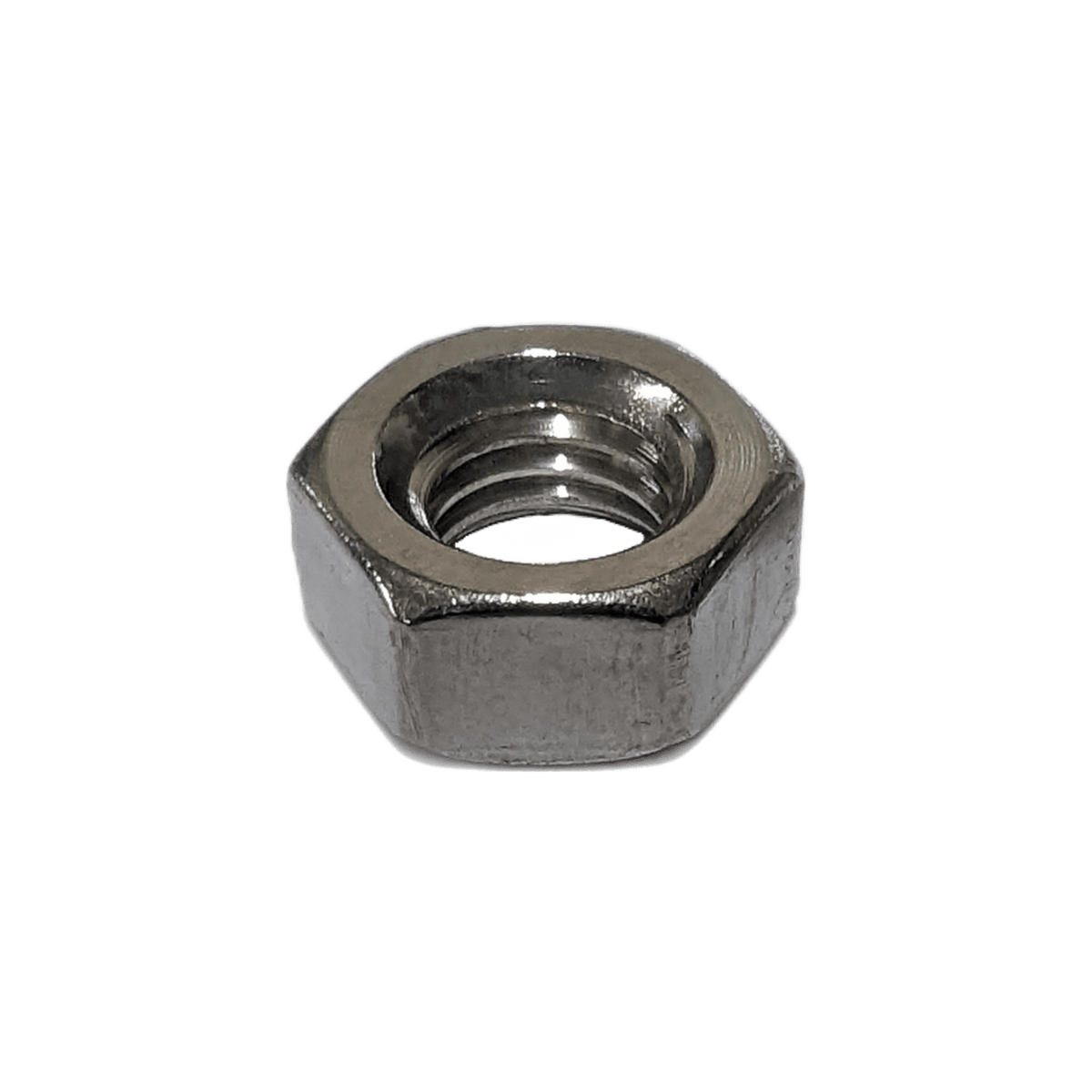

Standard Hex Nuts
Standard hex nuts for everyday fixings, through bolts and printed nut traps.

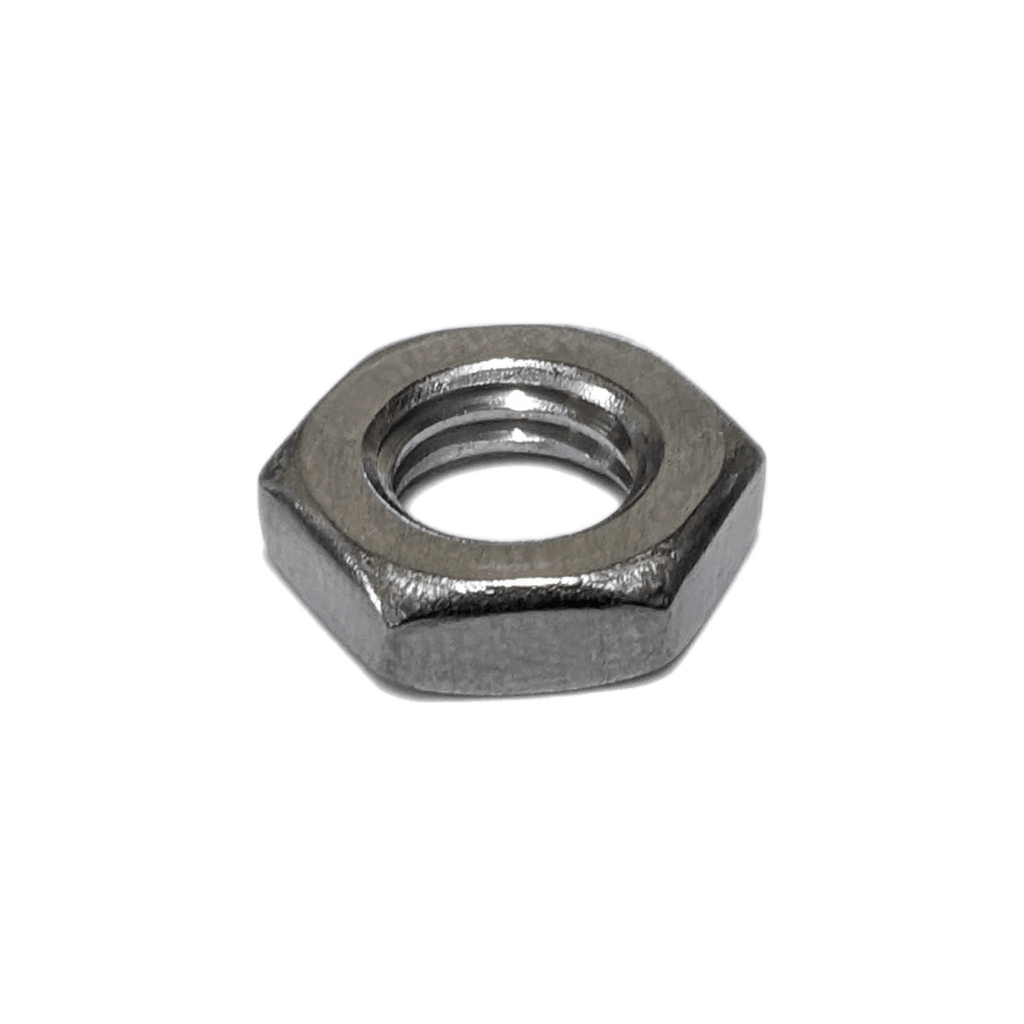

Thin Hex Nuts
Thin hex nuts fit tight spaces and shallow nut traps, and can be run against another nut to lock it in place.
Nyloc Nuts and Washers
Nyloc nuts have a nylon insert that resists loosening from vibration, and washers spread the load on printed plastic.
Full Kit Contents
| Item | Qty |
|---|---|
| SS304 hex nut, M2 | 20 |
| SS304 hex nut, M2.5 | 20 |
| SS304 hex nut, M3 | 20 |
| SS304 hex nut, M4 | 20 |
| SS304 hex nut, M5 | 20 |
| SS304 hex nut, M6 | 20 |
| SS304 thin hex nut, M3 | 10 |
| SS304 thin hex nut, M4 | 10 |
| SS304 thin hex nut, M5 | 10 |
| SS304 thin hex nut, M6 | 10 |
| Stainless nyloc nut, M3 | 10 |
| Stainless nyloc nut, M4 | 10 |
| Stainless nyloc nut, M5 | 10 |
| SS304 washer, M2 | 20 |
| SS304 washer, M2.5 | 20 |
| SS304 washer, M4 | 20 |
| SS304 washer, M5 | 20 |
| SS304 washer, M6 | 20 |
Nut Dimensions
| Size | Hex nut (across flats x thickness) | Thin hex nut (across flats x thickness) |
|---|---|---|
| M2 | 3.9 x 1.6 mm | Not included |
| M3 | 5.4 x 2.3 mm | 5.4 x 1.8 mm |
| M4 | 6.8 x 3.1 mm | 6.9 x 2.1 mm |
| M5 | 7.9 x 4 mm | 7.9 x 2.6 mm |
| M6 | 9.8 x 4.8 mm | 9.9 x 3.1 mm |
Washer Dimensions
| Size | Inner diameter | Outer diameter | Thickness |
|---|---|---|---|
| M2 | 2.2 mm | 4.8 mm | 0.35 mm |
| M2.5 | 2.6 mm | 5.5 mm | 0.4 mm |
| M4 | 4.4 mm | 7.9 mm | 0.8 mm |
| M5 | 5.5 mm | 9.8 mm | 1 mm |
| M6 | 6.25 mm | 12 mm | 1.5 mm |
