Thread Forming Screw Starter Kit (80 pcs)

Name: Thread Forming Screw Starter Kit (80 pcs)
Brand: OzFDM
SKU: KIT-THREADFORM
Price: 15.95 AUD
Availability: InStock

$15.95 AUD $18.20 AUD

Taxes included. Shipping calculated at checkout.

In stock

Thread forming screws form their own thread straight into a printed plastic hole, with no insert or tapping needed. This kit covers all four sizes in both countersunk and pan washer heads, ten of each.

40 countersunk: 10 each of 3 x 8, 3 x 15, 4 x 10 and 4 x 15 mm
40 pan washer head: 10 each of 3 x 8, 3 x 15, 4 x 10 and 4 x 15 mm

Every piece is the same part we sell individually, bundled together for a cheaper price than buying each size on its own.

The Quickest Way to Join Printed Parts

Thread forming screws are designed for plastic. Model a plain hole, drive the screw in, and it forms a tight thread as it goes. No soldering iron, no inserts and no tap, which makes them ideal for quick assemblies, prototypes and parts you won't take apart often.

No Inserts Needed

Skip the heat set insert step entirely. The screw forms its own thread in PLA, PETG, ABS and other printed plastics.

Two Head Styles

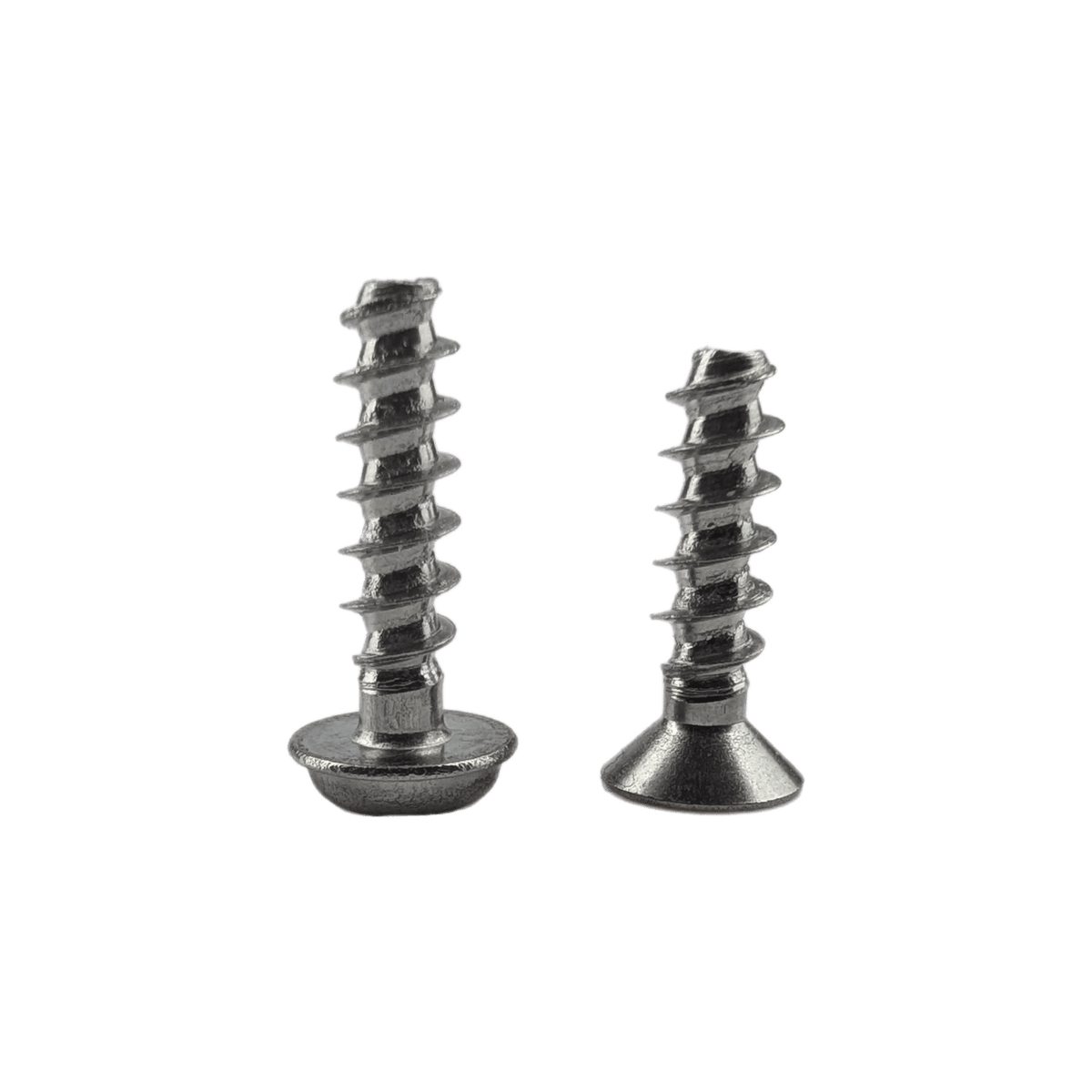

Countersunk heads sit flush in a countersunk hole. Pan washer heads have a built-in washer face that spreads clamping force on the part.

Stainless Steel

Made from 304 stainless steel with a hex drive, for corrosion resistance indoors and out.

Full Kit Contents

Item	Qty

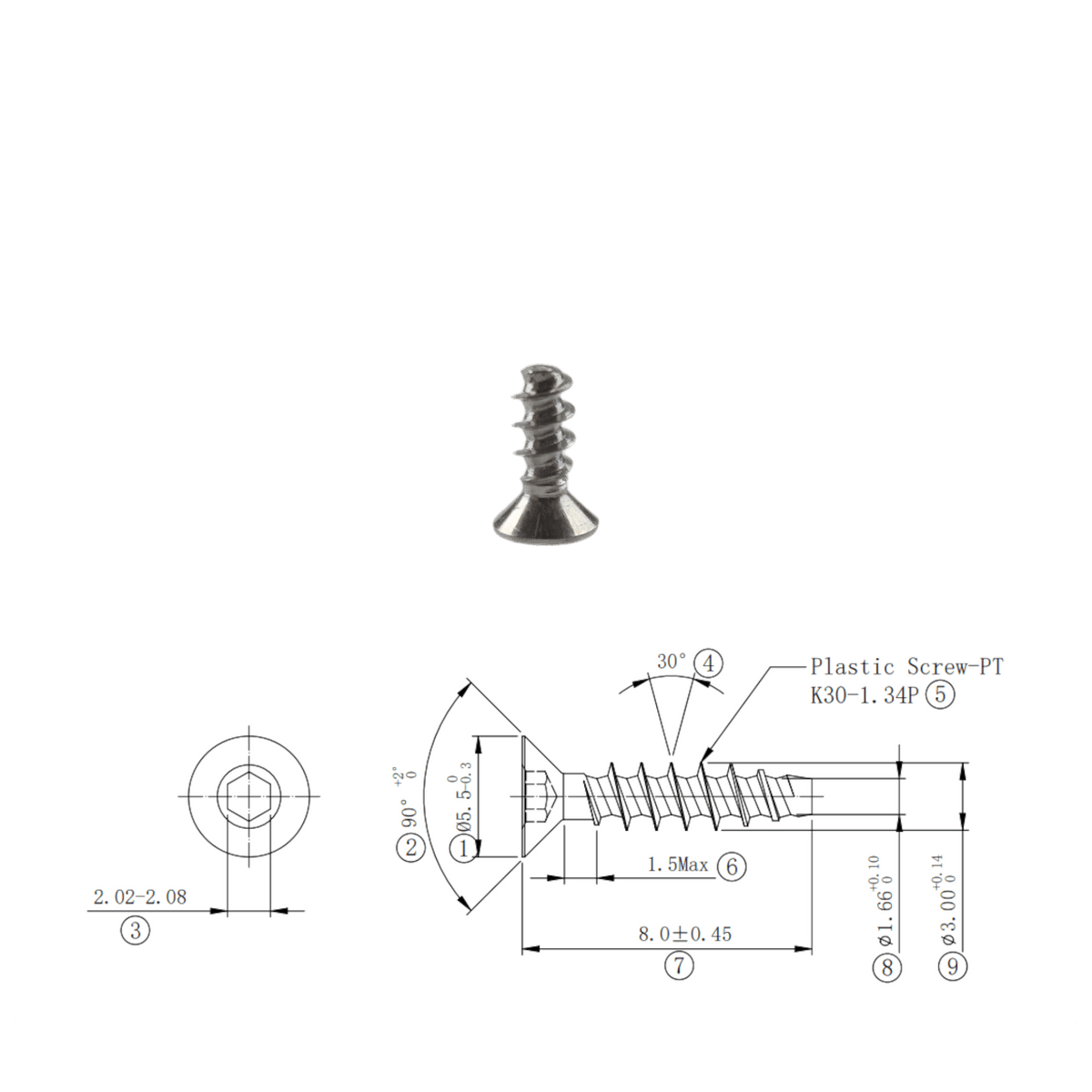

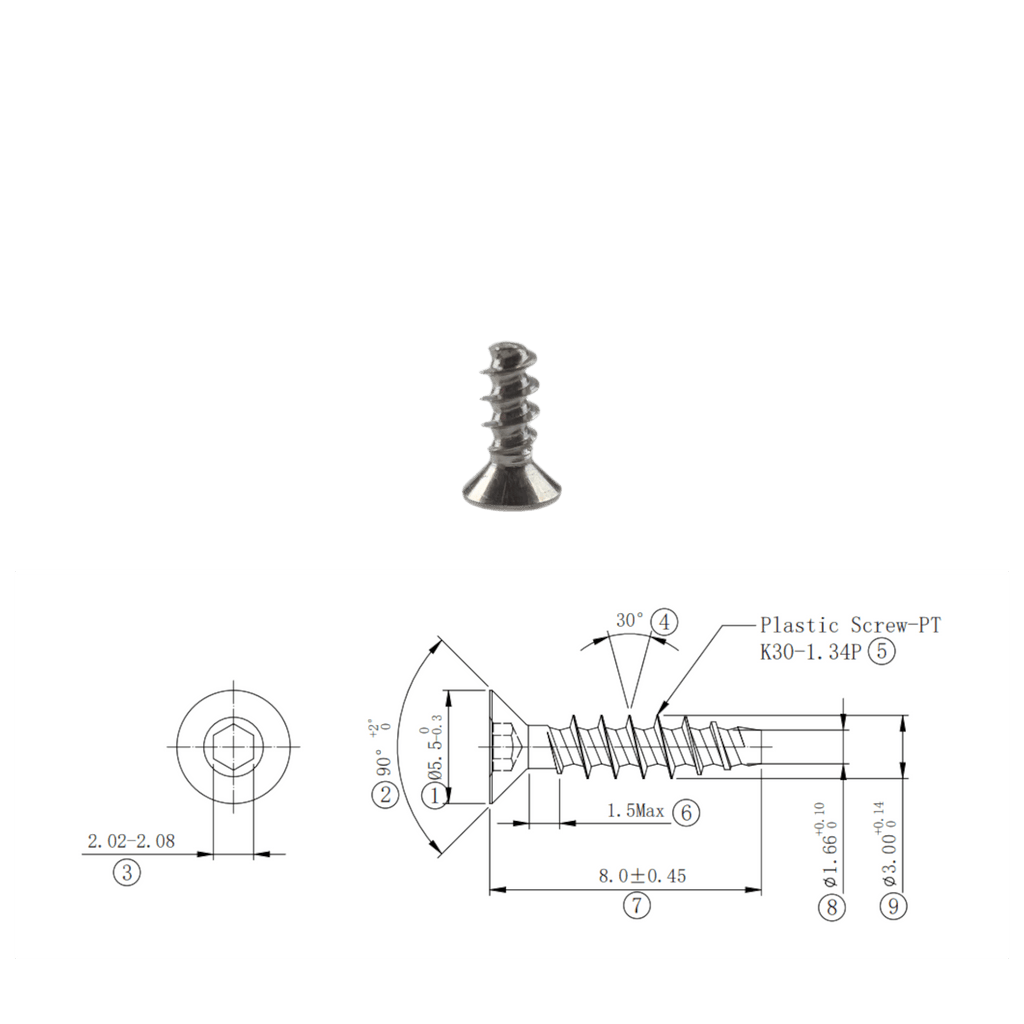

SS304 thread forming screw, 3 x 8 mm, Countersunk	10

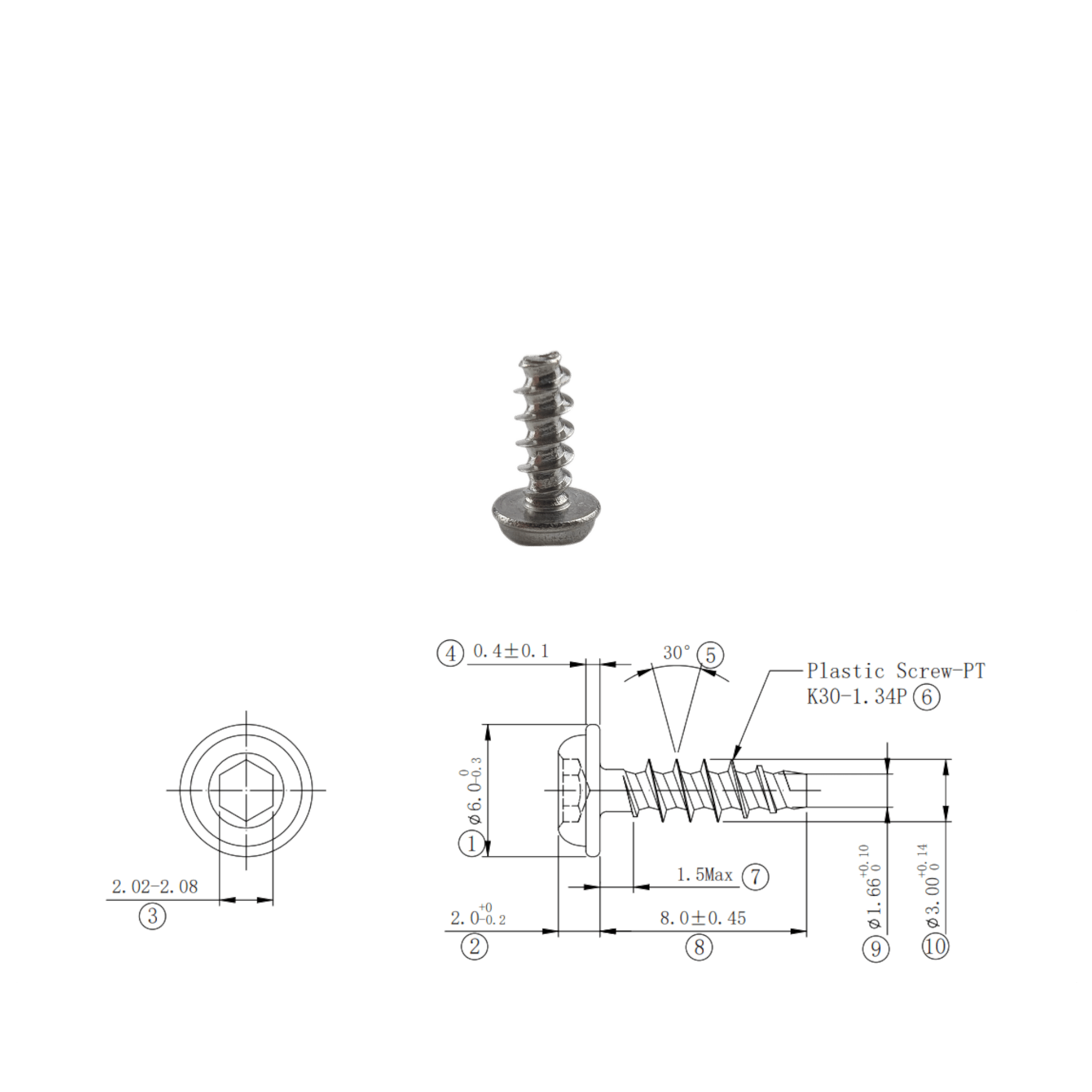

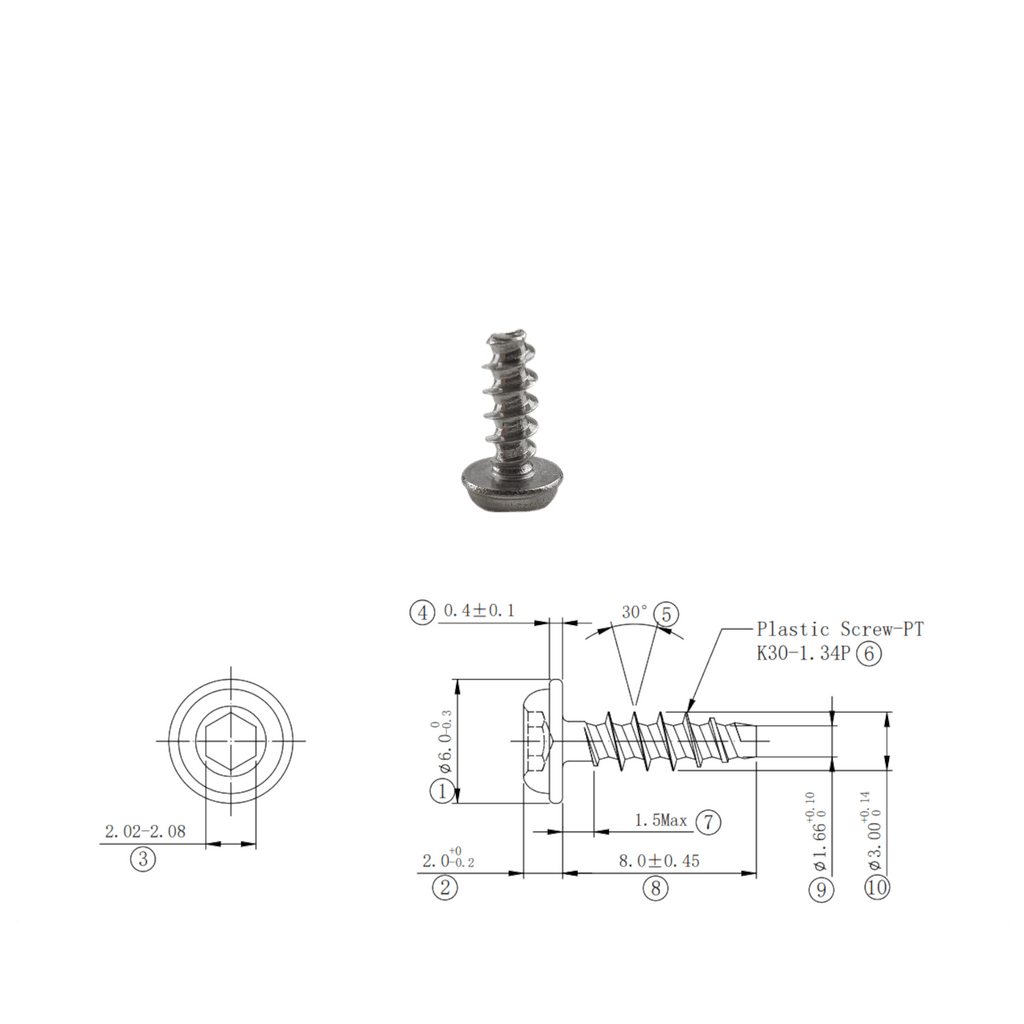

SS304 thread forming screw, 3 x 8 mm, Pan washer head	10

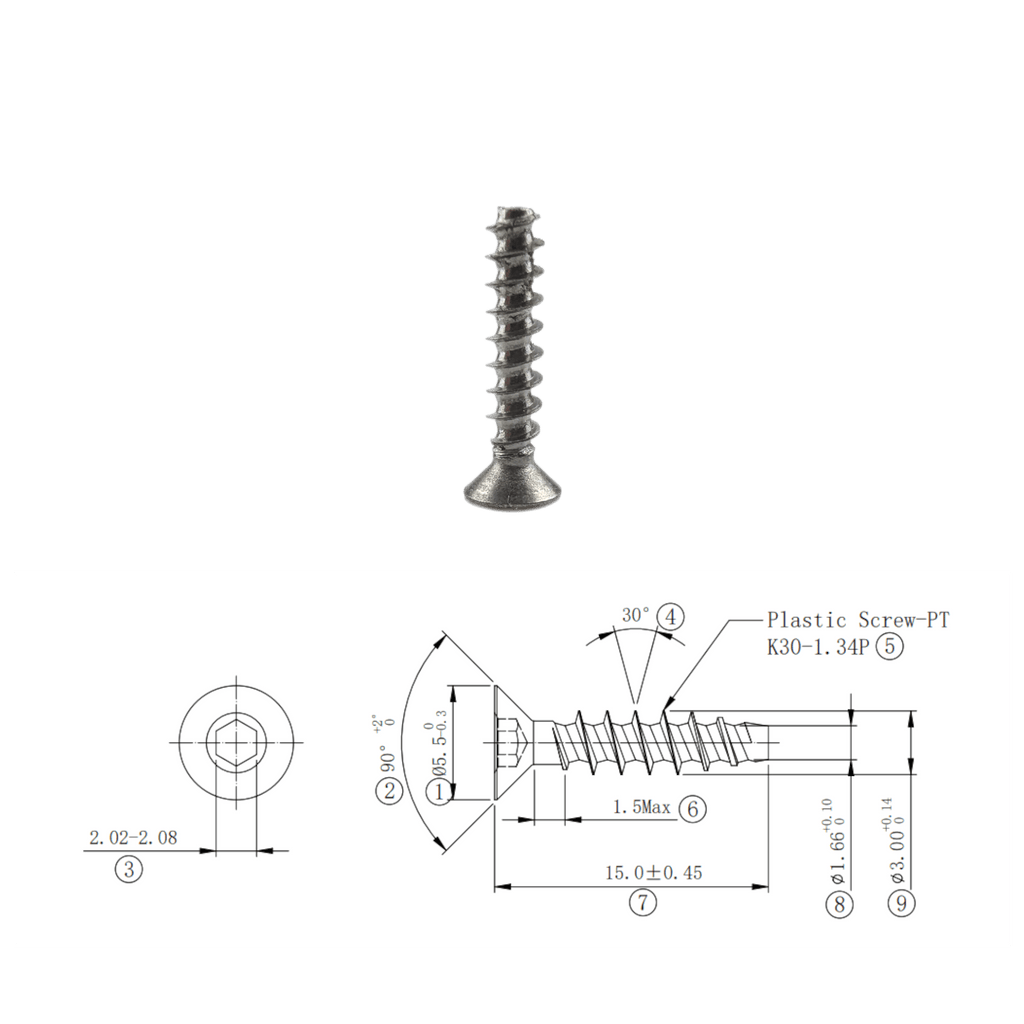

SS304 thread forming screw, 3 x 15 mm, Countersunk	10

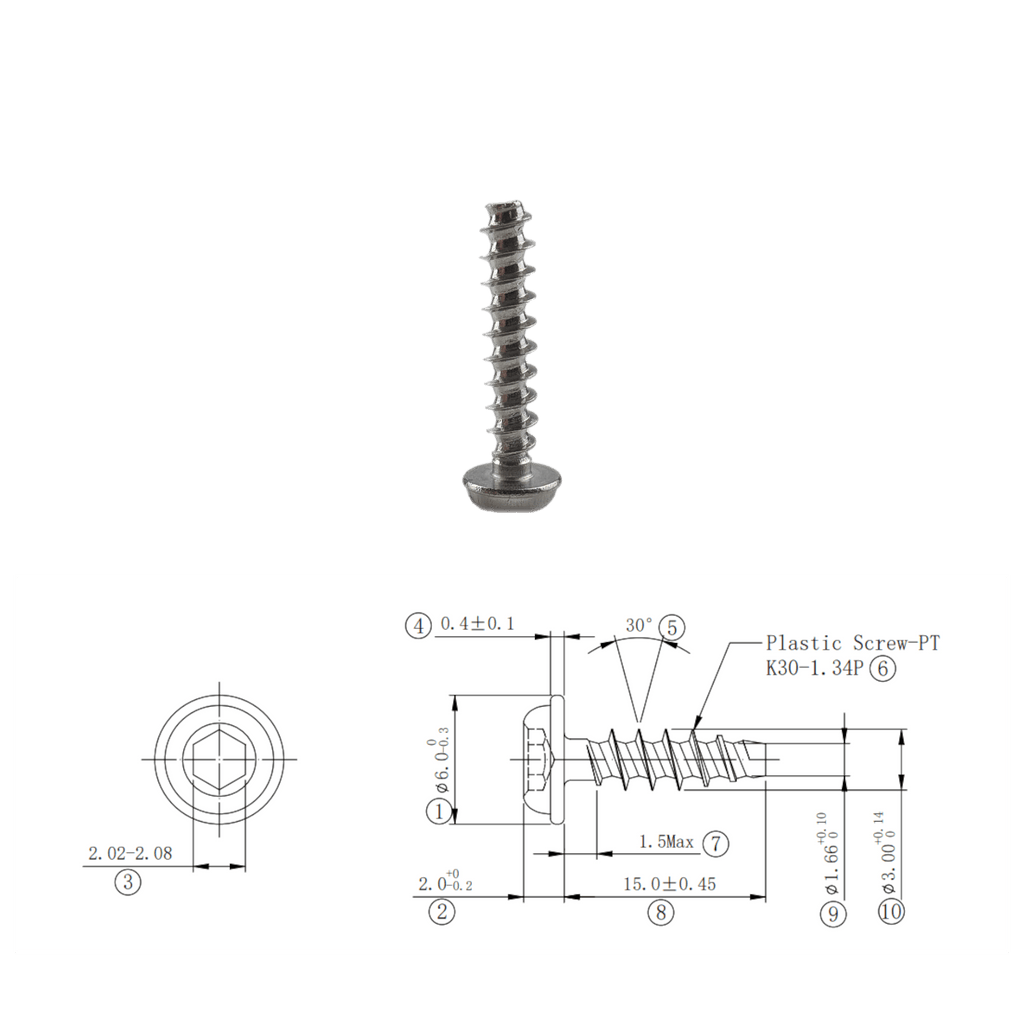

SS304 thread forming screw, 3 x 15 mm, Pan washer head	10

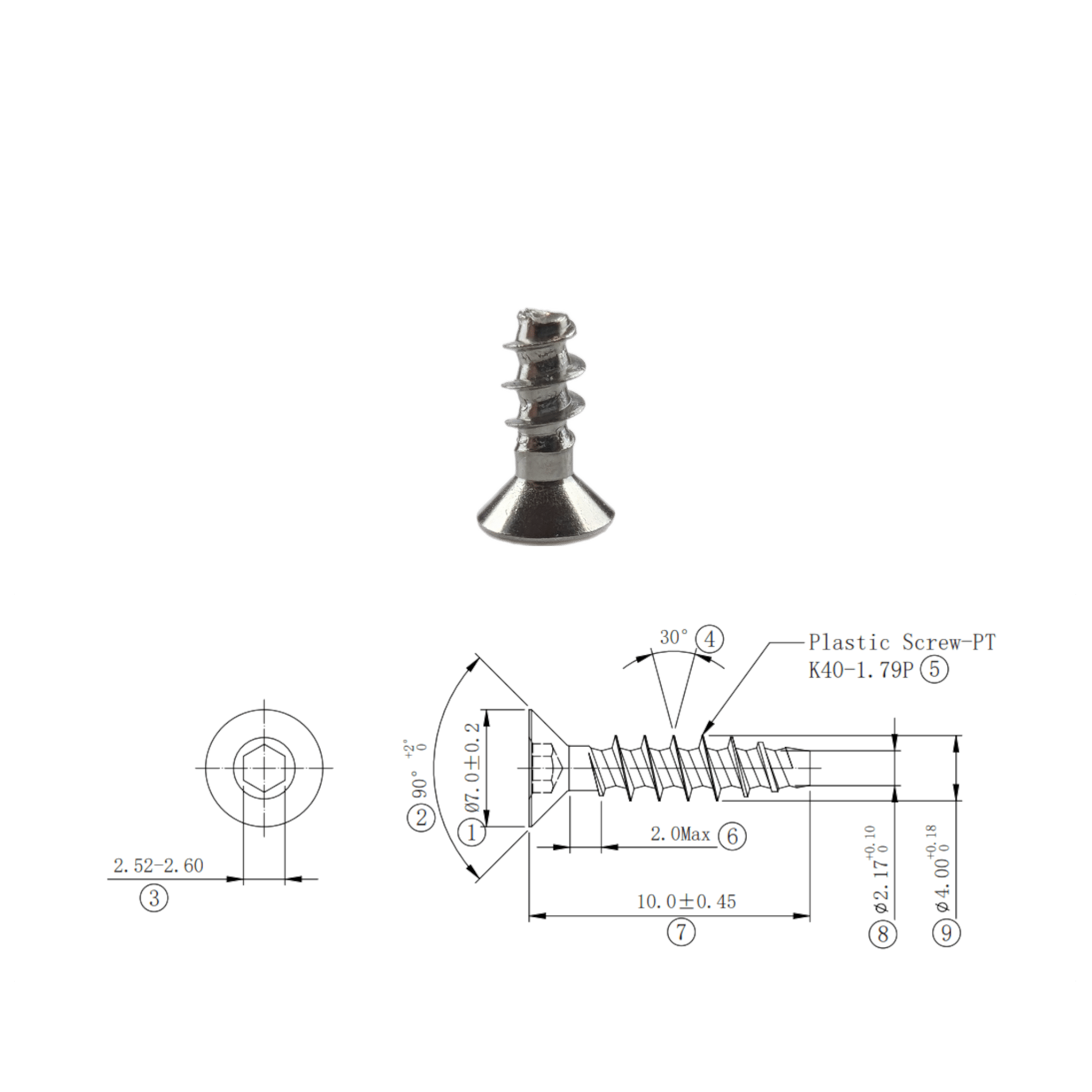

SS304 thread forming screw, 4 x 10 mm, Countersunk	10

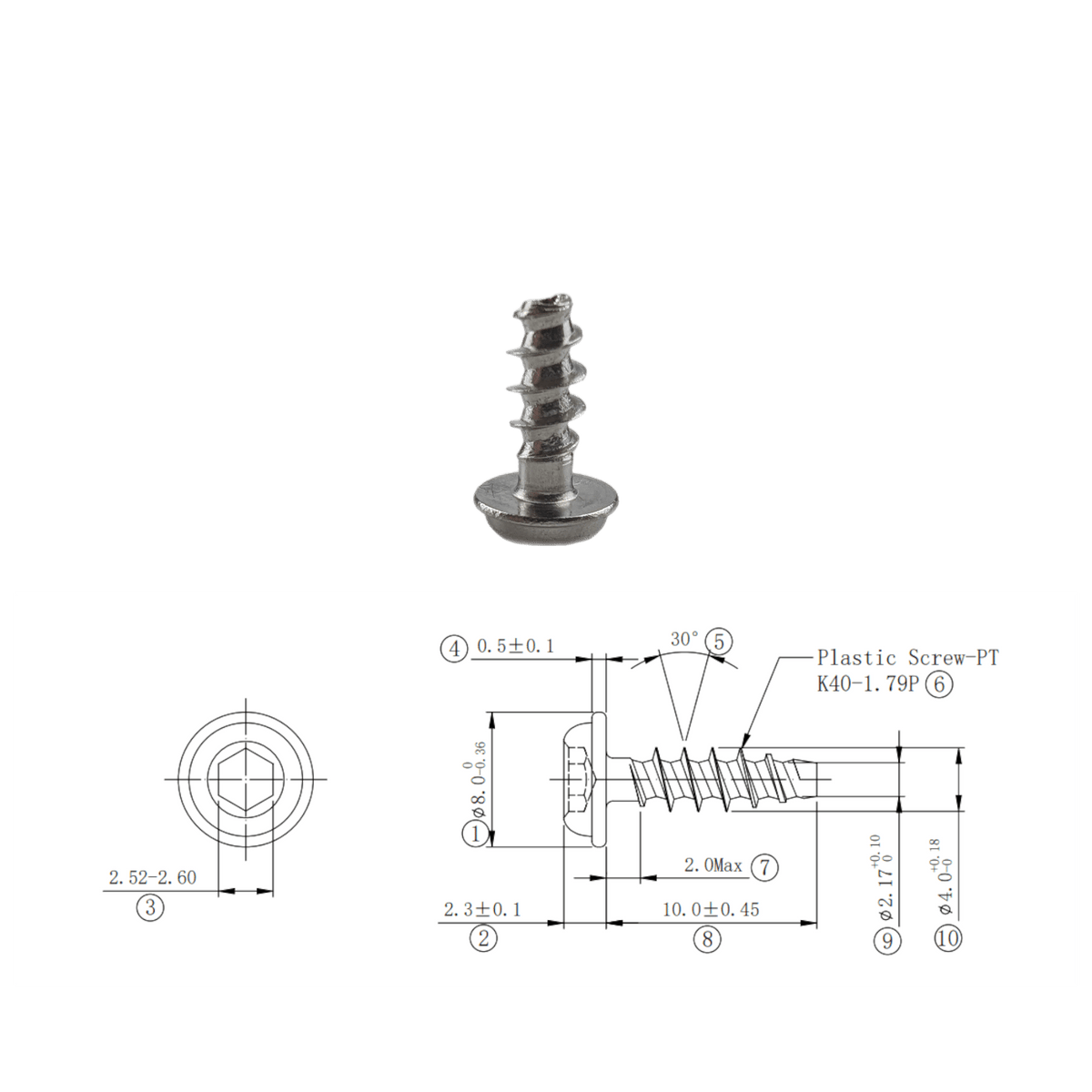

SS304 thread forming screw, 4 x 10 mm, Pan washer head	10

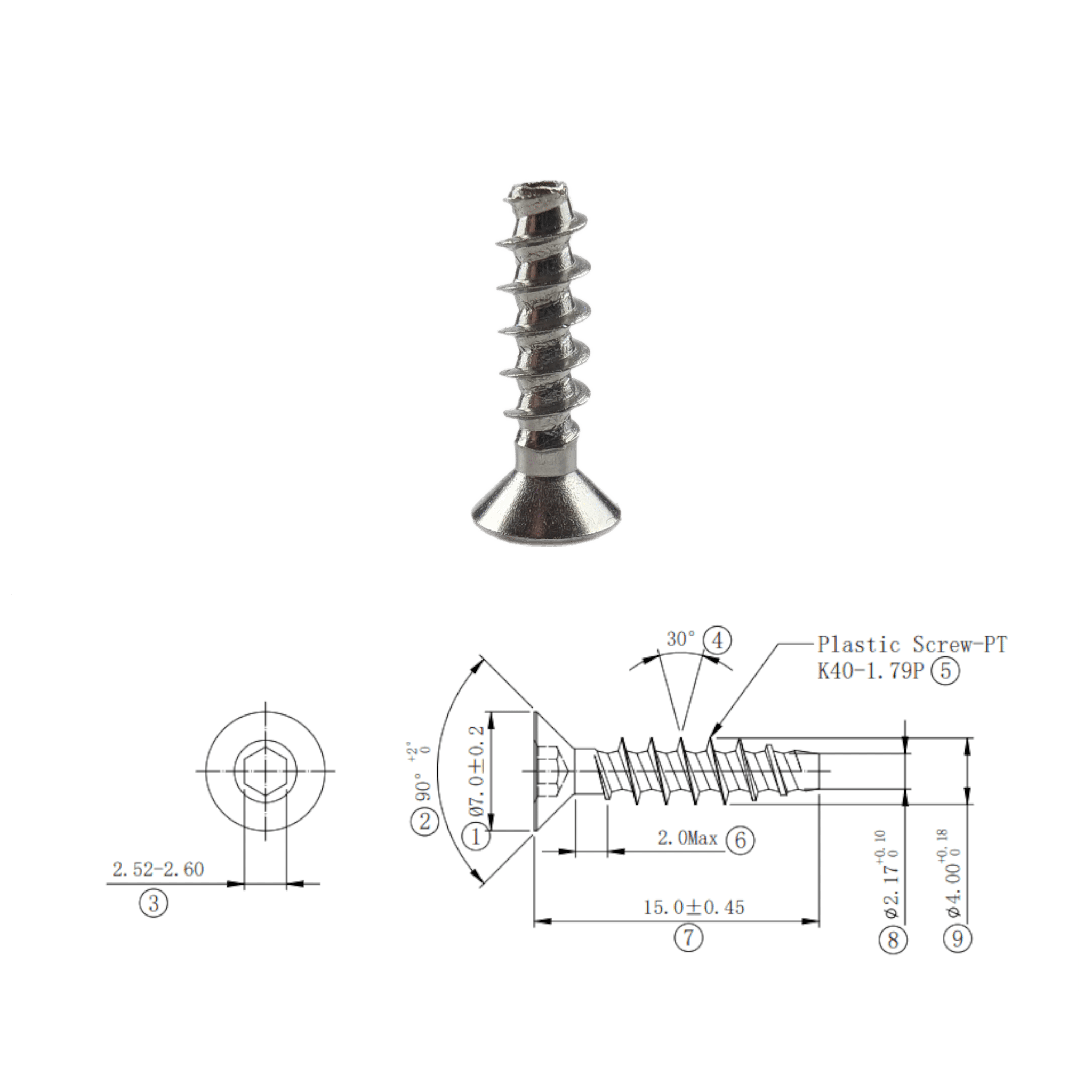

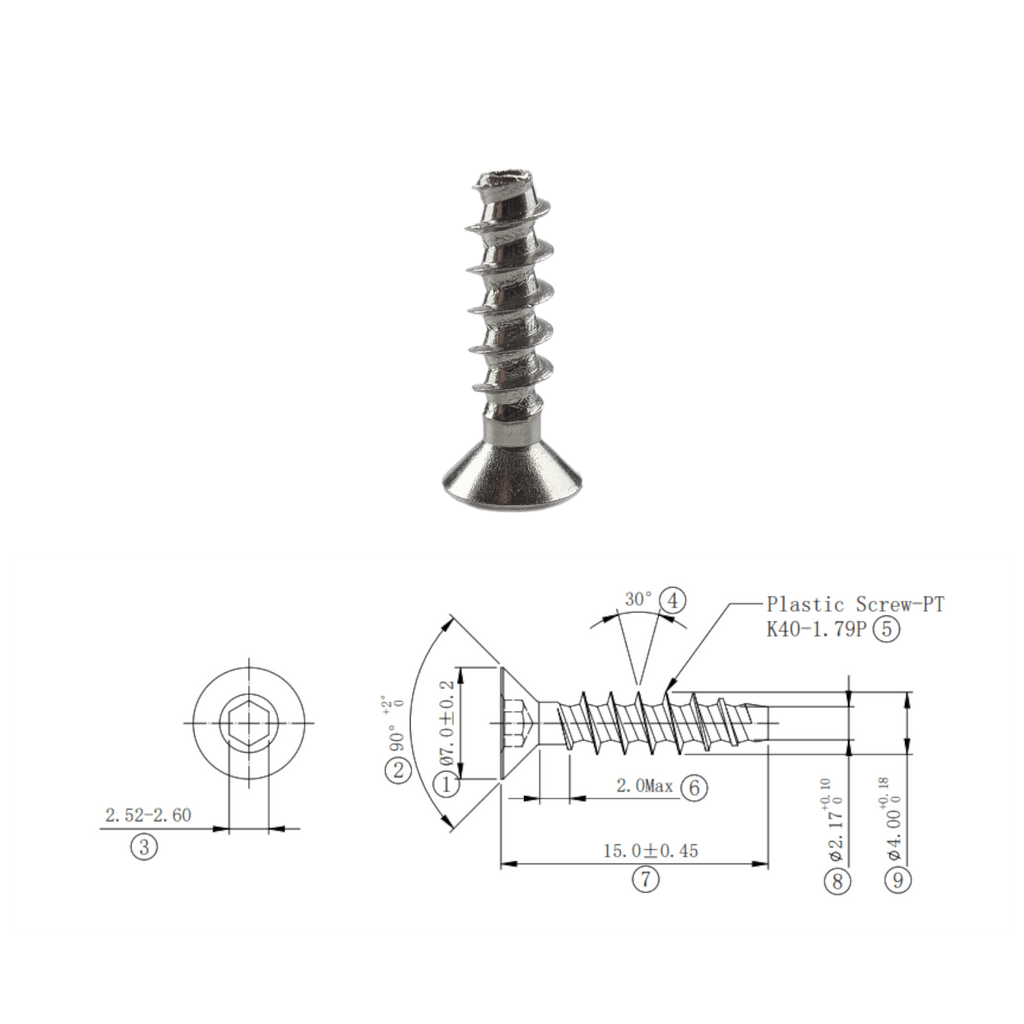

SS304 thread forming screw, 4 x 15 mm, Countersunk	10

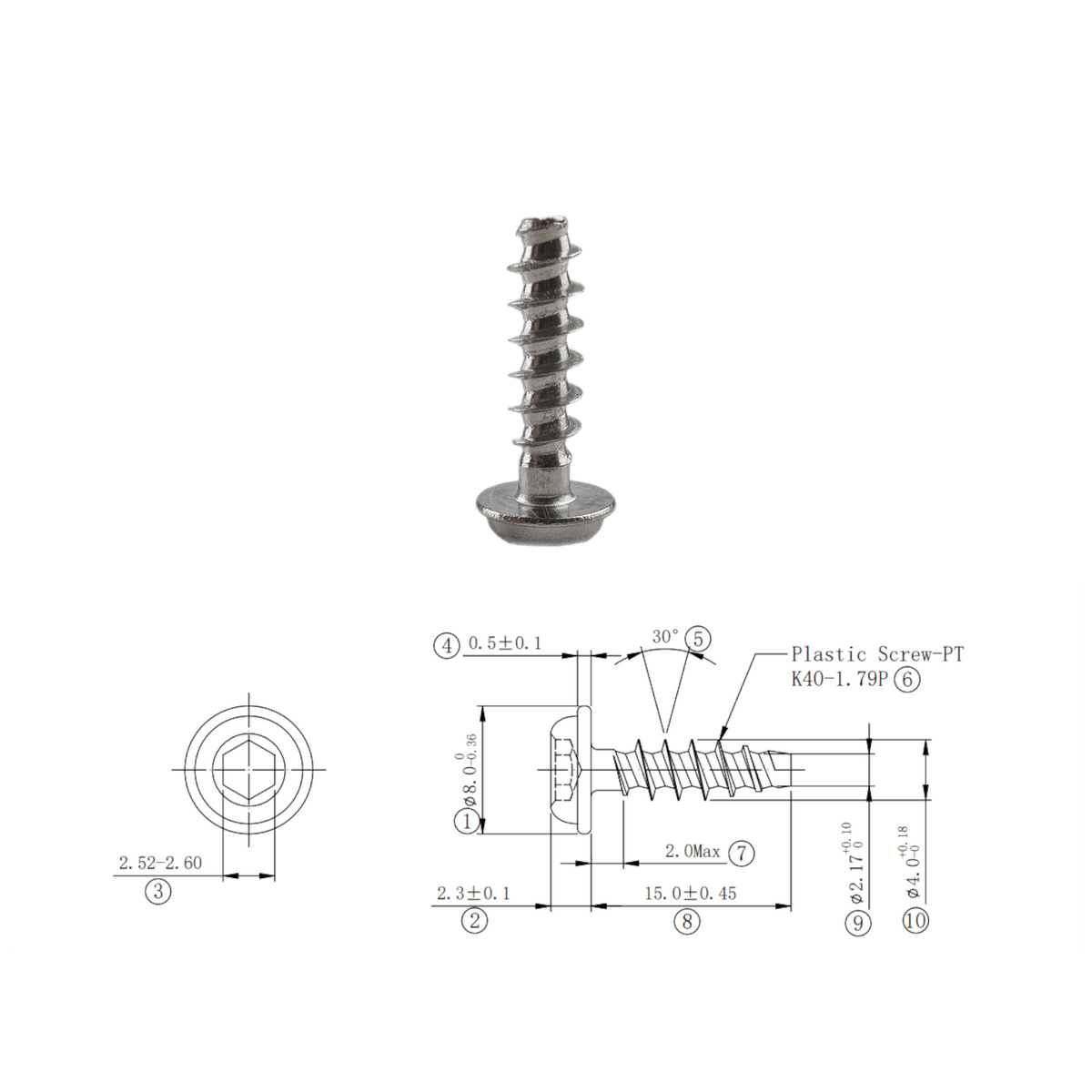

SS304 thread forming screw, 4 x 15 mm, Pan washer head	10

Every item is picked from our regular stock, so you can top up any size from its own product page.

Hole Design Guide

Screw	Blind hole diameter	Blind hole depth
3 x 8 mm	about 1.8 mm	about 12 mm
3 x 15 mm	about 1.8 mm	about 22 mm
4 x 10 mm	about 2.5 mm	about 15 mm
4 x 15 mm	about 2.5 mm	about 22 mm

For pan washer head screws, add a small chamfer to the top of the hole for an easier start and to leave room for displaced material.

Frequently Asked Questions

Thread forming screws or heat set inserts?

Thread forming screws are faster for parts you assemble once. For joints you will open and close often, heat set inserts give a stronger, reusable metal thread.

Can I buy more of one size?

Yes. Every size is available individually or in packs of 100 from our thread forming screw listing.
